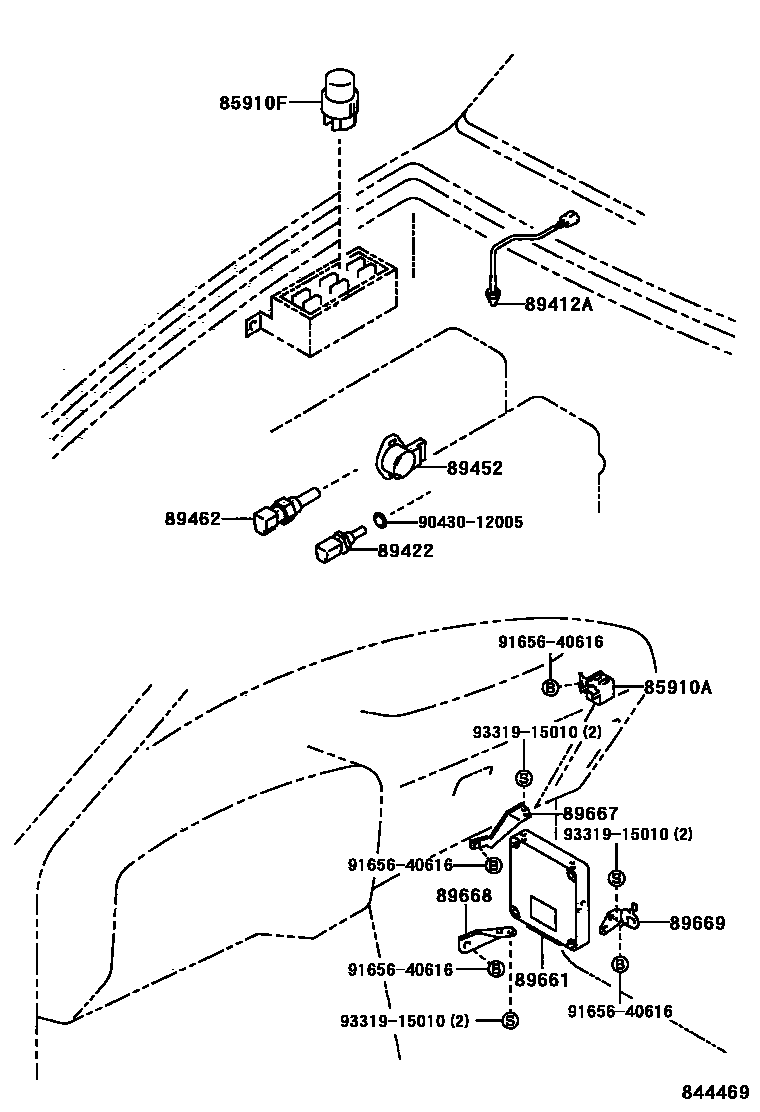

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-35010iRN85..EFI199401-199909

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iRN85..EFI199401-199909

main90987-02012iRZN200200106

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-34010iRN85..EFI199401-199909

DENSO

main89412-50010iRN85..EFI199401-199909

MATSUSHITA

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iRN85..EFI199401-199909

main89422-35010iRZN200200106

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iRN85..EFI199401-199909

main89452-35020iRZN200200106-200412

89462SWITCH, START INJECTOR TIME

main89462-20040iRN85..EFI199401-199909

89661COMPUTER, ENGINE CONTROL

main89661-3D060iRN85..EFI..CBU199401-199909

main89661-3D530iRN85..EFI..IV3199709-199909

main89666-35210iRZN200200106

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35030iRN85..EFI199401-199909

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35030iRN85..EFI..CBU199401-199909

main89668-35040iRN85..EFI..IV3199709-199909

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35030iRN85..EFI199401-199909

9043012005

main90430-12005

9165640616

main91656-40616

9331915010

main93319-15010

13 parts on this diagram · 2 diagrams in section
