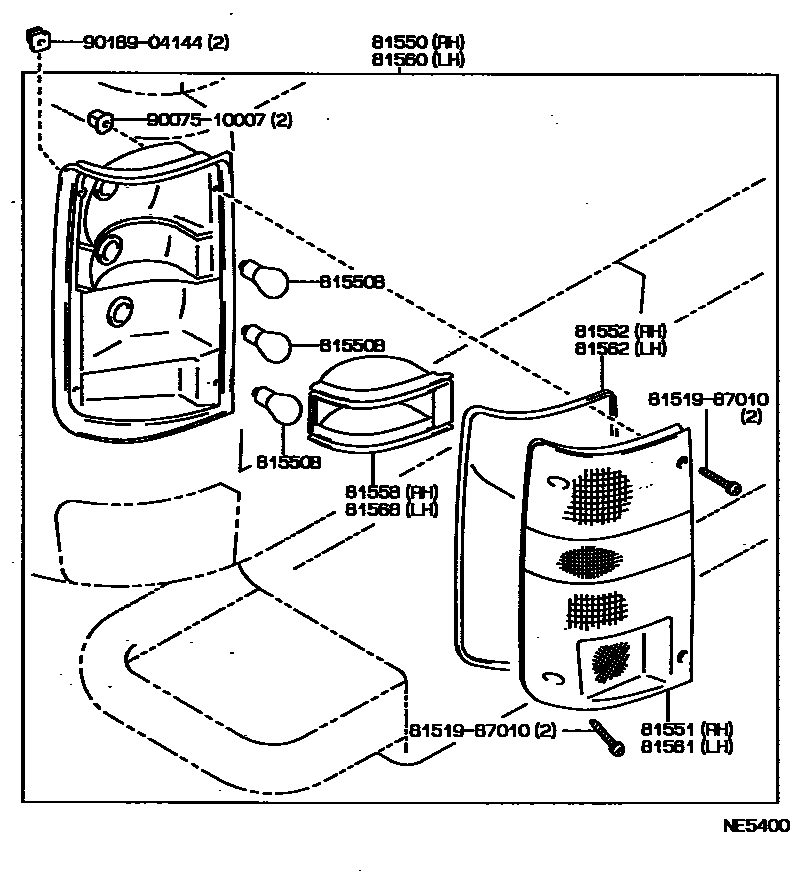

REAR COMBINATION LAMP

0001 1COSTA RICA, FIJI, MALTA SPEC 0002 1 0003 1TYPE 1,BACK UP LAMP SEPARATEL0004 1TYPE 2,BACK UP LAMP INCLUDE

81550LAMP ASSY, REAR COMBINATION, RH

main81550-35060iLN85,86,RN85,YN85..ARL..IV3199008-199408

sub81550-35061

main81550-35061iLN86,RN85,YN85..ARL..IV3199408-199708

main81550-35080iRN125199108-199308

TYPE 2

sub81550-35081

main81550-35100iLN86,RN85,90,YN85..ARL..CBU199108-199408

sub81550-35101

main81550-35101iRN90,YN86..ARL,GEN;LN86,RN85,YN85..ARL..CBU199408-199708

main81550-35101iRN85..SR5..GEN199512-199708

CHINA SPEC

main81550-89139iLN85,RN85,YN85..ARL..IV3198808-199008

main81550-89152iLN85,90,RN85,YN85,87,92..GEN..IV3198808-199909

main81550-89163iYN86..V;LN8#,9#,RN8#,90,YN80,81,85,87,9#..(GEN,TH,V)..CBU199008-200106

main81550-89163iLN85,90,YN85,92..GEN..IV3198808-199108

COSTARICA & FIJI SPEC

main81550-89163iLN85,YN85,92..LHD..IV3199008-199708

COSTA RICA & FIJI SPEC

main81550-89163iLN85..TW1..IV3199008-199708

MALTA SPEC

main81550-89163iLN85..RHD..T1..GEN..IV3199010-199812

COSTARICA & FIJI SPEC OR MALTA SPEC

main81550-89164iLN85,RN85,90,YN85..ARL..CBU199008-199108

sub81550-35100

main81550-89167iRN125198907-199108

TYPE 1

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLN85,90,YN85,92..GEN..IV3198808-199708

12V 21W,COSTARICA & FIJI SPEC

main99132-11210iLN85..RHD..GEN..IV3199008-199708

12V 21W,MALTA SPEC

main99132-11210iRN85;YN85..RHD;LN85..ARL..IV3;YN85..LHD..CBU;LN8#,90,RN80,90,YN80,81,86,87,92..CBU198808-200106

12V 21W

main99132-11210iLN85..RHD..T1..GEN..IV3199010-199812

12V 21W,COSTARICA & FIJI SPEC OR MALTA SPEC

main99132-11230iLN85,90,RN85,YN85,87,92..GEN..IV3198808-199909

12V 23W

main99132-21210iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLN85,90,RN85,YN85,87,92..GEN..IV3198808-199909

main81551-26040iLN85,86,RN85,YN85..ARL..IV3198808-199408

sub81551-60180

main81551-35061iLN86,RN85,YN85..ARL..IV3199408-199708

main81551-35080iRN125199108-199308

sub81551-35081

main81551-35100iLN86,RN85,90,YN85..ARL..CBU199108-199408

sub81551-35101

main81551-35101iRN85..SR5..GEN199512-199708

CHINA SPEC

main81551-35101iRN90,YN86..ARL,GEN;LN86,RN85,YN85..ARL..CBU199408-199708

main81551-89163iLN85..RHD..T1..GEN..IV3199010-199812

COSTARICA & FIJI SPEC OR MALTA SPEC

main81551-89163iLN8#,90,RN8#,90,YN8#,92..CBU198808-199108

COSTARICA & FIJI SPEC

main81551-89163iLN85..RHD..GEN..IV3199008-199708

MALTA SPEC

main81551-89163iLN85,YN85,92..LHD..IV3199008-199708

COSTA RICA & FIJI SPEC

main81551-89163iYN86..V;LN8#,9#,RN8#,90,YN80,81,85,87,9#..(GEN,TH,V)..CBU199008-200106

main81551-89164iLN85,RN85,90,YN85..ARL..CBU199008-199108

sub81551-35100

main81551-89167iRN125198907-199108

TYPE 1

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-25060iLN85,90,RN85,YN85,87,92..GEN..IV3198808-199909

main81552-26040iLN85,86,RN85,YN85..ARL..IV3198808-199708

main81552-89163iLN85..TW1..IV3199008-199708

MALTA SPEC

main81552-89163iLN8#,9#,RN8#,90,YN8#,9#..CBU198808-200106

main81552-89163iLN85..RHD..T1..GEN..IV3199010-199812

COSTARICA & FIJI SPEC OR MALTA SPEC

main81552-89163iLN85,90,YN85,92..GEN..IV3198808-199708

COSTARICA & FIJI SPEC

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLN85,90,RN85,YN85,87,92..GEN..IV3198808-199909

main81557-26040iLN85,86,RN85,YN85..ARL..IV3198808-199708

main81557-89163iLN85,90,YN85,92..LHD..IV3198808-199708

COSTARICA & FIJI SPEC

main81557-89163iLN85..RHD..GEN..IV3199008-199708

MALTA SPEC

main81557-89163iLN85..RHD..T1..GEN..IV3199010-199812

COSTARICA & FIJI SPEC OR MALTA SPEC

main81557-89163iLN8#,9#,RN8#,90,YN8#,9#..CBU198808-200106

81560LAMP ASSY, REAR COMBINATION, LH

main81560-35060iLN85,86,RN85,YN85..ARL..IV3199008-199408

sub81560-35061

main81560-35061iLN86,RN85,YN85..ARL..IV3199408-199708

main81560-35080iRN125199108-199308

sub81560-35081

main81560-35100iLN86,RN85,90,YN85..ARL..CBU199108-199408

sub81560-35101

main81560-35101iRN85..SR5..GEN199512-199708

CHINA SPEC

main81560-35101iRN90,YN86..ARL,GEN;LN86,RN85,YN85..ARL..CBU199408-199708

main81560-89139iLN85,RN85,YN85..ARL..IV3198808-199008

main81560-89152iLN85,90,RN85,YN85,87,92..GEN..IV3198808-199909

main81560-89163iLN90..IV3198808-199108

COSTARICA & FIJI SPEC

main81560-89163iLN85..RHD..T1..GEN..IV3199010-199812

COSTARICA & FIJI SPEC OR MALTA SPEC

main81560-89163iYN86..V;LN8#,9#,RN8#,90,YN80,81,85,87,9#..(GEN,TH,V)..CBU199008-200106

main81560-89163iLN85..RHD..GEN..IV3199008-199708

MALTA SPEC

main81560-89163iLN85,YN85,92..LHD..IV3199008-199708

COSTA RICA & FIJI SPEC

main81560-89164iLN85,RN85,90,YN85..ARL..CBU199008-199108

sub81560-35100

main81560-89167iRN125198907-199108

TYPE 1

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLN85,90,RN85,YN85,87,92..GEN..IV3198808-199909

main81561-26040iLN85,86,RN85,YN85..ARL..IV3198808-199408

sub81561-60080

main81561-35061iLN86,RN85,YN85..ARL..IV3199408-199708

main81561-35080iRN125199108-199308

sub81561-35081

main81561-35100iLN86,RN85,90,YN85..ARL..CBU199108-199408

sub81561-35101

main81561-35101iRN85..SR5..GEN199512-199708

CHINA SPEC

main81561-35101iRN90,YN86..ARL,GEN;LN86,RN85,YN85..ARL..CBU199408-199708

main81561-89163iLN8#,90,RN8#,90,YN8#,92..CBU198808-199108

COSTARICA & FIJI SPEC

main81561-89163iLN85..RHD..GEN..IV3199008-199708

MALTA SPEC

main81561-89163iLN85,YN85,92..LHD..IV3199008-199708

COSTA RICA & FIJI SPEC

main81561-89163iYN86..V;LN8#,9#,RN8#,90,YN80,81,85,87,9#..(GEN,TH,V)..CBU199008-200106

main81561-89163iLN85..RHD..T1..GEN..IV3199010-199812

COSTARICA & FIJI SPEC OR MALTA SPEC

main81561-89164iLN85,RN85,90,YN85..ARL..CBU199008-199108

sub81561-35100

main81561-89167iRN125198907-199108

TYPE 1

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-89163iLN85,90,YN85,92..GEN..IV3198808-199708

COSTARICA & FIJI SPEC

main81552-89163iLN85..RHD..GEN..IV3199008-199708

MALTA SPEC

main81552-89163iLN85..RHD..T1..GEN..IV3199010-199812

COSTARICA & FIJI SPEC OR MALTA SPEC

main81552-89163iLN8#,9#,RN8#,90,YN8#,9#..CBU198808-200106

main81562-25040iLN85,90,RN85,YN85,87,92..GEN..IV3198808-199909

main81562-26040iLN85,86,RN85,YN85..ARL..IV3198808-199708

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLN85,90,RN85,YN85,87,92..GEN..IV3198808-199909

main81557-26040iLN85,86,RN85,YN85..ARL..IV3198808-199708

main81567-89163iLN85,90,YN85,92..LHD..IV3198808-199708

COSTARICA & FIJI SPEC

main81567-89163iLN85..TW1..IV3199008-199708

MALTA SPEC

main81567-89163iLN85..RHD..T1..GEN..IV3199010-199812

COSTARICA & FIJI SPEC OR MALTA SPEC

main81567-89163iLN8#,9#,RN8#,90,YN8#,9#..CBU198808-200106

8151987010BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-87010

9007510007

main90075-10007

9018904144

main90189-04144

12 parts on this diagram · 4 diagrams in section
