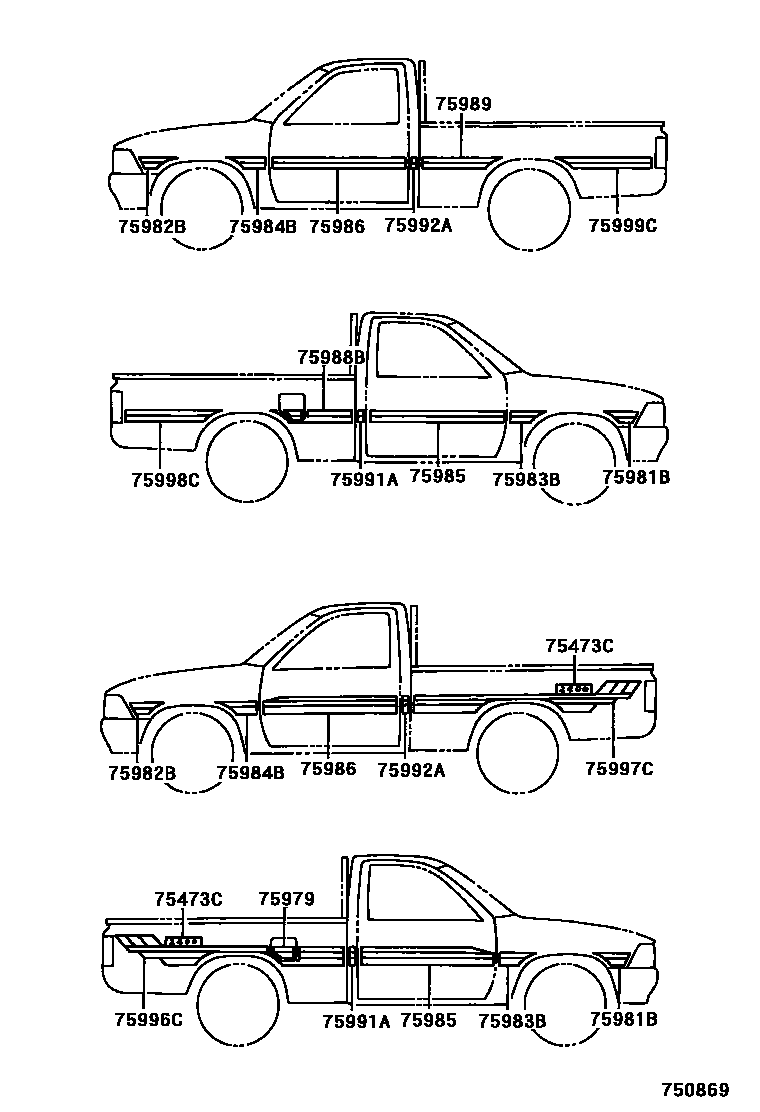

BODY STRIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

75473CPLATE, BODY SIDE NAME

main75473-35100iRN8#..V199008-199108

main75473-35120iRN8#,90..V199208-199508

main75473-35130iRN8#,90..V199308-199408

sub75473-35120

main75473-35140iRN8#,90..V199508-199608

main75473-35150iRN8#,90..V199608-199708

main75473-35170iRN8#..V199610-199708

LIMITED EDITION(G.C.C)

main75473-89119iRN8#..V198808-198908

main75473-89120iRN8#..V198908-199008

75979STRIPE, FUEL FILLER OPENING LID

main75979-35010iLN86,RN85,YN86..T1..V199008-199108

main75979-35020iLN86,RN85,YN86..T1..V199008-199108

W(FUEL LID OPENER)

main75979-35030iLN81,RN80,YN81199008-199108

main75979-35040iLN81,RN80,YN81199008-199108

W(FUEL LID OPENER)

main75979-35050iLN81,RN80,YN81199108-199208

W(FUEL LID OPENER)

main75979-35060iLN81,RN80,YN81199108-199208

main75979-35070iLN86,RN85,YN86..T1..V199108-199208

W(FUEL LID OPENER)

main75979-35080iLN86,RN85,YN86..T1..V199108-199208

main75979-35090iLN81,86,RN8#,YN81,86..T1..V199208-199708

W(FUEL LID OPENER)

main75979-35100iLN81,86,RN8#,YN81,86..T1..V199208-199708

main75979-35110iRN90..V199208-199708

W(FUEL LID OPENER)

main75979-35120iRN90..V199208-199708

main75979-89108iYN86..T1198808-198908

main75979-89109iYN86..T1198904-198908

W(FUEL LID OPENER)

main75979-89110iRN80,YN81198808-198908

main75979-89111iRN80,YN81198904-198908

W(FUEL LID OPENER)

main75979-89112iYN86..T1198908-199008

main75979-89113iYN86..T1198908-199008

W(FUEL LID OPENER)

main75979-89114iRN80,YN81198908-199008

main75979-89115iRN80,YN81198908-199008

W(FUEL LID OPENER)

75981STRIPE, FRONT FENDER, RH NO.1

main75981-35030iRN125199108-199308

main75981-35100iRN8#,YN86..(DLX,SR5)..V199510-199601

LIMITED VERSION FOR GCC

main75981-35120iRN85..SR5..GEN;RN85..EFI..CBU;LN80,85,86,YN80,85..GEN..CBU199408-200106

main75981-35130iRN85..SR5..GEN199512-199708

CHINA SPEC

main75981-35130iRN90,YN86,92..ARL,GEN;LN86,RN85,YN85..ARL..CBU199408-199708

main75981-35180iLN81,86,RN8#,90,YN81,86..V199408-199508

main75981-35190iLN81,86,RN8#,90,YN81,86..V199508-199608

main75981-35200iLN81,86,RN8#,90,YN81,86..V199608-199708

main75981-35200iLN85..4F199805-199909

PAKISTAN SPEC

main75981-35210iRN8#,YN86..(DLX,SR5)..V199605-199607

LIMITED VERSION FOR GCC

main75981-35270iRN8#,YN86..(DLX,SR5)..V199610-199708

LIMITED EDITION(G.C.C)

75981BSTRIPE, FENDER, RH

main75981-35020iLN81,86,RN8#,YN81,86..V199008-199108

main75981-35050iRN85..EFI;RN85..ARL..CBU;LN80,85,86,RN90,YN80,85,92..(ARL,GEN)..CBU199108-199408

main75981-35060iLN81,86,RN8#,YN81,86..V199108-199208

main75981-35090iLN81,86,RN8#,90,YN81,86..V199208-199308

main75981-35110iLN81,86,RN8#,90,YN81,86..V199308-199408

main75981-89117iLN80,85,90,RN85,90,YN80,85,87,92..(ARL,GEN)..CBU198808-199108

main75981-89118iRN8#,YN81,86..V198808-198908

main75981-89122iRN8#,YN81,86..V198908-199008

75982STRIPE, FRONT FENDER, LH NO.1

main75982-35030iRN125199108-199308

main75982-35070iRN8#,YN86..(DLX,SR5)..V199510-199601

LIMITED VERSION FOR GCC

main75982-35110iLN81,86,RN8#,90,YN81,86..V199608-199708

main75982-35110iLN85..4F199805-199909

PAKISTAN SPEC

main75982-35120iRN85..SR5..GEN;RN85..EFI..CBU;LN80,85,86,YN80,85..GEN..CBU199408-200106

main75982-35130iRN85..SR5..GEN199512-199708

CHINA SPEC

main75982-35130iRN90,YN86,92..ARL,GEN;LN86,RN85,YN85..ARL..CBU199408-199708

main75982-35180iLN81,86,RN8#,90,YN81,86..V199408-199508

main75982-35190iLN81,86,RN8#,90,YN81,86..V199508-199608

main75982-35200iRN8#,YN86..(DLX,SR5)..V199605-199607

LIMITED VERSION FOR GCC

main75982-35260iRN8#,YN86..(DLX,SR5)..V199610-199708

LIMITED EDITION(G.C.C)

75982BSTRIPE, FENDER, LH

main75982-35020iLN81,86,RN8#,YN81,86..V199008-199108

main75982-35050iRN85..EFI;RN85..ARL..CBU;LN80,85,86,RN90,YN80,85,92..(ARL,GEN)..CBU199108-199408

main75982-35060iLN81,86,RN8#,YN81,86..V199108-199208

main75982-35090iLN81,86,RN8#,90,YN81,86..V199208-199308

main75982-35100iLN81,86,RN8#,90,YN81,86..V199308-199408

main75982-89116iLN80,85,90,RN85,90,YN80,85,87,92..(ARL,GEN)..CBU198808-199108

main75982-89117iRN8#,YN81,86..V198808-198908

main75982-89121iRN8#,YN81,86..V198908-199008

75983BSTRIPE, FRONT FENDER, REAR RH

main75983-35010iRN85..EFI;RN85..ARL..CBU;LN80,85,86,RN90,YN80,85,92..(ARL,GEN)..CBU199108-199408

main75983-35020iLN81,86,RN8#,YN81,86..V199108-199208

main75983-89103iLN80,85,90,RN85,90,YN80,85,87,92..(ARL,GEN)..CBU198808-199108

main75983-89104iRN8#,YN81,86..V198808-198908

main75983-89106iRN8#,YN81,86..V198908-199008

75984BSTRIPE, FRONT FENDER, REAR LH

main75984-35010iRN85..EFI;RN85..ARL..CBU;LN80,85,86,RN90,YN80,85,92..(ARL,GEN)..CBU199108-199408

main75984-35020iLN81,86,RN8#,YN81,86..V199108-199208

main75984-89103iLN80,85,90,RN85,90,YN80,85,87,92..(ARL,GEN)..CBU198808-199108

main75984-89104iRN8#,YN81,86..V198808-198908

main75984-89106iRN8#,YN81,86..V198908-199008

75985STRIPE, FRONT DOOR, RH

main75975-35140iRN8#,YN86..T1..(DLX,SR5)199510-199601

LIMITED VERSION FOR GCC

main75975-35150iRN85,YN86..TW1..(DLX,SR5)..V199510-199601

LIMITED VERSION FOR GCC

main75975-35160iRN85..STD..ARL..CBU;YN85,86..T1..(ARL,GEN)..CBU;LN85,86,RN85..T1..(DSL,EFI)..(ARL,GEN)..CBU199408-200106

main75975-35170iRN85..DLX..ARL;RN85..TW1..EFI;LN85,86,YN85,86..TW1..(ARL,GEN)..CBU199408-200106

main75975-35170iRN85..SR5..GEN199512-199708

W(SIDE STRIPE)

main75975-35200iLN81,86,RN8#,90,YN81,86..T1..V199408-199508

main75975-35210iLN86,RN85,YN86..TW1..V199408-199508

main75975-35220iLN81,86,RN8#,90,YN81,86..T1..V199508-199608

main75975-35230iLN86,RN85,YN86..TW1..V199508-199608

main75975-35240iLN81,86,RN8#,90,YN81,86..T1..V199608-199708

main75975-35240iLN85..4F199805-199909

PAKISTAN SPEC

main75975-35250iRN8#,YN86..T1..(DLX,SR5)199605-199607

LIMITED VERSION FOR GCC

main75975-35260iLN86,RN85,YN86..TW1..V199608-199708

sub75975-35240

main75975-35280iRN8#,YN86..T1..(DLX,SR5)199610-199708

LIMITED EDITION(G.C.C)

main75975-35290iRN85,YN86..TW1..(DLX,SR5)..V199605-199607

LIMITED VERSION FOR GCC

main75975-35320iRN85,YN86..TW1..(DLX,SR5)..V199610-199708

LIMITED EDITION(G.C.C)

main75985-35040iLN81,86,RN8#,YN81,86..V199008-199108

main75985-35200iRN85..T1..EFI;RN85..STD..ARL..CBU;LN80,85,86,RN90,YN80,85,92..T1..(ARL,GEN)..CBU199108-199408

main75985-35210iRN85..DLX..ARL;YN85..TW1..CBU;LN85,86,RN85..TW1..(DSL,EFI)..(ARL,GEN)..CBU199108-199408

main75985-35220iLN81,86,RN8#,YN81,86..V199108-199208

main75985-35260iLN81,86,RN8#,90,YN81,86..T1..V199208-199308

main75985-35270iLN86,RN85,YN86..TW1..V199208-199308

main75985-35440iLN81,86,RN8#,90,YN81,86..T1..V199308-199408

main75985-35460iLN86,RN85,YN86..TW1..V199308-199408

main75985-89180iLN85,RN85,YN85,87..TW1..(ARL,GEN)..CBU198808-199108

main75985-89181iLN80,85,90,RN85,90,YN80,85,87,92..T1..(ARL,GEN)..CBU198808-199108

main75985-89182iRN80,YN81,86..T1198808-198908

main75985-89183iRN85,YN86..TW1..V198808-198908

main75985-89189iRN80,YN81,86..T1198908-199008

main75985-89190iRN85,YN86..TW1..V198908-199008

75986STRIPE, FRONT DOOR, LH

main75976-35010iRN8#,YN86..T1..(DLX,SR5)199510-199601

LIMITED VERSION FOR GCC

main75976-35160iRN85..STD..ARL..CBU;YN85,86..T1..(ARL,GEN)..CBU;LN85,86,RN85..T1..(DSL,EFI)..(ARL,GEN)..CBU199408-200106

main75976-35170iRN85..TW1..EFI;RN85..(DLX,SR5)..(ARL,GEN);LN85,86,YN85..TW1..(ARL,GEN)..CBU199408-200106

main75976-35170iRN85..SR5..GEN199512-199708

W(SIDE STRIPE)

main75976-35200iLN81,86,RN8#,90,YN81,86..T1..V199408-199508

main75976-35210iLN86,RN85,YN86..TW1..V199408-199508

main75976-35220iLN81,86,RN8#,90,YN81,86..T1..V199508-199608

main75976-35230iLN86,RN85,YN86..TW1..V199508-199608

main75976-35240iRN85,YN86..TW1..(DLX,SR5)..V199510-199601

LIMITED VERSION FOR GCC

main75976-35250iLN85..4F199805-199909

PAKISTAN SPEC

main75976-35250iLN81,86,RN8#,90,YN81,86..T1..V199608-199708

main75976-35260iRN8#,YN86..T1..(DLX,SR5)199605-199607

LIMITED VERSION FOR GCC

main75976-35270iLN86,RN85,YN86..TW1..V199608-199708

sub75976-35250

main75976-35290iRN8#,YN86..T1..(DLX,SR5)199610-199708

LIMITED EDITION(G.C.C)

main75976-35300iRN85,YN86..TW1..(DLX,SR5)..V199605-199607

LIMITED VERSION FOR GCC

main75976-35330iRN85,YN86..TW1..(DLX,SR5)..V199610-199708

LIMITED EDITION(G.C.C)

main75976-89103-02iRN125199008-199108

RED,045 ,3H4 ,3H7 ,4J8

main75976-89103-02iRN125198907-199008

RED,045 ,3H4 ,3H7 ,4J8 ,4K4

main75976-89103-03iRN125199001-199008

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

main75976-89103-03iRN125199008-199108

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

main75976-89103-03iRN125198907-199001

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E2 ,8E3

main75986-35040iLN81,86,RN8#,YN81,86..V199008-199108

main75986-35200iRN85..T1..EFI;RN85..STD..ARL..CBU;LN80,85,86,RN90,YN80,85,92..T1..(ARL,GEN)..CBU199108-199408

main75986-35210iRN85..DLX..ARL;YN85..TW1..CBU;LN85,86,RN85..TW1..(DSL,EFI)..(ARL,GEN)..CBU199108-199408

main75986-35220iLN81,86,RN8#,YN81,86..V199108-199208

main75986-35260iLN81,86,RN8#,90,YN81,86..T1..V199208-199308

main75986-35270iLN86,RN85,YN86..TW1..V199208-199308

main75986-35430iLN81,86,RN8#,90,YN81,86..T1..V199308-199408

main75986-35450iLN86,RN85,YN86..TW1..V199308-199408

main75986-89178iLN85,RN85,YN85,87..TW1..(ARL,GEN)..CBU198808-199108

main75986-89179iLN80,85,90,RN85,90,YN80,85,87,92..T1..(ARL,GEN)..CBU198808-199108

main75986-89180iRN80,YN81,86..T1198808-198908

main75986-89181iRN85,YN86..TW1..V198808-198908

main75986-89187iRN80,YN81,86..T1198908-199008

main75986-89188iRN85,YN86..TW1..V198908-199008

75988BSTRIPE, REAR DECK, FRONT RH

main75988-89131iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199108

main75988-89132iLN85,RN85,YN85,87..T1..(ARL,GEN)..CBU198808-199108

main75988-89133iLN80,YN80..GEN198808-199108

75989STRIPE, REAR DECK, FRONT LH

main75989-89130iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199108

main75989-89131iLN85,RN85,YN85,87..T1..(ARL,GEN)..CBU198808-199108

main75989-89132iLN80,YN80..GEN198808-199108

75991ASTRIPE, QUARTER, RH

main75991-35010iLN86,RN85,YN86..T1..V199008-199108

main75991-35020iLN86,RN85,YN86..TW1..V199008-199108

main75991-35030iLN81,RN80,YN81199008-199108

sub75991-35010

main75991-35080iRN85..T1..EFI;RN85..STD..ARL..CBU;LN80,85,86,YN80,85..T1..(ARL,GEN)..CBU199108-199408

main75991-35090iRN90,YN92..(ARL,GEN)..CBU199108-199408

sub75992-35090

main75991-35100iRN85..DLX..ARL;YN85..TW1..CBU;LN85,86,RN85..TW1..(DSL,EFI)..(ARL,GEN)..CBU199108-199408

main75991-35110iLN81,86,RN8#,YN81,86..T1..V199108-199208

main75991-35120iLN86,RN85,YN86..TW1..V199108-199208

main75991-35130iLN81,86,RN8#,YN81,86..T1..V199208-199308

main75991-35140iRN90..V199208-199308

main75991-35150iLN86,RN85,YN86..TW1..V199208-199308

main75991-35180iLN81,86,RN8#,YN81,86..T1..V199508-199608

main75991-35190iRN90..V199508-199608

main75991-35200iLN86,RN85,YN86..TW1..V199508-199608

main75991-35210iLN81,86,RN8#,YN81,86..T1..V199308-199408

main75991-35220iRN90..V199308-199408

main75991-35230iLN86,RN85,YN86..TW1..V199308-199408

main75991-35240iRN85..T1..EFI..CBU;RN85..STD..ARL..CBU;LN80,85,86,YN80,85,86..T1..(ARL,GEN)..CBU199408-200106

main75991-35250iRN90,YN92..ARL,GEN199408-199708

main75991-35260iRN85..TW1..EFI;RN85..(DLX,SR5)..(ARL,GEN);LN85,86,YN85..TW1..(ARL,GEN)..CBU199408-200106

main75991-35260iRN85..SR5..GEN199512-199708

W(SIDE STRIPE)

main75991-35300iLN81,86,RN8#,YN81,86..T1..V199408-199508

main75991-35310iRN90..V199408-199508

main75991-35320iLN86,RN85,YN86..TW1..V199408-199508

main75991-35330iRN8#,YN86..T1..(DLX,SR5)199510-199601

LIMITED VERSION FOR GCC

main75991-35340iRN85,YN86..TW1..(DLX,SR5)..V199510-199601

LIMITED VERSION FOR GCC

main75991-35350iLN81,86,RN8#,YN81,86..T1..V199608-199708

main75991-35350iLN85..4F199805-199909

PAKISTAN SPEC

main75991-35360iRN90..V199608-199708

main75991-35370iLN86,RN85,YN86..TW1..V199608-199708

main75991-35380iRN8#,YN86..T1..(DLX,SR5)199605-199607

LIMITED VERSION FOR GCC

main75991-35410iRN85,YN86..TW1..(DLX,SR5)..V199605-199607

LIMITED VERSION FOR GCC

main75991-35430iRN8#,YN86..T1..(DLX,SR5)199610-199708

LIMITED EDITION(G.C.C)

main75991-35470iRN85,YN86..TW1..(DLX,SR5)..V199610-199708

LIMITED EDITION(G.C.C)

main75991-89104iLN80,85,RN85,YN80,85,87..T1..(ARL,GEN)..CBU198808-199108

main75991-89105iLN85,RN85,YN85,87..TW1..(ARL,GEN)..CBU198808-199108

main75991-89106iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199108

main75991-89107iRN85,YN86..TW1..V198808-198908

main75991-89112iRN80,YN81,86..T1198808-198908

main75991-89115iRN80,YN81,86..T1198908-199008

main75991-89116iRN85,YN86..TW1..V198908-199008

75992ASTRIPE, QUARTER, LH

main75992-35010iLN86,RN85,YN86..T1..V199008-199108

main75992-35020iLN86,RN85,YN86..TW1..V199008-199108

main75992-35030iLN81,RN80,YN81199008-199108

sub75992-35010

main75992-35080iRN85..T1..EFI;RN85..STD..ARL..CBU;LN80,85,86,YN80,85..T1..(ARL,GEN)..CBU199108-199408

main75992-35090iRN90,YN92..(ARL,GEN)..CBU199108-199408

main75992-35100iRN85..DLX..ARL;YN85..TW1..CBU;LN85,86,RN85..TW1..(DSL,EFI)..(ARL,GEN)..CBU199108-199408

main75992-35110iLN81,86,RN8#,YN81,86..T1..V199108-199208

main75992-35120iLN86,RN85,YN86..TW1..V199108-199208

main75992-35130iLN81,86,RN8#,YN81,86..T1..V199208-199308

main75992-35140iRN90..V199208-199308

main75992-35150iLN86,RN85,YN86..TW1..V199208-199308

main75992-35180iLN81,86,RN8#,YN81,86..T1..V199508-199608

main75992-35190iRN90..V199508-199608

main75992-35200iLN86,RN85,YN86..TW1..V199508-199608

main75992-35210iLN81,86,RN8#,YN81,86..T1..V199308-199408

main75992-35220iRN90..V199308-199408

main75992-35230iLN86,RN85,YN86..TW1..V199308-199408

main75992-35240iRN85..T1..EFI..CBU;RN85..STD..ARL..CBU;LN80,85,86,YN80,85,86..T1..(ARL,GEN)..CBU199408-200106

main75992-35250iRN90,YN92..ARL,GEN199408-199708

main75992-35260iRN85..TW1..EFI;RN85..(DLX,SR5)..(ARL,GEN);LN85,86,YN85..TW1..(ARL,GEN)..CBU199408-200106

main75992-35260iRN85..SR5..GEN199512-199708

W(SIDE STRIPE)

main75992-35300iLN81,86,RN8#,YN81,86..T1..V199408-199508

main75992-35310iRN90..V199408-199508

main75992-35320iLN86,RN85,YN86..TW1..V199408-199508

main75992-35330iRN8#,YN86..T1..(DLX,SR5)199510-199601

LIMITED VERSION FOR GCC

main75992-35340iRN85,YN86..TW1..(DLX,SR5)..V199510-199601

LIMITED VERSION FOR GCC

main75992-35350iLN81,86,RN8#,YN81,86..T1..V199608-199708

main75992-35350iLN85..4F199805-199909

PAKISTAN SPEC

main75992-35360iRN90..V199608-199708

main75992-35370iLN86,RN85,YN86..TW1..V199608-199708

main75992-35380iRN8#,YN86..T1..(DLX,SR5)199605-199607

LIMITED VERSION FOR GCC

main75992-35410iRN85,YN86..TW1..(DLX,SR5)..V199605-199607

LIMITED VERSION FOR GCC

main75992-35480iRN8#,YN86..T1..(DLX,SR5)199610-199708

LIMITED EDITION(G.C.C)

main75992-35490iRN85,YN86..TW1..(DLX,SR5)..V199610-199708

LIMITED EDITION(G.C.C)

main75992-89104iLN80,85,RN85,YN80,85,87..T1..(ARL,GEN)..CBU198808-199108

main75992-89105iLN85,RN85,YN85,87..TW1..(ARL,GEN)..CBU198808-199108

main75992-89106iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199108

main75992-89107iRN85,YN86..TW1..V198808-198908

main75992-89112iRN80,YN81,86..T1198808-198908

main75992-89115iRN80,YN81,86..T1198908-199008

main75992-89116iRN85,YN86..TW1..V198908-199008

75996CSTRIPE, REAR BODY, RH

main75996-35010iLN86,RN85,YN86..T1..V199208-199304

sub75996-35310

main75996-35020iLN86,RN85,YN86..T1..V199008-199108

main75996-35030iLN81,RN80,YN81199008-199108

main75996-35050iLN86,RN85,YN86..TW1..V199008-199108

main75996-35140iRN90,YN92..(ARL,GEN)..CBU199108-199408

main75996-35180iLN81,RN80,YN81199108-199208

main75996-35190iLN86,RN85,YN86..T1..V199108-199208

main75996-35200iLN80,YN80..GEN199108-199408

main75996-35210iRN85..STD..ARL..CBU;YN85..T1..(ARL,GEN)..CBU;LN85,86,RN85..T1..(DSL,EFI)..(ARL,GEN)..CBU199108-199408

main75996-35220iRN85..STD..ARL..CBU;YN85,86..T1..(ARL,GEN)..CBU;LN85,86,RN85..T1..(DSL,EFI)..(ARL,GEN)..CBU199408-200106

main75996-35230iLN80,RN90,YN80,92..ARL,GEN199408-199708

main75996-35240iLN81,RN80,YN81199208-199304

sub75996-35330

main75996-35270iRN90..V199208-199308

main75996-35370iLN86,RN85,YN86..T1..V199508-199608

main75996-35380iLN81,RN80,YN81199508-199608

main75996-35390iRN90..V199508-199608

main75996-35400iLN86,RN85,YN86..TW1..V199508-199608

main75996-35410iRN85,YN86..T1..(DLX,SR5)199510-199601

LIMITED VERSION FOR GCC

main75996-35420iRN80199510-199601

LIMITED VERSION FOR GCC

main75996-35430iRN85,YN86..TW1..(DLX,SR5)..V199510-199601

LIMITED VERSION FOR GCC

main75996-35440iLN81,RN80,YN81199608-199708

main75996-35450iLN85..4F199805-199909

PAKISTAN SPEC

main75996-35450iLN86,RN85,YN86..T1..V199608-199708

main75996-35460iRN90..V199608-199708

main75996-35470iLN86,RN85,YN86..TW1..V199608-199708

main75996-35480iLN86,RN85,YN86..T1..V199308-199408

W(FUEL LID OPENER)

main75996-35490iLN81,RN80,YN81199308-199408

W(FUEL LID OPENER)

main75996-35510iRN90..V199308-199408

W(FUEL LID OPENER)

main75996-35530iLN86,RN85,YN86..TW1..V199308-199408

main75996-35550iLN86,RN85,YN86..T1..V199308-199408

main75996-35560iLN81,RN80,YN81199308-199408

main75996-35580iRN90..V199308-199408

main75996-35590iRN85,YN86..T1..(DLX,SR5)199605-199607

LIMITED VERSION FOR GCC

main75996-35600iRN85..TW1..EFI;RN85..(DLX,SR5)..(ARL,GEN);LN85,86,YN85,86..TW1..(ARL,GEN)..CBU199408-200106

main75996-35640iLN86,RN85,YN86..T1..V199408-199508

main75996-35650iLN81,RN80,YN81199408-199508

main75996-35660iRN90..V199408-199508

main75996-35670iLN86,RN85,YN86..TW1..V199408-199508

main75996-35690iRN80199605-199607

LIMITED VERSION FOR GCC

main75996-35740iRN85,YN86..T1..(DLX,SR5)199610-199708

LIMITED EDITION(G.C.C)

main75996-35750iRN85,YN86..TW1..(DLX,SR5)..V199605-199607

LIMITED VERSION FOR GCC

main75996-35790iRN80199610-199708

LIMITED EDITION(G.C.C)

main75996-35850iRN85,YN86..TW1..(DLX,SR5)..V199610-199708

LIMITED EDITION(G.C.C)

main75996-3D020iLN81,RN80,YN81199608-199708

W(FUEL LID OPENER)

main75996-3D030iLN85..4F199805-199909

PAKISTAN SPEC & W(FUEL LID OPENER)

main75996-3D030iLN86,RN85,YN86..T1..V199608-199708

W(FUEL LID OPENER)

main75996-3D040iRN90..V199608-199708

W(FUEL LID OPENER)

main75996-3D050iRN85,YN86..T1..(DLX,SR5)199610-199708

LIMITED EDITION(G.C.C) & W(FUEL LID OPNER)

main75996-3D060iRN80199610-199708

LIMITED EDITION(G.C.C) & W(FUEL LID OPENER)

main75996-89173iYN86..T1198808-198908

main75996-89174iRN80,YN81198808-198908

75997CSTRIPE, REAR BODY, LH

main75997-35010iLN86,RN85,YN86..T1..V199208-199308

main75997-35020iLN86,RN85,YN86..T1..V199008-199108

main75997-35030iLN81,RN80,YN81199008-199108

main75997-35050iLN86,RN85,YN86..TW1..V199008-199108

main75997-35140iRN90,YN92..(ARL,GEN)..CBU199108-199408

main75997-35180iLN81,RN80,YN81199108-199208

main75997-35190iLN86,RN85,YN86..T1..V199108-199208

main75997-35200iLN80,YN80..GEN199108-199408

main75997-35210iRN85..STD..ARL..CBU;YN85..T1..(ARL,GEN)..CBU;LN85,86,RN85..T1..(DSL,EFI)..(ARL,GEN)..CBU199108-199408

main75997-35220iRN85..STD..ARL..CBU;YN85,86..T1..(ARL,GEN)..CBU;LN85,86,RN85..T1..(DSL,EFI)..(ARL,GEN)..CBU199408-200106

main75997-35230iLN80,RN90,YN80,92..ARL,GEN199408-199708

sub75997-35220

main75997-35240iLN81,RN80,YN81199208-199308

main75997-35270iRN90..V199208-199308

main75997-35310iRN85,YN86..T1..(DLX,SR5)199510-199601

LIMITED VERSION FOR GCC

main75997-35320iRN80199510-199601

LIMITED VERSION FOR GCC

main75997-35330iRN85,YN86..TW1..(DLX,SR5)..V199510-199601

LIMITED VERSION FOR GCC

main75997-35340iLN81,RN80,YN81199608-199708

main75997-35350iLN85..4F199805-199909

PAKISTAN SPEC

main75997-35350iLN86,RN85,YN86..T1..V199608-199708

main75997-35360iRN90..V199608-199708

main75997-35370iLN86,RN85,YN86..T1..V199508-199608

main75997-35380iLN81,RN80,YN81199508-199608

main75997-35390iRN90..V199508-199608

main75997-35400iLN86,RN85,YN86..TW1..V199508-199608

main75997-35410iLN86,RN85,YN86..TW1..V199608-199708

main75997-35420iLN86,RN85,YN86..T1..V199308-199408

main75997-35430iLN81,RN80,YN81199308-199408

main75997-35450iRN90..V199308-199408

main75997-35470iLN86,RN85,YN86..TW1..V199308-199408

main75997-35490iRN85,YN86..T1..(DLX,SR5)199605-199607

LIMITED VERSION FOR GCC

main75997-35510iRN80199605-199607

LIMITED VERSION FOR GCC

main75997-35560iRN85,YN86..T1..(DLX,SR5)199610-199708

LIMITED EDITION(G.C.C)

main75997-35570iRN85,YN86..TW1..(DLX,SR5)..V199605-199607

LIMITED VERSION FOR GCC

main75997-35600iRN85..TW1..EFI;RN85..(DLX,SR5)..(ARL,GEN);LN85,86,YN85..TW1..(ARL,GEN)..CBU199408-200106

sub75997-35220

main75997-35600iRN85..SR5..GEN199512-199708

W(SIDE STRIPE)

sub75997-35220

main75997-35640iLN86,RN85,YN86..T1..V199408-199508

main75997-35650iLN81,RN80,YN81199408-199508

main75997-35660iRN90..V199408-199508

main75997-35670iLN86,RN85,YN86..TW1..V199408-199508

main75997-35720iRN80199610-199708

LIMITED EDITION(G.C.C)

main75997-35730iRN85,YN86..TW1..(DLX,SR5)..V199610-199708

LIMITED EDITION(G.C.C)

main75997-89157iYN86..T1198808-198908

main75997-89158iRN80,YN81198808-198908

75998CSTRIPE, REAR DECK, REAR RH

main75996-35260iLN86,RN85,YN86..TW1..V199208-199308

main75996-35280iRN90..V199208-199308

main75996-35520iRN90..V199308-199408

main75996-35540iLN86,RN85,YN86..TW1..V199308-199408

main75998-35030iRN85..DLX..ARL;YN85..TW1..CBU;LN85,86,RN85..TW1..(DSL,EFI)..(ARL,GEN)..CBU199108-199408

main75998-35040iLN86,RN85,YN86..TW1..V199108-199208

main75998-35050iRN90,YN92..(ARL,GEN)..CBU199108-199408

main75998-35060iLN80,YN80..GEN199108-199408

main75998-35070iRN85..STD..ARL..CBU;YN85..T1..(ARL,GEN)..CBU;LN85,86,RN85..T1..(DSL,EFI)..(ARL,GEN)..CBU199108-199408

main75998-89125iLN85,RN85,YN85,87..TW1..(ARL,GEN)..CBU198808-199108

main75998-89126iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199108

main75998-89128iRN85,YN86..TW1..V198808-198908

main75998-89130iLN85,RN85,YN85,87..T1..(ARL,GEN)..CBU198808-199108

main75998-89131iLN80,YN80..GEN198808-199108

main75998-89132iYN86..T1198908-199008

main75998-89133iRN80,YN81198908-199008

main75998-89134iRN85,YN86..TW1..V198908-199008

75999CSTRIPE, REAR DECK, REAR LH

main75997-35260iLN86,RN85,YN86..TW1..V199208-199308

main75997-35280iRN90..V199208-199308

main75997-35430iRN80199308-199408

main75997-35460iRN90..V199308-199408

main75997-35480iLN86,RN85,YN86..TW1..V199308-199408

main75999-35030iRN85..DLX..ARL;YN85..TW1..CBU;LN85,86,RN85..TW1..(DSL,EFI)..(ARL,GEN)..CBU199108-199408

main75999-35040iLN86,RN85,YN86..TW1..V199108-199208

main75999-35050iRN90,YN92..(ARL,GEN)..CBU199108-199408

main75999-35060iLN80,YN80..GEN199108-199408

main75999-35070iRN85..STD..ARL..CBU;YN85..T1..(ARL,GEN)..CBU;LN85,86,RN85..T1..(DSL,EFI)..(ARL,GEN)..CBU199108-199408

main75999-89125iLN85,RN85,YN85,87..TW1..(ARL,GEN)..CBU198808-199108

main75999-89126iLN90,RN90,YN92..(ARL,GEN)..CBU198808-199108

main75999-89128iRN85,YN86..TW1..V198808-198908

main75999-89130iLN85,RN85,YN85,87..T1..(ARL,GEN)..CBU198808-199108

main75999-89131iLN80,YN80..GEN198808-199108

main75999-89132iYN86..T1198908-199008

main75999-89133iRN80,YN81198908-199008

main75999-89134iRN85,YN86..TW1..V198908-199008

18 parts on this diagram · 15 diagrams in section
