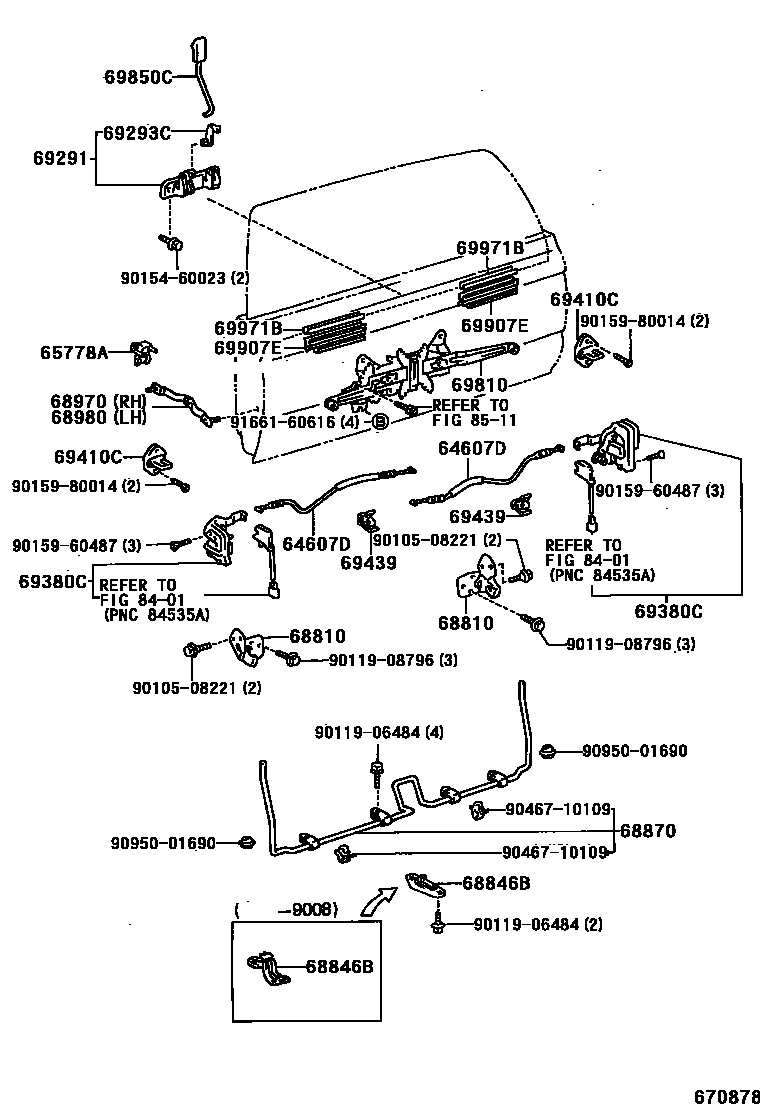

BACK DOOR LOCK & HINGE
64607DCABLE SUB-ASSY, BACK DOOR LOCK CONTROL
RH
LH
65778ASTOPPER, TAIL GATE STAY
68810HINGE ASSY, BACK DOOR, UPPER
RH
LH
68846BGUIDE, BACK DOOR TORSION BAR
68870BAR ASSY, BACK DOOR LOWER TORSION
68970STAY ASSY, BACK DOOR, RH
68980STAY ASSY, BACK DOOR
69291HANDLE ASSY, BACK DOOR INSIDE
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
BLUE,TRIM8#
GRAY,TRIM1#
69293CSNAP, BACK DOOR HANDLE
69380CLOCK ASSY, BACK DOOR, LOWER
RH
RH
LH
LH
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
69439CLAMP, BACK DOOR LOCK CONTROL CABLE
69810REGULATOR SUB-ASSY, DOOR POWER WINDOW, RH
69850CLINK ASSY, BACK DOOR INSIDE LOCKING
GRAY,TRIM1#
BLUE,TRIM8#
BROWN,TRIM4#
BLUE,TRIM8#
GRAY,TRIM1#
69907ECHANNEL SUB-ASSY, BACK DOOR GLASS
69971BFILLER, BACK DOOR GLASS CHANNEL
sub69971-35020
8401
8511
9010508221
main90105-08221
9011906484
main90119-06484
9011908796
main90119-08796
9015460023
main90154-60023
9015960487
main90159-60487
9015980014
main90159-80014
9046710109
main90467-10109
9095001690
main90950-01690
9166160616
main91661-60616
27 parts on this diagram · 1 diagram in section
