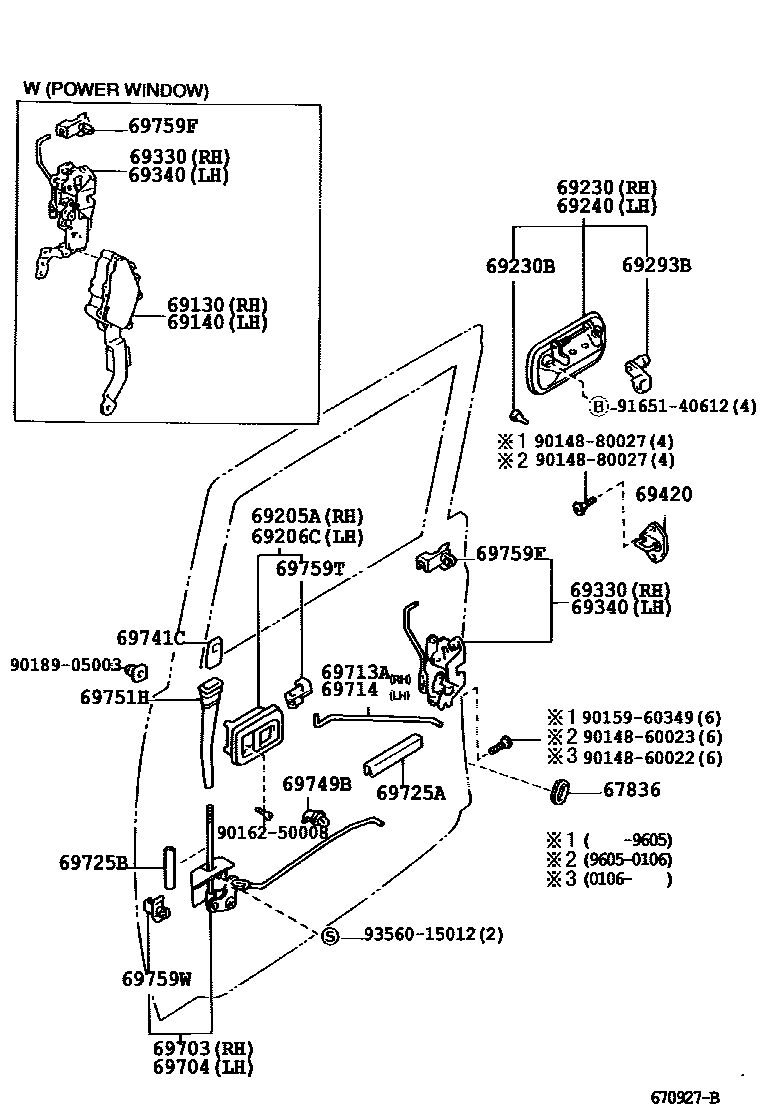

REAR DOOR LOCK & HANDLE

0001 1 0002 1

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iRN125198908-199308

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-35010iRN85..TW1..SR5199108-199708

main69130-35040iLN200..SRV;RZN200..TW1200106

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-35010iRN85..TW1..SR5199108-199708

main69140-35040iLN200..SRV;RZN200..TW1200106

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-89105-02iRN85..TW1..SR5199008-199108

RED,TRIM3#

sub69205-89105

sub69205-89107

main69205-89105-03iLN85,RN85,YN85,86,87..TW1198808-198901

GRAY,TRIM1#

sub69205-89105

sub69205-89107

main69205-89105-04iLN85,RN85,YN85,86,87..TW1198808-198901

BLUE,TRIM8#

sub69205-89105

sub69205-89107

main69205-89105-06iLN85,RN85,YN85,86,87..TW1198808-198901

BROWN,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-B0iLN85,86,RN85,YN85,86,87..TW1198901-199108

MEDIUM GRAY,TRIM1#

sub69205-89105

sub69205-89107

main69205-89105-D0iRN8#,90,YN86..(DLX,SR5)..V199109-199708

RED,TRIM3#

sub69205-89105

sub69205-89107

main69205-89105-E0iLN85,86,RN85,YN85,86,87..TW1198901-199108

BROWN,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-J0iLN81,86,RN8#,90,YN81,86..V198901-199708

MEDIUM BLUE,TRIM8#

sub69205-89105

sub69205-89107

main69205-89105-J0iRN125199108-199308

MEDIUM BLUE,TRIM83

sub69205-89105

sub69205-89107

main69205-89107-03iRN125198907-199108

GRAY,TRIM1#

sub69205-89107

main69205-89107-04iRN125198907-199108

BLUE,TRIM8#

sub69205-89107

main69205-89107-06iRN125198907-199108

BROWN,TRIM4#

sub69205-89107

main69205-89107-B0iLN86..T1199108-200106

GRAY,TRIM1#

sub69205-89107

main69205-89107-J0iRN125199108-199308

BLUE,TRIM8#

sub69205-89107

main69206-89105-B0iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92199108-200105

MEDIUM GRAY,TRIM1#

sub69206-89105

sub69206-89107

main69206-89105-B0iRN125199108-199308

MEDIUM GRAY,TRIM11

sub69206-89105

sub69206-89107

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69205-89105-B0iRN125199108-199308

MEDIUM GRAY,TRIM11

sub69205-89105

sub69205-89107

main69205-89105-B0iRN85..CBU;RN85..RHD..IV3;RN85..EFI..IV3;LN8#,9#,RN80,90,YN8#,92199108-199712

MEDIUM GRAY,TRIM1#

sub69205-89105

sub69205-89107

main69205-89107-B0iLN85,86,RN85..TW1199712-200105

GRAY,TRIM1#

sub69205-89107

main69206-89105-02iRN85..TW1..SR5199008-199108

RED,TRIM3#

sub69206-89105

sub69206-89107

main69206-89105-03iLN85,RN85,YN85,86,87..TW1198808-198901

GRAY,TRIM1#

sub69206-89105

sub69206-89107

main69206-89105-04iLN85,RN85,YN85,86,87..TW1198808-198901

BLUE,TRIM8#

sub69206-89105

sub69206-89107

main69206-89105-06iLN85,RN85,YN85,86,87..TW1198808-198901

BROWN,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-B0iLN85,86,RN85,YN85,86,87..TW1198901-199108

MEDIUM GRAY,TRIM1#

sub69206-89105

sub69206-89107

main69206-89105-D0iRN8#,90,YN86..(DLX,SR5)..V199109-199708

RED,TRIM3#

sub69206-89105

sub69206-89107

main69206-89105-E0iLN85,86,RN85,YN85,86,87..TW1198901-199108

BROWN,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-J0iLN8#,90,RN8#,90,YN8#,9#198901-199708

MEDIUM BLUE,TRIM8#

sub69206-89105

sub69206-89107

main69206-89105-J0iRN125199108-199308

MEDIUM BLUE,TRIM83

sub69206-89105

sub69206-89107

main69206-89107-03iRN125198907-199108

GRAY,TRIM1#

sub69206-89107

main69206-89107-04iRN125198907-199108

BLUE,TRIM8#

sub69206-89107

main69206-89107-06iRN125198907-199108

BROWN,TRIM4#

sub69206-89107

main69206-89107-B0iRN125199108-200106

GRAY,TRIM1#

sub69206-89107

main69206-89107-J0iRN125199108-199308

BLUE,TRIM8#

sub69206-89107

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-89102iLN200,RZN200..TW1..DLX198808-200106

NO PAINT REQ.

main69230-89103iRN85..RHD..TW1;YN86..TW1..GEN;LN85,RN125,YN85..4D,TW1;RN85,YN86..LHD..TW1..(DLX,SR5);LN86,RN85..TW1..(DSL,EFI)..(ARL,GEN)198808-200106

PLATED

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iLN85,86,RN125,85,YN85,86,87..4D,TW1198808-200106

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-89101iLN200,RZN200..TW1..DLX198808-200106

NO PAINT REQ.

main69240-89102iRN85..RHD..TW1;YN86..TW1..GEN;LN85,RN125,YN85..4D,TW1;RN85,YN86..LHD..TW1..(DLX,SR5);LN86,RN85..TW1..(DSL,EFI)..(ARL,GEN)198808-200106

PLATED

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iLN200,RZN200..TW1198808-200106

RH

main69293-12040iLN200,RZN200..TW1198808-200106

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-35020iRN85..TW1..SR5199108-199708

W(POWER WINDOW)

main69330-35040iRN85..RHD..GEN..CBU199404-199812

main69330-35040iLN85..RHD..TW1..CBU199404-199909

NEW ZEALAND SPEC

main69330-35100iLN200,RZN200..TW1..DLX200106

main69330-35110iLN200..SRV;RZN200..TW1200106

W(POWER WINDOW)

main69330-89104iLN85,86,RN85,YN85,86,87..TW1198808-200106

main69330-89105iRN125198907-199308

69340LOCK ASSY, REAR DOOR, LH

main69340-35020iRN85..TW1..SR5199108-199708

W(POWER WINDOW)

main69340-35040iLN86,RN85..RHD..TW1199404-199812

main69340-35040iLN85..RHD..TW1..CBU199404-199909

NEW ZEALAND SPEC

main69340-35100iLN200,RZN200..TW1..DLX200106

main69340-35110iLN200..SRV;RZN200..TW1200106

W(POWER WINDOW)

main69340-89104iLN85,86,RN85,YN85,86,87..TW1198808-200106

main69340-89105iRN125198907-199308

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iLN85,86,RN125,85,YN85,86,87..4D,TW1198808-200106

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-35010iLN200,RZN200..TW1..DLX199108-200106

main69703-35020iRN85,YN86..LHD..TW1..(DLX,SR5)199108-199708

W(POWER WINDOW)

main69703-89104iLN85,86,RN85,YN85,86,87..TW1198808-199108

main69703-89105iRN125198907-199308

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-35010iLN85,86,RN85,YN85,86..TW1199108-200106

main69704-35020iLN200..SRV;RZN200..TW1199108-199708

W(POWER WINDOW)

main69704-89103iLN85,86,RN85,YN85,86,87..TW1198808-199108

main69704-89104iRN125198907-199308

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-89105iLN200,RZN200..TW1198808-200106

main69713-89106iRN125198907-199308

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-89105iLN85,86,RN85,YN85,86,87..TW1198808-200106

main69714-89106iRN125198907-199308

69725APROTECTOR, DOOR INSIDE LOCKING LINK

main69725-89102iLN200,RZN200..TW1198808-200106

69725BPROTECTER, DOOR INSIDE LOCKING LINK

main69725-35010iRN85..SR5..GEN199508-199708

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-89104-02iRN85..TW1..SR5199008-199108

RED,TRIM3#

sub69741-89104

sub69741-12040

main69741-89104-03iRN85,YN86..TW1..(4FC,5F);LN85,86,RN125,YN85,87..4D,TW1199004-199108

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-04iYN85..TW1;LN85,RN85,YN86,87..TW1..(4FC,5F)199004-199108

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-89104-06iLN85,86,RN125,85,YN85,86,87..4D,TW1199004-199108

BROWN,TRIM4#

sub69741-89104

sub69741-12040

main69741-89104-B0iLN85,86,RN125,85,YN85,86..4D,TW1199108-199206

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-B1iLN85,86,RN125,85,YN85,86..4D,TW1199206-200412

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-D3iRN85,YN86..TW1..(DLX,SR5)..V199108-199708

RED,TRIM3#

sub69741-89104

sub69741-12040

main69741-89104-J0iLN85,86,RN125,85,YN85,86..4D,TW1199108-199206

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-89104-J1iLN86,RN85,YN86..TW1..V199206-199708

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-90K00-23iLN85,RN85,YN85,86,87..TW1198808-198901

MEDIUM GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-44iLN85,RN85,YN85,86,87..TW1198808-198901

BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-46iLN85,RN85,YN85,86,87..TW1198808-198901

BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-B1iLN85,RN85,YN85,86,87..TW1198901-199004

MEDIUM GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E1iLN85,RN85,YN85,86,87..TW1198901-199004

BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J1iLN85,RN85,YN85,86,87..TW1198901-199004

MEDIUM BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-89101iLN85,86,RN125,85,YN85,86,87..4D,TW1198808-200106

69751HHOLDER, REAR DOOR LOCK CONTRAL KNOB

main69628-89101-03iRN85,YN86..TW1..STD198808-199004

GRAY,TRIM1#

main69628-89101-04iRN85,YN86..TW1..STD198808-199004

BLUE,TRIM8#

main69628-89101-06iRN85,YN86..TW1..STD198808-199004

BROWN,TRIM4#

main69628-89102-03iLN86,RN85,YN86..TW1..STD..V199004-199109

GRAY,TRIM1#

sub69628-89102

main69628-89102-04iLN86,RN85,YN86..TW1..STD..V199004-199109

BLUE,TRIM8#

sub69628-89102

main69628-89102-06iLN86,RN85,YN86..TW1..STD199004-199108

BROWN,TRIM4#

sub69628-89102

main69628-89102-B0iYN86..TW1..STD..V;LN86,RN85..TW1..(DLX,STD)..V199109-199708

MEDIUM GRAY,TRIM1#

sub69628-89102

main69628-89102-D0iRN85..DLX..V199204-199708

RED,TRIM3#

sub69628-89102

main69628-89102-J0iYN86..TW1..STD..V;LN86,RN85..TW1..(DLX,STD)..V199109-199708

MEDIUM BLUE,TRIM8#

sub69628-89102

main69751-89104-03iLN85,YN85,87..TW1..GEN198808-199108

GRAY,TRIM1#

sub69751-89104

main69751-89104-04iLN85,YN85,87..TW1..GEN198808-199108

BLUE,TRIM8#

sub69751-89104

main69751-89104-06iLN85,YN85,87..TW1..GEN198808-199108

BROWN,TRIM4#

sub69751-89104

main69751-89104-B0iLN85,86,RN85..TW1199108-200106

GRAY,TRIM1#

sub69751-89104

main69751-89104-J0iLN85,RN85,YN85..TW1..GEN199108-199408

BLUE,TRIM8#

sub69751-89104

main69751-89105iLN200,RZN200..TW1..DLX198808-200106

main69751-89105iRN85..TW1..EFI;RN85..RHD..GEN..CBU;LN85,YN85,86,87..TW1..GEN198808-199909

DLX PACKAGE

main69751-89108iRN125198907-199308

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20040iRN85..TW1..SR5199108-199309

W(*EL),YELLOW

main69759-20040iLN85,86,RN125,85,YN85,86,87..4D,TW1198808-200106

YELLOW

main69759-20050iRN85..TW1..SR5199108-199309

W(*EL),BROWN

main69759-20050iLN85,86,RN125,85,YN85,86,87..4D,TW1198808-200106

BROWN

main69759-20100iLN85,86,RN85,YN85,86,87..TW1198808-199309

RED

main69759-20110iLN85,86,RN85,YN85,86,87..TW1198808-199309

BLACK

main69759-24050iRN85..TW1..SR5199108-199309

W(*EL),GREEN

main69759-24060iRN85..TW1..SR5199108-199309

W(*EL),GRAY

main69759-30030iLN85,86,RN85,YN85,86,87..TW1198808-199309

NATURAL

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-20060iLN85,86,RN85,YN85,86,87..TW1198808-199308

RH

main69759-20070iLN8#,90,RN125,8#,90,YN8#,92..4D,T1198808-199308

LH

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20020iLN85,86,RN85,YN85,86,87..TW1198808-200106

NATURAL

main69759-20030iLN200,RZN200..TW1198808-200106

BLUE

main69759-24030iLN85,86,RN85,YN85,86,87..TW1198808-200106

RED

main69759-24040iLN85,86,RN85,YN85,86,87..TW1198808-200106

PINK

9014860022

main90148-60022

9014860023

main90148-60023

9014880027

main90148-80027

9015960349

main90159-60349

9016250008

main90162-50008

9018905003

main90189-05003

9165140612

main91651-40612

9356015012

main93560-15012

32 parts on this diagram · 2 diagrams in section
