REAR DOOR PANEL & GLASS

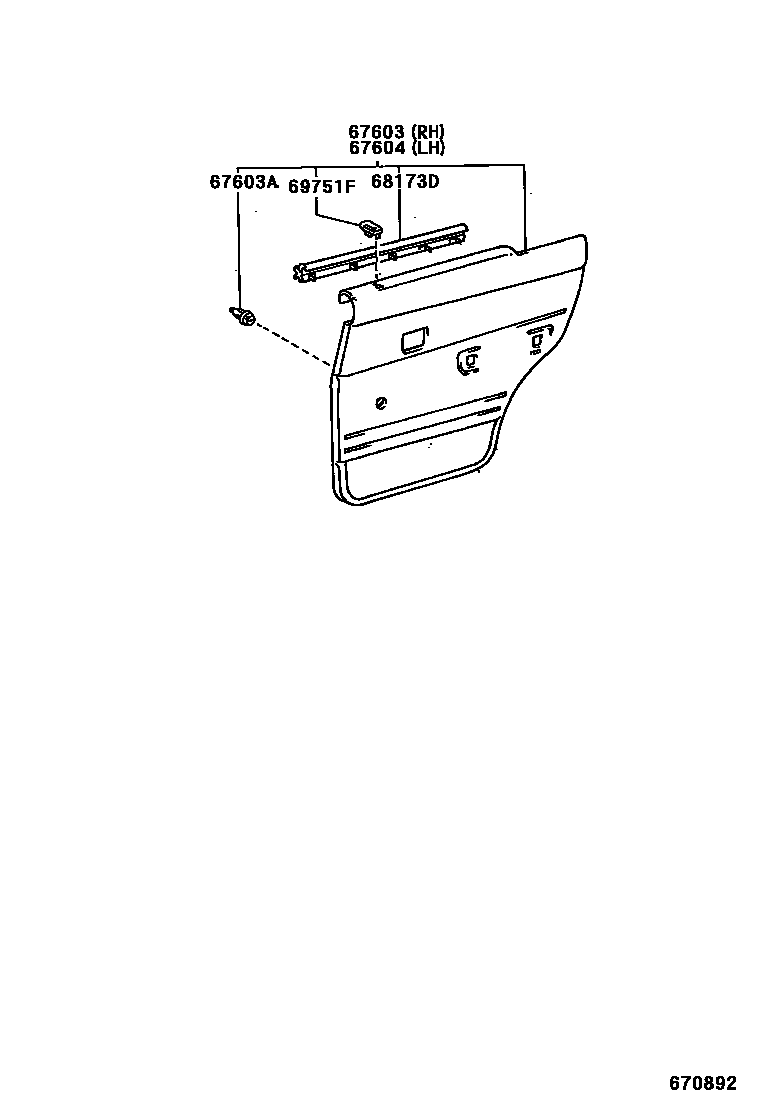

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-35010-B0i199204-199708
W(VINYL SEAT),GRAY,TRIM1#
main67630-35010-J0i199204-199408
W(VINYL SEAT),BLUE,TRIM8#
main67630-35020-B0i199108-200106
GRAY,TRIM1#
main67630-35020-D0i199108-199708
RED,TRIM3#
main67630-35020-J0i199108-199408
BLUE,TRIM8#
main67630-35030-B0i199108-199308
GRAY,TRIM1#
main67630-35030-D0i199108-199308
RED,TRIM3#
main67630-35030-J0i199108-199308
BLUE,TRIM8#
main67630-35040-B0i199108-199308
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main67630-35040-D0i199108-199308
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main67630-35040-J0i199108-199308
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main67630-35060-B0i199108-199308
GRAY,TRIM1#
main67630-35060-J0i199108-199308
BLUE,TRIM8#
main67630-35150-B0i199308-199408
GRAY,TRIM1#
main67630-35150-D0i199308-199408
RED,TRIM3#
main67630-35150-J0i199308-199408
BLUE,TRIM8#
main67630-35160-B0i199308-199408
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main67630-35160-D0i199308-199408
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main67630-35160-J0i199308-199408
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main67630-35240-B0i199408-199508
CHINA SPEC & W(POWER WINDOW & MAGNET DOOR LOCK),GRAYK,TRIM1#
main67630-35240-D0i199408-199708
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main67630-35240-J0i199408-199508
CHINA SPEC & W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main67630-35320-B0i199408-199508
CHINA SPEC,GRAYK,TRIM1#
main67630-35320-D0i199408-199708
RED,TRIM3#
main67630-35320-J0i199408-199708
BLUE,TRIM8#
main67630-35330-B0i199408-199708
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main67630-35330-D0i199408-199508
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main67630-35330-J0i199408-199708
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main67630-35510-D0i199610-199708
LIMITED EDITION(G.C.C),RED,TRIM3#
main67630-89117-03i198808-199108
GRAY,TRIM1#
main67630-89117-04i198808-199108
BLUE,TRIM8#
main67630-89117-06i198808-199108
BROWN,TRIM4#
main67630-89118-03i198808-199108
DLX PACKAGE,GRAY,TRIM1#
main67630-89118-04i198808-199108
BLUE,TRIM8#
main67630-89118-06i198808-199108
BROWN,TRIM4#
main67630-89120-03i198907-199108
GRAY,TRIM1#
main67630-89120-04i198907-199108
BROWN,TRIM8#
main67630-89120-06i198907-199108
BLUE,TRIM4#
main67630-89125-02i199008-199108
RED,TRIM3#
main67630-89125-03i199008-199108
GRAY,TRIM1#
main67630-89125-04i199008-199108
BLUE,TRIM8#
main67630-89125-06i199008-199108
BROWN,TRIM4#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
main67771-16080×20i199408-199508
W(POWER WINDOW & MAGNET DOOR LOCK)
main67771-89109×20i200106
main67771-89111×20i199803-200006
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-35010-B0i199803-200106
W(VINYL SEAT),GRAY,TRIM1#
main67640-35010-J0i199204-199408
W(VINYL SEAT),BLUE,TRIM8#
main67640-35020-B0i199108-199909
DLX PACKAGE,GRAY,TRIM1#
main67640-35020-D0i199108-199708
RED,TRIM3#
main67640-35020-J0i199108-199408
BLUE,TRIM8#
main67640-35030-B0i199108-199308
GRAY,TRIM1#
main67640-35030-D0i199108-199308
RED,TRIM3#
main67640-35030-J0i199108-199308
BLUE,TRIM8#
main67640-35040-B0i199108-199308
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main67640-35040-D0i199108-199308
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main67640-35040-J0i199108-199308
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main67640-35060-B0i199108-199308
GRAY,TRIM1#
main67640-35060-J0i199108-199308
BLUE,TRIM8#
main67640-35150-B0i199308-199408
GRAY,TRIM1#
main67640-35150-D0i199308-199408
RED,TRIM3#
main67640-35150-J0i199308-199408
BLUE,TRIM8#
main67640-35160-B0i199308-199408
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main67640-35160-D0i199308-199408
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main67640-35160-J0i199308-199408
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main67640-35240-B0i199408-199708
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main67640-35240-D0i199408-199708
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main67640-35240-J0i199408-199708
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main67640-35320-B1i199408-199508
CHINA SPEC,GRAY,TRIM1#
main67640-35320-D0i199408-199508
CHINA SPEC,RED,TRIM3#
main67640-35320-J0i199408-199708
BLUE,TRIM8#
main67640-35330-B0i199408-199708
W(POWER WINDOW & MAGNET DOOR LOCK),GRAY,TRIM1#
main67640-35330-D0i199408-199708
W(POWER WINDOW & MAGNET DOOR LOCK),RED,TRIM3#
main67640-35330-J0i199408-199708
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main67640-35510-D0i199610-199708
LIMITED EDITION(G.C.C),RED,TRIM3#
main67640-89117-03i198808-199108
GRAY,TRIM1#
main67640-89117-04i198808-199108
BLUE,TRIM8#
main67640-89117-06i198808-199108
BROWN,TRIM4#
main67640-89118-03i198808-199108
DLX PACKAGE,GRAY,TRIM1#
main67640-89118-04i198808-199108
BLUE,TRIM8#
main67640-89118-06i198808-199108
BROWN,TRIM4#
main67640-89120-03i198907-199108
GRAY,TRIM1#
main67640-89120-04i198907-199108
BLUE,TRIM8#
main67640-89120-06i198907-199108
BROWN,TRIM4#
main67640-89127-02i199008-199108
RED,TRIM3#
main67640-89127-03i199008-199108
GRAY,TRIM1#
main67640-89127-04i199008-199108
BLUE,TRIM8#
main67640-89127-06i199008-199108
BROWN,TRIM4#
69751FHOLDER, REAR DOOR LOCK CONTROL KNOB
main69751-12030-06×2i198907-198908
BROWN,TRIM4#
main69751-12030-12×2i199108-199109
RED,TRIM3#
main69751-12030-13×2i198907-198910
DLX PACKAGE,GRAY,TRIM1#
main69751-12030-24×2i198907-198910
DLX PACKAGE,BLUE,TRIM8#
main69751-12030-B0×2i198910-199909
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main69751-12030-D0×2i199109-199708
RED,TRIM3#
main69751-12030-E0×2i198910-199108
BROWN,TRIM4#
main69751-12030-J0×2i198910-199408
MEDIUM BLUE,TRIM8#

4 parts on this diagram · 5 diagrams in section
