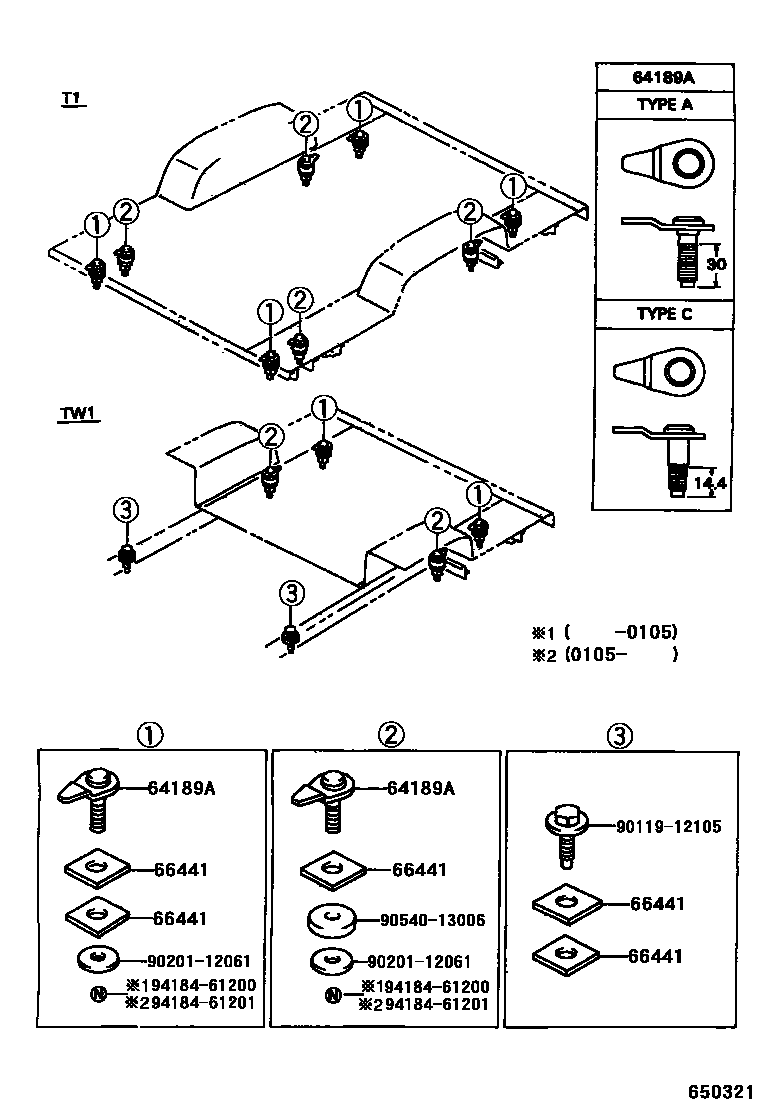

REAR BODY MOUNTING

64189ABOLT, REAR BODY MOUNTING

main64189-35010iLN200,RZN200..T1199308-200106

TYPE A:REFER TO ILLUSTRATION

main64189-35010iLN8#,RN8#,90,YN8#,92..T1..(ARL,GEN,V)199303-199806

TYPE A

main64189-35020iLN200,RZN200..TW1199308-200106

TYPE C:REFER TO ILLUSTRATION

main64189-35020iLN80,85,90,YN80,85..TH199303-199308

TYPE C

main64189-89103iLN85,RN85,YN85,86,87..TW1198808-199006

TYPE A:REFER TO ILLUSTRATION

sub64189-35010

main64189-89103iLN80,85,90,YN80,85,87..TH199006-199308

TYPE A

sub64189-35010

main64189-89105iLN85,86,RN85,YN85,86,87..TW1199006-199308

TYPE C

sub64189-35020

66441SHIM, MOUNTING, NO.1

main90950-04019iLN85,RN85,YN85,86,87..TW1198808-198907

OD=17

main90950-04020iLN85,RN85,YN85,86,87..TW1198808-198907

OD=12

main90950-04025iLN85,86,RN85,YN85,86,87..TW1198907-199306

T=3.5

main90950-04026iLN8#,RN8#,90,YN8#,92..T1..(ARL,GEN,V)199306-199309

T=3.0

sub90950-04028

main90950-04027iLN8#,RN8#,90,YN8#,92..T1..(ARL,GEN,V)199306-199309

T=5.0

sub90950-04029

main90950-04028iLN80,85,90,YN80,85..TH;LN85,86,RN85,YN85,86..TW1199306-200106

T=3.0

main90950-04029iLN200,RZN200199306-200106

T=5.0

9011912105

main90119-12105

9020112061

main90201-12061

9054013006

main90540-13006

9418461200

main94184-61200

9418461201

main94184-61201

7 parts on this diagram · 1 diagram in section
