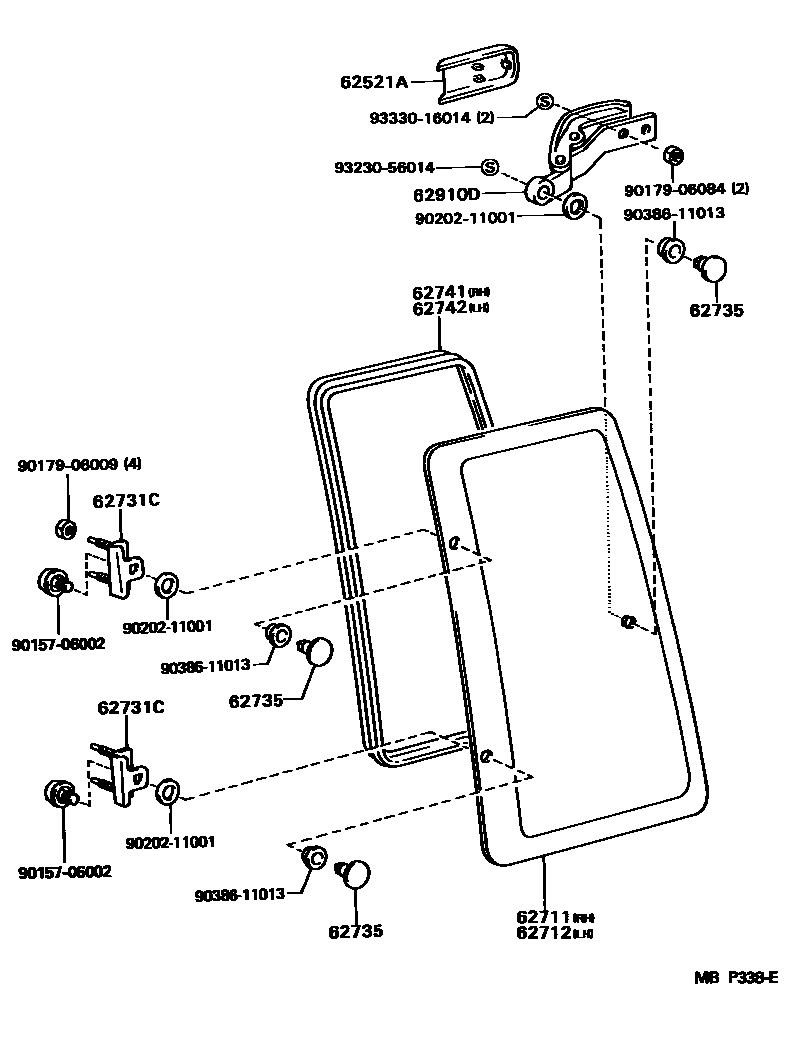

SIDE WINDOW

0001 1 0002 1

62521ACOVER, QUARTER TRIM

main62521-89102-03iLN90,RN90,YN92198808-199303

GRAY,TRIM1#

sub62521-89102

main62521-89102-04iLN90,RN90,YN92198808-199303

BLUE,TRIM8#

sub62521-89102

main62521-89102-06iLN90,RN90,YN92198808-199108

BROWN,TRIM4#

sub62521-89102

main62521-89102-D3iRN90..V199208-199708

RED,TRIM3#

sub62521-89102

main62521-89102-R9iLN90,RN90,YN9#199303-199708

BLUE,TRIM8#

sub62521-89102

main62521-89102-S4iLN9#,RN90,YN9#199303-199806

GRAY,TRIM1#

sub62521-89102

62711GLASS, QUARTER WINDOW, RH

main62711-89113iLN90,RN90,YN9#198808-199708

*TEM,T=4.0

sub62711-89116

main62711-89116iLN90,YN92198808-199806

*TT,T=4.0

62712GLASS, QUARTER WINDOW, LH

main62712-89113iLN90,RN90,YN9#198808-199708

*TEM,T=4.0

sub62712-89116

main62712-89116iLN90,YN92198808-199806

*TT,T=4.0

62731CHINGE, QUARTER WINDOW, RH

main62731-89101iLN9#,RN90,YN9#198808-199806

RH

main62731-89102iLN9#,RN90,YN9#198808-199806

LH

62735RETAINER, QUARTER WINDOW HINGE

main62735-89102iLN9#,RN90,YN9#198808-199806

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-89102iLN9#,RN90,YN9#198808-199806

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-89102iLN90,RN90,YN92198808-199108

RH

main62742-89103iLN90,RN90,YN92198808-199108

LH

main62742-89103iLN9#,RN90,YN9#199108-199806

62910DLOCK ASSY, QUARTER WINDOW

main62910-89102-03iLN90,RN90,YN92198808-199108

GRAY,TRIM1#

sub62910-89102

main62910-89102-04iLN90,RN90,YN92198808-199108

BLUE,TRIM8#

sub62910-89102

main62910-89102-06iLN90,RN90,YN92198808-199108

BROWN,TRIM4#

sub62910-89102

main62910-89102-D3iRN90..V199208-199708

RED,TRIM3#

sub62910-89102

main62910-89102-R9iLN90,RN90,YN9#199108-199708

BLUE,TRIM8#

sub62910-89102

main62910-89102-S4iLN9#,RN90,YN9#199108-199806

GRAY,TRIM1#

sub62910-89102

9015706002

main90157-06002

9017906009

main90179-06009

9017906084

main90179-06084

9020211001

main90202-11001

9038611013

main90386-11013

9323056014

main93230-56014

9333016014

main93330-16014

15 parts on this diagram · 2 diagrams in section
