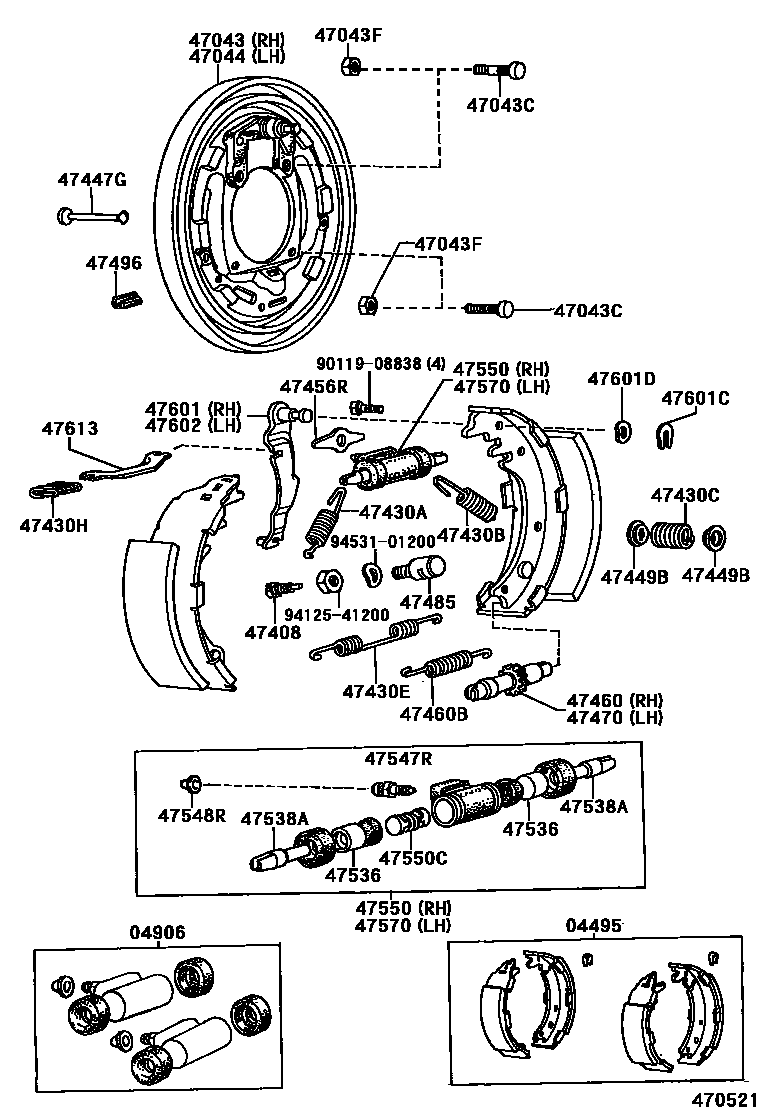

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1FRONT DRUM BRAKE 0002 1FRONT DISC BRAKE 0003 1FRONT DISC BRAKE 0005 1 0006 1

04495SHOE KIT, REAR BRAKE

main04495-26020iLN8#,YN80,85..GEN198808-198809

main04495-26021iLN80,85,YN80,85..GEN198809-199408

main04495-26061iRN125199108-199308

main04495-26200iLN80,85,YN80,85..GEN199408-199909

main04495-35060iRN90198808-198809

main04495-35061iRN90198809-199108

sub04495-35131

main04495-35100iLN8#,YN80,85..GEN198808-198809

W(FR DISC BRAKE)

main04495-35101iLN80,85,YN80,85..GEN198809-199304

W(FR DISC BRAKE)

main04495-35120iLN85,RN85,YN85..ARL198808-198809

main04495-35121iLN85,RN85,YN85..ARL198809-198812

main04495-35122iLN85,86,RN85,YN85..ARL198812-199308

main04495-35151iRN125198907-199108

MARK NBK LN508

main04495-35170iRN90..ARL199108-199708

main04495-35180iRN90..V;RN85,YN92;LN8#,90,RN80,YN8#,90..ARL,TH,V199308-199408

main04495-35200iLN80,85,YN80,85..GEN199408-199909

W(FR DISC BRAKE)

sub04495-35240

main04495-35230iLN200,RZN200200111-200412

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iRN90..ARL198808-199708

main04906-30120iYN85..RHD..5F;LN86,RN85,YN86,92;LN80,81,85,9#,RN80,90,YN80,81,90..TH,V199408-200106

main04906-31010iLN80,85,YN80,85..GEN198808-199909

main04906-35080iLN80,85,YN80,85..GEN198808-199408

W(FR DISC BRAKE)

main04906-35100iLN200,RZN200200106-200412

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26120iYN85..RHD..5F;LN86,RN85,YN86,92;LN80,81,85,9#,RN80,90,YN80,81,90..TH,V199408-200106

main47043-35042iLN80,85,YN80,85..GEN198808-199909

main47043-35061iRN90..ARL198808-199708

main47043-35130iLN80,85,YN80,85..GEN198808-199408

W(FR DISC BRAKE)

main47043-35150iRN125198907-199308

main47043-35170iLN200,RZN200200106

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002×6iLN200,RZN200200106-200412

*10-1.25PX37-18.5

main90114-10016×4iLN85,YN87..ARL,GEN;LN80,90,RN8#,YN80,81,85,86,92198808-199001

*10-1.25PX41-18

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10067×8iLN200,RZN200200106

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26120iYN85..RHD..5F;LN86,RN85,YN86,92;LN80,81,85,9#,RN80,90,YN80,81,90..TH,V199408-200106

main47044-35032iLN80,85,YN80,85..GEN198808-199909

main47044-35051iRN90..ARL198808-199708

main47044-35120iLN80,85,YN80,85..GEN198808-199408

W(FR DISC BRAKE)

main47044-35140iRN125198907-199308

main47044-35160iLN200,RZN200200106

47408BOLT SUB-ASSY, RETRACTING SPRING CLAMP

main47408-30020×2iLN80,85,YN80,85..GEN198808-199909

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×2iRN90..V;LN8#,90,RN8#,YN8#,9#198808-199408

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331×2iLN80,85,YN80,85..GEN198808-199408

W(FR DISC BRAKE)

main90506-26394×2iLN80,85,YN80,85..GEN198808-199909

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iLN80,85,YN80,85..GEN199408-199909

W(FR DISC BRAKE)

main90501-20225×4iLN80,85,YN80,85..GEN198808-199909

main90501-20604×4iLN80,85,YN80,85..GEN198808-199408

W(FR DISC BRAKE)

main90501-20756×4iRN90..ARL198808-199708

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015×2iRN90..ARL198808-199708

main90506-16343×2iLN80,85,YN80,85..GEN198808-199408

W(FR DISC BRAKE)

main90506-26002×2iLN80,85,YN80,85..GEN198808-199909

main90506-26011iLN200,RZN200200106

RH

main90506-26014iRN125198907-199308

LH

main90507-12036×2iLN80,85,YN80,85..GEN199408-199909

W(FR DISC BRAKE)

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90504-18012×2iRN90..V;LN8#,90,RN8#,YN8#,9#198808-199408

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iRN90..V;LN8#,9#,RN8#,YN8#,9#198808-200106

main47447-30020×4iRN125;RN90..ARL198808-199708

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-20011×8iLN80,85,YN80,85..GEN198808-199909

main47449-30020×8iLN86,90,RN85,YN86,87,92;LN80,81,85,91,RN125,80,90,YN80,81,85,90..ARL,TH,V198808-200106

47456RPLATE, REAR BRAKE SHOE GUIDE

main47456-20010×2iLN80,85,YN80,85..GEN199408-199909

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-35020iLN86,RN85,YN86,92;LN80,81,85,9#,RN80,90,YN80,81,85,90..ARL,TH,V199408-200106

main47061-60011iLN200,RZN200200106

main47062-60011iRN125198907-199308

main47405-30011iLN80,85,YN80,85..GEN198808-199909

main47405-30020iLN80,85,YN80,85..GEN198808-199408

W(FR DISC BRAKE)

47460BSPRING, TENSION(FOR REAR BRAKE ADJUSTER)

main90506-23344×2iLN80,85,YN80,85..GEN198808-199909

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-60011iRN125198907-199308

main47062-35020iLN80,85,YN80,85..GEN199408-199909

W(FR DISC BRAKE)

main47062-60011iLN200,RZN200200106

main47406-30011iLN80,85,YN80,85..GEN198808-199909

main47406-30020iLN80,85,YN80,85..GEN198808-199408

W(FR DISC BRAKE)

47485SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP

main47485-35010×2iLN80,85,YN80,85..GEN198808-199909

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iLN80,85,YN80,85..GEN199408-199909

W(FRONT DISC BRAKE)

main47491-35040×2iRN90..V;LN8#,90,RN8#,YN8#,9#198808-199408

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-30030×4iRN90..ARL198808-199708

main47051-30040×4iLN80,85,YN80,85..GEN199408-199909

W(FR DISC BRAKE)

main47531-26070×4iLN80,85,YN80,85..GEN198808-199408

RR W/C ID=22.22

main47531-26080×4iLN80,85,YN80,85..GEN198808-199909

FR W/C ID=20.64

47538ALINK, WHEEL CYLINDER CONNECTING

main47538-35010×4iRN90..V;LN8#,90,RN8#,YN8#,9#198808-199408

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iLN80,85,YN80,85..GEN199408-199909

W(FRONT DISC BRAKE)

main47547-26010×2iRN90..V;LN8#,90,RN8#,YN8#,9#198808-199408

main47547-60020×2iRN125198907-199308

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26090iLN80,85,YN80,85..GEN198808-199408

RR W/C ID=22.22

main47550-26100iLN80,85,YN80,85..GEN198808-199909

FR W/C ID=20.64

main47550-30100iRN90..ARL198808-199708

main47550-30140iYN85..RHD..5F;LN86,RN85,YN86,92;LN80,81,85,9#,RN80,90,YN80,81,90..TH,V199408-200106

sub47550-35260

main47550-35170iRN125198907-199308

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010×2iLN80,85,YN80,85..GEN198808-199408

RR W/C ID=22.22

main47509-22010×2iLN80,85,YN80,85..GEN198808-199909

FR W/C ID=20.64

main47509-30010×2iYN85..RHD..5F;LN86,RN85,YN86,92;LN80,81,85,9#,RN80,90,YN80,81,90..TH,V199408-200106

main47509-35020×2iRN90..ARL198808-199708

main90029-60011×2iLN200,RZN200200106

main90501-09079×2iRN125198907-199308

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26090iLN80,85,YN80,85..GEN198808-199408

RR W/C ID=22.22

main47550-26100iLN80,85,YN80,85..GEN198808-199909

FR W/C ID=20.64

main47550-30100iRN90..ARL198808-199708

main47550-30140iLN80,85,YN80,85..GEN199408-199909

W(FR DISC BRAKE)

sub47550-35260

main47550-35170iRN125198907-199308

main47550-35190×2iLN200,RZN200200106

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-35011iRN90..V;LN8#,90,RN8#,YN8#,9#198808-199408

main47611-26050iYN85..RHD..5F;LN86,RN85,YN86,92;LN80,81,85,9#,RN80,90,YN80,81,90..TH,V199408-200106

main47611-35020iRN90..ARL198808-199708

main47611-35040iLN200,RZN200200106

main47612-35040iRN125198907-199308

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

T=1.6

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059×2iRN90..V;LN8#,90,RN8#,YN8#,9#198808-199408

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-35011iLN80,85,YN80,85..GEN199408-199909

main47611-35040iRN125198907-199308

main47612-26050iLN80,85,YN80,85..GEN199408-199909

W(FRONT DISC BRAKE)

main47612-35020iRN90..ARL198808-199708

main47612-35040iLN200,RZN200200106

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-35011iRN90..V;LN8#,90,RN8#,YN8#,9#198808-199408

RH

main47614-35011iLN80,85,YN80,85..GEN199408-199909

LH

9011908838

main90119-08838

9412541200

main94125-41200

9453101200

main94531-01200

35 parts on this diagram · 5 diagrams in section
