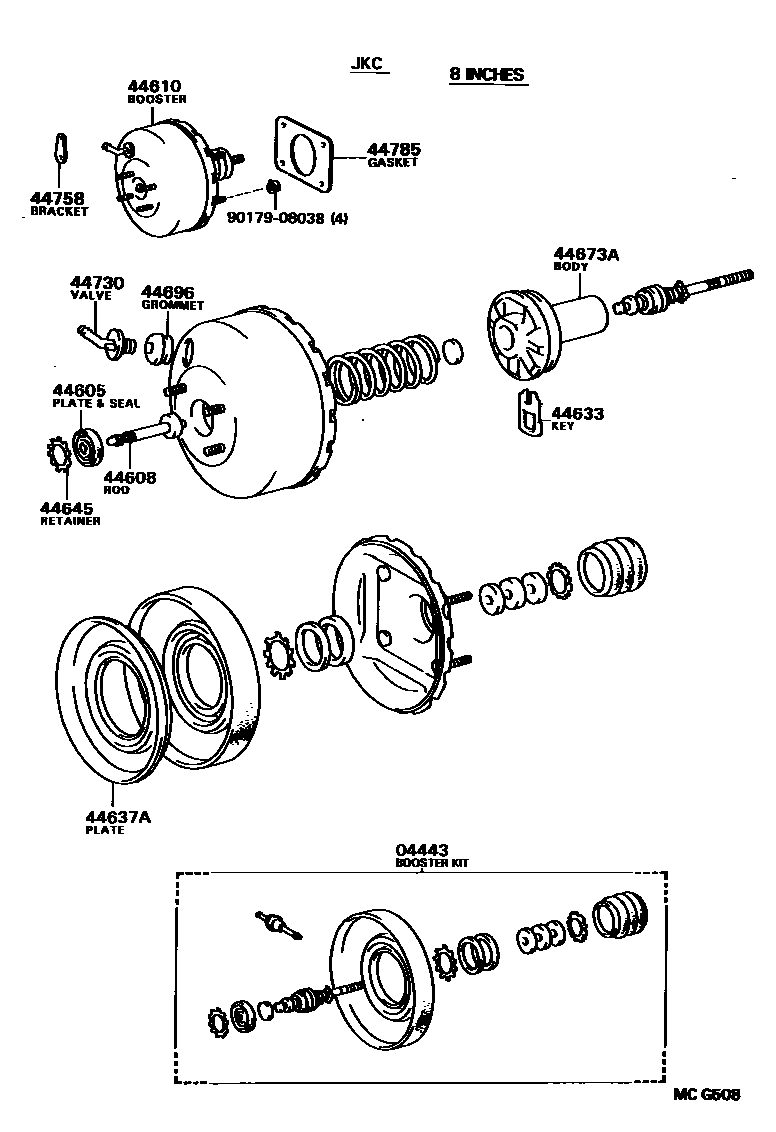

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04443BOOSTER KIT, BRAKE

main04443-35470iLN80,85..RHD..GEN198808-199108

main04443-35710iYN85..RHD..GEN198808-199108

W(FR DISC BRAKE)

main04443-35720iRN8#,YN81,86,87,92..LHD198808-199108

W(FR DISC BRAKE)

main04443-35730iLN90..GEN;LN81,85,86..ARL,V198808-199108

W(FR DISC BRAKE)

main04443-35790iYN85..RHD..GEN198808-199108

main04443-35800iYN80,85..LHD198808-199108

main04443-35810iYN80,85..LHD198808-199108

W(STANDARD HEATER)

main04443-35820iLN85..LHD198808-199108

main04443-35850iRN125198907-199108

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iYN85..GEN;LN85,YN80..LHD198808-199108

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-32020iYN85..GEN;LN85,YN80..LHD198808-199108

44610BOOSTER ASSY, BRAKE

main44610-35690iLN80,85..RHD..GEN198808-199108

main44610-3D080iYN85..RHD..GEN198808-199108

W(FR DISC BRAKE)

sub44610-3D081

main44610-3D081iYN85..RHD..GEN199108-199909

W(FR DISC BRAKE)

main44610-3D081iYN85..ARL,TH;RN85,90,YN80,90..RHD199108-199812

main44610-3D090iRN8#,YN81,86,87,92..LHD198808-199108

W(FR DISC BRAKE)

sub44610-3D091

main44610-3D091iYN80,85..LHD199108-199708

W(FR DISC BRAKE)

main44610-3D091iRN8#,90,YN81,86,92..LHD199108-199909

main44610-3D120iLN85..ARL198808-199108

W(FR DISC BRAKE)

sub44610-3D121

main44610-3D121iLN86..ARL199108-199708

main44610-3D121iLN80,85..RHD..GEN199108-199909

W(FR DISC BRAKE)

main44610-3D130iLN85..LHD198808-199108

W(FR DISC BRAKE)

sub44610-3D131

main44610-3D131iLN81,86..LHD;LN85..LHD..TH199108-200106

main44610-3D131iLN85..LHD..GEN199108-199708

W(FR DISC BRAKE)

main44610-3D190iYN85..RHD..GEN198808-199909

main44610-3D200iYN80,85..LHD198808-199708

main44610-3D210iYN80,85..LHD198808-199708

W(STANDARD HEATER)

main44610-3D230iLN85..LHD..GEN198808-199708

main44610-3D310iRN125198907-199108

main44610-3D311iRN125199108-199308

main44610-3D400iLN80,85,90..TH198910-199108

sub44610-3D401

main44610-3D401iLN80,85,9#..RHD..TH199108-199806

main44610-3D440iLN80,85..RHD..GEN199108-199909

main44610-3D870iRZN200200106

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iYN85..GEN;LN85,YN80..LHD198808-199108

44637APLATE, BOOSTER DIAPHRAGM

main44637-32020iYN85..GEN;LN85,YN80..LHD198808-199108

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iYN85..GEN;LN85,YN80..LHD198808-199108

44673ABODY, BOOSTER VALVE

main44673-30480iYN85..GEN;LN85,YN80..LHD198808-199108

44696GROMMET, CHECK VALVE

main90480-24015iYN85199810-199909

main90480-24439iRZN200198808-199810

main90480-24517iYN80,85..LHD198808-199708

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iRN125,8#,90,YN81,86,87,92..LHD198808-199909

main44730-10010iYN80,85..LHD198808-199708

W(FR DISC BRAKE OR STANDARD HEATER)

main44730-22090iYN80,85..LHD198808-199708

main44730-30030iYN85..RHD..GEN198808-199810

sub44730-30050

main44730-30040iYN85..ARL,TH;RN85,90,YN80,87,9#..RHD198808-199812

main44730-30040iYN85..RHD..GEN198808-199909

W(FR DISC BRAKE)

main44730-30050iYN85199810-199909

main44730-60050iLN8#,9#198808-200106

44758BRACKET, VACUUM CHECK VALVE

main44758-14140iRN85,90,YN80,85,87,9#..RHD198808-199909

main44758-28020iYN80,85..LHD198808-199708

main44758-35080iRN125,8#,90,YN81,86,87,92..LHD198808-199909

main44758-35080iYN80,85..LHD198808-199708

W(FR DISC BRAKE OR STANDARD HEATER)

main44758-35120iRZN200200106

44785GASKET, BRAKE BOOSTER

main44785-35020iYN85..GEN;LN85..LHD..TH;LN8#,90,RN125,YN80..ARL,GEN,V198808-200106

main44785-35020iLN85..RHD..TH;RN85,YN86,87,92;LN80,9#,RN80,90,YN80,81,85,90..ARL,TH,V198808-199909

W(FR DISC BRAKE)

9017908038

main90179-08038

13 parts on this diagram · 6 diagrams in section
