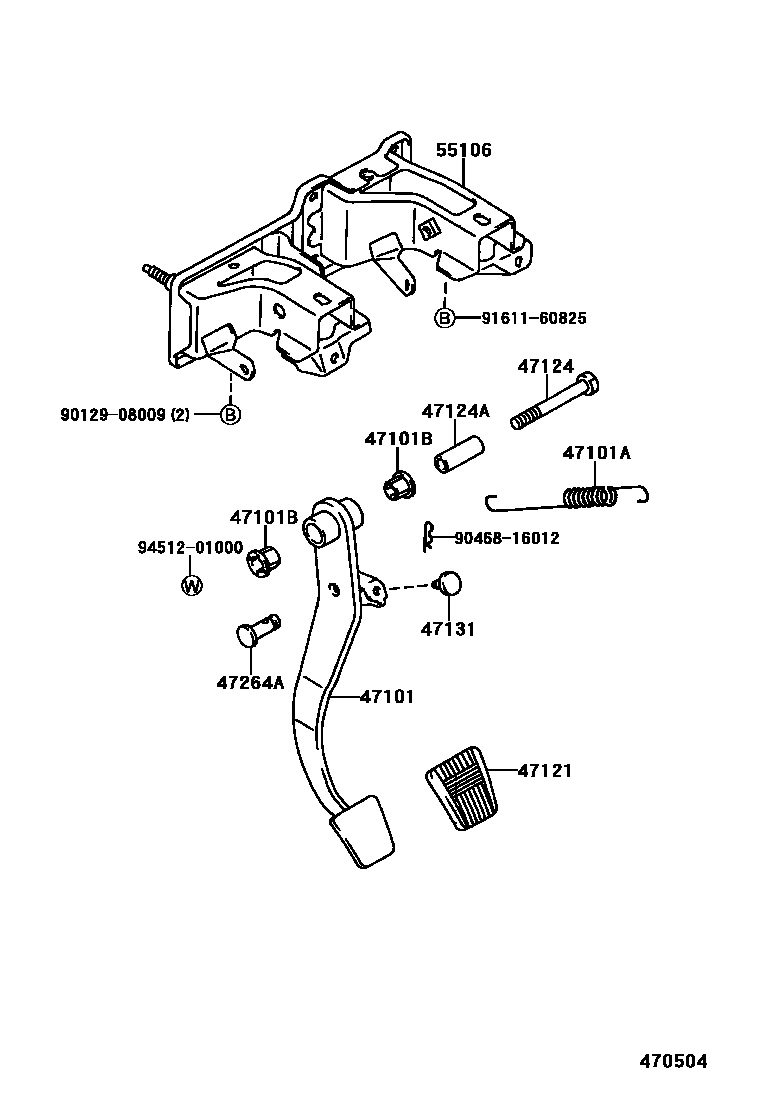

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-35280iLN81,85,86,90,RN125,8#,90,YN8#,92..LHD..MTM198808-200106

main47101-35290iLN80,85,86,90,RN85,90,YN80,85,87,9#..RHD..MTM198808-199909

main47101-35300iLN85,86,90,RN85,90..RHD..4FC198808-199806

main47101-35330iLN85..LHD..4FC198808-199108

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14020iLN8#,90,RN125,8#,90,YN8#,92198808-199206

main90507-18026iLN8#,90,RN125,8#,90,YN8#,9#199206-200106

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92198808-200106

47121PAD, BRAKE PEDAL

main31321-14020iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92..MTM198808-200106

main47121-12011iLN85,86,90,RN85,90..4FC198808-199806

sub47121-12020

47124SHAFT, BRAKE PEDAL

main90101-10480iLN81,85,86,90,RN125,8#,90,YN8#,92..LHD198808-200106

sub91552-81090

main91121-51060iYN85..RHD..(ARL,GEN);LN80,85,86,9#,RN85,90..RHD198808-199909

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35030iLN81,85,86,90,RN125,8#,90,YN8#,92..LHD198808-200106

main90387-10003iYN85..RHD..(ARL,GEN);LN80,85,86,9#,RN85,90..RHD198808-199909

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLN85,90,RN125,8#,YN8#,92..LHD198808-199005

main90541-06032iLN86,RN85,90..4FC198808-199508

sub90541-06036

main90541-06036iLN8#,90,RN8#,90,YN8#,9#..MTM199408-200106

47264APIN(FOR PUSH ROD)

main47148-35010iYN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92199201-200106

main90249-10064iLN8#,90,RN125,8#,90,YN8#,92198808-199201

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-35050iRZN200200106-200412

main55106-35080iLN86,90,RN85,90..4FC199508-199806

main55106-89128iLN81,85,86,90,RN125,8#,90,YN8#,92..LHD..MTM198808-200106

main55106-89129iLN85..LHD..4FC198808-199108

main55106-89131iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD..MTM198808-199909

main55106-89132iLN85,86,RN85,90..RHD..4FC198808-199508

9012908009

main90129-08009

9046816012

main90468-16012

9161160825

main91611-60825

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
