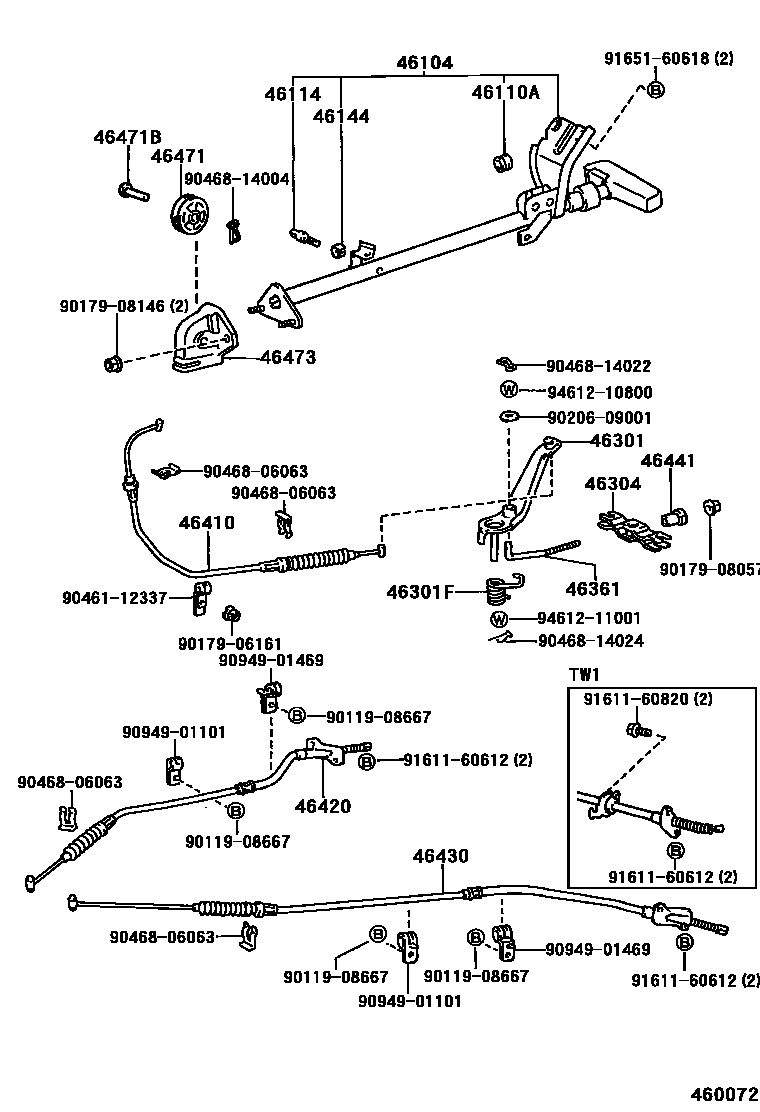

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-35010iLN81,85,86,90,RN125,8#,90,YN8#,92..LHD198808-199306

sub46104-35030

main46104-35030iLN81,85,86,RN125,8#,90,YN8#,92..LHD199306-200106

main46110-35230iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-11195iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35160iRN90..ARL198808-199708

main46301-35180iLN81,85,86,90,RN8#,90,YN8#,92..LHD198808-199408

main46301-35200iRN125198907-199308

main46301-35250iLN80,85,86,9#,RN85,YN80,85,90..RHD199408-199909

main46301-35260iLN81,85,86,RN8#,90,YN8#,92..LHD199408-200106

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-32008iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

main90508-32018iLN81,85,86,90,RN8#,90,YN8#,92..LHD198808-200106

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iLN8#,9#,RN8#,90,YN8#,9#198808-200106

main46341-35030iRN125198907-199308

46361ROD, PARKING BRAKE PULL

main46361-35070iLN8#,9#,RN8#,90,YN8#,9#198808-200106

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35410iRN85,90,YN80,85,87,9#..RHD198808-199909

main46410-35420iLN80,85,86,9#..RHD198808-199909

main46410-35500iLN81,85,86,90,RN8#,YN8#,92..LHD198808-199108

main46410-35630iRN125198907-199308

main46410-35710iLN81,85,86,RN8#,90,YN8#,92..LHD199108-200106

main46410-3D030iLN200,RZN200200106

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35370iRN90..ARL198808-199708

main46420-35420iLN90,RN90,YN9#..GEN,TH,V198808-199408

main46420-35460iLN80,YN80..GEN198808-199708

main46420-35470iLN85,YN85..T1..GEN198808-199909

main46420-35480iLN85,86,RN85,YN85,86,87..TW1198808-199909

main46420-35510iRN125198907-199308

main46420-35570iLN80,YN80..GEN199408-199708

W(FRONT DISC BRAKE)

main46420-35570iLN80,81,RN80,YN80,81..TH,V199408-199806

main46420-35580iLN85,YN85..T1..GEN199408-199909

W(FRONT DISC BRAKE)

main46420-35580iYN85..ARL;LN86,RN85,YN86..T1199408-200106

main46420-35590iLN85,YN85..TW1199408-199909

W(FRONT DISC BRAKE)

main46420-35590iLN86,RN85,YN86..TW1199408-200106

main46420-35610iLN9#,RN90,YN9#..GEN,TH,V199408-199806

main46420-35720iLN200,RZN200200106

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35280iRN90..ARL198808-199708

main46430-35330iLN90,RN90,YN9#..GEN,TH,V198808-199408

main46430-35370iLN80,81,RN80,YN80,81198808-199708

main46430-35380iLN85,YN85..T1..GEN198808-199909

main46430-35390iLN85,86,RN85,YN85,86,87..TW1198808-199909

main46430-35430iLN80,YN80..GEN199408-199708

W(FRONT DISC BRAKE)

main46430-35430iLN80,81,RN80,YN80,81..TH,V199408-199806

main46430-35440iYN85..ARL;LN86,RN85,YN86..T1199408-200106

main46430-35440iLN85,YN85..T1..GEN199408-199909

W(FRONT DISC BRAKE)

main46430-35450iLN85,YN85..TW1199408-199909

W(FRONT DISC BRAKE)

main46430-35450iLN86,RN85,YN86..TW1199408-200106

main46430-35470iLN9#,RN90,YN9#..GEN,TH,V199408-199806

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030iRN125198907-199308

main46441-35010iLN8#,9#,RN8#,90,YN8#,9#198808-200106

46471PULLEY, WIRE

main46471-20010iLN8#,9#,RN125,8#,90,YN8#,9#198808-200106

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iLN81,85,86,90,RN125,8#,90,YN8#,92..LHD198808-200106

main90240-08070iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

46473BRACKET, PULLEY

main46473-35020iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

9011908667

main90119-08667

9017906161

main90179-06161

9017908057

main90179-08057

9017908146

main90179-08146

9020609001

main90206-09001

9046112337

main90461-12337

9046806063

main90468-06063

9046814004

main90468-14004

9046814022

main90468-14022

9046814024

main90468-14024

9094901101

main90949-01101

9094901469

main90949-01469

9161160612

main91611-60612

9161160820

main91611-60820

9165160618

main91651-60618

9461210800

main94612-10800

9461211001

main94612-11001

32 parts on this diagram · 4 diagrams in section
