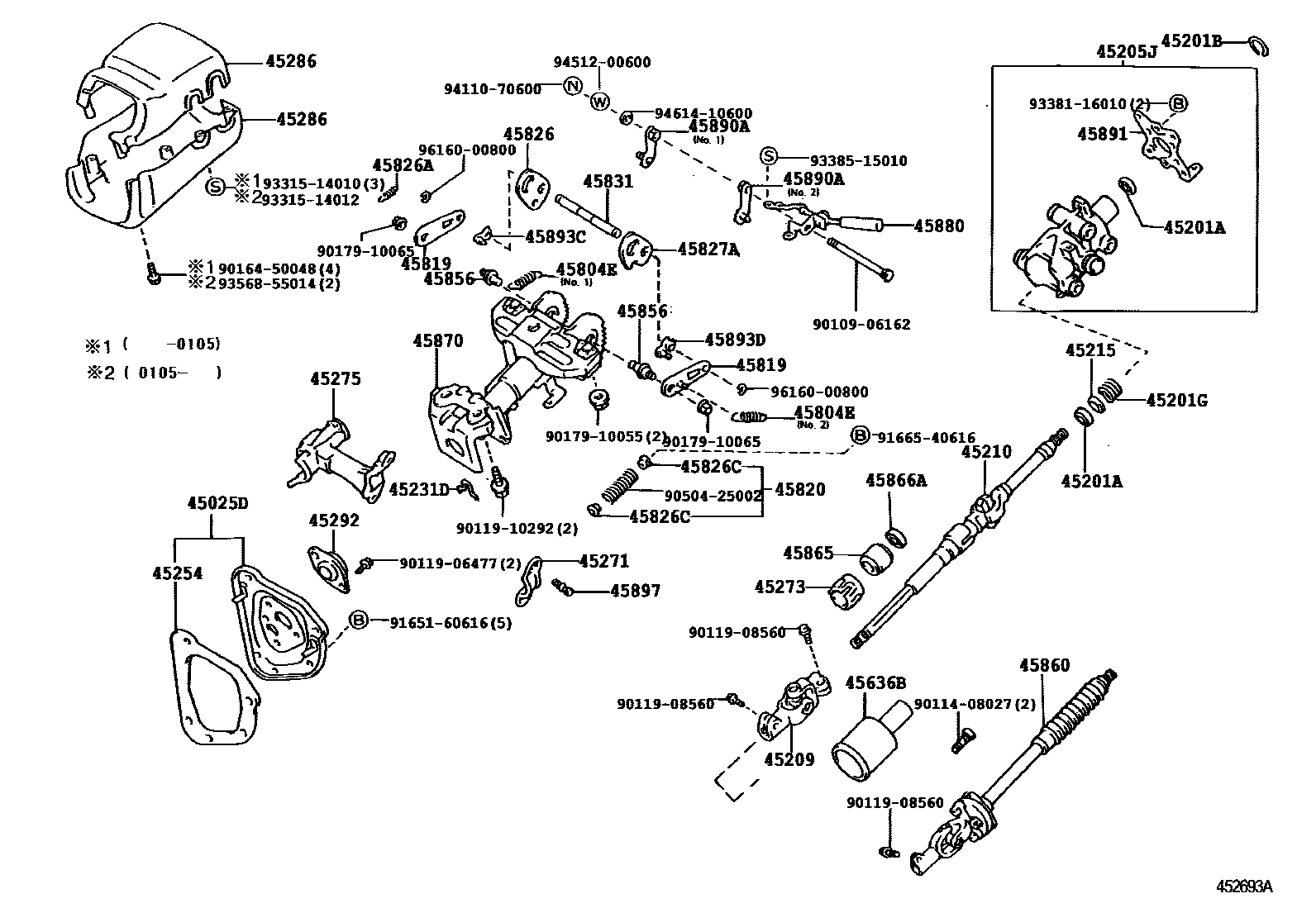

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
sub90363-18005
sub90363-18010
main90363-18009iLN86..TW1;LN86..T1..V;LN85,RN85..DLX,SR5;LN85,YN80,85..LHD..GEN;LN81,90,RN125,80,90,YN81,86,92199108-199909
W(TILT STEERING),UPR
main90363-18009iRN85..STD..V;LN85,RN85..DLX,SR5;LN85,YN80,85,87,92..LHD;LN81,86,90,RN125,80,90,YN81,86199001-199108
UPR
main90363-18010iYN80..4F;RN85..SR5..V;YN85..4F..TH;LN86,RN90,YN86..ARL,V;LN80,81,85,90,RN125,80,YN81,92..MTM;RN85,YN85..(DLX,STD)..CBR..(ARL,GEN,V)199108-199909
LOWER
sub90363-18005
main90363-18010iLN86..TW1;LN86..T1..V;LN85,RN85..DLX,SR5;LN85,YN80,85..LHD..GEN;LN81,90,RN125,80,90,YN81,86,92199108-199303
W(TILT STEERING),LWR
sub90363-18005
LWR
main90363-18011iLN86..TW1;LN86..T1..V;LN85,RN85..DLX,SR5;LN85,YN80,85..LHD..GEN;LN81,90,RN125,80,90,YN81,86,92199303-199909
W(TILT STEERING),LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
main90520-17042iLN85..RHD..TW1..CBU;LN85,YN80,85..LHD..GEN;LN85,86,90,RN85,90,YN9#..(DLX,SR5)..(ARL,GEN,TH)198808-199909
T=1.20,W(RIGID TILT STEERING)
T=1.20,LWR
T=1.20
T=1.20,LOWER
T=1.20,W(COLLAPSIBLE TILT STEERING)
T=1.35-1.45,UPR
T=1.20,UPPER
T=1.20,UPR
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
main45205-34010iLN86..V;RN85..EFI..CBU;LN86,RN85..LHD..(DLX,SR5);LN81,85,RN125,80,90,YN8#,92..LHD..(GEN,V)199210-200106
sub45205-35231
sub45205-35241
45209YOKE SUB-ASSY, STEERING SLIDING
main45209-35020iRN85..STD..V;LN85,RN85..DLX,SR5;LN85,YN80,85,87,92..LHD;LN81,86,90,RN125,80,90,YN81,86198808-199108
sub45209-35030
main45209-35030iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN85,YN80,85..LHD..GEN;LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN81,86,92199108-200106
45210SHAFT ASSY, STEERING MAIN
W/O(RIGID TILT STEERING)
W(RIGID TILT STEERING & *CRC)
sub45210-60110
sub45210-60110
W(RIGID STEERING)
W(COLLAPSIBLE TILT STEERING)
W(TILT STEERING)
W(RIGID TILT STEERING)
sub45210-35230
main45210-60110iLN85..RHD..TW1..CBU;LN85,YN80,85..LHD..GEN;LN85,86..RHD..(DLX,SR5);RN85..(DLX,SR5)..(ARL,GEN);LN9#,RN90,YN86,92..ARL,GEN,TH199412-199712
W(RIGID TILT STEERING)
sub45210-35230
45215COLLAR, MAIN SHAFT BEARING THRUST
45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)
45254SHIELD, STEERING COLUMN HOLE
45271CLAMP, STEERING COLUMN, UPPER
main45271-12050iRN85..ARL,V;RN85..T1..GEN;YN80,85..ARL,GEN;RN85..LHD..TW1..GEN;LN8#,9#,RN80,90,YN81,86,92199503-200106
W(RIGID STEERING)
main45271-12060iLN86..TW1;LN86..T1..V;RN85..RHD..TW1;LN85,YN80,85..LHD..GEN;LN85,RN85..(DLX,SR5)..(TH,V);LN81,90,RN125,80,90,YN81,86,92198808-200106
W(TILT STEERING)
45273BUSH, STEERING MAIN SHAFT
45275BRACKET, STEERING COLUMN, UPPER
main45280-35190iRN85..ARL;RN85..T1..GEN;YN80,85..ARL,GEN;RN85..LHD..TW1..GEN;LN80,85,86,9#,RN90,YN86,92..ARL,GEN,TH199503-200106
W(RIGID STEERING)
sub45280-35220
sub45280-35220
main45280-35240iLN86..TW1;RN85..EFI;LN86..T1..V;LN85,YN80,85..LHD..GEN;LN85,RN85..RHD..TW1..CBU;LN81,90,RN80,90,YN81,86,9#;LN85,RN85..(DLX,SR5)..(TH,V)199108-200106
W(TILT STEERING)
45286COVER, STEERING COLUMN
MEDIUM GRAY,TRIM1#,UPPER
W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,UPPER
ILLUMINATION PACKAGE & W(POWER WINDOW),RED,TRIM3#,UPPER
sub45286-35270
ILLUMINATION PACKAGE & W(POWER WINDOW),GRAY,TRIM1#,UPPER
sub45286-35270
ILLUMINATION PACKAGE,BLUE,TRIM1#,8#,UPPER
sub45286-35270
ILLUMINATION PACKAGE & W(POWER WINDOW),BLUE,TRIM8#,UPPER
sub45286-35270
ILLUMINATION PACKAGE,BROWN,TRIM4#,UPPER
sub45286-35270
W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,UPPER
sub45286-35290
W(RIGID TILT STEERING),GRAY,TRIM1#,UPPER
sub45286-35290
W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPPER
sub45286-35290
main45286-35280-04iLN85..RHD..TW1..CBU;LN85,YN80,85..LHD..GEN;LN86,RN85,90,YN92..(DLX,SR5)..(ARL,GEN)198808-199408
W(RIGID TILT STEERING),BLUE,TRIM8#,UPPER
sub45286-35290
W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPPER
sub45286-35290
W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,UPPER
sub45286-35290
W(RIGID TILT STEERING),BROWN,TRIM4#,UPPER
sub45286-35290
ILLUMINATION PACKAGE & W(COLLAPSIBLE TILT STEERING & POWER WINDOW),RED,TRIM3#,UPPER
sub45286-35290
ILLUMINATION PACKAGE & W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,UPPER
sub45286-35290
ILLUMINATION PACKAGE & W(RIGID TILT STEERING),GRAY,TRIM1#,UPPER
sub45286-35290
ILLUMINATION PACKAGE & W(COLLAPSIBLE TILT STEERING & POWER WINDOW),GRAY,TRIM1#,UPPER
sub45286-35290
W(RIGID TILT STEERING),GRAY,TRIM1#,UPPER
sub45286-35290
ILLUMINATION PACKAGE & W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPPER
sub45286-35290
POWER PACKAGE & W(RIGID TILT STEERING),GRAY,TRIM1#,UPPER
sub45286-35290
ILLUMINATION PACKAGE & W(RIGID TILT STEERING),BLUE,TRIM8#,UPPER
sub45286-35290
ILLUMINATION PACKAGE & W(COLLAPSIBLE TILT STEERING & POWER WINDOW),BLUE,TRIM8#,UPPER
sub45286-35290
ILLUMINATION PACKAGE & W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPPER
sub45286-35290
ILLUMINATION PACKAGE & W(RIGID TILT STEERING),BROWN,TRIM4#,UPPER
sub45286-35290
MD.GRAY,TRIM1#,UPPER
MEDIUM GRAY,TRIM1#,LOWER
W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,LOWER
MEDIUM GRAY,TRIM1#,LOWER
sub45287-35200
MEDIUM BLUE,TRIM8#,LOWER
sub45287-35200
W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,LOWER
sub45287-35210
main45287-35210-03iLN85..RHD..TW1..CBU;LN85,YN80,85..LHD..GEN;LN85,86,90,RN85,90,YN9#..(DLX,SR5)..(ARL,GEN,TH)198808-199909
W(RIGID TILT STEERING),GRAY,TRIM1#,LOWER
sub45287-35210
W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,LOWER
sub45287-35210
W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,LOWER
sub45287-35210
main45287-35210-04iLN85,YN80,85,87,92..LHD..GEN;LN85,86,90,RN85,90..(DLX,SR5)..(ARL,GEN,TH)198808-199408
W(RIGID TILT STEERING),BLUE,TRIM8#,LOWER
sub45287-35210
W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,LOWER
sub45287-35210
W(RIGID TILT STEERING),BROWN,TRIM4#,LOWER
sub45287-35210
MD.GRAY,TRIM1#,LOWER
45292SEAL, MAIN SHAFT LOWER DUST
45636BPROTECTOR, INTERMEDIATE LINK JOINT
45804ESPRING, TENSION(FOR STEERING TILT LEVER)
main90507-08010iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;RN85..LHD..(DLX,SR5);LN85,YN80,85..LHD..GEN;LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN81,86,92198808-200106
NO.2
NO.1
45819RETAINER, TILT LEVER
main45819-22060iLN86..TW1;LN86..T1..V;LN85,RN85..DLX,SR5;LN85,YN80,85..LHD..GEN;LN81,90,RN125,80,90,YN81,86,92199302-200106
45820SPRING ASSY, TILT STEERING SUPPORT
main45820-35010iLN86..TW1;LN86..T1..V;RN85..STD..V;LN85,RN85..DLX,SR5;LN81,90,RN125,80,90,YN81,86;LN85,YN80,85,87,92..LHD..GEN199004-200106
45826LEVER, STEERING TILT
main45826-22050iLN86..TW1;LN86..T1..V;RN85..STD..V;LN85,RN85..DLX,SR5;LN81,90,RN125,80,90,YN81,86;LN85,YN80,85,87,92..LHD..GEN198808-200106
45826ASPRING, TENSION(FOR STEERING TILT LEVER)
main90507-07003iLN86..TW1;LN86..T1..V;RN85..STD..V;LN85,RN85..DLX,SR5;LN81,90,RN125,80,90,YN81,86;LN85,YN80,85,87,92..LHD..GEN198808-200106
45826CBUSH(FOR STEERING TILT LEVER)
main90386-06043iLN86..TW1;LN86..T1..V;RN85..STD..V;LN85,RN85..DLX,SR5;LN81,90,RN125,80,90,YN81,86;LN85,YN80,85,87,92..LHD..GEN199004-200106
45827ALEVER, STEERING TILT SUB
45831BOLT, TILT LEVER LOCK, NO.1
45856BOLT, TILT STEERING, NO.2
main45856-22010iLN86..TW1;RN85..EFI;LN86..T1..V;LN85,YN80,85..LHD..GEN;LN85,RN85..RHD..TW1..CBU;LN81,90,RN80,90,YN81,86,9#;LN85,RN85..(DLX,SR5)..(TH,V)198808-200106
OD=9.989-9.998
OD=9.998-10.007
45860SHAFT ASSY, STEERING INTERMEDIATE, NO.2
main45860-35030iRN85..EFI..IV3;YN80,85..ARL,GEN;LN80,85,9#,RN85,90,YN86,9#..(CBR,DSL)..(ARL,GEN,TH)198808-199909
W/O(RIGID TILT STEERING)
main45860-35040iLN85..TH;LN85..IV3;YN85..ARL;YN85..5F..GEN..CBU;LN85..LHD..GEN..CBU;LN85..RHD..TW1..CBU;LN90,RN85,90,YN90..RHD198808-199909
W(POWER STEERING)
W(POWER STEERING) & W/O(RIGID TILT STEERING)
sub45860-35051
sub45860-35061
sub45860-35121
sub45860-35141
sub45860-35271
sub45860-35281
45866ASTOPPER, STEERING MAIN SHAFT BUSH
45870TUBE ASSY, STEERING COLUMN
sub45870-35111
sub45870-35121
W/O(RIGID TILT STEERING)
W(RIGID TILT STEERING)
sub45870-35141
sub45870-35280
W(COLLAPSIBLE TILT STEERING)
main45870-35240iLN85,YN80,85..LHD..GEN;LN85,86,90,RN85,90,YN92..(DLX,SR5)..(ARL,GEN,TH)199108-199909
W(RIGID TILT STEERING)
W(COLLAPSIBLE TILT STEERING)
W(RIGID STEERING)
45880LEVER ASSY, STEERING TILT
45890APAWL ASSY, TILT STEERING
main45890-20110iLN86..TW1;RN85..EFI;LN86..T1..V;LN85,YN80,85..LHD..GEN;LN85,RN85..RHD..TW1..CBU;LN81,90,RN80,90,YN81,86,9#;LN85,RN85..(DLX,SR5)..(TH,V)198911-200106
NO.1
main45890-22080iRN85..TW1;LN85..DLX,SR5;LN85,YN80,85,87,92..LHD;LN90,RN125,80,90,YN81,86198808-198911
NO.1
sub45890-20110
main45890-22090iLN86..TW1;LN86..T1..V;RN85..STD..V;LN85,RN85..DLX,SR5;LN81,90,RN125,80,90,YN81,86;LN85,YN80,85,87,92..LHD..GEN198808-200106
NO.2
45891BRACKET, TURN SIGNAL
main45891-35040iRN85..EFI..CBU;LN86,RN85..STD..V;LN86,RN85..LHD..(DLX,SR5);LN81,85,90,RN125,80,90,YN8#,92..LHD..(GEN,V)198808-200106
45893CSTOPPER, STEERING PAWL, RH
MARK 1
main45893-22040iLN86..TW1;RN85..EFI;LN86..T1..V;LN85,YN80,85..LHD..GEN;LN85,RN85..RHD..TW1..CBU;LN81,90,RN80,90,YN81,86,9#;LN85,RN85..(DLX,SR5)..(TH,V)198811-199601
MARK 2
main45893-22050iLN86..TW1;LN86..T1..V;RN85..RHD..TW1;LN85,YN80,85..LHD..GEN;LN85,RN85..(DLX,SR5)..(TH,V);LN81,90,RN125,80,90,YN81,86,92198808-199601
MARK 3
main45893-22060iLN86..TW1;RN85..EFI;LN86..T1..V;LN85,YN80,85..LHD..GEN;LN85,RN85..RHD..TW1..CBU;LN81,90,RN80,90,YN81,86,9#;LN85,RN85..(DLX,SR5)..(TH,V)198811-199601
MARK 4
main45893-22070iLN86..TW1;LN86..T1..V;RN85..STD..V;LN85,RN85..DLX,SR5;LN81,90,RN125,80,90,YN81,86;LN85,YN80,85,87,92..LHD..GEN198811-199601
MARK 5
main45893-24010iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK 1
main45893-24020iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK 2
main45893-24030iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK 3
main45893-24040iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK 4
main45893-24050iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK 5
main45893-24060iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK 6
main45893-24070iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK 7
45893DSTOPPER, STEERING PAWL, LH
main45893-20260iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK A
main45893-20270iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK B
main45893-20280iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK C
main45893-20290iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK D
main45893-20300iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK E
main45893-20310iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK F
main45893-20320iLN86..TW1;LN86..T1..V;RN85..EFI..CBU;LN85,YN85..LHD..GEN;RN85..LHD..(DLX,SR5);LN85,86..T1..(DLX,SR5);LN85,RN85..RHD..TW1..CBU;LN81,9#,RN80,90,YN80,81,86,92199601-200106
MARK G
MARK A
MARK B
main45893-22100iLN86..TW1;LN86..T1..V;RN85..RHD..TW1;LN85,YN80,85..LHD..GEN;LN85,RN85..(DLX,SR5)..(TH,V);LN81,90,RN125,80,90,YN81,86,92198808-199601
MARK C
MARK D
main45893-22120iLN86..TW1;RN85..EFI;LN86..T1..V;LN85,YN80,85..LHD..GEN;LN85,RN85..RHD..TW1..CBU;LN81,90,RN80,90,YN81,86,92;LN85,RN85..(DLX,SR5)..(GEN,TH,V)198811-199601
MARK E
45897BOLT, STEERING LOCK SET
9010906162
main90109-06162
9011408027
main90114-08027
9011906477
main90119-06477
9011908560
main90119-08560
9011910292
main90119-10292
9016450048
main90164-50048
9017910055
main90179-10055
9017910065
main90179-10065
9050425002
main90504-25002
9165160616
main91651-60616
9166540616
main91665-40616
9331514010
main93315-14010
9331514012
main93315-14012
9338116010
main93381-16010
9338515010
main93385-15010
9356855014
main93568-55014
9411070600
main94110-70600
9451200600
main94512-00600
9461410600
main94614-10600
9616000800
main96160-00800
55 parts on this diagram · 6 diagrams in section
