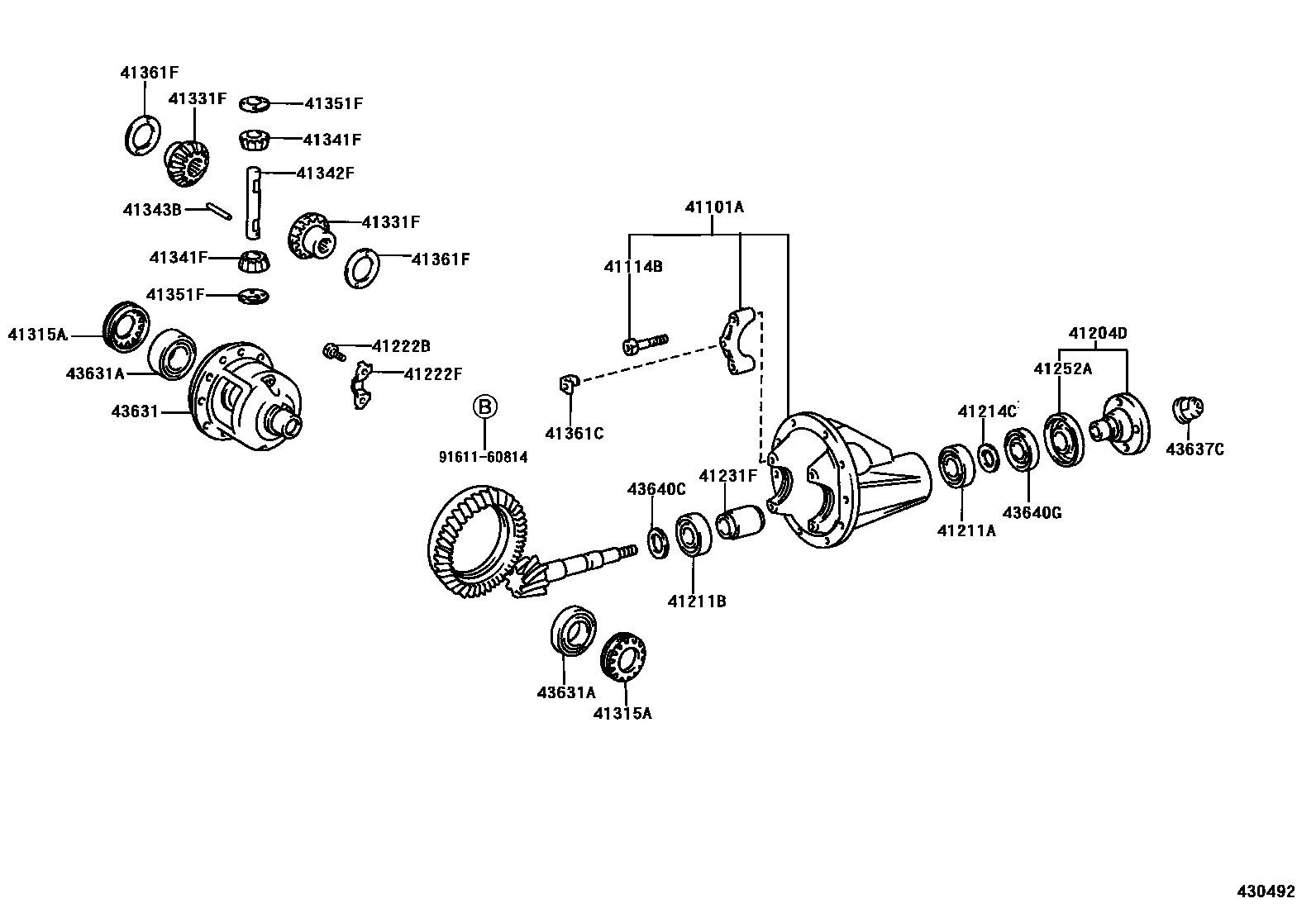

FRONT AXLE HOUSING & DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
sub90366-30078
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41315ANUT, FRONT DIFFERENTIAL BEARING ADJUSTING
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41343BPIN, FRONT DIFFERENTIAL PINION SHAFT
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361CLOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.6
T=1.7
T=1.8
43631CASE, FRONT AXLE DIFFERENTIAL
43631ABEARING, FRONT AXLE DIFFERENTIAL
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
43640CSPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
9161160814
main91611-60814
24 parts on this diagram · 1 diagram in section
