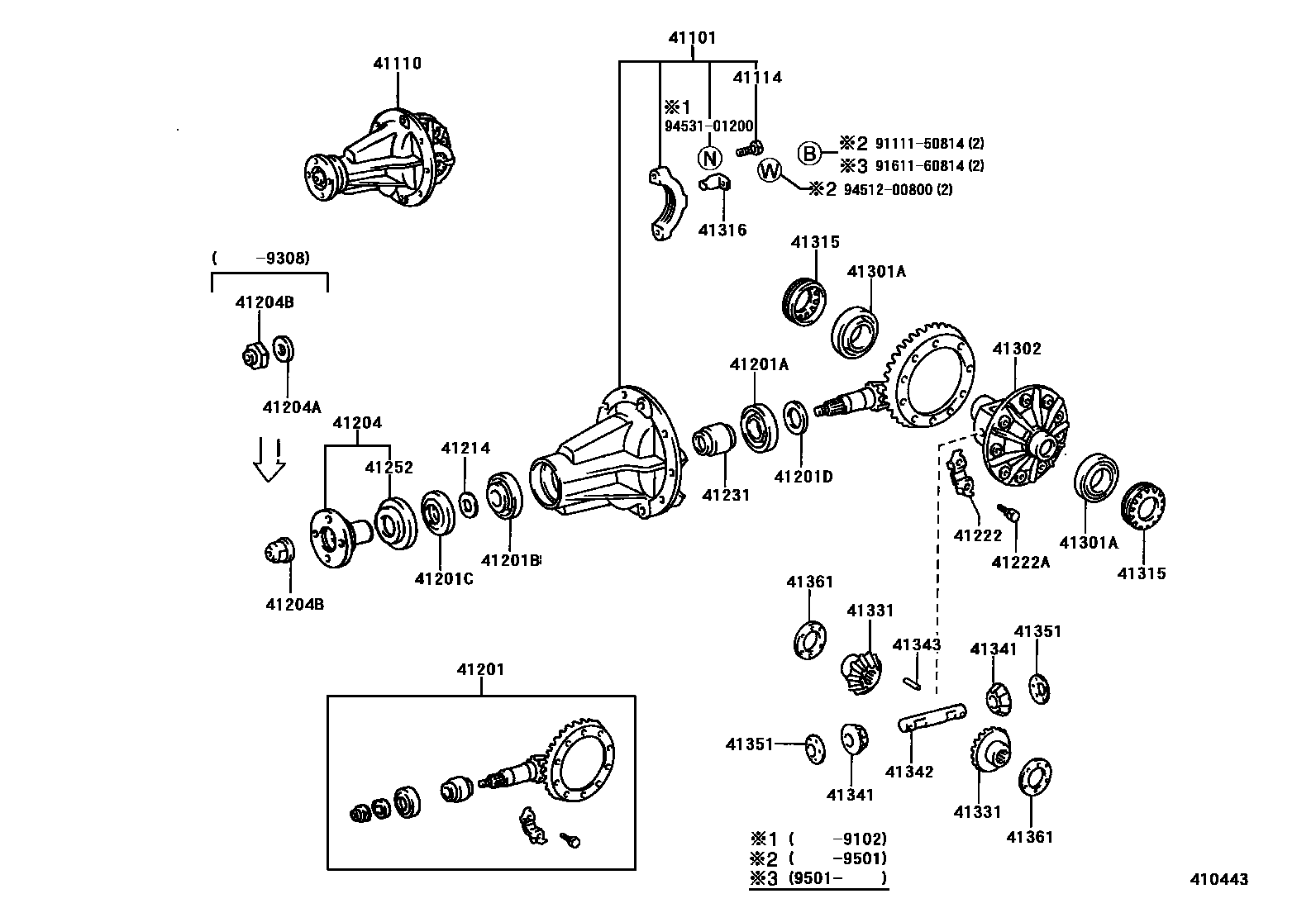

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1 0004 1 0005 1 0006 1LIMITED SLIP DIFFERENTIAL 0007 1 0008 1LIMITED SLIP DIFFERENTIAL

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-34030iLN81,86,RN8#,90,YN81,86..V199208-199708

main41101-35030iYN86..T1;LN85..MTM;LN85..4FC..GEN;YN86..TW1..DLX;LN80,90,RN8#,90,YN80,81,85,87,92198808-198905

sub41101-35031

sub90116-08329

main41101-35031iRN85,90;YN86..T1;YN86..TW1..5F;LN85..4FC..GEN;LN8#,90,RN80,YN80,81,85,87,92..MTM198905-200412

main41101-35040iLN85..4FC..ARL198808-198905

sub41101-35041

sub90116-08329

main41101-35041iRN125;LN85,86..4FC..ARL198905-199909

main41101-35170iLN200,RZN200..DLX,STD200106-200412

W(LSD)

sub41101-35171

sub41115-35010

main41101-60061iRN85..LHD..IV3199505-199511

sub41101-60160

main41101-60160iRN85..LHD..IV3199511-199709

sub41101-60161

sub41115-35010

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-35083iLN85..4FC..ARL198808-198905

*FGR=39:8=4.875

sub41110-35084

sub90116-08329

main41110-35084iRN125;LN85,86..4FC..ARL198905-199909

*FGR=39:8=4.875

sub41110-35085

main41110-35201iLN8#,90,RN8#,90..MTM198808-198905

*FGR=41:10=4.100

sub41110-35202

sub90116-08329

main41110-35202iRN85..RHD..5F;RN85..SR5..GEN;LN80,85,86,RN90..MTM..(ARL,GEN)198905-200106

*FGR=41:10=4.100

sub41110-26430

main41110-35211iYN87,92;YN86..T1;YN86..TW1..DLX;RN85,90,YN81..T1..(4F,4FC)198808-198905

*FGR=43:10=4.300

sub41110-35212

sub90116-08329

main41110-35212iYN92;RN85,90..4FC;LN80,85,90..TH198905-199909

*FGR=43:10=4.300

sub41110-35213

main41110-35221iYN80,85;LN85..4FC..GEN198808-198905

*FGR=41:9=4.555

sub41110-35222

sub90116-08329

main41110-35222iYN80,85,90;LN85..4FC..GEN198905-200412

*FGR=41:9=4.555

sub41110-3D260

main41110-35301iYN87,92;RN85,90..4FC198808-198905

*FGR=43:10=4.300,W(LSD)

sub41110-35302

sub90116-08329

main41110-35302iRN85,90..4FC;LN80,85,9#..5F..TH;YN86,87,92..GEN,TH198905-199806

*FGR=43:10=4.300,W(LSD)

sub41110-3D040

main41110-35311iYN80,85;LN85..4FC..GEN198808-198905

*FGR=41:9=4.555,W(LSD)

sub41110-35312

sub90116-08329

main41110-35312iLN90..4FC;YN80,85,90..5F198905-199806

*FGR=41:9=4.555,W(LSD)

sub41110-3D210

main41110-35331iLN85..4FC..ARL198808-198905

*FGR=39:8=4.875,W(LSD)

sub41110-35332

sub90116-08329

main41110-35332iLN86,YN80,85..4F,4FC198905-199909

*FGR=39:8=4.875,W(LSD)

sub41110-60700

main41110-35411iRN85..EFI..CBU199401-199909

*FGR=39:10=3.900

sub41110-35A80

main41110-35430iLN8#,90,RN85,90..MTM..(ARL,GEN)198808-198905

*FGR=41:10=4.100,W(LSD)

sub41110-35431

sub90116-08329

main41110-35431iRN85..SR5..GEN;LN86,RN85..RHD..5F;LN80,85,90,RN90..MTM..(ARL,GEN)198905-199909

*FGR=41:10=4.100,W(LSD)

sub41110-3D060

main41110-35850iYN81,86..V199208-199708

*FGR=47:11=4.273

main41110-3D090iRZN200200106-200412

*FGR=41:9=4.555

sub41110-3D091

main41110-3D210iLN200,RZN200..DLX,STD200106-200412

*FGR=41:9=4.555,W(LSD)

sub41110-3D211

main41110-3D210iLN200..SRV200106-200412

*FGR=41:9=4.555

sub41110-3D211

main41110-40160iLN81,86,RN8#,90..V199208-199708

*FGR=49:12=4.083

main41110-60380iRN85..LHD..IV3199505-199511

*FGR=39:8=4.875

sub41110-60690

main41110-60690iRN85..LHD..IV3199511-199709

*FGR=39:8=4.875

sub41110-60691

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-200412

main90901-05003iLN81,86,RN8#,90,YN81,86..V199208-199708

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29516iRN85..EFI..CBU199401-199909

*FGR=39:10=3.900

sub41201-29517

sub41204-35081

sub41214-26011

main41201-29526iYN92;RN85,90..4FC;LN80,85,90..TH198808-199909

*FGR=43:10=4.300

sub41201-29796

sub41204-35081

sub41214-26011

main41201-29536iLN90..4FC;YN80,85,90..5F198808-200201

*FGR=41:9=4.556

sub41201-29537

sub41204-35081

sub41214-26011

main41201-29537iLN200..DLX,STD200201-200412

*FGR=41:9=4.555

sub41201-80484

main41201-39676iRN85..RHD..5F;RN85..SR5..GEN;LN80,85,86,RN90..MTM..(ARL,GEN)198808-200106

*FGR=41:10=4.100

sub41201-39677

sub41204-35081

sub41214-26011

main41201-39696iRN125;LN85..4FC..ARL198808-199003

*FGR=39:8=4.875

sub41201-39697

main41201-39697iLN86,YN80,85..4F,4FC199003-199909

*FGR=39:8=4.875

sub41201-29817

sub41204-35081

sub41214-26011

main41201-69285iRN85..LHD..IV3199505-199511

*FGR=39:8=4.875

sub41201-80183

sub41204-35081

sub41214-26011

main41201-80032iLN81,86,RN8#,90..V199208-199708

*FGR=49:12=4.083

sub41201-80143

main41201-80033iYN81,86..V199208-199708

*FGR=47:11=4.273

main41201-80105iLN200,RZN200200106-200201

*FGR=41:9=4.555

sub41201-80182

sub41204-35081

sub41214-26011

main41201-80182iLN200,RZN200..DLX,STD200201-200412

*FGR=41:9=4.556

sub41201-80732

main41201-80182iLN200..SRV200201-200412

*FGR=41:9=4.556,W(LSD)

sub41201-80732

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35028iRN85..LHD..IV3199505-199511

sub90366-35087

main90366-35044iRN125;LN80,85,86,90,RN85,90,YN80,85,9#..ARL,GEN,TH198808-200412

main90366-35087iLN200..SRV200106-200412

W(LSD)

main90366-35087iRN85..LHD..IV3199511-199709

main90366-40068iLN81,86,RN8#,90,YN81,86..V199208-199708

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-200106

sub90366-30078

main90366-30025iRN85..LHD..IV3199505-199511

sub90366-30067

main90366-30067iLN200..SRV200106-200412

W(LSD)

main90366-30067iRN85..LHD..IV3199511-199709

main90366-30078iLN200..DLX,STD200106-200412

main90368-34007iLN81,86,RN8#,90,YN81,86..V199208-199708

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38035iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-199601

sub90311-38047

main90311-38047iRN85..LHD..IV3199511-200201

main90311-38133iRN85..LHD..IV3199505-199511

sub90311-38047

main90311-41009iLN200,RZN200200201-200412

main90311-44006iLN81,86,RN8#,90,YN81,86..V199208-199708

sub90311-44007

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=1.70

main90201-35498iLN200,RZN200198808-200412

OD=47,T=1.73

main90201-35499iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-200412

OD=47,T=1.76

main90201-35500iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=1.79

main90201-35501iLN200,RZN200198808-200412

OD=47,T=1.82

main90201-35502iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=1.85

main90201-35503iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=1.88

main90201-35504iLN200,RZN200198808-200412

OD=47,T=1.91

main90201-35505iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=1.94

main90201-35506iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=1.97

main90201-35507iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=2.00

main90201-35508iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=2.03

main90201-35509iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=2.06

main90201-35510iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-200412

OD=47,T=2.09

main90201-35511iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=2.12

main90201-35512iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-200412

OD=47,T=2.15

main90201-35513iLN200,RZN200198808-200412

OD=47,T=2.18

main90201-35514iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-200412

OD=47,T=2.21

main90201-35515iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=2.24,MARK 01

main90201-35516iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=2.27,MARK 02

main90201-35517iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200412

OD=47,T=2.30,MARK 03

main90201-35518iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-200412

OD=47,T=2.33,MARK 04

main90201-70001iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.87,MARK 87

sub90201-70002

main90201-70002iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.88,MARK 88

main90201-70003iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.89,MARK 89

sub90201-70004

main90201-70004iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.90,MARK 90

main90201-70005iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.91,MARK 91

sub90201-70006

main90201-70006iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.92,MARK 92

main90201-70007iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.93,MARK 93

sub90201-70008

main90201-70008iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.94,MARK 94

main90201-70009iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.95,MARK 95

sub90201-70010

main90201-70010iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.96,MARK 96

main90201-70011iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.97,MARK 97

sub90201-70012

main90201-70012iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.98,MARK 98

main90201-70013iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.99,MARK 99

sub90201-70014

main90201-70014iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.00,MARK 00

main90201-70015iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.01,MARK 01

sub90201-70016

main90201-70016iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.02,MARK 02

main90201-70017iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.03,MARK 03

sub90201-70018

main90201-70018iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.04,MARK 04

main90201-70019iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.05,MARK 05

sub90201-70020

main90201-70020iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.06,MARK 06

main90201-70021iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.07,MARK 07

sub90201-70022

main90201-70022iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.08,MARK 08

main90201-70023iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.09,MARK 09

sub90201-70024

main90201-70024iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.10,MARK 10

main90201-70025iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.11,MARK 11

sub90201-70026

main90201-70026iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.12,MARK 12

main90201-70027iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.13,MARK 13

sub90201-70028

main90201-70028iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.14,MARK 14

main90201-70029iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.15,MARK 15

sub90201-70030

main90201-70030iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.16,MARK 16

main90201-70031iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.17,MARK 17

sub90201-70032

main90201-70032iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.18,MARK 18

main90201-70033iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.19,MARK 19

sub90201-70034

main90201-70034iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.20,MARK 20

main90201-70035iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.21,MARK 21

sub90201-70036

main90201-70036iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.22,MARK 22

main90201-70037iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.23,MARK 23

sub90201-70038

main90201-70038iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.24,MARK 24

main90201-70039iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.25,MARK 25

sub90201-70040

main90201-70040iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.26,MARK 26

main90201-70041iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.27,MARK 27

sub90201-70042

main90201-70042iLN81,86,RN8#,90,YN81,86..V199208-199708

T=2.28,MARK 28

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-34010iLN81,86,RN8#,90,YN81,86..V199208-199708

main41204-35040iRN85..RHD;RN85..EFI..IV3;RN85..LHD..GEN..CBU;LN80,85,86,9#,RN90,YN80,85,86,92..ARL,GEN,TH198808-200201

main41204-35080iLN200..DLX,STD200106-200201

W(LSD)

main41204-35080iRN85..LHD..IV3199511-199709

main41204-35081iLN200,RZN200200201-200405

sub41204-35082

main41204-35082iLN200,RZN200200405-200412

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-199308

main90201-35006iLN81,86,RN8#,90,YN81,86..V199208-199708

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iLN200,RZN200200201-200412

OD=39.5

main90179-20001iRN125;LN80,85,86,90,RN85,90,YN80,85,92..ARL,GEN,TH198808-199308

main90179-20018iLN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH199308-200201

OD=37

main90179-24012iLN81,86,RN8#,90,YN81,86..V199208-199708

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH198808-200201

main41214-26011iLN200,RZN200200201-200412

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-200412

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iLN200,RZN200198808-200412

main90901-05002iLN81,86,RN8#,90,YN81,86..V199208-199708

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iRZN200;LN200..SRV200106-200412

W(LSD)

main41231-24010iRN85..LHD..IV3199505-199709

main41231-34010iLN81,86,RN8#,90,YN81,86..V199208-199708

main41231-40011iRN125;LN80,85,86,90,RN85,90,YN80,85,9#..ARL,GEN,TH198808-200412

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-34010iLN81,86,RN8#,90,YN81,86..V199208-199708

main41252-35010iRN125;LN80,85,86,90,RN85,90,YN80,85,92..ARL,GEN,TH198808-199303

sub41252-35020

main41252-35020iRN85..RHD;RN85..EFI..IV3;RN85..LHD..GEN..CBU;LN80,85,86,9#,RN90,YN80,85,86,92..ARL,GEN,TH199303-200201

main41252-35040iRN85..LHD..IV3199511-199709

main41252-35040iRZN200;LN200..SRV200106-200201

W(LSD)

main41252-35041iLN200,RZN200200201-200412

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iRN85..LHD..IV3199505-199709

main90366-50007iLN200..SRV200106-200412

W(LSD)

main90366-51001iLN81,86,RN8#,90,YN81,86..V199208-199708

main90368-45066iLN200..DLX,STD198808-200412

main90368-50024iLN86,RN85..RHD;RN85..SR5..GEN;LN80,85,9#,RN90,YN80,85,86,87,9#..ARL,GEN,TH198808-199909

W(LSD)

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35010iRN85..RHD;RN85..SR5..GEN;LN80,85,86,90,RN90,YN80,85,87,9#..ARL,GEN,TH198808-199511

W(LSD)

sub41302-35040

main41302-35020iRZN200199505-200412

sub41302-26010

main41302-35040iLN200,RZN200199511-200412

W(LSD)

sub41302-35041

sub90105-11063

main41311-40020iRN85..RHD;RN85..EFI..IV3;RN85..LHD..GEN..CBU;LN80,85,86,9#,RN90,YN80,85,86,92..ARL,GEN,TH198808-200412

sub41311-40021

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010iRN125;LN80,85,86,90,RN85,90,YN80,85,9#..ARL,GEN,TH198808-200412

main41315-35020iLN200..SRV200106-200412

W(LSD)

main41315-35020iRN85..LHD..IV3199505-199709

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-199305

main41316-35010iRN125;LN80,85,86,9#,RN85,90,YN80,85,86,9#..ARL,GEN,TH199305-200412

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-34010iLN81,86,RN8#,90,YN81,86..V199208-199708

sub41331-34011

main41331-35011iRN85..RHD;RN85..EFI..IV3;RN85..LHD..GEN..CBU;LN80,85,86,9#,RN90,YN80,85,86,92..ARL,GEN,TH198808-200412

main41331-35030iLN86,RN85..RHD;RN85..SR5..GEN;LN80,85,9#,RN90,YN80,85,86,87,9#..ARL,GEN,TH198808-199909

W(LSD)

sub41039-34070

main41331-35040iRN85..LHD..IV3199505-199709

sub41039-34060

sub41039-34080

41341PINION, REAR DIFFERENTIAL

main41341-30020iRN85..LHD..IV3199505-199709

sub41341-30050

main41341-30020iLN86,RN85..RHD;RN85..SR5..GEN;LN80,85,9#,RN90,YN80,85,86,9#..ARL,GEN,TH199408-199909

W(LSD)

sub41341-30050

main41341-34010iLN81,86,RN8#,90,YN81,86..V199208-199708

sub41341-34011

main41341-35010iRN85..RHD;LN80,85,86,90,RN90,YN80,85,87,9#..ARL,GEN,TH198808-199408

W(LSD)

sub41341-14041

main41341-35020iLN200..DLX,STD198808-200412

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-34010iLN81,86,RN8#,90,YN81,86..V199208-199708

sub41342-34011

main41342-39610iRN85..RHD;RN85..EFI..IV3;RN85..LHD..GEN..CBU;LN80,85,86,9#,RN90,YN80,85,86,92..ARL,GEN,TH198808-200412

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iLN81,86,RN8#,90,YN81,86..V199208-199708

main90250-06085iRN125;LN80,85,86,90,RN85,90,YN80,85,9#..ARL,GEN,TH198808-200412

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iYN86..T1;YN86..TW1..5F;LN8#,90,RN125,8#,90,YN80,81,85,87,92198808-200412

main41351-30060iLN200,RZN200..DLX,STD198808-200412

W(LSD)

main41351-30060iRN85..LHD..IV3199505-199709

main41351-34010iLN81,86,RN8#,90,YN81,86..V199208-199708

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-24010iRN85..LHD..IV3199505-199509

T=0.90

sub41361-60E10

main41361-24020iRN85..LHD..IV3199505-199509

T=1.00

sub41361-60E50

main41361-24030iRN85..LHD..IV3199505-199509

T=1.10

sub41361-60E90

main41361-24040iRN85..LHD..IV3199505-199509

T=1.20

sub41361-60F30

main41361-24050iRN85..LHD..IV3199505-199509

T=1.30

sub41361-60F70

main41361-34010iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.50

main41361-34020iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.55

main41361-34030iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.60

main41361-34040iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.65

main41361-34050iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.70

main41361-34060iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.75

main41361-34070iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.80

main41361-34080iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.85

main41361-34090iLN81,86,RN8#,90,YN81,86..V199208-199708

T=1.90

main41361-35020iLN80,85,90,RN85,90,YN80,85,87,92..ARL,GEN,TH198808-199108

T=1.8,W(LSD)

main41361-35160iLN200,RZN200199108-200302

T=1.8,W(LSD)

sub41361-35161

main41361-35161iLN200,RZN200..DLX,STD200302-200412

T=1.8,W(LSD)

main41361-35161iLN200,RZN200..DLX,STD200302-200412

T=1.8

main41361-35290iLN200,RZN200200106-200302

T=1.70,MARK N

sub41361-35291

main41361-35290iRN85..SR5..GEN;LN86,RN85,90..RHD;LN80,85,9#,YN80,85,9#..MTM199108-199909

T=1.70,MARK N,W(LSD)

sub41361-35291

main41361-35291iLN200,RZN200200302-200412

T=1.70,MARK N

main41361-35310iRZN200199509-200412

T=0.9

main41361-35320iRN85..LHD..IV3199509-200412

T=1.0

main41361-35330iRZN200199509-200412

T=1.1

main41361-35340iRN85..LHD..IV3199509-200412

T=1.2

main41361-35350iRZN200199509-200412

T=1.3

main41361-40021iRN125;LN80,85,86,90,RN85,90,YN80,85,9#..ARL,GEN,TH198808-200412

T=1.6

main41362-40021iRN85..RHD;RN85..EFI..IV3;RN85..LHD..GEN..CBU;LN80,85,86,9#,RN90,YN80,85,86,92..ARL,GEN,TH198808-200412

T=1.7

main41363-40021iRN125;LN80,85,86,90,RN85,90,YN80,85,9#..ARL,GEN,TH198808-200412

T=1.8

9111150814

main91111-50814

9161160814

main91611-60814

9451200800

main94512-00800

9453101200

main94531-01200

30 parts on this diagram · 7 diagrams in section
