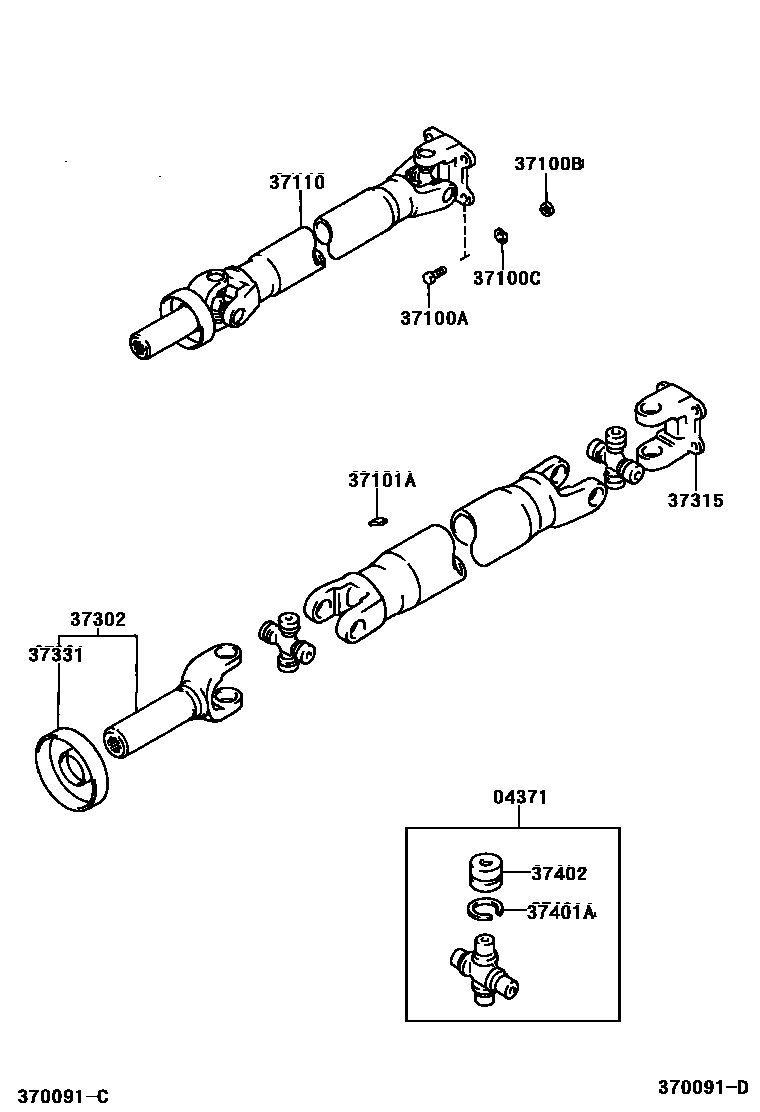

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
OMAN SPEC
37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
sub90560-10H00
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7
20G,L=41.4
2G,T=2.0
4G,T=2.0
6G,L=12.4
8G,L=16.6
12G,L=24.9
14G,L=29.0
16G,L=33.2
18G,L=37.3
22G,L=45.6
24G,L=49.7
26G,L=53.9
28G,L=58.1
30G,T=4.5,L=27.4
37110SHAFT ASSY, PROPELLER
OMAN SPEC
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
OMAN SPEC
main37302-35030iRN85..SR5..V;RN85..(DLX,STD)..CBR;LN81,86,RN125,80..ARL,V;RN90,YN87,92..ARL,GEN,TH198808-199909
37315YOKE, UNIVERSAL JOINT FLANGE
OMAN SPEC
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.29,MARK 1
T=2.31,MARK 2
T=2.33,NO MARK
T=2.35,BROWN
T=2.37,BLUE
T=2.39,MARK 6
T=2.41,MARK 7
T=2.43,MARK 8
T=2.45,MARK 9
T=2.47,MARK 10
T=2.49,MARK A
T=2.51,MARK B
T=2.53,MARK C
T=2.55,MARK D
T=2.57,MARK E
T=2.19,MARK D
T=2.21,MARK E
T=2.23,MARK F
T=2.25,MARK G
T=2.27,MARK H
T=2.125,MARK 1
T=2.125,MARK 1,OMAN SPEC
T=2.175,MARK 2,OMAN SPEC
T=2.175,MARK 2
T=2.225,MARK 3
T=2.225,MARK 3,OMAN SPEC
T=2.275,MARK 4
T=2.275,MARK 4,OMAN SPEC
T=2.325,MARK 5
T=2.325,MARK 5,OMAN SPEC
T=2.375,MARK 6
T=2.375,MARK 6,OMAN SPEC
T=2.425,MARK 7
T=2.425,MARK 7,OMAN SPEC
T=2.475,MARK 8,OMAN SPEC
T=2.475,MARK 8
T=2.375-2.425
T=2.425-2.475
T=2.475-2.525
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
RED PAINTED
12 parts on this diagram · 3 diagrams in section
