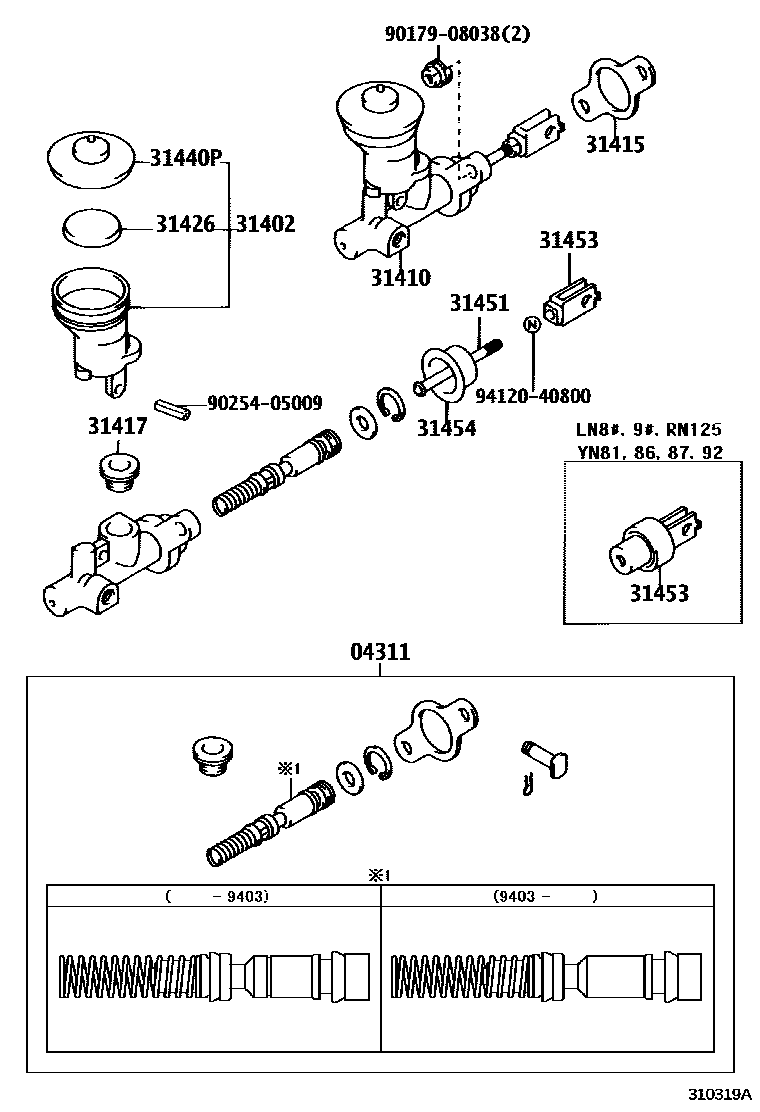

CLUTCH MASTER CYLINDER

0001 1 0002 1NEW ZEALAND SPEC 0003 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iLN8#,90,RN125,8#,90,YN8#,92..MTM198904-199112

sub04311-12080

main04311-12080iLN8#,90,RN125,8#,90,YN8#,9#..MTM199112-199403

main04311-12110iLN8#,9#,RN85,YN85..MTM199710-200106

main04311-22040iLN8#,90,RN8#,90,YN8#,92..MTM198808-198904

sub04311-12080

main04311-35051iRN85,90..5F..ARL198808-198812

sub04311-35052

main04311-35070iLN85..RHD..5F..GEN..CBU198910-199108

VW BRAND

main04311-60150iLN8#,9#,RN8#,90,YN8#,9#..MTM199403-199710

sub04311-12110

main04311-60150iLN85..IV3;LN85..TW1199710-199808

NEW ZEALAND SPEC

sub04311-12110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35030iLN8#,90,RN8#,90,YN8#,92..MTM198808-199812

main31402-35050iLN85..RHD..5F..GEN..CBU198910-199108

VW BRAND

main31402-35070iYN80,85,90;RN8#,90..LHD198904-199909

sub31402-35030

main31402-35080iRN125,YN81,86,87,92198904-199708

sub31402-35030

main31402-35080iLN85..RHD..T1..IV3;LN85..RHD..TW1..CBU199410-199909

NEW ZEALAND SPEC

sub31402-35030

main31402-35090iLN8#,9#..MTM198904-200106

sub31402-35030

main31402-35110iRZN200200106

sub31402-35060

31410CYLINDER ASSY, CLUTCH MASTER

main31410-35250iYN80,85,90;RN8#,90..LHD198808-199909

sub31410-35360

main31410-35260iRN125,YN81,86,87,92198808-199708

sub31410-35271

main31410-35270iLN8#,90..MTM198808-199410

sub31410-35271

main31410-35271iLN8#,9#..MTM199410-200106

main31410-35280iRN85,90..5F..ARL198808-198812

sub31410-35281

sub31481-35321

main31410-35281iRN85,90..RHD..5F198812-199812

sub31410-35350

main31410-35300iLN85..RHD..T1..IV3;LN85..RHD..TW1..CBU199410-199909

NEW ZEALAND SPEC

main31410-35410iLN85..RHD..5F..GEN..CBU198910-199108

VW BRAND

sub31410-35400

main31410-35420iRZN200200106

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iLN8#,9#,RN125,8#,90,YN8#,9#..MTM198808-200106

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iLN8#,9#,RN125,8#,90,YN8#,9#..MTM198808-200106

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLN8#,9#,RN125,8#,90,YN8#,9#..MTM198808-200106

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35010iLN85..RHD..5F..GEN..CBU198910-199108

VW BRAND

main47230-20040iLN8#,9#,RN125,8#,90,YN8#,9#..MTM198808-200106

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35070iRN8#,90,YN80,85,90..MTM198808-199909

main31451-35080iLN8#,9#..MTM198808-200106

main31451-36040iYN81,86,92199403-199708

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iLN8#,9#..MTM199410-200106

main31404-35010iYN81,86,87,92198808-198809

sub31404-35011

main31404-35011iRN125,YN81,86,87,92198809-199708

sub31404-35013

main31404-35013iRZN200200310

main31404-35020iLN8#,90..MTM198808-198904

sub31404-35021

main31404-35021iLN8#,90..MTM198904-199410

sub31404-35030

main31453-35010iRN8#,90,YN80,85,90..MTM198808-199909

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iLN8#,9#,RN8#,90,YN8#,9#..MTM199204-200106

main31454-24010iLN8#,90,RN125,8#,90,YN8#,92..MTM198808-199403

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 4 diagrams in section
