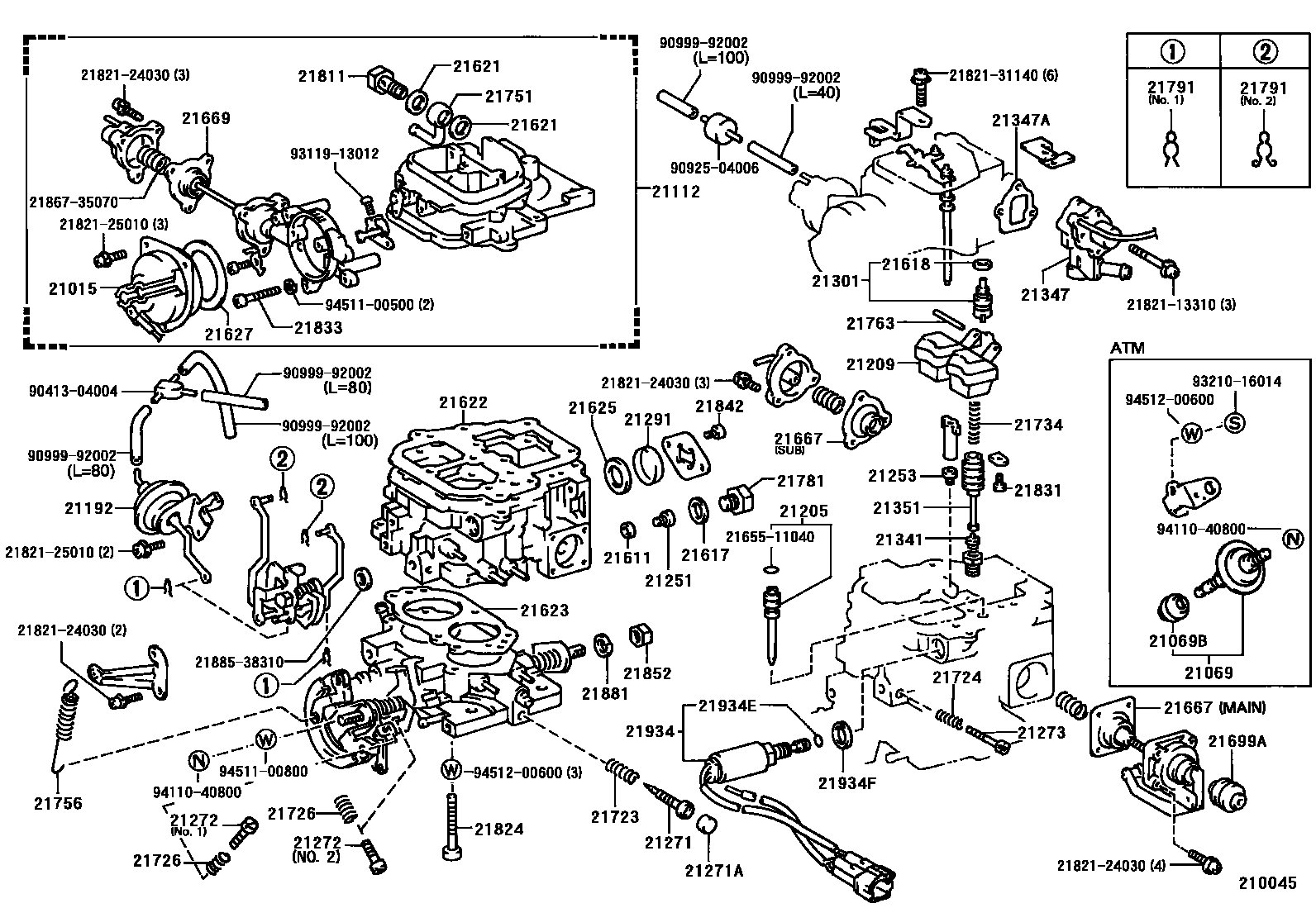

CARBURETOR

0001 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1

21015HOUSING SUB-ASSY, COIL

main21015-35501i22R..RN85,90..ARL198808-199708

main21015-35540i22R..RN125,8#..V198808-199909

main21141-71090i3Y..YN81,86198808-199708

main21141-72250i2Y..YN85..ARL198808-199708

main21141-72340i2Y..YN80,85,90..TH199401-199504

21069DASH POT SUB-ASSY

main21069-37040i22R..RN90..4FC199108-199708

main21069-37041i22R..RN85,90..4FC198808-199108

sub21069-37040

21069BBOOT(FOR DASH POT)

main21699-41010i22R..RN85,90..4FC198808-199708

21112HORN, AIR

main21012-72250i2Y..YN85..ARL198808-199708

main21012-72280i2Y..YN80,85..GEN198808-199909

main21012-72340i2Y..YN80,85,90..TH199401-199504

main21012-73350i3Y..YN81,86198808-199708

main21012-73360i4Y..YN87,92198808-199708

main21112-35521i22R..RN90..ARL198808-199708

main21112-35541i22R..RN85..SR5..GEN199508-199708

CHINA SPEC

main21112-35541i22R..RN125,8#..V198808-199812

main21112-35570i22R..RN85..LHD..GEN199108-199909

21192BREAKER

main21192-35350i22R..RN8#;22R..RN90..V199308-199909

sub21192-35210

main21192-35351i22R..RN90..V;22R..RN125,8#198808-199308

sub21192-35350

main21192-35520i22R..RN90..ARL199108-199708

main21192-35521i22R..RN85,90..ARL198808-199108

sub21192-35520

21205JET SUB-ASSY, SLOW

main21205-35210i22R..RN85,90..ARL198808-199708

sub21205-35410

main21205-35360i22R..RN85..RHD199008-199812

main21205-35361i22R..RN125,8#,90..LHD198808-199909

main21205-72210i2Y..YN80,85,90..GEN,TH198808-199909

main21205-73110i2Y..YN85..ARL198808-199708

main21205-73220i3Y,4Y..YN81,86,87,92198808-199708

21209FLOAT SUB-ASSY

main21209-37041i22R..RN125,8#,90198808-199909

main21209-73110i2Y,3Y,4Y..YN8#,9#198808-199909

21251JET, 1ST MAIN

main21244-36120i2Y..YN85..ARL198808-199708

main21251-72210i2Y,3Y,4Y..YN8#,92..GEN,TH,V198808-199909

main21251-72340i2Y..YN80,85,90..TH199401-199504

main90999-41113i22R..RN125,8#198808-199909

main90999-41114i22R..RN85..SR5..GEN199508-199708

CHINA SPEC

main90999-41114i22R..RN125,8#,90..V199108-199708

main90999-41116i22R..RN85,90..5F..ARL198808-199708

main90999-41117i22R..RN85,90..4FC198808-199708

21253JET, 2ND MAIN

main21253-37040i22R..RN125,8#,90198808-199909

sub21253-35410

main21253-73110i3Y..YN81,86198911-199708

main21253-73140i2Y,4Y..YN80,85,92..GEN198808-199909

main21253-73290i2Y..YN80,85,90..RHD..5F198808-199708

21271SCREW, IDLE ADJUSTING

main21207-34420i2Y..YN80,85,90..TH199401-199504

main21271-35010i22R..RN90..ARL198808-199708

main21271-37080i22R..RN125,8#,90..V199108-199708

main21271-37080i22R..RN85..SR5..GEN199508-199708

CHINA SPEC

main21271-37081i22R..RN125,8#..V198808-199308

sub21271-37080

main21271-63070i22R..RN85..RHD199008-199812

sub21271-35010

main21271-71030i3Y..YN81,86198808-199708

main21271-72280i2Y,4Y..YN80,85,92..GEN198808-199909

sub21271-71030

main21271-73290i2Y..YN85..ARL198808-199708

21271APLUG, IDLE LIMIT

main21785-13210i22R..RN90..ARL199108-199708

main21785-13211i22R..RN85,90..ARL198808-199108

sub21785-13210

21272SCREW, 1ST IDLE ADJUSTING

main21273-26370i22R..RN8#,90199108-199909

NO.2

main21273-26371i22R..RN125,8#,90198808-199308

NO.2

sub21273-26370

main21844-33010i22R..RN8#,90199108-199909

NO.1

main21844-33011i22R..RN85..LHD..GEN198808-199308

NO.1

sub21844-33010

21273SCREW, THROTTLE ADJUSTING

main21272-72250i2Y,3Y,4Y..YN8#,9#198808-199909

main21273-35210i22R..RN90..ARL199108-199708

main21273-35211i22R..RN90198808-199108

sub21273-35210

main21273-71010i22R..RN85..RHD;22R..RN125,8#,90..V199108-199909

main21273-71012i22R..RN125,8#198808-199308

sub21273-71010

21291GLASS, LEVEL GAGE

main21291-34320i22R..RN125,8#,90198808-199909

main21291-36120i2Y,3Y,4Y..YN8#,9#198808-199909

21301VALVE SUB-ASSY, NEEDLE

main21301-35010i22R..RN125,8#,90198808-199909

main21301-71030i2Y,3Y,4Y..YN8#,9#198808-199909

21341VALVE, POWER

main21304-61060i22R..RN125,8#,90198808-199909

21347VALVE, SOLENOID

main21347-35510i22R..RN125,8#,90198808-199909

21347AGASKET(FOR VALVE, SOLENOID)

main21641-35510i22R..RN125,8#,90198808-199909

21351PISTON, POWER

main21351-37040i22R..RN125,8#,90198808-199909

21611GASKET, MAIN JET

main21611-22010i22R..RN125,8#,90198808-199909

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i22R..RN125,8#,90198808-199909

main21633-44150i2Y,3Y,4Y..YN8#,9#198808-199909

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i22R..RN125,8#,90198808-199909

main21637-71030i2Y,3Y,4Y..YN8#,9#198808-199909

21621GASKET, UNION NIPPLE

main21633-24030i22R..RN125,8#,90198808-199909

21622GASKET, AIR HORN

main21622-35510i22R..RN85,90..ARL198808-199708

main21622-35540i22R..RN90..V;22R..RN125,8#198808-199909

main21622-72250i2Y,3Y,4Y..YN8#,9#198911-199909

main21622-73190i2Y,3Y,4Y..YN8#,92198808-198911

sub21622-72250

21623GASKET, BODY FLANGE

main21623-35510i22R..RN125,8#,90198808-199712

sub21623-75080

main21623-75080i22R..RN85199712-199909

21625GASKET, LEVEL GAGE

main21625-36120i2Y,3Y,4Y..YN8#,9#198808-199909

main21655-60200i22R..RN125,8#,90198808-199909

21627GASKET, COIL HOUSING

main21627-28150i22R..RN125,8#,90198808-199909

main21642-34600i2Y..YN80,85,90..TH199401-199504

21667DIAPHRAGM

main21667-35510i22R..RN125,8#,90198808-199909

MAIN

main21675-35510i22R..RN125,8#,90198808-199909

SUB

21669DIAPHRAGM

main21669-35510i22R..RN125,8#,90198808-199909

21699BOOT(FOR PUMP PLUNGER)

main21656-71030i2Y,3Y,4Y..YN8#,9#198808-199909

21699ABOOT(FOR ACCELERATION PUMP)

main21699-37040i22R..RN125,8#,90198808-199909

21723SPRING, IDLE ADJUSTING

main21723-30030i2Y,3Y,4Y..YN8#,9#198808-199909

main21723-37040i22R..RN8#,90199108-199909

main21723-37041i22R..RN125,8#,90198808-199308

sub21723-37040

21724SPRING, THROTTLE ADJUSTING

main21723-38330i22R..RN8#,90199108-199909

main21723-38331i22R..RN85..LHD..GEN198808-199308

sub21723-38330

main21723-71030i2Y,3Y,4Y..YN8#,9#198808-199909

21726SPRING, 1ST IDLE ADJUSTING

main21726-38310i22R..RN8#,90199108-199909

main21726-38311i22R..RN85..LHD..GEN198808-199308

sub21726-38310

21734SPRING, POWER PISTON

main21734-37040i22R..RN90..ARL198808-199708

main21734-71010i22R..RN125,8#..V198808-199909

21751UNION, NIPPLE

main21894-37040i22R..RN8#,90199308-199909

main21894-37041i22R..RN125,8#,90198808-199308

sub21894-37040

21756SPRING, BACK(FOR THROTTLE SHAFT)

main21727-73190i2Y,3Y,4Y..YN8#,9#198808-199909

main21869-35520i22R..RN85,90..RHD199107-199812

main21869-37181i22R..RN85,90..ARL198808-199107

sub21869-35520

21763PIN, FLOAT LEVER

main21763-34320i22R..RN125,8#,90198808-199909

main21768-73110i2Y,3Y,4Y..YN8#,9#198808-199909

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21776-44310i2Y,3Y,4Y..YN8#,9#198808-199909

main21781-15230i22R..RN8#,90199108-199909

main21781-15231i22R..RN125,8#,90198808-199308

sub21781-15230

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13010i22R..RN90199108-199909

NO.2

main21791-13010i22R..RN90199108-199909

NO.1

main21791-13010i22R..RN90;22R..RN8#..V199611-199708

CHINA SPEC

main21791-13010i22R..RN85..RHD199611-199909

main21791-13011i22R..RN8#..V;22R..RN90..5F199511-199611

CHINA SPEC

sub21791-13010

main21791-13011i22R..RN85..SR5..GEN198808-199611

NO.2

sub21791-13010

main21791-13011i22R..RN85,90..ARL198808-199108

NO.1

sub21791-13010

main21791-13011i22R..RN90..4FC199208-199611

sub21791-13010

main21791-60010i22R..RN85,90..RHD199108-199208

NO.1

sub21791-13011

main21797-44050i2Y,3Y,4Y..YN8#,9#198808-199909

21811BOLT, UNION NIPPLE

main21811-11060i22R..RN8#,90199404-199909

main21811-11061i22R..RN125,8#,90198808-199308

sub21811-11060

21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)

main93110-16035i22R..RN125,8#,90198808-199909

21831SCREW, POWER PISTON STOP

main21821-15060i22R..RN125,8#,90198808-199909

21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

main21804-71030i2Y..YN80,85,90198808-199909

main21804-73150i3Y,4Y..YN81,86,87,92198808-199708

main21833-33010i22R..RN125,8#,90198810-199909

main21833-33011i22R..RN8#,90198808-198810

sub21833-33010

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21832-36120i2Y,3Y,4Y..YN8#,9#198808-199909

main21842-33010i22R..RN125,8#,90198810-199909

main21842-33011i22R..RN8#,90198808-198810

sub21842-33010

21852NUT, THROTTLE LEVER SET

main21852-30010i22R..RN85..V;22R..RN85..RHD;22R..RN125,80,90199108-199909

main21852-30011i22R..RN85..LHD..GEN198808-199308

sub21852-30010

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i22R..RN8#,90199108-199909

main21881-60011i22R..RN125,8#,90198808-199108

sub21881-60010

21934SOLENOID, THROTTLE VALVE

main21062-35411i22R..RN90..ARL198808-199708

main21062-35422i22R..RN125,8#198808-199909

main21062-35540i22R..RN85..RHD199108-199812

main21391-72250i2Y..YN85..ARL198808-199708

NO.1

main21391-72280i2Y,4Y..YN80,85,87,92..GEN,TH198808-199909

main21392-72250i2Y..YN85..ARL198808-199708

NO.2

main21392-73220i3Y..YN86;2Y,3Y..YN80,81,85,90..TH,V198808-199708

sub21391-72280

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i22R..RN125,8#,90198808-199909

21934FGASKET

main21649-38010i22R..RN125,8#,90198808-199909

2165511040RING, O(FOR LIFTER ROD)

main21655-11040

2182113310SCREW, 2ND THROTTLE VALVE SET

main21821-13310

2182124030SCREW, 2ND THROTTLE VALVE SET

main21821-24030

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2186735070SPRING, DIAPHRAGM

main21867-35070

2188538310

main21885-38310

9041304004

main90413-04004

9092504006

main90925-04006

9099992002

main90999-92002

9311913012

main93119-13012

9321016014

main93210-16014

9411040800

main94110-40800

9451100500

main94511-00500

9451100800

main94511-00800

9451200600

main94512-00600

66 parts on this diagram · 8 diagrams in section
