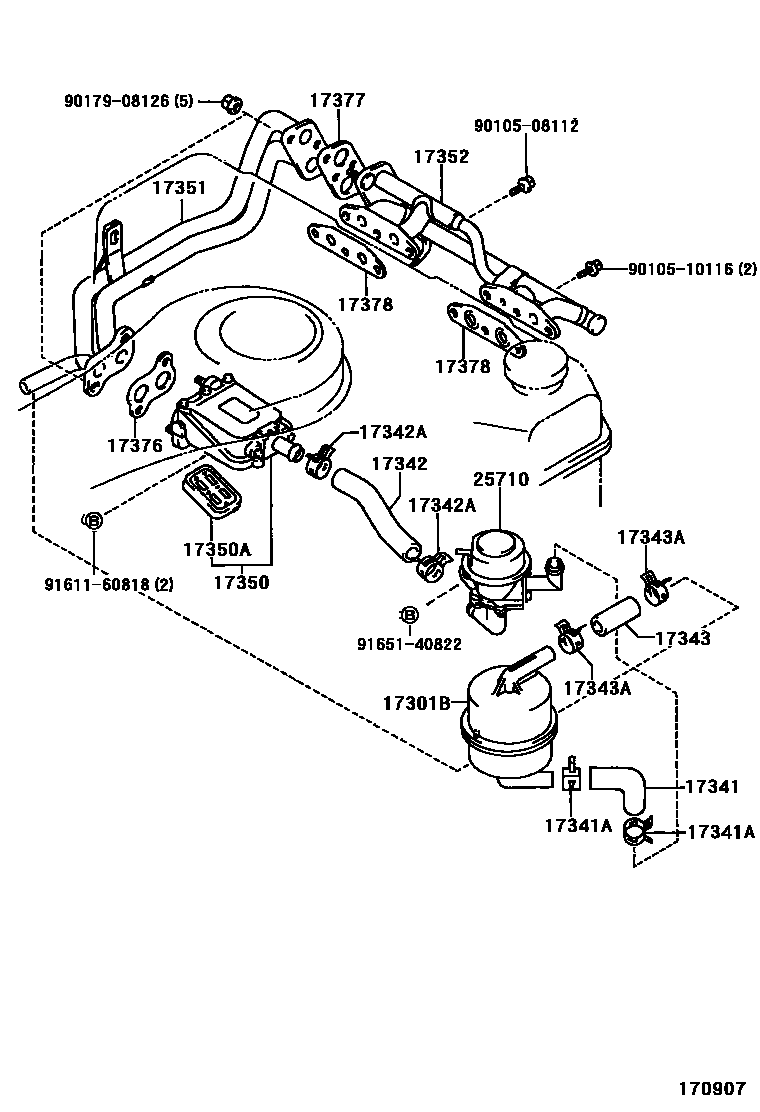

MANIFOLD AIR INJECTION SYSTEM
17301BSILENCER SUB-ASSY, AIR SUCTION
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
sub96134-52600
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
sub96134-52600
17350VALVE ASSY, REED
17350AVALVE SUB-ASSY, REED
17351MANIFOLD, AIR INJECTION
17352MANIFOLD, AIR INJECTION, NO.2
17377GASKET, AIR TUBE, NO.2
17378GASKET AIR TUBE, NO.3
25710VALVE ASSY, AIR SWITCHING
9010508112
main90105-08112
9010510116
main90105-10116
9017908126
main90179-08126
9161160818
main91611-60818
9165140822
main91651-40822
20 parts on this diagram · 4 diagrams in section
