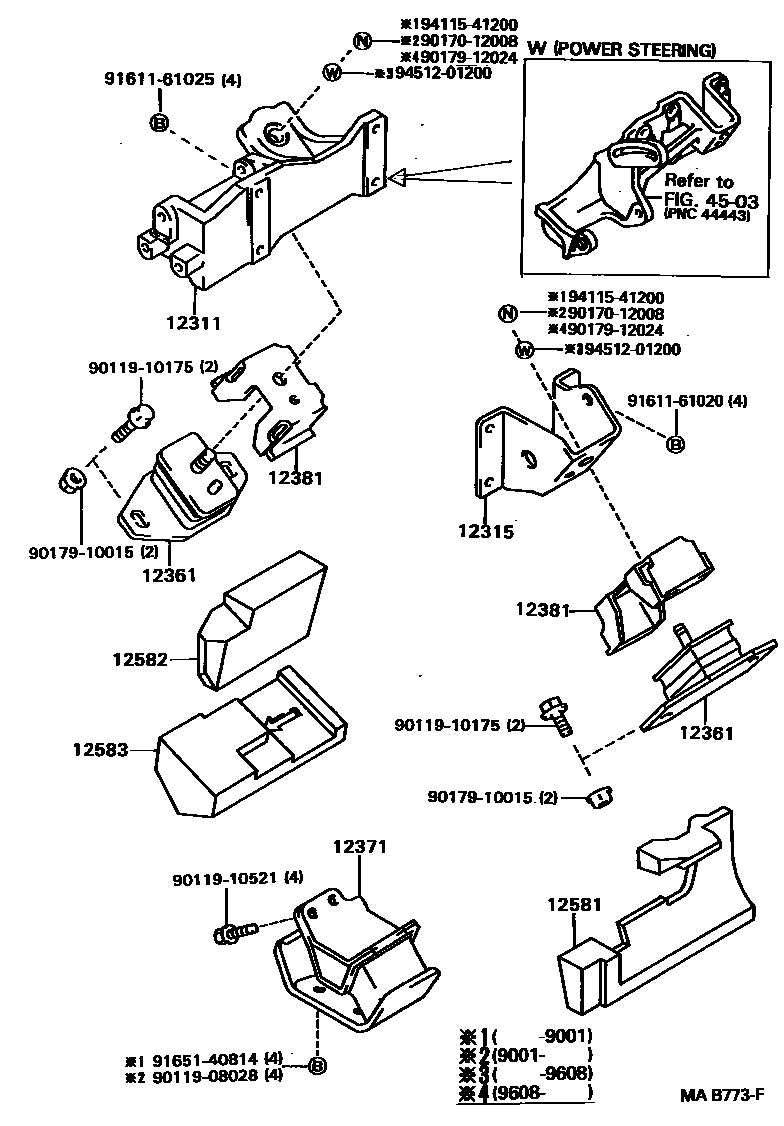

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-35121i22R..RN90;22R..RN85..5F..ARL;22R..RN85..4FC..STD198808-199909

sub12301-35122

main12301-35190i22R..RN125198907-199002

sub12301-35210

main12301-35210i22R..RN125,8#,90..V199002-199708

main12301-35210i22R..RN85..SR5..GEN199508-199708

CHINA SPEC

main12311-54090i2L,3L..LN8#,90198808-199505

sub12311-54091

main12311-54091i3L..LN86..ARL;2L,3L..LN80,85,9#199505-199909

main12311-71010i2Y,3Y,4Y..YN8#,92198808-199909

main12311-75080i3RZFE..RZN200200106-200412

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-35050i22R..RN90;22R..RN85..5F..ARL;22R..RN85..4FC..STD198808-199909

sub12302-35051

main12302-35070i22R..RN125198907-199002

sub12302-35120

main12302-35120i22R..RN125,8#,90..V199002-199708

main12302-35120i22R..RN85..SR5..GEN199508-199708

CHINA SPEC

main12312-54021i2L,3L..LN8#,9#..GEN,TH,V198808-200412

main12315-71010i2Y..YN85..RHD;2Y..YN85..LHD..4F..CBU;2Y,3Y,4Y..YN80,81,86,9#;2Y,4Y..YN85,87..5F..GEN198808-199909

main12315-75070i3RZFE..RZN200200106-200412

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35050i2Y,3Y,4Y..YN8#,92198808-199909

main12361-35090i3RZFE..RZN200200106

sub12361-35091

main12361-54110i2L..LN85,90;2L..LN80..TH198808-199001

sub12361-54111

main12361-54111i2L,3L..LN8#,9#199001-200106

main12361-54120i2L..LN80..GEN198808-199001

sub12361-54121

main12361-54121i2L..LN80..GEN199001-199108

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-31040i2Y..YN80,85..4F198808-199408

main12371-34030i2L,3L..LN8#,9#198808-200106

main12371-35070i2Y,3Y,4Y..YN8#,9#..5F199108-199909

main12371-75080i3RZFE..RZN200200106

12381STABILIZER, ENGINE MOUNTING

main12381-54010i2L,3L..LN8#,9#198808-200106

main12381-54020i2L..LN80..GEN198808-199108

main12381-54100i5L..LN200200106

main12381-73010i2Y,3Y,4Y..YN8#,92198808-199909

main12381-75020i3RZFE..RZN200200106

12581INSULATOR, CYLINDER BLOCK, NO.1

main12581-54010i3L..LN86..ARL199208-200106

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-54011i3L..LN86..5F..ARL199208-199401

sub12582-54020

main12582-54020i3L..LN86..5F..ARL199401-199509

sub12582-54021

main12582-54021i3L..LN86..5F..ARL199509-200412

12583INSULATOR, CYLINDER BLOCK, NO.3

main12583-54010i3L..LN86..5F..ARL199208-199401

sub12583-54030

main12583-54030i3L..LN86..5F..ARL199401-200412

4503

9011908028

main90119-08028

9011910175

main90119-10175

9011910521

main90119-10521

9017012008

main90170-12008

9017910015

main90179-10015

9017912024

main90179-12024

9161161020

main91611-61020

9161161025

main91611-61025

9165140814

main91651-40814

9411541200

main94115-41200

9451201200

main94512-01200

20 parts on this diagram · 5 diagrams in section
