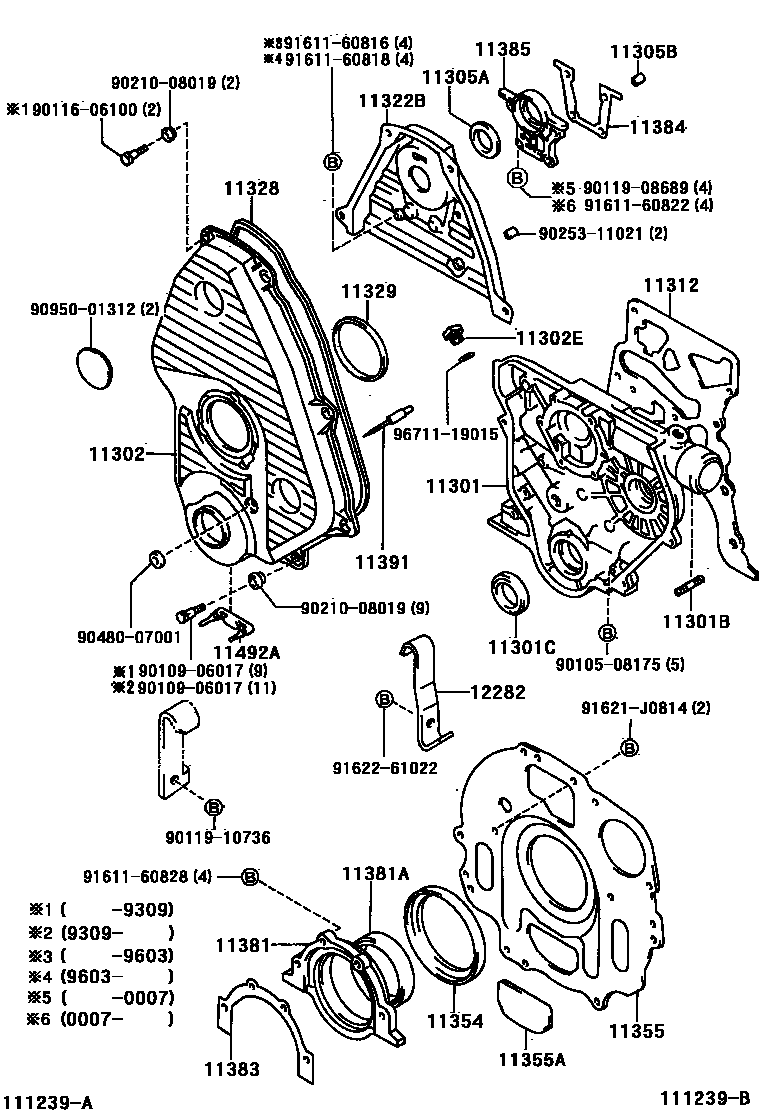

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-71010i2Y,3Y,4Y..YN8#,9#198808-199909

main11301-75021i3RZFE..RZN200200106-200412

main11311-54050i2L,3L..LN8#,90198808-199108

sub11311-54051

main11311-54051i2L,3L..LN8#..ARL,GEN,V199108-199505

sub11311-54052

sub15115-54022

main11311-54052i2L,3L..LN8#..ARL,GEN,V199505-200312

main11311-54060i5L..LN200200312-200412

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828i2L,3L..LN8#,9#198808-200412

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42012i2L,3L..LN8#,90198808-199102

main90311-42026i2L,3L..LN8#,90199102-199401

main90311-42030i2L,3L..LN8#,90199401-199605

sub90311-42031

main90311-42031i2L,3L..LN8#,9#199605-200412

main90311-48020i3RZFE..RZN200200106-200412

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-35010i22R#..RN125,8#,90198808-199909

main11321-05010i5L..LN200200312-200412

(L)

main11321-54020i2L,3L..LN8#,9#198808-200312

sub11321-54021

main11321-54020i5L..LN200200312-200412

(J)

sub11321-54021

main11321-71010i2Y,3Y,4Y..YN8#,9#198808-199909

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i2L,3L..LN8#,9#198808-200412

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32001i2L,3L..LN8#,90198808-199102

sub90311-32018

main90311-32017i2L,3L..LN8#,9#199102-199703

sub90311-32020

main90311-32019i2L,3L..LN8#,9#199703-200412

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main16159-71010i2Y,3Y,4Y..YN8#,9#198808-199909

main90253-11021i2L,3L..LN8#,9#198808-200412

11312GASKET, FRONT END PLATE

main11312-54021i2L,3L..LN8#,9#198808-200008

main11312-54040i3L..LN86200008-200412

11322BCOVER, TIMING BELT, NO.2

main11322-54020i2L,3L..LN8#,9#198808-199708

sub11322-54021

main11322-54021i2L,3L..LN8#,9#199708-200106

sub11322-54022

main11322-54031i5L..LN200200106-200203

sub11322-54032

main11322-54032i5L..LN200200203-200312

sub11322-54033

main11322-54033i5L..LN200200312-200412

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-05010i5L..LN200200301-200412

(L)

main11328-35020i22R..RN125,8#,90198808-199003

sub11328-35030

main11328-35030i22R#..RN125,8#,90199003-199909

main11328-54020i2L..LN8#,90198808-198904

sub11328-54021

main11328-54021i2L,3L..LN8#,9#198904-200301

main11328-54021i5L..LN200200301-200412

(J)

main11328-71011i2Y,3Y,4Y..YN8#,92198808-198912

sub11328-71012

main11328-71012i2Y,3Y,4Y..YN8#,9#198912-199909

main11328-75021i3RZFE..RZN200200106-200412

11329GASKET, TIMING GEAR REAR COVER

main11329-05010i3L..LN86199912-200412

(L)

main11329-54020i2L..LN8#,90198808-198904

sub11329-54021

main11329-54021i5L..LN200198904-200312

main11329-54021i5L..LN200199912-200412

(J)

main11329-75021i3RZFE..RZN200200106-200412

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L,3L..LN8#,9#198808-200412

main11354-71010i2Y,3Y,4Y..YN8#,9#198808-199909

main11354-75010i3RZFE..RZN200200106

11355PLATE, REAR END

main11355-35010i22R#..RN125,8#,90..MTM198808-199909

main11355-35030i22R..RN85,90..4FC198808-199708

main11355-54030i5L..LN200198808-200412

main11355-54040i2L,3L..LN85,86..4FC198808-199708

main11355-71010i2Y,3Y,4Y..YN8#,9#198808-199909

main11355-75010i3RZFE..RZN200200106-200412

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263i2L,3L..LN85,86,90..4FC198808-199806

main90950-01458i22R..RN85,90..4FC198808-199708

11381RETAINER, ENGINE REAR OIL SEAL

main11381-05010i5L..LN200200106-200412

main11381-38010i22R#..RN125,8#,90198808-199909

main11381-54020i2L,3L..LN8#,9#198808-199909

sub11381-54030

sub90116-08404

main11381-71010i2Y,3Y,4Y..YN8#,9#198808-199909

main11381-75010i3RZFE..RZN200200106-200412

sub11381-75011

11381ASEAL, ENGINE REAR OIL

main90311-80003i2Y,3Y,4Y..YN8#,92198808-199004

sub90311-80009

main90311-80004i22R..RN125,8#,90198808-199006

sub90311-80010

main90311-80009i2Y,3Y,4Y..YN8#,9#199004-199909

sub90311-80014

main90311-80010i22R#..RN125,8#,90199006-199909

main90311-85004i2L,3L..LN8#,90198808-199102

sub90311-85006

main90311-85006i2L,3L..LN8#,90199102-199209

sub90311-85009

main90311-85007i2L,3L..LN8#,9#199209-199703

main90311-85008i2L,3L..LN8#,9#199703-200412

main90311-88005i3RZFE..RZN200200106-200412

sub90311-88006

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i2Y,3Y,4Y..YN8#,92198808-198912

main11383-35020i22R#..RN125,8#,90198808-199909

main11383-54020i2L,3L..LN8#,90198808-199107

sub11383-54030

main11383-54030i2L,3L..LN8#,9#199107-200402

main11383-71010i2Y,3Y,4Y..YN8#,9#198912-199710

main11383-73010i2Y..YN85199710-199909

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54020i2L,3L..LN8#,90198808-199107

sub11384-54030

main11384-54030i2L,3L..LN8#,9#199107-200412

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i2L,3L..LN8#,9#198808-200412

11391POINTER, TIMING

main11391-54020i2L,3L..LN8#,9#198808-200412

11492APLATE, WATER SEAL

main11492-54010i2L..LN8#,90198808-198904

12282HANGER, ENGINE, NO.2

main12282-54060i2L,3L..LN8#,90199606-200412

main12282-75020i3RZFE..RZN200200106-200412

9010508175

main90105-08175

9010906017

main90109-06017

9011606100

main90116-06100

9011908689

main90119-08689

9011910736

main90119-10736

9021008019

main90210-08019

9025311021

main90253-11021

9048007001

main90480-07001

9095001312

main90950-01312

9161160816

main91611-60816

9161160818

main91611-60818

9161160822

main91611-60822

9161160828

main91611-60828

91621J0814

main91621-J0814

9162261022

main91622-61022

9671119015

main96711-19015

38 parts on this diagram · 6 diagrams in section
