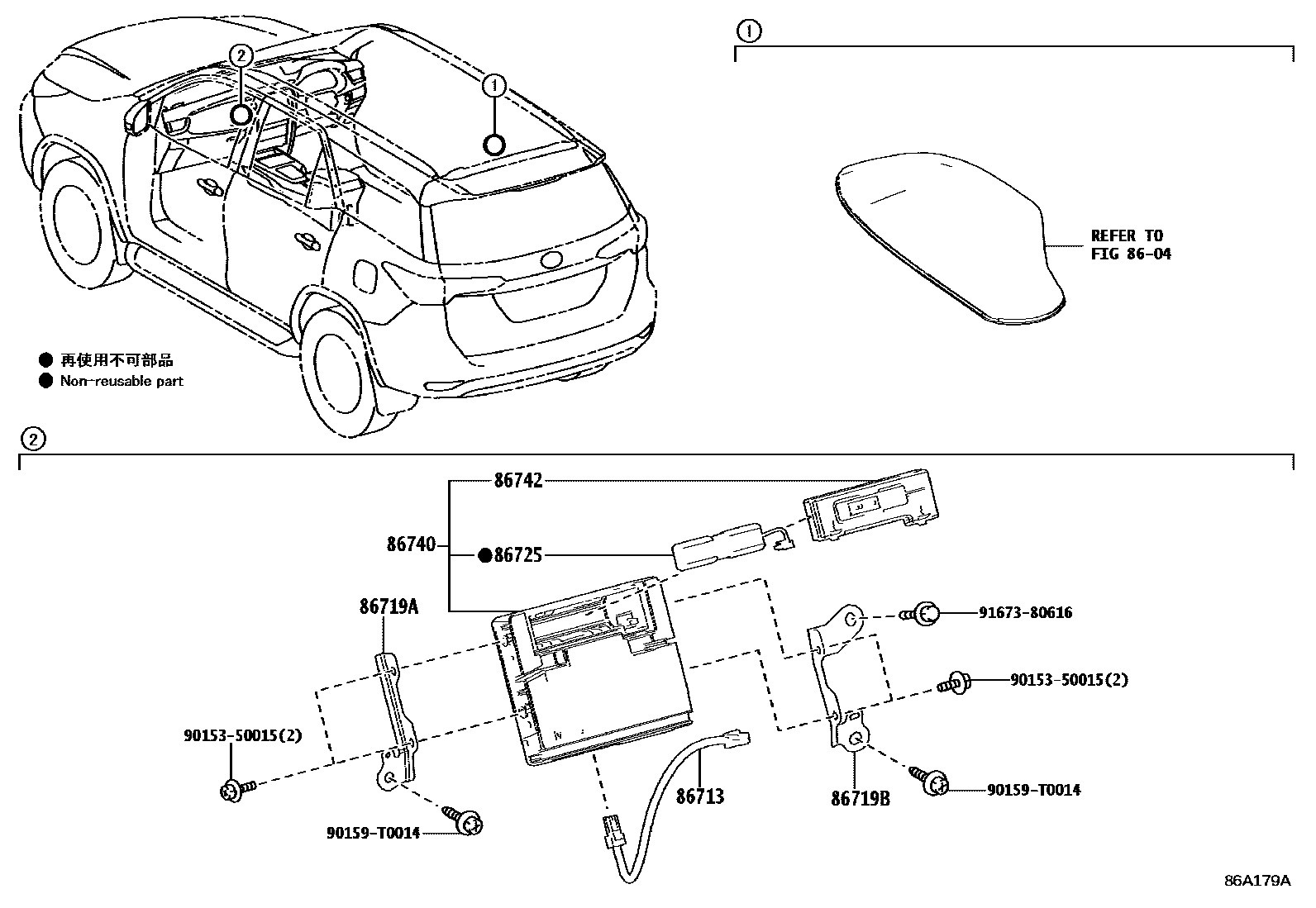

TELEPHONE & MAYDAY
8604
86713WIRE, TELEPHONE COMPUTER
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
86719BRACKET, TELEPHONE
DATA COMMUNICATION MODULE-WITH(TRANSLOG(DOP))
86719ABRACKET, TELEPHONE NO.1
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
86719BBRACKET, TELEPHONE NO.2
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
86725BATTERY, MOBILEPHONE
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
DATA COMMUNICATION MODULE-WITH(TRANSLOG(DOP))
DATA COMMUNICATION MODULE-WITH(G-DCM)
86740TRANSCEIVER ASSY, TELEPHONE
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
DATA COMMUNICATION MODULE-WITH(TRANSLOG(DOP))
DATA COMMUNICATION MODULE-WITH(G-DCM)
86742COVER, TRANSCEIVER
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
DATA COMMUNICATION MODULE-WITH(G-DCM)
9015350015
main90153-50015
90159T0014
main90159-T0014
9167380616
main91673-80616
11 parts on this diagram · 2 diagrams in section
