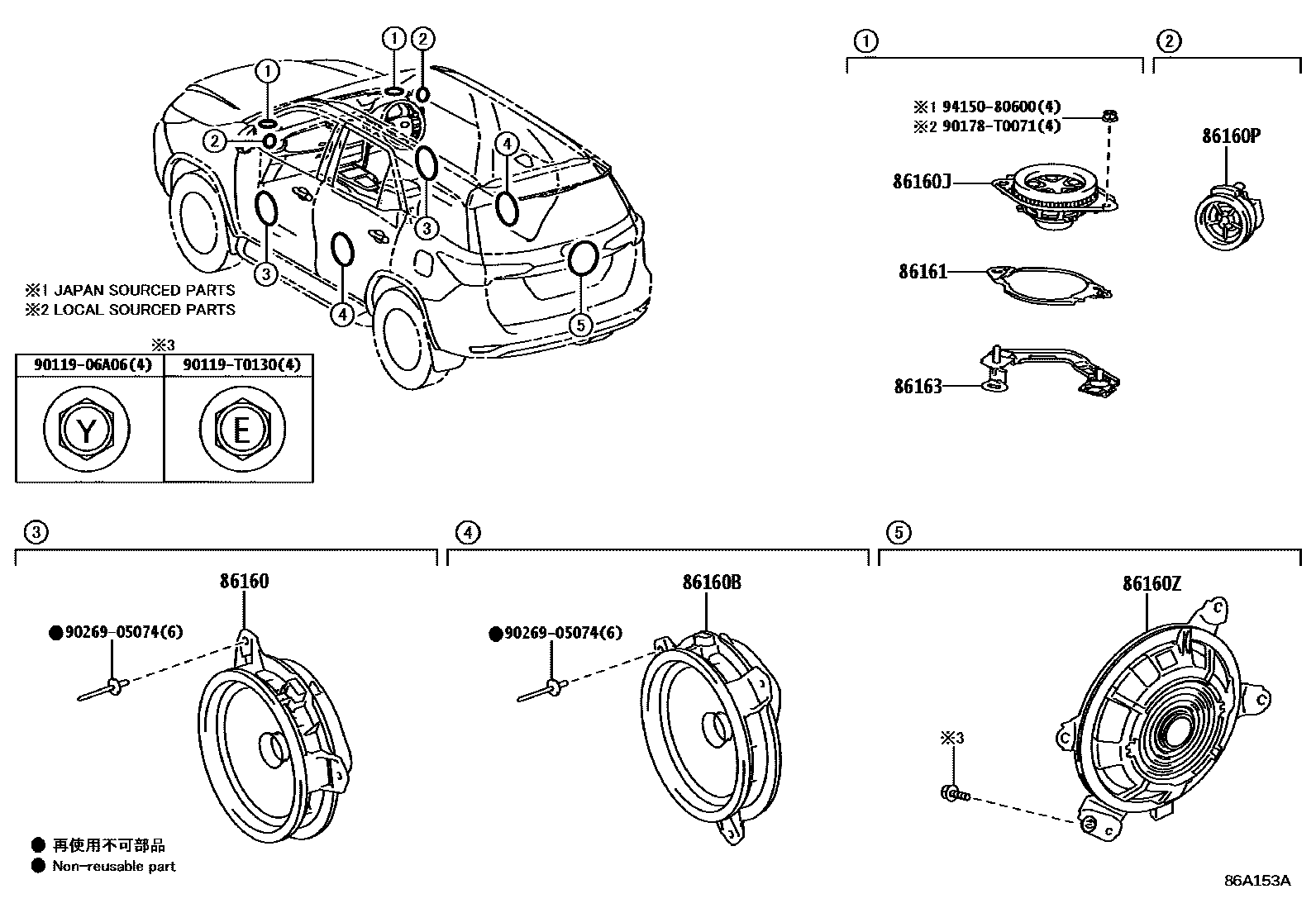

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0K380iGUN156..PH;GUN156..CAMP202309-202409

main86160-0K500iGUN15#..KEN202308-202412

main86160-0K510iGUN156..PH202309-202408

SPEAKER-6SPEAKER

main86160-0K520iGUN15#,TGN156..MA202309-202408

main86160-0K570iGUN156..VNP202401-202409

SPEAKER-11SPEAKER & JBL

86160BSPEAKER ASSY, REAR

main86160-0K330iGUN156..PH;GUN156..CAMP202309-202409

main86160-0K500iGUN15#..KEN202308-202412

main86160-0K510iGUN156..PH202309-202408

SPEAKER-6SPEAKER

main86160-0K520iGUN15#,TGN156..MA202309-202408

main86160-0K580iGUN165..H..VN202401-202409

SPEAKER-11SPEAKER & JBL

86160JSPEAKER ASSY, FRONT NO.3

main86150-0K180iGUN156..IND202309-202409

main86150-0K480iGUN156..VNP202401-202409

SPEAKER-11SPEAKER & JBL

86160PSPEAKER ASSY, FRONT NO.2

main86150-0K160iGUN166,TGN166..IND202310-202409

main86150-0K260iGUN15#..KEN202308-202412

main86150-0K270iGUN156..PH202309-202408

SPEAKER-6SPEAKER

main86150-0K340iGUN15#,TGN156..MA202309-202408

main86150-0K380iGUN156..PH;GUN156..CAMP202309-202409

main86150-0K460iGUN165..H..VN202401-202409

SPEAKER-11SPEAKER & JBL

86160ZSPEAKER ASSY, REAR NO.3

main86150-0K190iGUN156..PH;GUN156..CAMP202309-202409

main86150-0K470iGUN165..H..VN202401-202409

SPEAKER-11SPEAKER & JBL

86161BRACKET, SPEAKER, FRONT NO.1

main86161-0K030iGUN156..IND202311-202409

RH,(L)

main86161-0K040iGUN156..IND202311-202409

LH,(L)

main86161-71010iGUN156..IND202311-202409

RH,(J)

main86161-71010iGUN156..IND202310-202311

RH

main86161-71020iGUN156..IND202310-202311

LH

main86161-71020iGUN156..IND202311-202409

LH,(J)

main86161-71051iGUN156..THP..GEN;GUN156..(AGTP,IDNP)..H..(BZAGT,LA,VN);GGN155,GUN16#,TGN156,166..(AGTP,IDNP)..H..(LA,PH,VN)202311-202402

RH,(J)

main86161-71051iGUN156..PH202309-202409

RH

main86161-71051iGUN156..PH202309-202311

SPEAKER-6SPEAKER,RH

main86161-71051iGUN156..PH202311-202402

SPEAKER-6SPEAKER,RH,(J)

main86161-71051iGUN156..PH202311-202402

SPEAKER-11SPEAKER & JBL,RH,(J)

main86161-71051iGUN156..PH202402-202408

SPEAKER-11SPEAKER & JBL,RH

main86161-71061iGUN156..CAMP202309-202409

LH

main86161-71061iGUN156..PH202402-202408

SPEAKER-11SPEAKER & JBL,LH

main86161-71061iGUN156..THP..GEN;GUN156..(AGTP,IDNP)..H..(BZAGT,LA,VN);GGN155,GUN16#,TGN156,166..(AGTP,IDNP)..H..(LA,PH,VN)202311-202402

SPEAKER-11SPEAKER & JBL,LH,(J)

main86161-71061iGUN156..THP..GEN;GUN156..(AGTP,IDNP)..H..(BZAGT,LA,VN);GGN155,GUN16#,TGN156,166..(AGTP,IDNP)..H..(LA,PH,VN)202311-202402

LH,(J)

86163BRACKET, SPEAKER, NO.2

main86163-0K030iGUN156..IND202311-202409

RH,(L)

main86163-0K040iGUN156..IND202311-202409

LH,(L)

main86163-71010iGUN156..IND202311-202409

RH,(J)

main86163-71010iGUN156..IND202310-202311

RH

main86163-71020iGUN156..IND202310-202311

LH

main86163-71020iGUN156..IND202311-202409

LH,(J)

main86163-71050iGUN156..PH202311-202402

SPEAKER-6SPEAKER,RH,(J)

main86163-71050iGUN156..PH202311-202402

SPEAKER-11SPEAKER & JBL,RH,(J)

main86163-71050iGUN156..PH202311-202402

RH,(J)

main86163-71050iGUN156..PH202309-202311

SPEAKER-6SPEAKER,RH

main86163-71050iGUN156..CAMP202309-202409

RH

main86163-71050iGUN156..PH202402-202408

SPEAKER-11SPEAKER & JBL,RH

main86163-71060iGUN156..VNP202309-202409

LH

main86163-71060iGUN156..PH202311-202402

LH,(J)

main86163-71060iGUN156..PH202311-202402

SPEAKER-11SPEAKER & JBL,LH,(J)

main86163-71060iGUN156..PH202402-202408

SPEAKER-11SPEAKER & JBL,LH

9011906A06

main90119-06A06

90119T0130

main90119-T0130

90178T0071

main90178-T0071

9026905074

main90269-05074

9415080600

main94150-80600

12 parts on this diagram · 1 diagram in section
