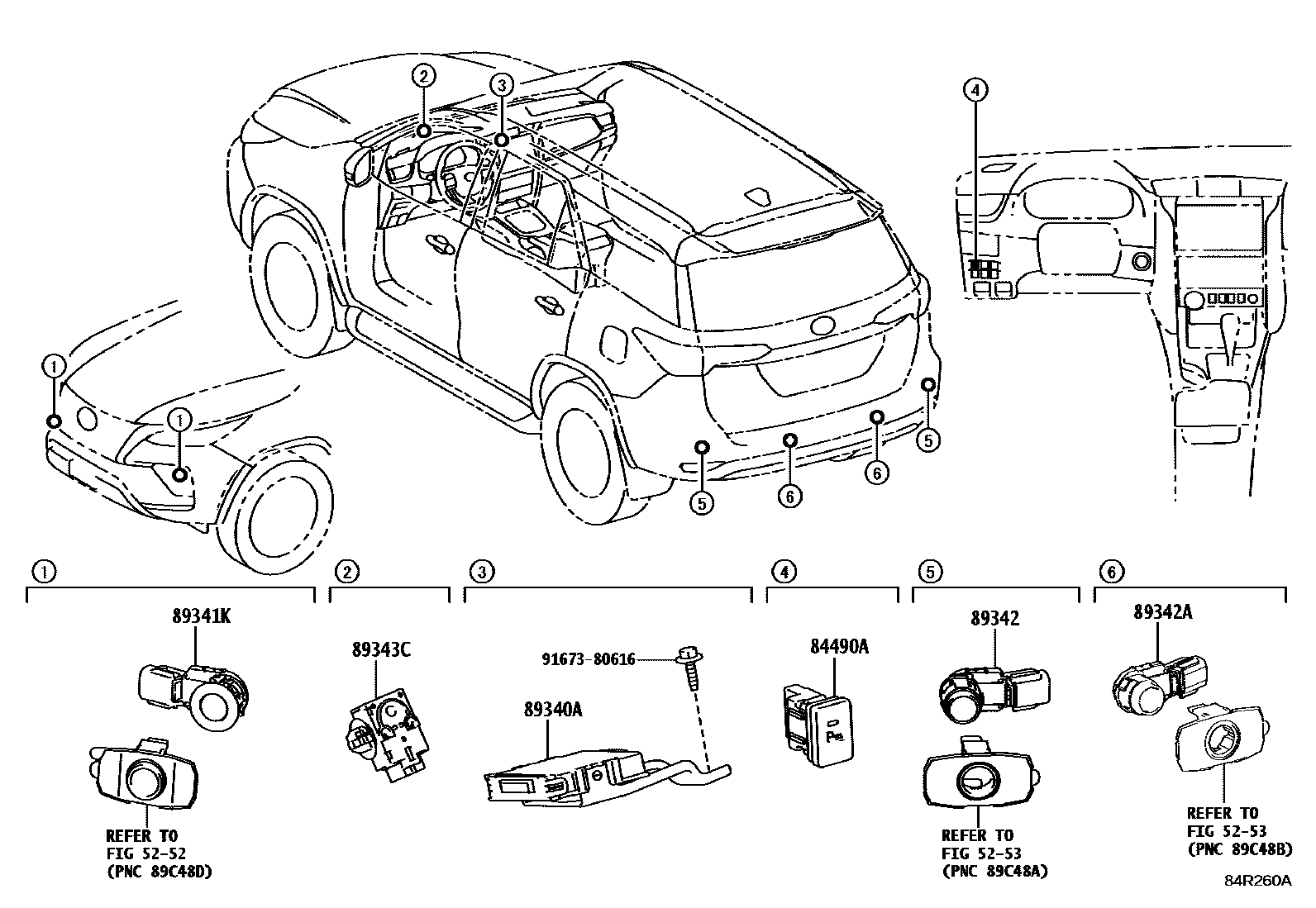

CLEARANCE & BACK SONAR
5252
5253
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-0K040iGUN155,165..H..TH;GUN155,165..LHD..THP;TGN156..IDNP..L..GCC;GUN156..THP..(ARL,GEN,TH);GGN155,GUN166,TGN156,166..THP202308-202410
CLEARANCE & BACK SONAR-WITH
89341KSENSOR, ULTRASONIC, FRONT CORNER
BLACK
CLEARANCE & BACK SONAR-WITH,BLACK
main89341-0K011-C2iGUN155,165..H..TH;GUN155,165..LHD..THP;TGN156..IDNP..L..GCC;GUN156..THP..(ARL,GEN,TH);GGN155,GUN166,TGN156,166..THP202308-202407
CLEARANCE & BACK SONAR-WITHOUT,BLACK
MLM PACKAGE
MLM BASIC PACKAGE,SUPER WHITE 2,040
MLM PACKAGE,PLATINUM WHITE PEARL MC.,089
MLM PACKAGE,GRAY ME.,1G3
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,SILVER ME.,1D6
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,SILVER ME.,1L0
MLM BASIC PACKAGE,ATTITUDE BLACK MC.,218
MLM PACKAGE & ACCESSORY,SPARKLING BLACK PEARL CS.,220
GR SPORT&BACK MONITOR-WITH(*PVM),BLACK
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,PHANTOM BROWN ME.,4W9
MLM PACKAGE,AVANT-GARDE BRONZE ME.,4V8
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,OXIDE BRONZE ME.,6X1
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM),NEBULA BLUE ME.,8X2
MLM BASIC PACKAGE,DK. BLUE MC.,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-06080-A0iGUN155,165..H..TH;GUN155,165..LHD..THP;TGN156..IDNP..L..GCC;GUN156..THP..(ARL,GEN,TH);GGN155,GUN166,TGN156,166..THP202308-202410
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089 ,2PS
PLATINUM WHITE PEARL MC.,089
main89341-06080-A1iGUN155,165..H..TH;GUN155,165..LHD..THP;TGN156..IDNP..L..GCC;GUN156..THP..(ARL,GEN,TH);GGN155,GUN166,TGN156,166..THP202308-202410
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1D6
main89341-06080-B3iGUN155,165..H..TH;GUN155,165..LHD..THP;TGN156..IDNP..L..GCC;GUN156..THP..(ARL,GEN,TH);GGN155,GUN166,TGN156,166..THP202308-202409
SILVER ME.,1D6
SILVER ME.,1D6 ,2QY
SILVER ME.,1L0 ,M12
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,SILVER ME.,1L0
SILVER ME.,1L0
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
CLEARANCE & BACK SONAR-WITH,SPARKLING BLACK PEARL CS.,220
EMOTIONAL RED 2,3U5
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,PHANTOM BROWN ME.,4W9
PHANTOM BROWN ME.,4W9
AVANT-GARDE BRONZE ME.,4V8
CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,OXIDE BRONZE ME.,6X1
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2
CLEARANCE & BACK SONAR-WITH,DK. BLUE MC.,8X8
DK. BLUE MC.,8X8
GR SPORT,BLACK
89342ASENSOR, ULTRASONIC, REAR CENTER
SUPER WHITE 2,040
main89341-06080-A1iGUN155,165..H..TH;GUN155,165..LHD..THP;TGN156..IDNP..L..GCC;GUN156..THP..(ARL,GEN,TH);GGN155,GUN166,TGN156,166..THP202308-202410
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089
PLATINUM WHITE PEARL MC.,089 ,2PS
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
SILVER ME.,1D6
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1D6
SILVER ME.,1D6 ,2QY
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,SILVER ME.,1L0
SILVER ME.,1L0 ,M12
SILVER ME.,1L0
main89341-06080-C0iGUN155,165..H..TH;GUN155,165..LHD..THP;TGN156..IDNP..L..GCC;GUN156..THP..(ARL,GEN,TH);GGN155,GUN166,TGN156,166..THP202308-202407
CLEARANCE & BACK SONAR-WITHOUT,ATTITUDE BLACK MC.,218
ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
CLEARANCE & BACK SONAR-WITH,SPARKLING BLACK PEARL CS.,220
EMOTIONAL RED 2,3U5
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,PHANTOM BROWN ME.,4W9
PHANTOM BROWN ME.,4W9
CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8
AVANT-GARDE BRONZE ME.,4V8
MLM BASIC PACKAGE&CLEARANCE & BACK SONAR-WITH,OXIDE BRONZE ME.,6X1
MLM BASIC PACKAGE&FRONT BUMPER-PAINTED(MLM)&CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2
CLEARANCE & BACK SONAR-WITH,DK. BLUE MC.,8X8
DK. BLUE MC.,8X8
GR SPORT&BACK MONITOR-WITH(*PVM),BLACK
89343CBUZZER, CLEARANCE WARNING, NO.1
CLEARANCE & BACK SONAR-WITH
9167380616
main91673-80616
9 parts on this diagram · 2 diagrams in section
