ABS & VSC

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-0K020iGUN156,16#,TGN166..INDP,VNP202308-202409

88266CCLAMP, SKID CONTROL SENSOR, NO.2

main88266-0K040iGUN15#..KEN202308-202412

89542SENSOR, SPEED, FRONT RH

main89542-0K060iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main89542-0K070iGUN156,166,TGN166..IND202310-202409

main89542-0K080iGUN15#..KEN202309-202412

89543SENSOR, SPEED, FRONT LH

main89543-0K061iGGN155,GUN156,165,TGN156,166..AGTP202308-202410

main89543-0K071iGUN156,166,TGN166..IND202310-202409

main89543-0K081iGUN156,165,TGN166..VNP202309-202409

89545SENSOR, SPEED, REAR RH

main89545-0K130iGUN156..CAMP202308-202408

main89545-0K150iGUN156,166,TGN166..IND202310-202409

main89545-0K300iGUN15#..KEN202309-202412

89546SENSOR, SPEED, REAR LH

main89546-0K130iGGN155,GUN156,TGN156,166..EPT,PKN202308

main89546-0K150iGUN156,166,TGN166..IND202310-202409

main89546-0K300iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202309-202408

90105T0053

main90105-T0053

90105T0122

main90105-T0122

90105T0136

main90105-T0136

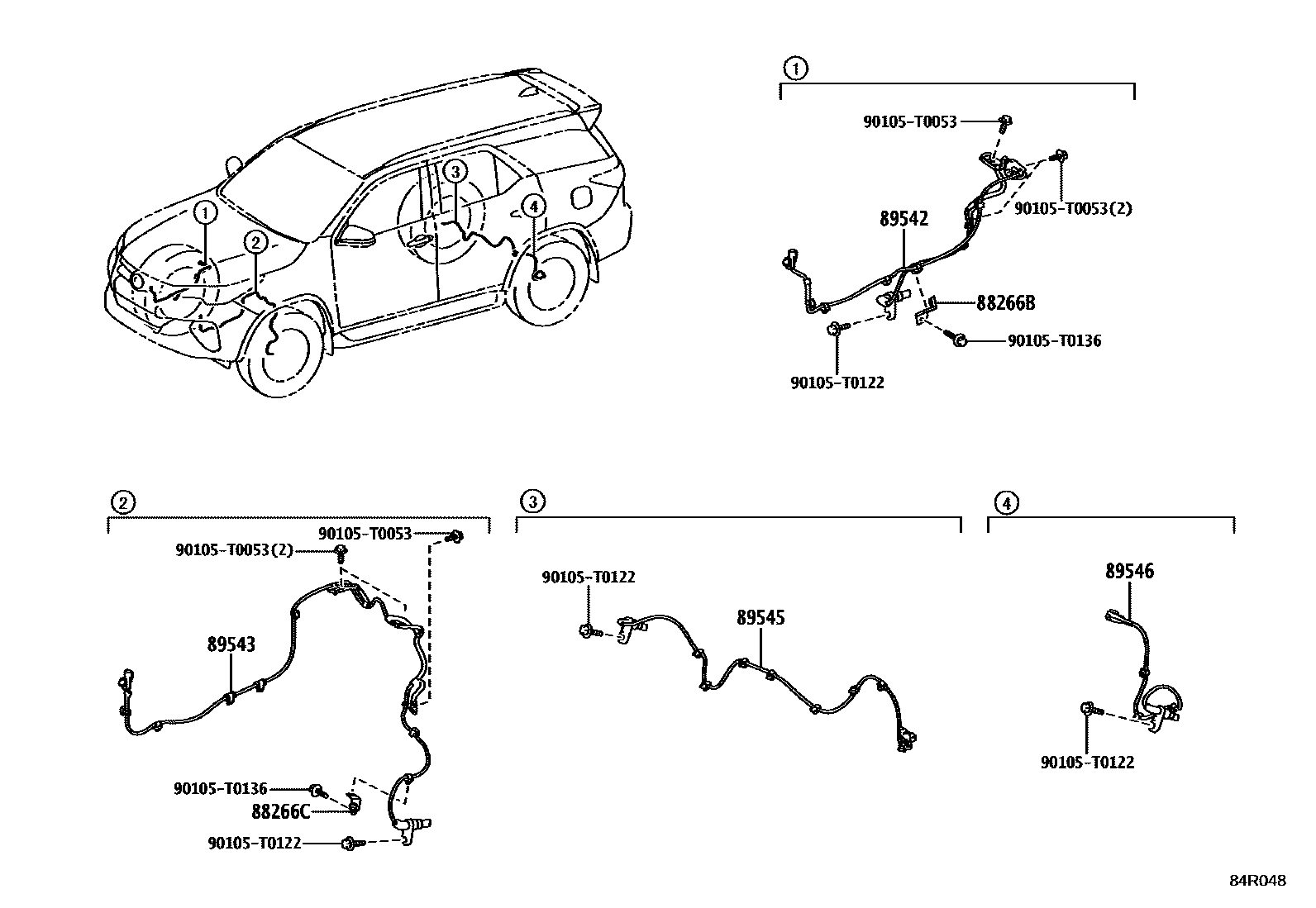

9 parts on this diagram · 1 diagram in section
