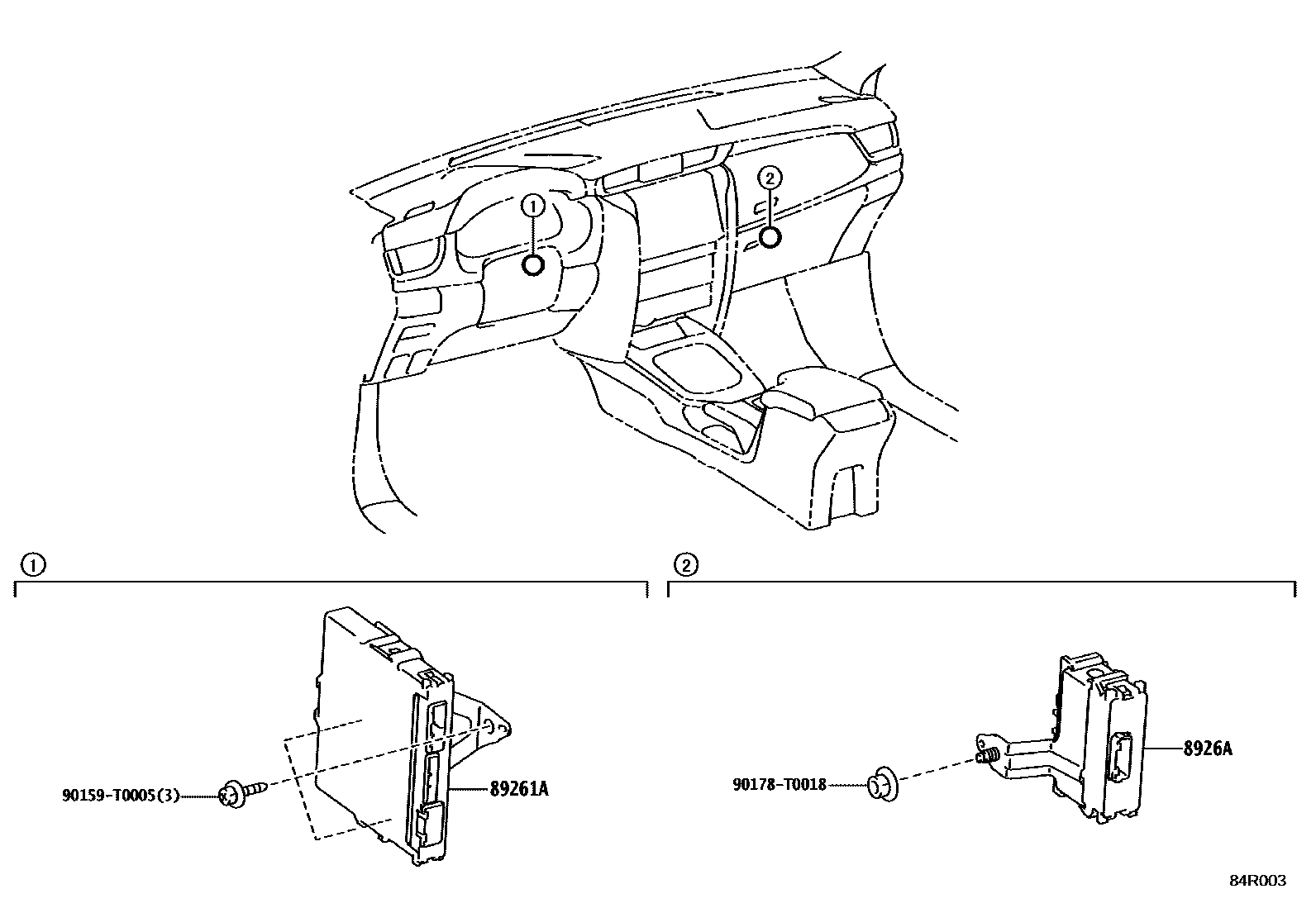

ECO-RUN SYSTEM

0001 1 0002 1

89261ACOMPUTER, ENGINE STOP AND START

main89260-0K200iGUN15#,16#..TH202308-202408

main89260-0K200iGUN156,166..IDN202309-202409

TOYOTA STOP & START SYSTEM-WITH

main89260-0K200iGUN15#,16#..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT

main89260-0K290iGUN156..IDNP..GCC202308-202409

TOYOTA STOP & START SYSTEM-WITH

8926AFILTER, ENGINE STOP & START SOLENOID

main8926A-0K010iGUN156..IDNP..GCC202308-202409

TOYOTA STOP & START SYSTEM-WITH

main8926A-0K020iGUN156,166..IDN202309-202409

TOYOTA STOP & START SYSTEM-WITH

main8926A-0K020iGUN15#,16#..TH202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT

main8926A-0K020iGUN15#,16#..TH202308-202408

90159T0005

main90159-T0005

90178T0018

main90178-T0018

4 parts on this diagram · 2 diagrams in section
