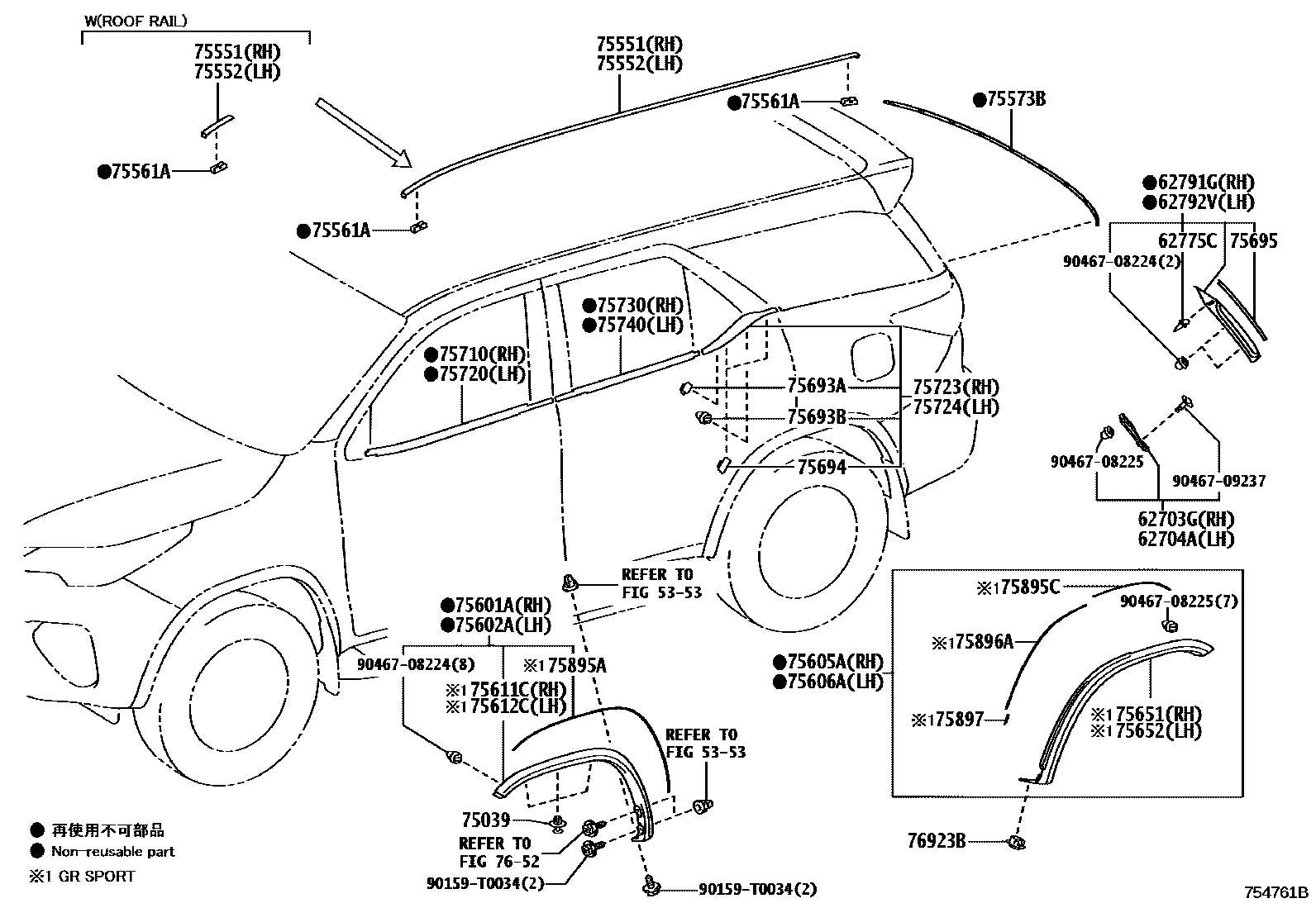

MOULDING

5353

62703GRETAINER SUB-ASSY, QUARTER WINDOW GLASS, REAR RH

main62703-0K011iGUN15#,TGN156..CAMP,MAP202308-202410

main62703-0K020iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main62703-0K030iGUN156,166,TGN166..IND202310-202409

main62703-0K040iGUN156,165,TGN166..VNP202401-202409

62704ARETAINER SUB-ASSY, QUARTER WINDOW GLASS, REAR LH

main62704-0K011iGGN155,GUN156,TGN156,166..EPT,PKN202308-202410

main62704-0K020iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main62704-0K030iGUN156,166,TGN166..IND202310-202409

main62704-0K040iGUN156,165,TGN166..VNP202401-202409

62775CCLIP, QUARTER WINDOW

main62775-76010iGGN155,GUN15#,16#,TGN156,166..THP¥170202308-202410

62791GMOULDING, QUARTER WINDOW, UPPER RH

main62791-0K010iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main62791-0K020iGUN156,166,TGN166..IND202310-202409

main62791-0K030iGUN156,165,TGN166..VNP202309-202409

main62791-0K040iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main62791-0K050iGUN15#,16#,TGN156..KENP,SAP202402-202410

62792VMOULDING, QUARTER WINDOW, UPPER LH

main62792-0K010iGGN155,GUN156,TGN156,166..EPT,PKN202308-202408

main62792-0K020iGUN156,166,TGN166..IND202310-202409

main62792-0K030iGUN156,165,TGN166..VNP202309-202409

main62792-0K040iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main62792-0K050iGUN15#,16#,TGN156..KENP,SAP202402-202410

75039CLIP SUB-ASSY, OUTSIDE MOULDING

main9004A-46388iGGN155,GUN15#,16#,TGN156,166..IDNP¥110202309-202408

GR SPORT

main9004A-46388iGGN155,GUN15#,16#,TGN156,166..IDNP¥110202309-202408

(J)

main90467-07215iGGN155,GUN15#,16#,TGN156,166..AGTP,KENP,SAP¥80202308-202410

(J)

main90467-07215iGUN156,165,TGN166..VNP¥80202401-202409

main90467-T0050iGUN156..TH202308-202410

(L)

main90467-T0050iGUN15#,TGN156..MA202309-202409

main90467-T0050iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

GR SPORT & ACCESSORY

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0K190iGUN156..CAMP202308-202408

NO PAINT REQ.

main75551-0K200iGUN15#,TGN156..LHD..SAP202308-202410

NO PAINT REQ.

main75551-0K200iGUN156,TGN166..THP..L202308-202410

NO PAINT REQ.,ROOF RAIL-WITHOUT

main75551-0K210iTGN156..IDNP..SA;GUN165..IDNP..L..VN202309-202408

NO PAINT REQ.,ROOF RAIL-WITH

main75551-0K210iGUN165,TGN166..IDNP..(H,S);TGN156..IDNP..(GCC,GEN,VN);GGN155,GUN15#,166..IDNP..(GCC,GEN,IDN,PH,SA,VN)202309-202408

NO PAINT REQ.

main75551-0K220iTGN156..IDNP..SA;GUN156,165,TGN166..IDNP..L202309-202408

NO PAINT REQ.,ROOF RAIL-WITHOUT

main75551-0K220iGUN155,TGN156..IDNP..(6F,6FC)..L;GGN155,TGN166..LHD..IDNP..(GEN,VN)202309-202408

NO PAINT REQ.

main75551-0K230iGUN156..RHD..(KEN,SA);GGN155,GUN16#,TGN166..LA,SA;GUN15#,TGN156..(AGTP,KENP,SAP)..(H,L)202310-202410

NO PAINT REQ.

main75551-0K250iGUN15#,TGN156..MA202309-202408

NO PAINT REQ.

main75551-0K290iGUN165..H..VN;GUN156,TGN166..VNP202401-202409

NO PAINT REQ.,ROOF RAIL-WITH

main75551-0K290iGUN165..VNP..(L,S)202401-202409

NO PAINT REQ.

main75551-0K300iGUN165..VNP..(L,S)202401-202409

NO PAINT REQ.,ROOF RAIL-WITHOUT

main75551-0K300iGUN165..VNP..(L,S)202401-202409

NO PAINT REQ.

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0K190iGGN155,GUN156,TGN156,166..EPT,PKN202308-202408

NO PAINT REQ.

main75552-0K200iGUN156,TGN166..THP..L202308-202410

NO PAINT REQ.

main75552-0K200iGUN15#,TGN156..LHD..SAP202308-202410

NO PAINT REQ.,ROOF RAIL-WITHOUT

main75552-0K210iGUN165,TGN166..IDNP..(H,S);TGN156..IDNP..(GCC,GEN,VN);GGN155,GUN15#,166..IDNP..(GCC,GEN,IDN,PH,SA,VN)202309-202408

NO PAINT REQ.,ROOF RAIL-WITH

main75552-0K210iGUN165,TGN166..IDNP..(H,S);TGN156..IDNP..(GCC,GEN,VN);GGN155,GUN15#,166..IDNP..(GCC,GEN,IDN,PH,SA,VN)202309-202408

NO PAINT REQ.

main75552-0K220iTGN156..IDNP..SA;GUN156,165,TGN166..IDNP..L202309-202408

NO PAINT REQ.,ROOF RAIL-WITHOUT

main75552-0K220iGUN155,TGN156..IDNP..(6F,6FC)..L;GGN155,TGN166..LHD..IDNP..(GEN,VN)202309-202408

NO PAINT REQ.

main75552-0K230iGUN156,166,TGN166..IND202310-202410

NO PAINT REQ.

main75552-0K250iGUN15#,TGN156..MA202309-202408

NO PAINT REQ.

main75552-0K290iGUN165..H..VN;GUN156,TGN166..VNP202401-202409

NO PAINT REQ.

main75552-0K290iGUN165..H..VN;GUN156,TGN166..VNP202401-202409

NO PAINT REQ.,ROOF RAIL-WITH

main75552-0K300iGUN165..VNP..(L,S)202401-202409

NO PAINT REQ.

main75552-0K300iGUN165..VNP..(L,S)202401-202409

NO PAINT REQ.,ROOF RAIL-WITHOUT

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020iGUN156..THP..(H,S);GGN155,GUN155,16#,TGN156..THP¥160202308-202410

ROOF RAIL-WITHOUT

main75561-52020iGGN155,GUN156,TGN156,166..EPT,PKN¥160202308

75573BMOULDING, BACK WINDOW, OUTSIDE

main75573-0K010iGGN155,GUN15#,16#..THP..H202308-202410

main75573-0K060iGUN165..VNP..(L,S)202308-202412

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

main75601-0K021iGGN155,GUN156,TGN156,166..EPT,PKN202308-202408

NO PAINT REQ.

main75601-0K031iGUN15#,16#,TGN156..KENP,SAP202402-202410

NO PAINT REQ.

main75601-0K041iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

NO PAINT REQ.

main75601-0K051iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

NO PAINT REQ.

main75601-0K061iGUN156,166,TGN166..IND202310-202409

NO PAINT REQ.

main75601-0K120iGUN156,165,TGN166..VNP202401-202409

NO PAINT REQ.

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

main75602-0K021iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

NO PAINT REQ.

main75602-0K031iGUN15#,16#,TGN156..KENP,SAP202402-202410

NO PAINT REQ.

main75602-0K041iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

NO PAINT REQ.

main75602-0K051iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

NO PAINT REQ.

main75602-0K061iGUN156,166,TGN166..IND202310-202409

NO PAINT REQ.

main75602-0K120iGUN156,165,TGN166..VNP202401-202409

NO PAINT REQ.

75605AMOULDING SUB-ASSY, QUARTER OUTSIDE, RH

main75605-0K020iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main75605-0K030iGUN15#,16#,TGN156..KENP,SAP202402-202410

main75605-0K040iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main75605-0K050iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main75605-0K060iGUN156,166,TGN166..IND202310-202409

main75605-0K110iGUN156,165,TGN166..VNP202401-202409

75606AMOULDING SUB-ASSY, QUARTER OUTSIDE, LH

main75606-0K020iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main75606-0K030iGUN15#,16#,TGN156..KENP,SAP202402-202410

main75606-0K040iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main75606-0K050iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main75606-0K060iGUN156,166,TGN166..IND202310-202409

main75606-0K110iGUN156,165,TGN166..VNP202401-202409

75611CMOULDING, FRONT FENDER, OUTSIDE RH

75612CMOULDING, FRONT FENDER, OUTSIDE LH

75651MOULDING, QUARTER, OUTSIDE RH

main75651-YP902

75652MOULDING, QUARTER, OUTSIDE LH

main75652-YP902

75693ARETAINER, QUARTER BELT MOULDING

main75693-0K010iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202412

75693BRETAINER, QUARTER BELT REAR MOULDING, NO.1

main90467-08224iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP¥60202308-202412

75694RETAINER, QUARTER BELT REAR MOULDING, NO.2

main75694-0K010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

75695PAD, QUARTER OUTSIDE MOULDING

main76655-0K010iGGN155,GUN15#,16#,TGN156,166..THP202308-202409

main76655-0K030iGUN156,165,TGN166..VNP202309-202409

main76655-0K040iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main76655-0K050iGUN15#,16#,TGN156..KENP,SAP202402-202410

75710MOULDING ASSY, FRONT DOOR BELT, RH

main68160-0K010iTGN166..EPT,PKN¥2,880202308-202412

main68160-0K070iGGN155,GUN15#,16#..THP..H¥2,880202308-202410

main68160-0K070iGUN156,166,TGN166..IND¥2,880202310-202409

PLANT TMT

main68160-0K100iGUN165..H..VN;GUN156,TGN166..VNP202309-202409

main68160-0K110iGUN156,166,TGN166..IND202310-202409

PLANT TKM

main68160-0K120iTGN166..IDNP..GCC;GGN155,GUN15#,165,TGN156..IDNP..(L,S)202309-202409

75720MOULDING ASSY, FRONT DOOR BELT, LH

main68210-0K010iTGN166..EPT,PKN¥2,880202308-202412

main68210-0K070iGGN155,GUN156,TGN156..EPT,PKN¥2,880202308-202410

main68210-0K070iGUN156,166,TGN166..IND¥2,880202310-202409

PLANT TMT

main68210-0K100iTGN166..IDNP..(H,S);GGN155,GUN15#,166,TGN156..IDNP..H202309-202409

main68210-0K110iGUN156,166,TGN166..IND202310-202409

PLANT TKM

main68210-0K120iGUN165..VNP..(L,S)202309-202409

75723MOULDING, REAR DOOR BELT, REAR RH

main75723-0K020iGGN155,GUN15#,16#,TGN156,166..(AGTP,MAP,THP)..H202308-202405

sub75723-0K021

main75723-0K021iGGN155,GUN156,165,TGN166..AGTP..H202405-202410

FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)

main75723-0K021iTGN156..SAP;GUN156..LHD..SAP..6F202405-202410

DOOR BELT MOULDING-WITH(PLATING)

main75723-0K021iGGN155,GUN15#,16#..THP..H202405-202408

main75723-0K050iGGN155,GUN155,165,TGN156..(IDNP,VNP)..H;GUN156,166,TGN166..(IDNP,VNP)..6FC..(H,S)202309-202407

main75723-0K051iGUN165..H..VN;GUN156,TGN166..VNP202408-202409

main75723-0K060iGUN156,166,TGN166..IND202310-202409

sub75723-0K061

main75723-0K070iGGN155,GUN15#,16#,TGN156,166..(AGTP,MAP,SAP,THP)..(L,S)202308-202405

sub75723-0K071

main75723-0K071iTGN166..EPT,PKN202405-202412

main75723-0K100iTGN166..IDNP..GCC;GGN155,GUN15#,165,TGN156..IDNP..(L,S)202309-202408

sub75723-0K101

main75723-0K120iGUN165..VNP..(L,S)202401-202409

75724MOULDING, REAR DOOR BELT, REAR LH

main75724-0K020iGGN155,GUN15#,16#,TGN156,166..(AGTP,MAP,THP)..H202308-202405

sub75724-0K021

main75724-0K021iGUN156,TGN156..CAMP,MAP202405-202408

main75724-0K021iGGN155,GUN156,165,TGN166..AGTP..H202405-202410

FRONT BUMPER-PAINTED & LOWER GRILLE(PAINTED)

main75724-0K021iGGN155,GUN156,165,TGN166..AGTP..H202405-202410

DOOR BELT MOULDING-WITH(PLATING)

main75724-0K050iGGN155,GUN155,165,TGN156..(IDNP,VNP)..H;GUN156,166,TGN166..(IDNP,VNP)..6FC..(H,S)202309-202407

main75724-0K051iGUN165..H..VN;GUN156,TGN166..VNP202408-202409

main75724-0K060iGUN156,166,TGN166..IND202310-202409

sub75724-0K061

main75724-0K070iGUN15#,TGN166..EPT,KEN202308-202405

sub75724-0K071

main75724-0K071iGUN15#,16#,TGN156,166..(AGTP,SAP)..(L,S)202405-202412

main75724-0K100iTGN166..IDNP..GCC;GGN155,GUN15#,165,TGN156..IDNP..(L,S)202309-202408

sub75724-0K101

main75724-0K120iGUN165..VNP..(L,S)202401-202409

75730MOULDING ASSY, REAR DOOR BELT, RH

main68180-0K040iGUN15#..KEN202308-202412

main68180-0K050iGGN155,GUN156,TGN156..EPT,PKN202308-202410

main68180-0K100iTGN166..IDNP..(H,S);GGN155,GUN15#,166,TGN156..IDNP..H202309-202409

main68180-0K110iGUN156,166,TGN166..IND202310-202409

main68180-0K150iTGN166..IDNP..GCC;GGN155,GUN15#,165,TGN156..IDNP..(L,S)202309-202409

75740MOULDING ASSY, REAR DOOR BELT, LH

main68230-0K040iTGN166..EPT,PKN202308-202412

main68230-0K050iGUN156,TGN156..CAMP,MAP202308-202410

main68230-0K100iGUN165..H..VN;GUN156,TGN166..VNP202309-202409

main68230-0K110iGUN156,166,TGN166..IND202310-202409

main68230-0K150iTGN166..IDNP..GCC;GGN155,GUN15#,165,TGN156..IDNP..(L,S)202309-202409

75895ATAPE, MOULDING, NO.1

75895CTAPE, MOULDING, NO.3

75896ATAPE, MOULDING, NO.2

75897TAPE, MOULDING, NO.3

main75897-YP110

7652

76923BRETAINER, SIDE MUDGUARD

main76924-12040iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP¥110202308-202410

90159T0034

main90159-T0034

9046708224

main90467-08224¥60

9046708225

main90467-08225¥60

9046709237

main90467-09237¥80

39 parts on this diagram · 1 diagram in section
