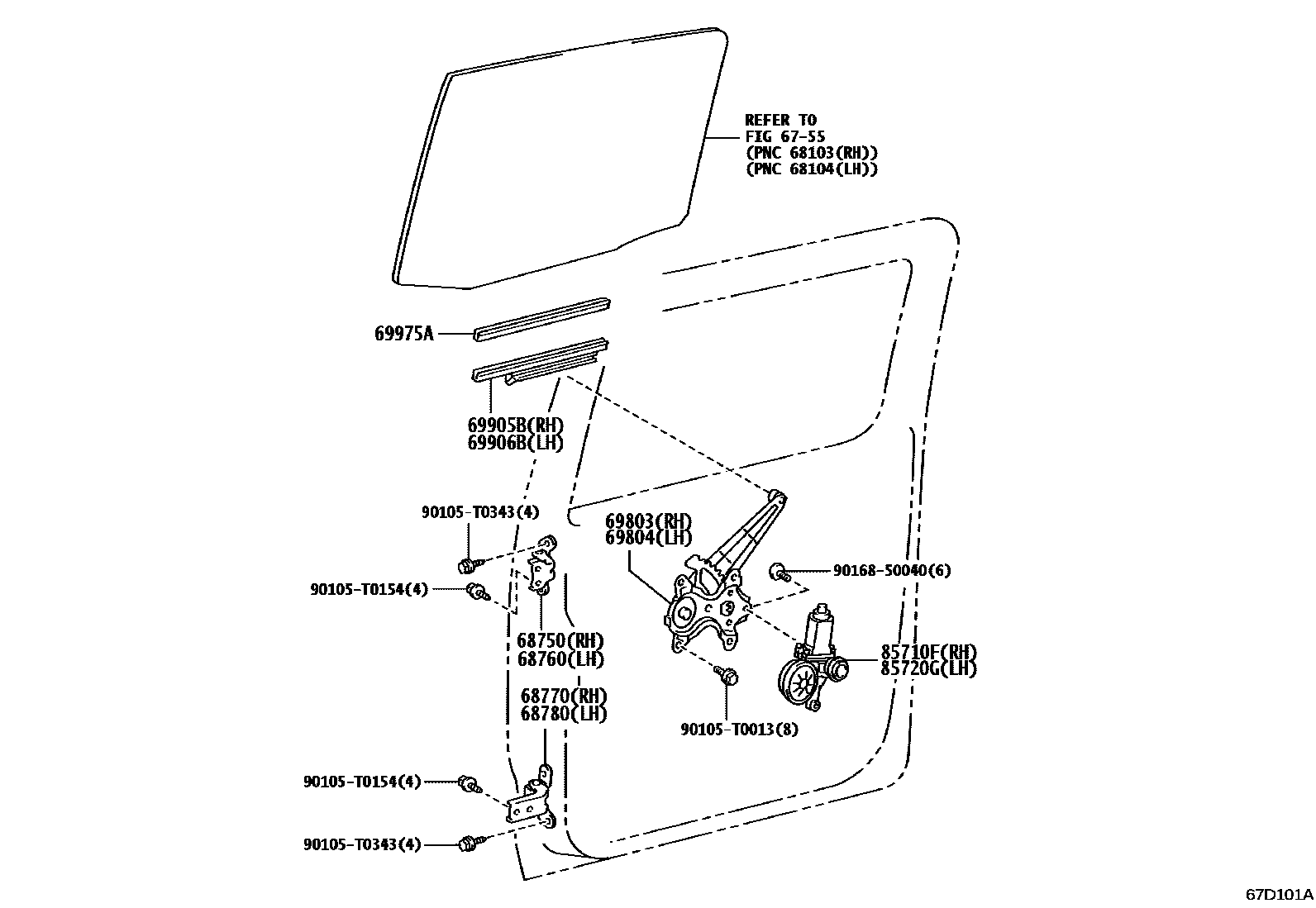

REAR DOOR WINDOW REGULATOR & HINGE

6755

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-02020iGUN15#..KEN202402-202412

main68750-02080iGUN156,166,TGN166..IND202310-202409

main68750-0D030iGUN156,165,TGN166..VNP202308-202409

main68750-0K100iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main68750-0K110iGUN156,TGN156,166..PKN202412

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-02020iGUN15#,16#,TGN156..SAP202402-202412

main68760-02080iGUN156,166,TGN166..IND202310-202409

main68760-0D030iGGN155,GUN15#,16#,TGN156,166..THP202308-202409

main68760-0K100iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main68760-0K110iGUN156,TGN156,166..PKN202412

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02020iGUN15#..KEN202402-202412

main68770-02070iGUN156,166,TGN166..IND202310-202409

main68770-0D030iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main68770-0K020iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main68770-0K040iGUN156,165,TGN166..VNP202309-202409

main68770-52031iGUN156,TGN156,166..PKN202412

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02020iGUN15#,16#,TGN156..SAP202402-202412

main68780-02070iGUN156,166,TGN166..IND202310-202409

main68780-0D030iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main68780-0K020iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main68780-0K040iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202409

main68780-52031iGUN156,TGN156,166..PKN202412

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0K110iGUN15#,165..THP..(ARL,GEN)202308-202408

main69803-0K120iGUN15#,16#,TGN156..SAP202402-202412

main69803-0K130iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main69803-0K140iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202409

main69803-0K150iGUN156,166,TGN166..IND202310-202409

main69803-0K160iGUN15#,TGN156..MA202308-202408

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0K110iGUN15#,165..THP..(ARL,GEN)202308-202408

main69804-0K120iGUN15#..KEN202402-202412

main69804-0K130iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main69804-0K140iGUN156,165,TGN166..VNP202309-202409

main69804-0K150iGUN156,166,TGN166..IND202310-202409

main69804-0K160iGGN155,GUN15#,16#,TGN156,166..THP..(GCC,TH)202308-202408

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0K071iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main69905-0K080iGUN15#,16#,TGN156..SAP202402-202412

main69905-0K090iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main69905-0K100iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202409

main69905-0K110iGUN156,166,TGN166..IND202310-202409

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0K071iGGN155,GUN15#,16#,TGN156,166..THP202308-202408

main69906-0K080iGUN15#..KEN202402-202412

main69906-0K090iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main69906-0K100iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202409

main69906-0K110iGUN156,166,TGN166..IND202310-202409

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D040iGUN156,166,TGN166..IND202310-202409

main69975-0D130iGGN155,GUN15#,16#,TGN156,166..THP202308-202409

main69975-0K050iGUN15#,16#,TGN156..SAP202402-202412

main69975-0K060iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0D580iTGN166..EPT202308-202407

main85720-0K180iGUN165..VNP..L202309-202410

WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main85720-0K180iGUN155..KEN202309-202412

main85720-0K180iGUN15#,165..RHD..6FC..DCRL..SA202402-202410

EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main85720-0K200iGGN155,GUN156,TGN156,166..(H,S)..(EPT,PKN)202308-202408

main85720-0K200iGUN155,16#..TH;GGN155,GUN155..THP..H..GCC;GUN156,TGN156..THP..(H,S)..(GCC,TH)202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)

main85720-0K270iGUN165..RHD..GEN;GGN155,GUN155..IDNP..S..GCC202309-202408

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)

main85720-0K270iGUN165..RHD..GEN;GGN155,GUN155..IDNP..S..GCC202309-202408

WIRELESS DOOR LOCK-WITH(*SES)

main85720-0K270iGUN156..KEN202308-202412

main85720-0K270iGUN155,TGN156..IDNP..SA202402-202410

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main85720-0K290iGUN156,165,TGN156,166..AGTP..(L,S)202311-202410

main85720-0K300iGGN155,GUN156,165,TGN166..AGTP..H202311-202410

main85720-0K320iGUN156,166,TGN166..IND202310-202409

85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0D580iTGN166..EPT202308-202407

main85710-0K180iGUN15#,TGN156..LHD..SAP202309-202410

WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main85710-0K180iGUN155..KEN202309-202412

main85710-0K180iGUN15#,165..RHD..6FC..DCRL..SA202402-202410

EXPORT FROM SA&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)

main85710-0K220iGGN155,GUN156,TGN156,166..(H,S)..(EPT,PKN)202308-202408

main85710-0K220iGUN155,16#..TH;GGN155,GUN155..THP..H..GCC;GUN156,TGN156..THP..(H,S)..(GCC,TH)202308-202407

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)

main85710-0K270iGUN15#,165..THP..(ARL,GEN)202308-202412

main85710-0K270iGUN155,TGN156..IDNP..SA202402-202410

WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)

main85710-0K270iGUN165..RHD..GEN;GGN155,GUN155..IDNP..S..GCC202309-202408

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)

main85710-0K270iGUN165..RHD..GEN;GGN155,GUN155..IDNP..S..GCC202309-202408

WIRELESS DOOR LOCK-WITH(*SES)

main85710-0K290iGUN156,165,TGN156,166..AGTP..(L,S)202311-202410

main85710-0K300iGGN155,GUN156,165,TGN166..AGTP..H202311-202410

main85710-0K320iGUN156,166,TGN166..IND202310-202409

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90105T0343

main90105-T0343

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
