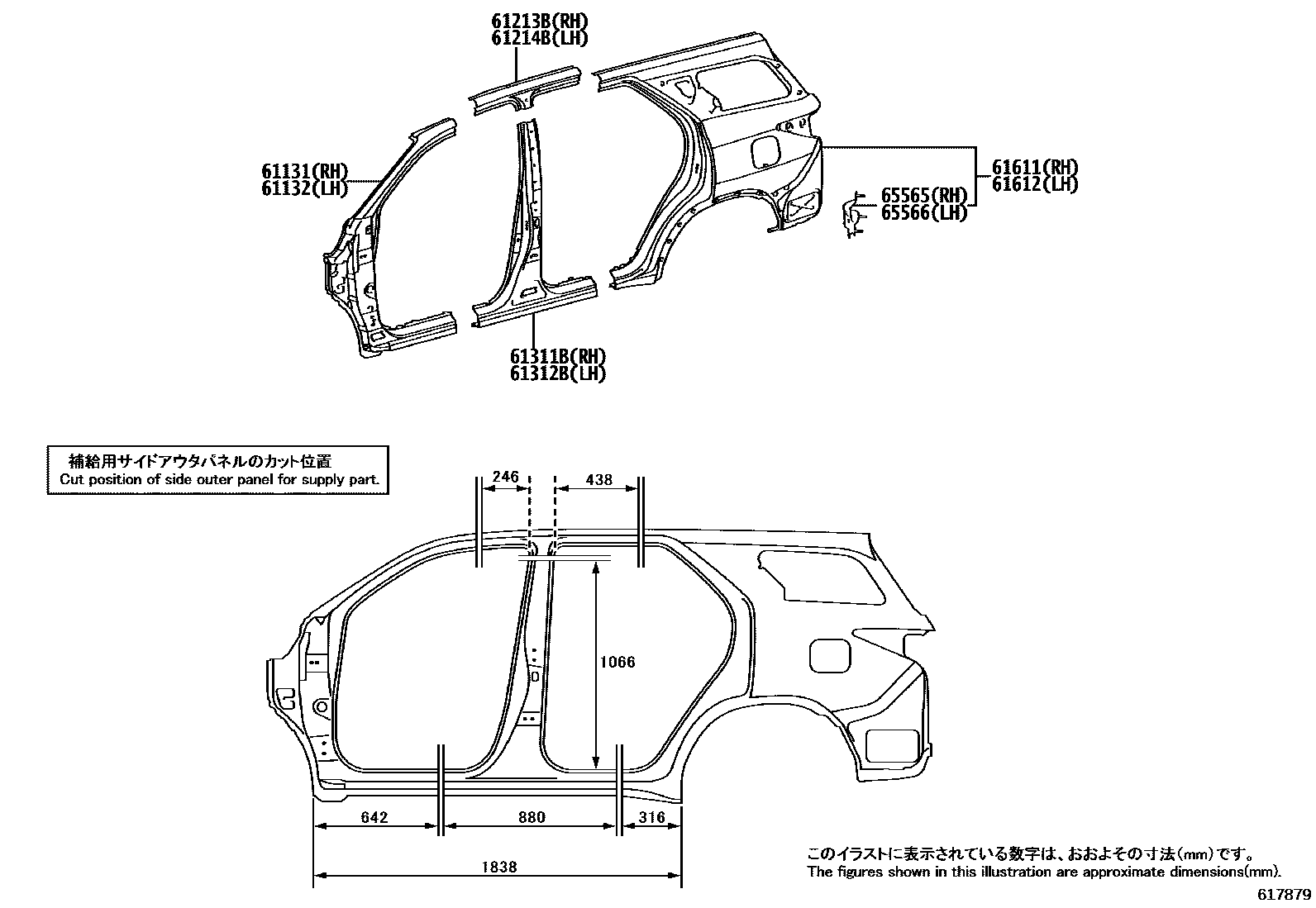

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL RH 0003 1INNER PANEL LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-KK040iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-KK040iGUN15#..KEN202308-202412

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-KK020iGGN155,GUN156,TGN156,166..EPT,PKN202308-202412

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-KK020iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202412

61311BPILLAR, CENTER BODY, OUTER RH

main61311-KK020iGUN156,16#,TGN166..INDP,VNP202308-202412

61312BPILLAR, CENTER BODY, OUTER LH

main61312-KK020iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

61611PANEL, QUARTER, RH

main61601-KK010iGGN155,GUN156,TGN156,166..EPT,PKN202308-202412

main61601-KK020iGUN156,TGN166..H..LA202308-202410

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

main61601-KK020iGUN156..SAP;GUN156,165,TGN166..6FC..L..LA;GGN155,GUN155,166,TGN156..(AGTP,SAP)..(H,S)202308-202410

BACK MONITOR-WITH(*PVM)

main61601-KK020iGUN156,166..PH202308-202401

61612PANEL, QUARTER, LH

main61602-KK010iGGN155,GUN156,TGN156,166..EPT,PKN202308-202412

main61602-KK020iGUN155,165..S..TH;GGN155,GUN156,166..THP..H..(GCC,GEN,TH)202308-202410

BACK MONITOR-WITH(*PVM)

main61602-KK020iGUN156,166..PH202308-202401

main61602-KK020iGUN155,165..H..TH202308-202410

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

65565PATCH, SIDE PANEL REAR END, RH

main65565-KK030iGUN156,TGN166..H..LA202308-202410

BACK MONITOR-WITH(*PVM)

main65565-KK030iGUN156,166..PH202308-202401

main65565-KK030iGUN155,165..H..TH202308-202410

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

65566PATCH, SIDE PANEL REAR END, LH

main65566-KK030iGUN156,166..PH202308-202401

main65566-KK030iGUN155,165..H..TH202308-202410

BACK MONITOR-WITH(*PVM)

main65566-KK030iGUN155,165..H..TH202308-202410

LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)

10 parts on this diagram · 3 diagrams in section
