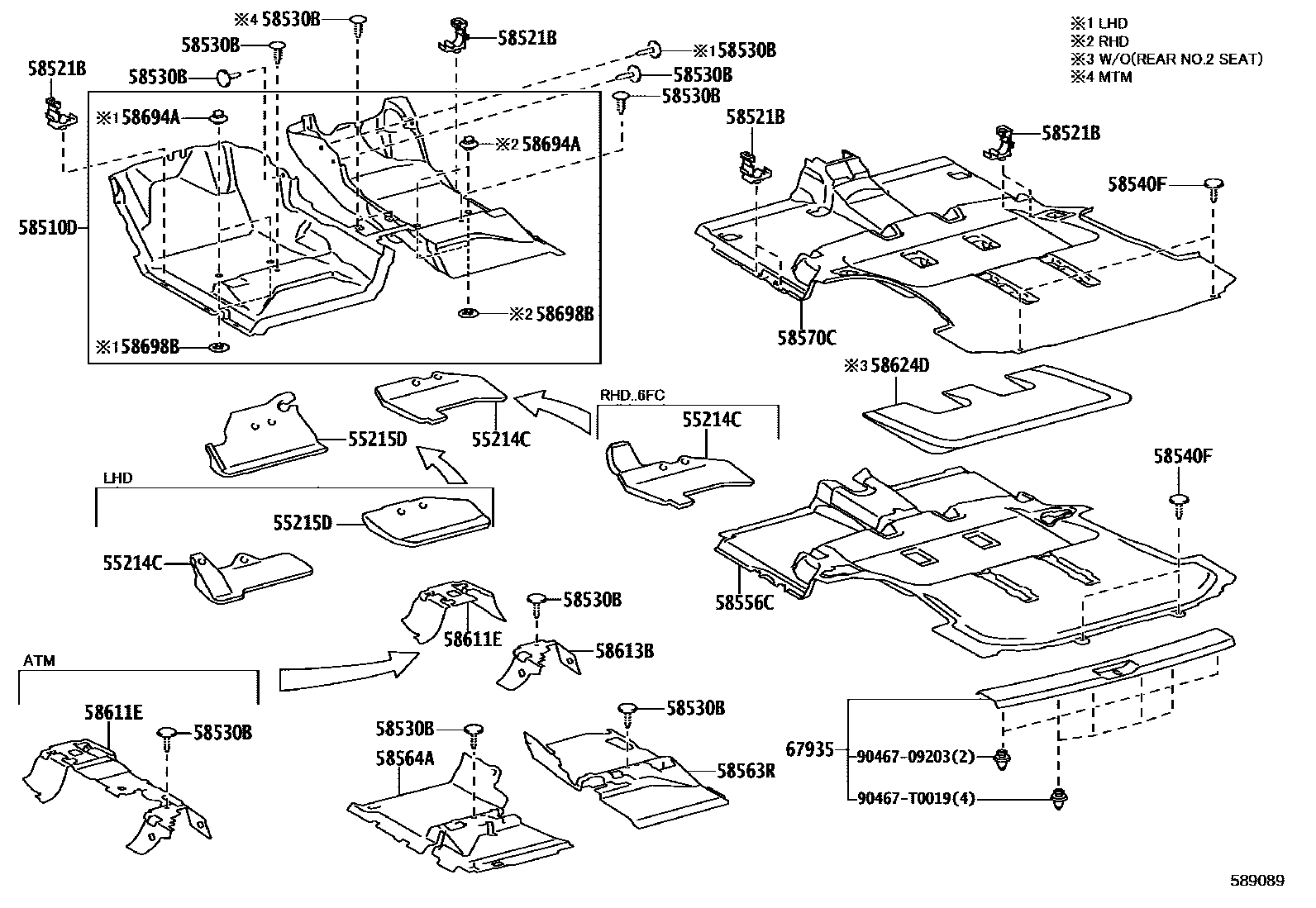

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1FLOOR MAT(GR SPORT)

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-KK010iGGN155,GUN15#,165,TGN156,166..LHD..THP202308-202410

main55214-KK020iGUN156,166,TGN166..MTM..IND202309-202412

main55214-KK030iGUN156,166,TGN166..6FC..IND202309-202412

main55214-KK050iGUN156..IDNP..ARL202308-202408

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-KK010iGUN156,165,TGN166..VNP202308-202410

main55215-KK020iGUN156,TGN156,166..PKN202308-202412

58510DCARPET ASSY, FLOOR, FRONT

main58500-0K390-C0iGUN15#,16#..H..TH202308-202407

BLACK,TRIM0#,2#,3#

main58500-0K390-C0iGUN155,165..S..TH202308-202407

BLACK,TRIM2#

main58500-0K600-C0iGUN156..IDNP..SA202406-202408

BLACK,TRIM2#

main58500-0K600-C0iTGN156..L..GEN202309-202408

BLACK,TRIM2#,4#

main58500-0K600-C0iGUN155..L..GEN202309-202408

BLACK,TRIM4#

main58500-0K610-C0iGUN155,TGN156..IDNP..SA202406-202408

BLACK,TRIM2#

main58500-0K610-C0iGUN156..LHD..IDNP..GEN202309-202408

BLACK,TRIM0#,2#,3#,4#

main58500-0K610-C0iGUN156..LHD..IDNP..GEN202309-202408

BLACK,TRIM2#,4#

main58500-0K610-C0iGUN156..LHD..IDNP..GEN202309-202408

BLACK,TRIM4#

main58500-0K610-C1iGGN155,TGN166..EPT202404

BLACK,TRIM2#

main58500-0K630-C0iGUN15#,165,TGN156,166..RHD..GEN202309-202408

BLACK,TRIM2#,4#

main58500-0K731-C0iGUN156..H..BZAGT202311-202410

BLACK,TRIM0#,2#

main58500-0K731-C0iGUN156..L..BZAGT202311-202410

BLACK,TRIM2#

main58500-0K800-C0iGUN156..LHD..SAP..6F202402-202410

BLACK,TRIM2#

main58500-0K810-C0iGUN15#,TGN156..LHD..SAP..6FC202402-202410

BLACK,TRIM2#

main58500-0K820-C0iGUN156..RHD..6F..SA202402-202410

BLACK,TRIM2#,3#

main58500-0K820-C0iGUN156..RHD..6F..SA202402-202412

BLACK,TRIM2#

main58500-0K830-C0iGUN156,166..RHD..6FC..DCRL..SA202402-202412

BLACK,TRIM2#

main58500-0K830-C0iGUN155,165..6FC..L..SA202402-202410

BLACK,TRIM2#,3#

main58500-0KA01-C0iGUN156,166,TGN166..MTM..IND202310-202409

BLACK,TRIM2#,4#

main58500-0KA11-C0iTGN166..6FC..IND202310-202409

BLACK,TRIM2#,4#

main58500-0KA11-C0iGUN156,166..6FC..DCRL..IND202310-202409

BLACK,TRIM2#,3#,4#

main58500-0KB40-C0iGUN156,TGN166..MTM..LA202311-202410

BLACK,TRIM2#

main58500-0KB50-C0iGGN155,GUN156,165,TGN156,166..6FC..LA202311-202410

BLACK,TRIM2#

main58500-0KD70-C0iGUN165..IDNP..6F..L202309-202408

BLACK,TRIM2#

main58500-0KD80-C0iGUN165..IDNP..6FC..(PH,VN);GUN156,TGN156,166..IDNP..VN202309-202408

BLACK,TRIM2#,3#

main58500-0KD80-C0iGUN165..IDNP..6FC..(PH,VN);GUN156,TGN156,166..IDNP..VN202309-202408

BLACK,TRIM2#

main58500-0KD90-C0iGUN165..6F..IDN202309-202408

BLACK,TRIM2#

main58500-0KE00-C0iGUN156,16#,TGN166..6FC..IDN202309-202408

BLACK,TRIM2#

main58500-0KF50-C0iGUN165..VNP..L202401-202409

BLACK,TRIM2#

main58500-0KF60-C0iGUN165,TGN166..VNP..S202401-202409

BLACK,TRIM2#

main58500-0KF60-C0iGUN165,TGN166..VNP..S202401-202409

BLACK,TRIM2#,3#

main58500-0KG30-C0iGUN156..PKN202412

BLACK,TRIM2#,3#,4#

main58500-0KG30-C0iGUN156..PKN202412

BLACK,TRIM2#,4#

main58500-0KG40-C0iGUN155,TGN156..MA202309-202408

BLACK,TRIM2#,3#

main58500-0KG40-C0iGUN155,TGN156..MA202309-202408

BLACK,TRIM2#

main58500-0KM30-C0iGUN156,166..MHV..SA202402-202410

BLACK,TRIM2#,3#

main58500-0KM40-C0iGUN156..MHV..IND202406-202409

BLACK,TRIM2#

main58510-0KY30-C1iGUN156..THP..ARL202308-202408

BLACK,TRIM2#,4#

main58510-0KY70-C1iGUN155..THP..GEN;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S)202308-202407

BLACK,TRIM2#,4#

main58510-0KY70-C1iGUN155..THP..GEN;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S)202308-202407

BLACK,TRIM4#

main58510-0KY70-C1iGUN155..THP..GEN;GUN155..THP..S..GCC;GGN155,GUN165,TGN156..LHD..THP..(H,S)202308-202408

BLACK,TRIM0#,2#,3#,4#

58521BHOOK, FLOOR CARPET

main58521-0K030iGGN155,GUN156,TGN156,166..EPT,PKN202404

main58521-0K120iGUN156..CAMP202308-202410

main58521-0K120iGUN156..IDNP..ARL202311-202408

MADE IN THAILAND

main58521-KK010iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..(GCC,GEN,IDN,MA,PH,SA,VN)202309-202412

main58521-KK010iGUN156..IDNP..ARL202311-202408

MADE IN INDIA

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-T0031-C0iGUN156..THP..GEN202308-202412

BLACK,TRIM2#

main90467-T0031-C0iGUN156..THP..GEN202308-202407

BLACK,TRIM0#,2#,3#

main90467-T0031-C0iGUN156..THP..GEN202308-202408

BLACK,TRIM0#,2#,3#,4#

main90467-T0031-C0iGUN156..THP..GEN202308-202408

BLACK,TRIM4#

main90467-T0031-C0iGUN156..THP..GEN202308-202409

BLACK,TRIM2#,4#

main90467-T0031-C0iGUN156..MA202309-202410

BLACK,TRIM2#,3#

main90467-T0031-C0iGUN156,166..6FC..DCRL..IND202310-202409

BLACK,TRIM2#,3#,4#

main90467-T0031-C0iGUN156..H..BZAGT202311-202410

BLACK,TRIM0#,2#

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-T0031-C0iGUN15#,16#..H..TH202308-202412

BLACK,TRIM2#

main90467-T0031-C0iGUN156..THP..GEN202308-202408

BLACK,TRIM0#,2#,3#,4#

main90467-T0031-C0iGUN156..THP..GEN202308-202409

BLACK,TRIM2#,4#

main90467-T0031-C0iGUN156..THP..GEN202308-202408

BLACK,TRIM4#

main90467-T0031-C0iGUN156..THP..GEN202308-202407

BLACK,TRIM0#,2#,3#

main90467-T0031-C0iGUN156,166..MA,PH202309-202410

BLACK,TRIM2#,3#

main90467-T0031-C0iGUN156,166..6FC..DCRL..IND202310-202409

BLACK,TRIM2#,3#,4#

main90467-T0031-C0iGUN156..H..BZAGT202311-202410

BLACK,TRIM0#,2#

58556CSILENCER, REAR FLOOR

main58556-0K010iGUN156,165,TGN166..VNP202309-202409

main58556-0K020iGUN156,166,TGN166..(DCRL,HTWC)..IND202310-202409

main58569-0K010iGGN155,TGN166..EPT202308-202408

main58569-0K060iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main58569-0K070iGUN156,TGN156,166..PKN202412

main58569-0K110iGUN15#,16#,TGN156..SAP..(DCRL,HTWC)202402-202412

main58569-0K240iGUN156..BZAGT202311-202410

REAR NO.2 SEAT-WITHOUT

main58569-KK010iGUN156,166..MHV..SA202402-202410

58563RSILENCER, FRONT FLOOR, NO.3

main5855C-0K020iGUN156,166..MHV..SA202402-202410

main58563-0K070iGUN156,TGN156,166..PKN202412

main58563-0K100iGUN15#,16#..TH202308-202407

main58563-0K110iGGN155,GUN15#,165,TGN156,166..LHD..THP202308-202408

main58563-0K120iGUN156..IDNP..ARL202308-202408

main58563-0K540iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main58563-0K670iGUN15#,TGN156..LHD..SAP202402-202410

main58563-0K700iGUN15#..KEN202402-202412

main58563-0KJ00iGUN15#,16#,TGN156,166..RHD..(GEN,IDN)202309-202409

main58563-0KJ10iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202309-202409

main58563-0KJ20iGUN156,166,TGN166..IND202310-202409

main58563-0KJ40iGUN15#,TGN156..MA202309-202408

58564ASILENCER, FRONT FLOOR, NO.4

main58564-0K070iGUN156,TGN156,166..PKN202412

main58564-0K100iGUN15#,16#..TH202308-202407

main58564-0K110iGGN155,TGN166..EPT202308-202408

main58564-0K120iGUN156..IDNP..ARL202308-202408

main58564-0K211iGUN15#,16#,TGN156,166..RHD..(GEN,IDN)202309-202408

main58564-0K220iGUN156,165,TGN166..VNP202309-202409

main58564-0K230iGUN156,166,TGN166..(DCRL,HTWC)..IND202310-202409

main58564-0K240iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main58564-0K250iGUN15#,TGN156..LHD..SAP202402-202410

main58564-0K270iGUN15#..KEN202402-202412

main58564-0K330iGUN15#,TGN156..MA202309-202408

main58564-0K410iGUN156,166..MHV..SA202402-202410

main58564-0K450iGUN156..MHV..IND202406-202409

58570CCARPET ASSY, REAR FLOOR

main58570-0K510-C0iGUN165,TGN166..VNP..(L,S)202401-202409

BLACK,TRIM2#

main58570-0K510-C0iGUN165,TGN166..VNP..(L,S)202401-202409

BLACK,TRIM2#,3#

main58570-0K520-C0iTGN156,166..PKN202412

BLACK,TRIM2#,4#

main58570-0K520-C0iTGN156,166..PKN202412

BLACK,TRIM2#,3#,4#

main58570-0K600-C0iGUN155,165..S..TH202308-202407

BLACK,TRIM2#

main58570-0K600-C0iGUN155,165..S..TH202308-202407

BLACK,TRIM0#,2#,3#

main58570-0K600-C0iGUN15#,16#..H..TH202308-202408

BLACK,TRIM0#,2#,3#,4#

main58570-0K600-C0iGUN15#,16#..H..TH202308-202407

BLACK,TRIM4#

main58570-0K600-C0iGUN15#,16#..H..TH202308-202407

BLACK,TRIM2#,4#

main58570-0K600-C0iGUN15#,16#..H..TH202308-202408

BLACK,TRIM2#,4#,FASTENER = 5 PIECES

main58570-0K660-C0iGUN156,166..MHV..SA202402-202410

BLACK,TRIM2#,3#

main58570-0K670-C0iGUN156..MHV..IND202406-202409

BLACK,TRIM2#

main58570-0K700-C1iGUN155..L..GEN;GUN15#,TGN156,166..IDNP..(H,L)..GCC202309-202408

BLACK,TRIM4#

main58570-0K700-C1iGUN156..THP..ARL202308-202408

BLACK,TRIM2#,4#,FASTENER = 7 PIECES

main58570-0K700-C1iGUN156..LHD..IDNP..GEN202309-202408

BLACK,TRIM0#,2#,3#,4#

main58570-0K700-C1iGUN156..LHD..IDNP..GEN202309-202408

BLACK,TRIM2#,3#

main58570-0K700-C1iGUN156..LHD..IDNP..GEN202309-202408

BLACK,TRIM2#,4#

main58570-0K700-C1iGUN156..LHD..IDNP..GEN202309-202408

BLACK,TRIM2#

main58570-0K700-C1iGGN155,TGN166..EPT202404

BLACK,TRIM2#,FASTENER = 7 PIECES

main58570-0K800-C1iGUN156..L..BZAGT;GGN155,GUN156,165,TGN156,166..LA202311-202410

BLACK,TRIM2#

main58570-0K800-C1iGUN156..H..BZAGT202311-202410

BLACK,TRIM0#,2#

main58570-0K810-C1iGUN156..L..BZAGT202311-202410

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#

main58570-0K810-C1iGUN156..H..BZAGT202311-202410

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#

main58570-0KA00-C1iGUN156,166..RHD..DCRL..SA202402-202410

BLACK,TRIM2#,3#

main58570-0KA00-C1iGUN15#..KEN202402-202412

BLACK,TRIM2#

main58570-0KB00-C1iGUN156,166..6FC..DCRL..IND202310-202409

BLACK,TRIM2#,3#,4#

main58570-0KB00-C1iTGN166..IND;GUN156,166..6F..IND202310-202409

BLACK,TRIM2#,4#

main58570-0KB40-C0iGUN155,TGN156..MA202309-202408

BLACK,TRIM2#,3#

main58570-0KB40-C0iGUN155,TGN156..MA202309-202408

BLACK,TRIM2#

58611ESHEET, FRONT FLOOR SILENCER

main58661-0K030iGUN156..ARL202308-202408

main58661-0K030iGUN156..IDNP..ARL202311-202408

MADE IN THAILAND

main58661-0K040iGGN155,GUN15#,165,TGN156,166..LHD..THP202308-202408

main58661-0K060iGUN15#,16#,TGN156,166..RHD..6FC..(GEN,IDN)202309-202408

main58661-0K070iGUN165..6F..IDN202309-202408

main58661-0K080iGUN156,165,TGN166..VNP..6FC202309-202409

main58661-0K090iGUN15#,165,TGN156..LHD..IDNP..MTM202309-202409

main58661-0K100iGUN156,166,TGN166..6FC..IND202310-202409

main58661-0K110iGUN156,166,TGN166..MTM..IND202310-202409

main58661-0K130iGGN155,GUN156,165,TGN156,166..AGTP..6FC202311-202410

main58661-0K140iGUN156,TGN166..MTM..LA202311-202410

main58661-0K150iGUN15#,TGN156..LHD..SAP..6FC202402-202410

main58661-0K160iGUN156..LHD..SAP..6F202402-202410

main58661-0K170iGUN156..6F..KEN202402-202412

main58661-0K180iGUN15#,16#..RHD..6FC..SA202402-202412

main58661-0K290iGUN156,TGN156,166..PKN202412

58613BSHEET, FRONT FLOOR SILENCER, CENTER

main58662-0K060iGUN156,TGN166..MTM..LA202311-202410

main58662-0K070iGUN156..LHD..SAP..6F202402-202410

main58662-0K100iGUN156,165..RHD..6F..SA202402-202412

main58662-0K120iGUN165..6F..IDN202309-202408

main58662-0K130iGUN165..VNP..L202309-202409

main58662-0K140iGUN156,166,TGN166..MTM..IND202310-202409

58624DPAD, CENTER FLOOR SILENCER

main58624-0K120iGUN156..BZAGT202311-202410

REAR NO.2 SEAT-WITHOUT

58694APLATE, MAT SET, UPPER

main58694-0K010iGUN156..ARL,TH;GUN156..LHD..(CAMP,THP);GGN155,GUN155,16#,TGN156,166..THP202308-202407

(L)

main58694-76010iGUN156,165,TGN166..VNP202309-202409

main58694-76010iGUN156..ARL,TH;GUN156..LHD..(CAMP,THP);GGN155,GUN155,16#,TGN156,166..THP202308-202407

(J)

main58694-78010iGUN15#..KEN202407-202412

58698BPLATE, MAT SET, LOWER

main58698-0K070iGUN156..ARL,TH;GUN156..LHD..(CAMP,THP);GGN155,GUN155,16#,TGN156,166..THP202308-202407

(L)

main58698-76010iGUN156,165,TGN166..VNP202309-202409

main58698-76010iGUN156..ARL,TH;GUN156..LHD..(CAMP,THP);GGN155,GUN155,16#,TGN156,166..THP202308-202407

(J)

main58698-78010iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202407-202412

67935PLATE, BACK DOOR SCUFF

main67935-0K080-C0iGUN15#,16#..H..TH202308-202407

BLACK,TRIM4#

main67935-0K080-C0iGUN15#,16#..H..TH202308-202408

BLACK,TRIM2#

main67935-0K080-C0iGUN15#,16#..H..TH202308-202407

BLACK,TRIM0#,2#,3#

main67935-0K080-C0iGUN156..THP..GEN202308-202408

BLACK,TRIM0#,2#,3#,4#

main67935-0K080-C0iGUN156..THP..GEN202308-202407

BLACK,TRIM2#,4#

main67935-0K080-C0iGUN156..MA202309-202408

BLACK,TRIM2#,3#

main67935-0K080-C0iGUN156..PKN202412

BLACK,TRIM2#,3#,4#

main67935-KK010-C0iGUN156,166..PH202309-202408

BLACK,TRIM4#

main67935-KK010-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN)202309-202408

BLACK,TRIM0#,2#,3#,4#

main67935-KK010-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN)202309-202410

BLACK,TRIM2#,3#

main67935-KK010-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN)202309-202409

BLACK,TRIM2#,4#

main67935-KK010-C0iGUN155,TGN156..IDNP..S..GCC;GUN156..RHD..IDNP..(ARL,GEN);GUN155,TGN156..IDNP..(5F,6FC)..GEN;GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN)202309-202412

BLACK,TRIM2#

main67935-KK010-C0iGUN156,166..6FC..DCRL..IND202310-202409

BLACK,TRIM2#,3#,4#

main67935-KK010-C0iGUN156..H..BZAGT202311-202410

BLACK,TRIM0#,2#

9046709203

main90467-09203

90467T0019

main90467-T0019

18 parts on this diagram · 3 diagrams in section
