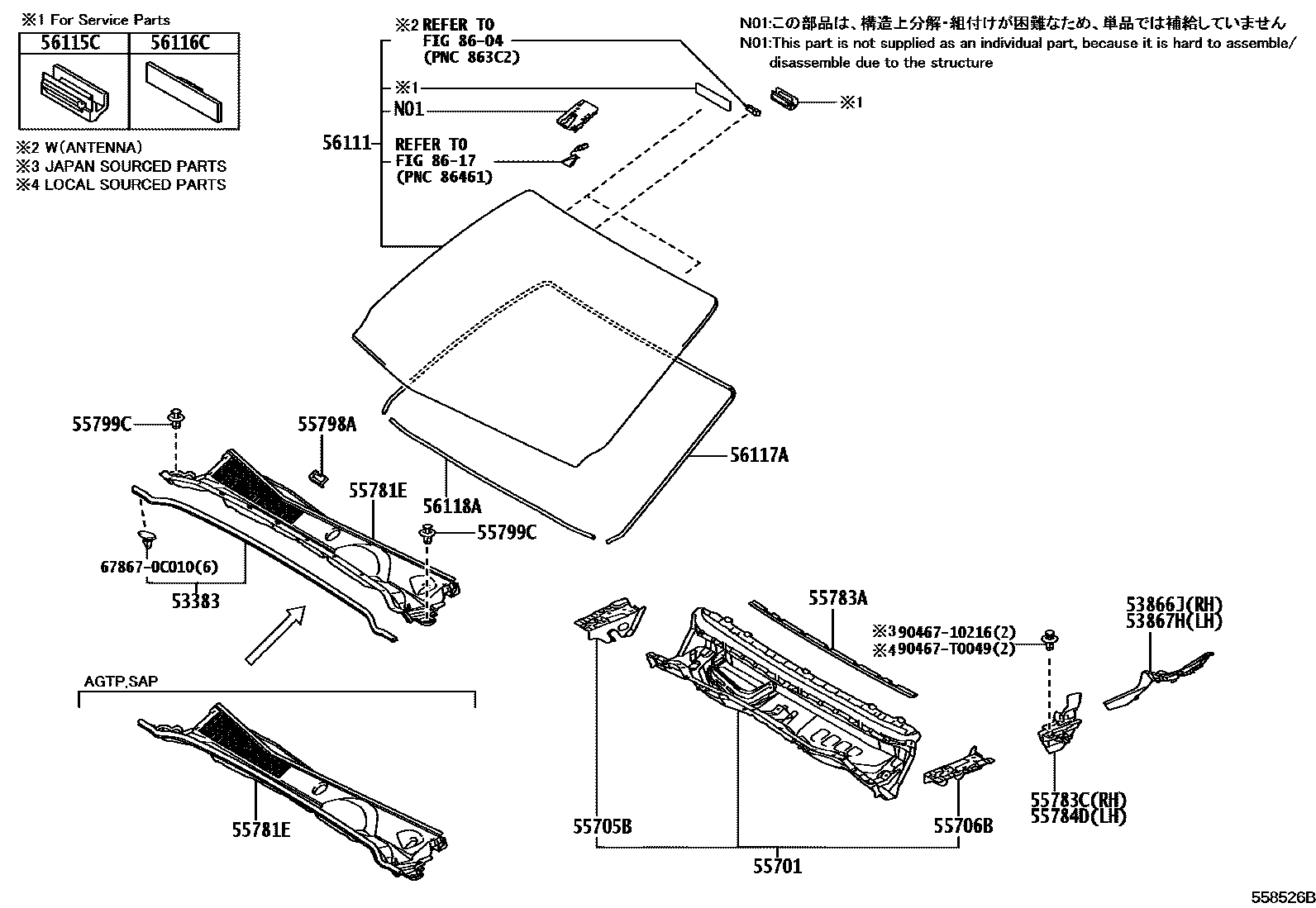

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
55799CCLIP, COWL TOP VENTILATOR LOUVER
(L),MADE IN IDN
(J)
(L)
56111GLASS, WINDSHIELD
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(8INCH) & *BT
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITHOUT
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
ACTIVE SAFETY PACKAGE-WITHOUT
GCC SPEC EURO4 2018MY
GCC SPEC EURO4 2022MY
BACK GLASS-FIX TYPE(GREEN,*HSEA)
GCC SPEC EURO4 2018MY
GCC SPEC EURO4 2022MY
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB
SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(FOR EMERGING MARKET) & DAB
UAE SPEC
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB
GCC SPEC EURO4 2018MY&ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-*DA(8INCH) & *BT
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
GCC SPEC EURO4 2018MY&ACTIVE SAFETY PACKAGE-WITH
UAE SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
UAE SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
SAUDI ARABIA SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
SAUDI ARABIA SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET)& DAB
ACTIVE SAFETY PACKAGE-WITH
SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB
SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(FOR EMERGING MARKET) & DAB
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
ACTIVE SAFETY PACKAGE-WITH
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-*DA(FOR EMERGING MARKET)
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-*DA(FOR EMERGING MARKET)
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(8INCH) & *BT
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
56115CSTOPPER, WINDSHIELD GLASS
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(FOR EMERGING MARKET)
56116CSTOPPER, WINDSHIELD GLASS, NO.2
AUDIO-*DA(FOR EMERGING MARKET)
main56116-22050iGUN15#..H..TH;GUN156..THP..(L,S);GGN155,GUN155..THP..S;GUN16#,TGN156,166..THP..(GCC,TH)202308-202407
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main56116-22050iGUN15#..H..TH;GUN156..THP..(L,S);GGN155,GUN155..THP..S;GUN16#,TGN156,166..THP..(GCC,TH)202308-202407
AUDIO-*DA(8INCH) & *BT
56117ADAM, WINDOW GLASS ADHESIVE
L=2620,AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=2620
L=2620,UAE SPEC
L=2620,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
L=2620,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=2620,SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB
L=2620,SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB
L=2620,SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=2620,GCC SPEC EURO4 2018MY
L=2620,GCC SPEC EURO4 2018MY&ACTIVE SAFETY PACKAGE-WITH
L=2620,GCC SPEC EURO4 2022MY
L=2620,ACTIVE SAFETY PACKAGE-WITH
L=2620,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=2620,AUDIO-*DA(8INCH) & *BT & DAB
L=2620,AUDIO-*DA(8INCH) & *BT
L=2620,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
L=2620,AUDIO-*DA(FOR EMERGING MARKET)
L=2620,UAE SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
L=2620,UAE SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET) &DAB
L=2620,SAUDI ARABIA SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT &DAB
L=2620,SAUDI ARABIA SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=2620,BACK GLASS-FIX TYPE(GREEN,*HSEA)
L=2620,INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
L=2620,ACTIVE SAFETY PACKAGE-WITHOUT
L=2620,ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
L=2620,INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
L=2620,INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-*DA(FOR EMERGING MARKET)
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248
L=1248,UAE SPEC
L=1248,UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
L=1248,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=1248,SAUDI ARABIA SPEC&AUDIO-*DA(8INCH) & *BT & DAB
L=1248,SAUDI ARABIA SPEC&AUDIO-AVN(8INCH) & *BT & DAB
L=1248,SAUDI ARABIA SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=1248,GCC SPEC EURO4 2018MY
L=1248,GCC SPEC EURO4 2018MY&ACTIVE SAFETY PACKAGE-WITH
L=1248,GCC SPEC EURO4 2022MY
L=1248,ACTIVE SAFETY PACKAGE-WITH
L=1248,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=1248,AUDIO-*DA(8INCH) & *BT & DAB
L=1248,AUDIO-*DA(8INCH) & *BT
L=1248,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
L=1248,AUDIO-*DA(FOR EMERGING MARKET)
L=1248,AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=1248,UAE SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT & DAB
L=1248,UAE SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET) &DAB
L=1248,SAUDI ARABIA SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(8INCH) & *BT &DAB
L=1248,SAUDI ARABIA SPEC&BACK GLASS-FIX TYPE(GREEN,*HSEA)&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=1248,BACK GLASS-FIX TYPE(GREEN,*HSEA)
L=1248,INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
L=1248,ACTIVE SAFETY PACKAGE-WITHOUT
L=1248,ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
L=1248,INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
L=1248,INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE&AUDIO-*DA(FOR EMERGING MARKET)
8604
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 2 diagrams in section
