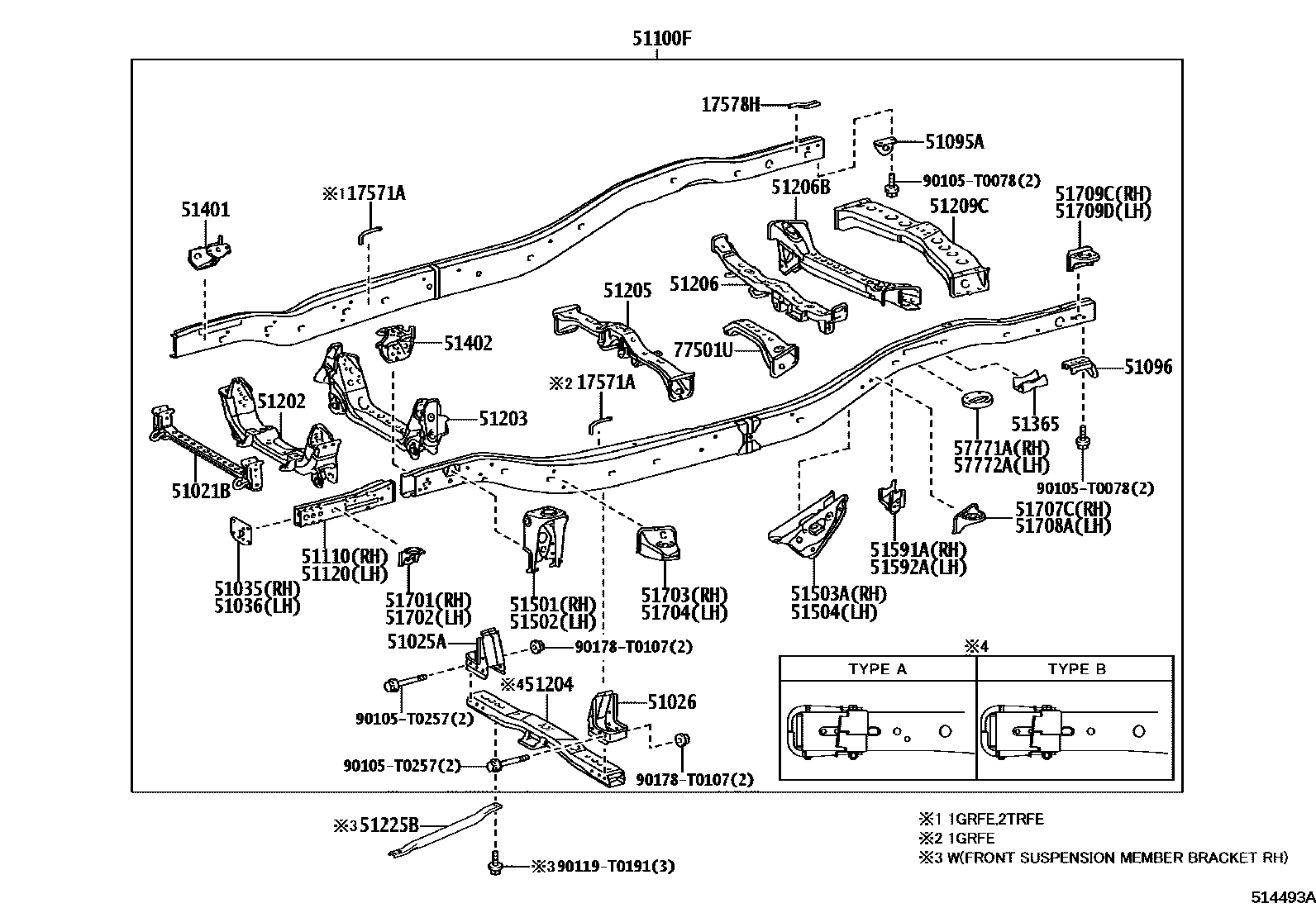

FRAME

0001 1 0002 1PROPELLER SHAFT GUARD 0003 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i1GRFE..GGN155..THP202308-202410

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L020i1GDFTV,2GDFTV..GUN15#..KEN202308-202412

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-KK010iGGN155,GUN156,TGN156,166..EPT,PKN202308-202412

main51021-KK020iGGN155,GUN15#,16#,TGN156,166..IDNP..(GCC,GEN,IDN,PH,SA,VN)202309-202410

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-KK010iGUN156,16#,TGN166..INDP,VNP202308-202412

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-KK010iGGN155,GUN156,TGN156,166..EPT,PKN202308-202412

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51095AHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-0K010iGUN15#..KEN202308-202412

51096HOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0K010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51100FFRAME SUB-ASSY

main51001-KK530iTGN166..VNP202309-202409

sub51001-KK871

sub51001-KKD20

main51001-KK570iGUN16#..IDNP..6FC202309-202409

sub51001-KKA01

sub51001-KKC60

main51001-KK612iTGN156..SAP202402-202410

sub51001-KKK30

main51001-KK632iGUN15#..KEN202402-202412

sub51001-KKK40

main51001-KK652iGUN165..6F..SA202402-202410

main51001-KK662iGUN16#..6FC..SA202402-202410

main51001-KK875iTGN166..THP202308-202407

main51001-KKA05iGUN16#..THP202308-202407

main51001-KKB10iTGN156..IDNP202309-202408

main51001-KKB20iGGN155..IDNP202309-202408

main51001-KKB30iGUN15#..IDNP..(GCC,GEN,IDN,PH,SA,VN)202309-202409

sub51001-KKD00

main51001-KKB50iGUN165..IDNP..6F202309-202409

sub51001-KKD40

main51001-KKC60iGUN166..6FC..IND202310-202409

main51001-KKC73iTGN156..LA202311-202410

main51001-KKC93iGGN155..LA202311-202410

main51001-KKD00iGUN156..IND202310-202409

main51001-KKD20iTGN166..6FC..IND202310-202409

main51001-KKD30iTGN166..5F..IND202310-202409

main51001-KKD40iGUN166..6F202310-202409

main51001-KKG01iGUN156..AGTP202311-202410

main51001-KKG11iGUN165..LA202311-202410

main51001-KKG21iTGN166..6FC..LA202311-202410

main51001-KKG31iTGN166..S..LA202311-202410

main51001-KKG50iGUN156..IDNP..ARL202309-202408

main51001-KKK20iGUN15#..THP202308-202408

main51001-KKL10iTGN156..THP202308-202408

main51001-KKL20iGGN155..THP202308-202407

51110EXTENSION ASSY, SIDE RAIL, RH

main5103A-KK010iGGN155,GUN156,TGN156,166..EPT,PKN202308-202412

51120EXTENSION ASSY, SIDE RAIL, LH

main5103B-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-KK020iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202410

sub51201-KK050

main51201-KK050iGUN15#,16#,TGN156..SAP202308-202412

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-KK010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202412

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-KK010iGUN16#,TGN166..IDNP..6FC202309-202410

sub51203-KK100

main51203-KK030iGUN165..VNP..L202309-202410

main51203-KK040iGUN156..VNP202309-202412

sub51203-KK250

main51203-KK050iGGN155,TGN156..IDNP202309-202410

sub51203-KK260

main51203-KK120iGUN165..LA202310-202410

sub51203-KK240

main51203-KK130iTGN166..S..LA202310-202410

sub51203-KK230

main51203-KK140iGUN166..6F202310-202409

main51203-KK150iGUN156..IND202310-202410

main51203-KK190iTGN166..6FC..IND202310-202410

sub51203-KK210

main51203-KK200iGGN155,TGN156..LA202311-202410

main51203-KK210iTGN166..EPT,PKN202308-202407

main51203-KK250iGUN156..PKN202308-202408

main51203-KK260iGGN155,TGN156..EPT,PKN202308-202408

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-KK060iGGN155,GUN15#,TGN156..THP202308-202412

main51204-KK080iGUN16#,TGN166..IDNP202308-202410

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-KK050iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-KK020iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-KK010iGGN155,GUN156,TGN156,166..EPT,PKN202308-202412

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-KK010iGUN156..IND202310-202410

51365STOPPER, REAR BUMPER

main57081-KK010iGUN156,16#,TGN166..INDP,VNP202308-202412

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-KK020iTGN156,166..AGTP,SAP202308-202410

main51401-KK030iGGN155..THP202308-202410

main51401-KK040iGUN156..PKN202308-202412

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-KK020iTGN156,166..EPT,PKN202308-202410

main51402-KK030iGGN155..EPT202308-202410

main51402-KK040iGUN15#,16#..AGTP,SAP202308-202412

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-KK020iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-KK020iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH

main51503-KK010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202412

51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH

main51504-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51591ASUPPORT, STABILIZER, RH

main51508-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51592ASUPPORT, STABILIZER, LH

main51509-KK010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202412

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-KK010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202412

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51709CBRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH

main51709-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

51709DBRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH

main51709-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

57771APLATE, REAR SPRING, RH

main57771-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

57772APLATE, REAR SPRING, LH

main57771-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-KK040iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

90105T0078

main90105-T0078

90105T0257

main90105-T0257

90119T0191

main90119-T0191

90178T0107

main90178-T0107

44 parts on this diagram · 3 diagrams in section
