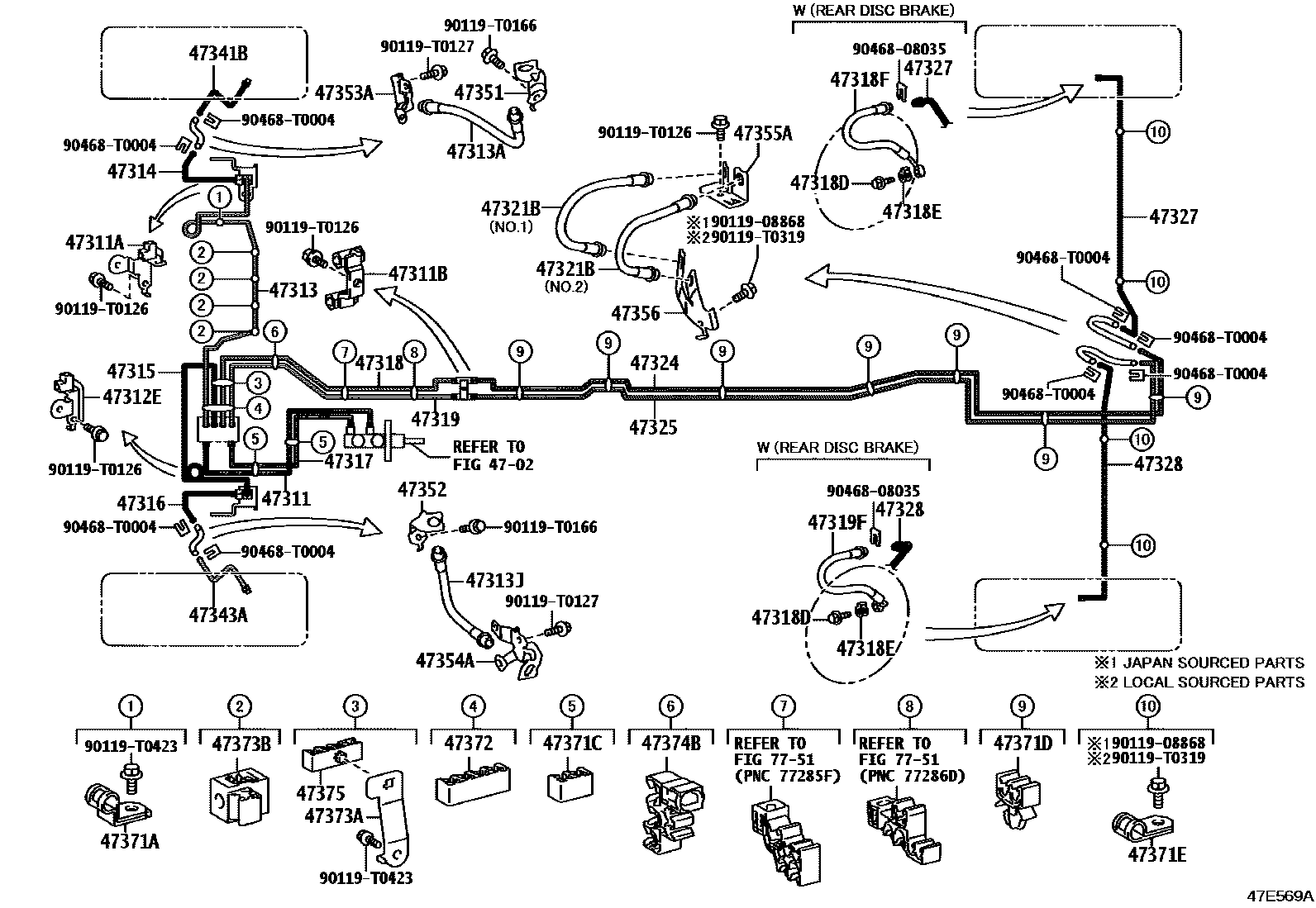

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-KK020iGUN15#,16#..RHD..THP202308-202407

main47311-KK050iGGN155,GUN15#,165,TGN156,166..LHD..THP202308-202407

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10307iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202309-202408

main90412-T0009iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10301iGGN155,GUN156,TGN156,166..EPT,PKN202309

main90412-T0007iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10308iGUN156,16#,TGN166..INDP,VNP202309-202409

main90412-T0010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47313TUBE, FRONT BRAKE, NO.3

main47313-KK030iGUN15#,16#..RHD..THP202308-202407

main47313-KK060iGUN156,165,TGN166..VNP202308-202409

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2098iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202410

main90947-T2122iGUN156,166,TGN166..IND202310-202409

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2098iGUN156,165,TGN166..VNP202308-202409

main90947-T2122iGUN156,166,TGN166..IND202310-202409

47314TUBE, FRONT BRAKE, NO.4

main47314-KK020iGUN15#..KEN202308-202412

47315TUBE, FRONT BRAKE, NO.5

main47315-KK030iGUN15#,16#..RHD..SA202308-202410

main47315-KK060iGGN155,TGN166..EPT202308

47316TUBE, FRONT BRAKE, NO.6

main47316-KK020iGUN15#..KEN202308-202412

47317TUBE, FRONT BRAKE, NO.7

main47321-KK020iGUN156,TGN156,166..PKN202308

main47321-KK040iGGN155,GUN15#,165,TGN156,166..LHD..(AGTP,SAP)202308-202410

47318TUBE, FRONT BRAKE, NO.8

main47322-KK010iGUN156,166,TGN166..IND202308-202409

main47322-KK040iGGN155,TGN166..EPT202308

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2115iGGN155,GUN156,TGN156,166..EPT,PKN202308

main90947-T2125iGUN156,166,TGN166..IND202310-202409

47319TUBE, FRONT BRAKE, NO.9

main47323-KK030iGUN156,TGN156,166..PKN202309

main47323-KK080iGUN156,165,TGN166..VNP202308-202409

main47323-KK180iGUN15#,16#..RHD..THP202308-202407

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2116iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main90947-T2126iGUN156,166,TGN166..IND202310-202409

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2099iGGN155,GUN156,TGN156,166..EPT,PKN202308

NO.1:REFER ILLUST.

main90947-T2103iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

NO.2:REFER ILLUST.

main90947-T2123iGUN156,166,TGN166..IND202310-202409

NO.1:REFER ILLUST.

main90947-T2124iGUN156,166,TGN166..IND202310-202409

NO.2:REFER ILLUST.

47324TUBE, REAR BRAKE, NO.4

main47324-KK030iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47325TUBE, REAR BRAKE, NO.5

main47325-KK050iGGN155,GUN156,TGN156,166..EPT,PKN202308

47327TUBE, REAR BRAKE, NO.7

main47327-KK190iGGN155,GUN156,TGN156,166..EPT,PKN202308

main47327-KK230iTGN166..IDNP..(IDN,VN)202309-202408

47328TUBE, REAR BRAKE, NO.8

main47328-KK190iTGN166..IND;GUN156,16#..INDP,VNP202308-202409

main47328-KK230iTGN166..IDNP..(IDN,VN)202309-202408

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-0K070iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main47341-0K080iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

main47341-0K090iGUN15#,16#,TGN156..SAP202402-202410

main47341-0K100iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main47341-0K110iGUN156,166,TGN166..IND202310-202409

main47341-0K130iGUN15#,TGN156..MA202309-202408

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-0K070iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main47343-0K080iGUN156..CAMP202308-202408

main47343-0K090iGUN15#,16#,TGN156..SAP202402-202410

main47343-0K100iGUN156,165,TGN166..VNP202309-202409

main47343-0K110iGUN156,166,TGN166..IND202310-202409

main47343-0K130iGUN15#,TGN156..MA202309-202408

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-KK010iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202410

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2

main47353-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2

main47354-KK010iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-KK030iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47356BRACKET, FLEXIBLE HOSE, NO.6

main47356-KK020iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47371ACLAMP, BRAKE TUBE, NO.1

main90461-T0007×2iGGN155,GUN15#,165,TGN156,166..LHD..(AGTP,SAP)202308-202410

47371CCLAMP, BRAKE TUBE, NO.7

main90949-T1033×2iGGN155,GUN15#,16#,TGN156,166..THP202308-202407

47371DCLAMP, BRAKE TUBE, NO.8

main90949-T1006×7iGGN155,GUN156,TGN156,166..EPT,PKN202308

47371ECLAMP, BRAKE TUBE, NO.9

main90461-T0001×4iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1003iGUN15#,16#,TGN156,166..RHD..(IDNP,MAP)202308-202408

main90949-T1028iGGN155,TGN166..EPT202308

47373ABRACKET, TUBE CLAMP

main90949-T2003iGGN155,GUN15#,16#,TGN156,166..LHD..(CAMP,IDNP)202308-202408

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1016×3iGUN15#,16#..RHD..THP202308-202407

main90949-T1030×4iGGN155,GUN15#,16#,TGN156,166..LHD..(CAMP,IDNP)202308-202408

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1027iGUN156,TGN156,166..PKN202308

main90949-T1032iGUN156,165,TGN166..VNP202308-202409

47375CLAMP, BRAKE TUBE, NO.5

main90949-T1028iGUN15#,16#..RHD..THP202308-202407

main90949-T1031iGGN155,GUN15#,165,TGN156,166..LHD..THP202308-202407

7751

9011908868

main90119-08868

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0166

main90119-T0166

90119T0319

main90119-T0319

90119T0423

main90119-T0423

9046808035

main90468-08035

90468T0004

main90468-T0004

49 parts on this diagram · 4 diagrams in section
