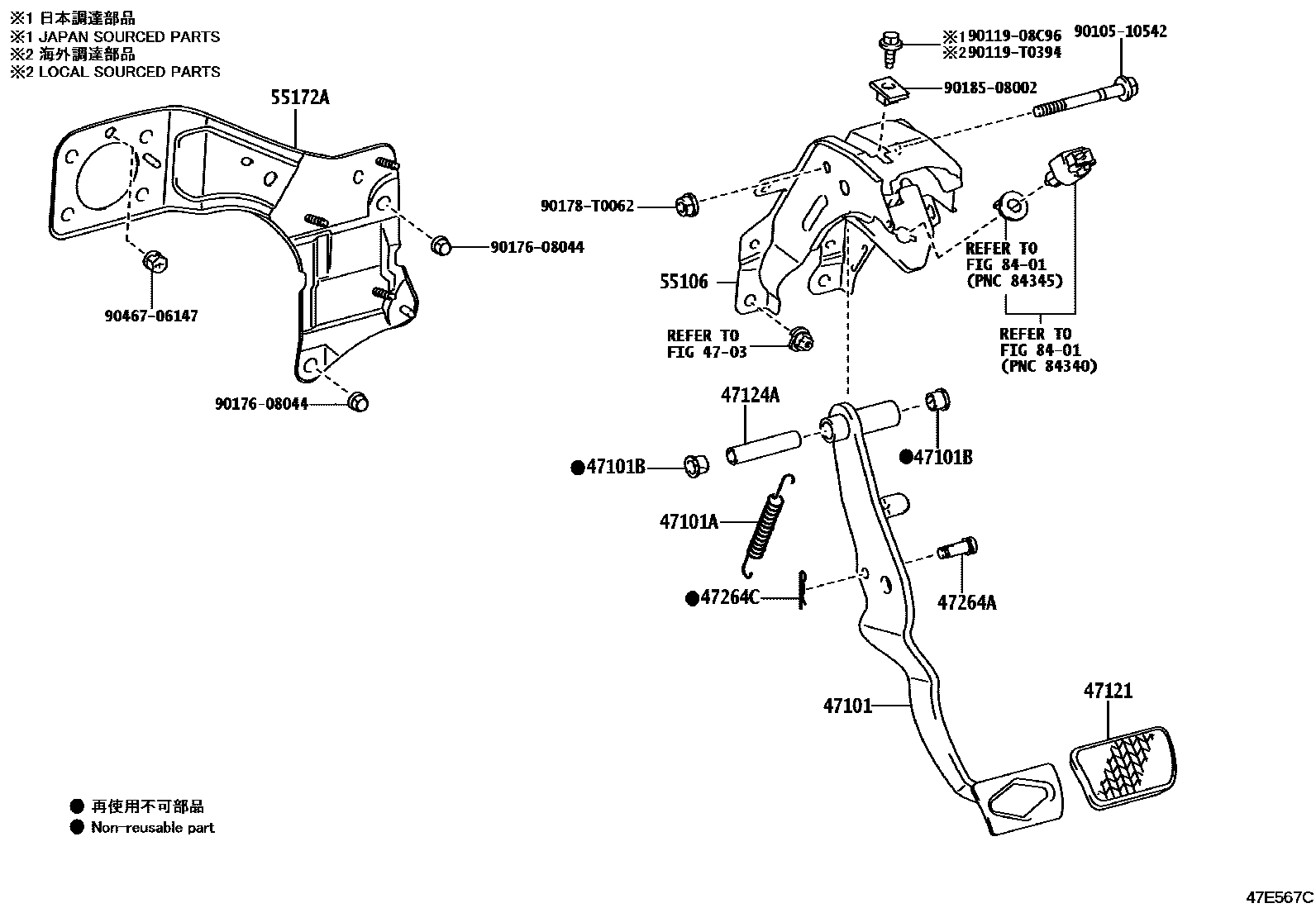

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703

47101PEDAL SUB-ASSY, BRAKE

main47101-KK010iGUN165..6F..IDN202309-202412

main47101-KK020iGUN156,TGN166..LHD..(AGTP,SAP)..MTM202309-202410

main47101-KK030iGUN15#,16#..RHD..THP202308-202412

main47101-KK040iGGN155,GUN15#,16#,TGN156,166..LHD..(CAMP,IDNP)..6FC202308-202410

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

47121PAD, BRAKE PEDAL

main31321-02020iGUN156..6F..KEN202309-202412

main47121-02030iGGN155,GUN15#,16#,TGN156,166..(AGTP,SAP)..6FC202308-202412

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10121iGUN156,16#,TGN166..INDP,VNP202309-202409

main90387-F0002iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202412

47264APIN(FOR PUSH ROD)

main47148-35010iGUN15#..KEN202308-202412

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGUN156,16#,TGN166..INDP,VNP202308-202412

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK010iGUN15#..KEN202308-202412

main55106-KK030iGUN156,16#,TGN166..INDP,VNP202309-202409

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK040iGUN15#,16#,TGN156,166..RHD..(IDNP,MAP)202308-202412

main55172-KK050iGGN155,TGN166..EPT202308-202410

8401

9010510542

main90105-10542

9011908C96

main90119-08C96

90119T0394

main90119-T0394

9017608044

main90176-08044

90178T0062

main90178-T0062

9018508002

main90185-08002

9046706147

main90467-06147

18 parts on this diagram · 2 diagrams in section
