PARKING BRAKE & CABLE

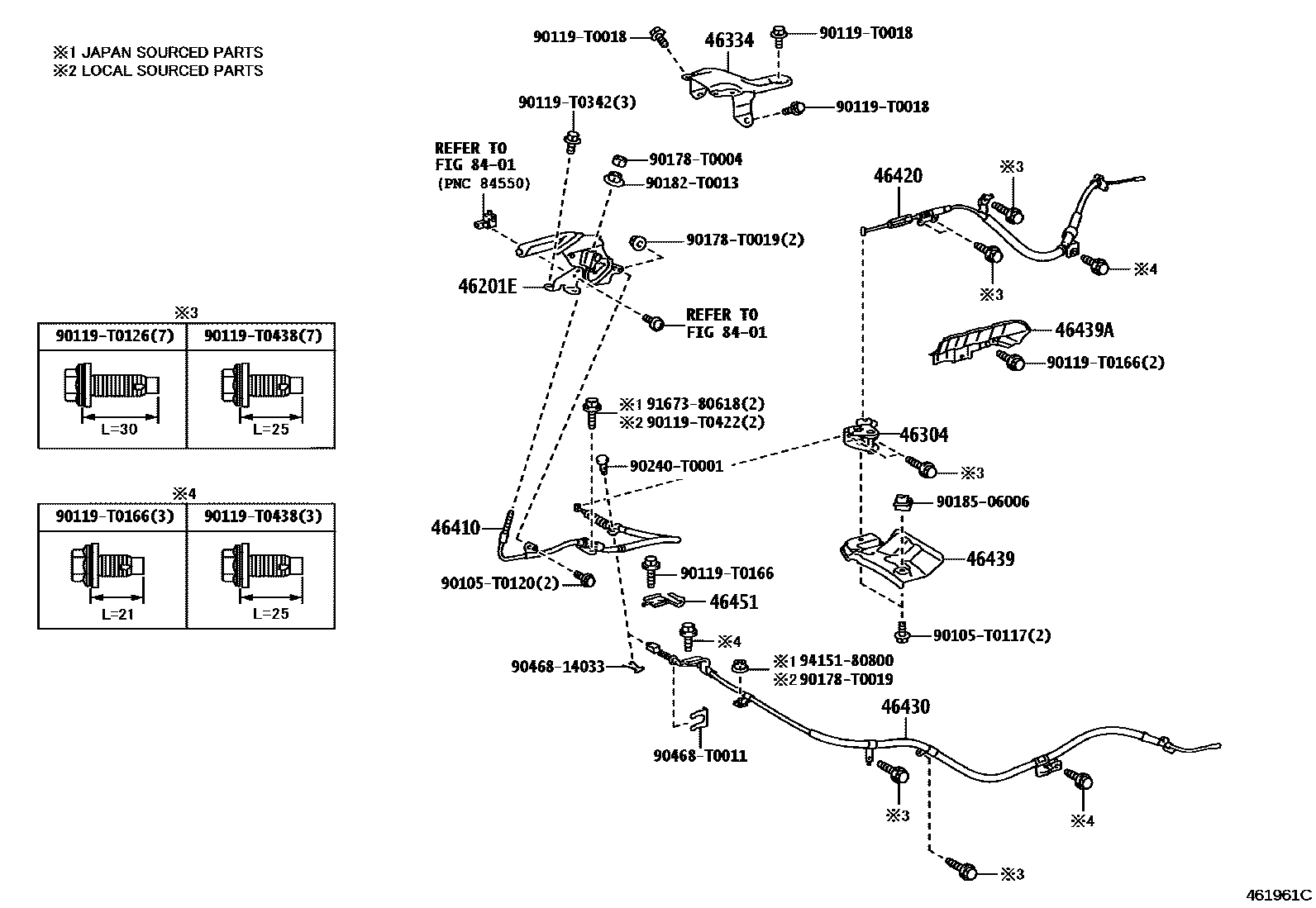

Parts diagram
46201ELEVER SUB-ASSY, PARKING BRAKE
main46201-0K140-C0i202309-202408
BLACK,TRIM4#
main46201-0K140-C0i202309-202409
BLACK,TRIM2#
main46201-0K140-C0i202309-202408
BLACK,TRIM2#,4#
main46201-0K180-C2i202309-202408
BLACK /GRAY,TRIM2#,4#
main46201-0K180-C2i202309-202408
BLACK /GRAY,TRIM4#
main46201-0K180-C2i202309-202409
BLACK /GRAY,TRIM2#
main46201-0K180-C2i202309-202408
BLACK /GRAY,TRIM0#,2#,4#
main46201-0K180-C2i202309-202408
BLACK /GRAY,TRIM22
main46201-0K180-C3i202309-202409
BRACK/CRIMSON,TRIM3#
main46201-0K180-C4i202309-202408
BLACK/GR RED,TRIM24
main46201-0K190-C0i202311-202410
BLACK,TRIM2#
main46201-0K200-C3i202311-202410
BLACK/GRAY,TRIM22
main46201-0K200-C3i202311-202410
BLACK/GRAY,TRIM2#
main46201-0K200-C3i202311-202410
BLACK/GRAY,TRIM0#,22
main46201-0K200-C4i202311-202410
BLACK/GR RED,TRIM24
main46201-0K210-C0i202402-202412
BLACK,TRIM2#
main46201-0K230-C0i202308-202407
BLACK,TRIM4#
main46201-0K230-C0i202308-202407
BLACK,TRIM2#,4#
main46201-0K230-C0i202309-202408
BLACK,TRIM2#
main46201-0K240-C2i202402-202410
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK/CRIMSON NO.69,TRIM3#
main46201-0K240-C2i202308-202409
BLACK/CRIMSON NO.69,TRIM3#
main46201-0K240-C2i202402-202410
DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION),BLACK/CRIMSON NO.69,TRIM3#
main46201-0K240-C3i202308-202412
BLACK/GRAY,TRIM2#
main46201-0K240-C3i202308-202407
BLACK/GRAY,TRIM0#,2#
main46201-0K240-C3i202308-202409
BLACK/GRAY,TRIM2#,4#
main46201-0K240-C3i202308-202408
BLACK/GRAY,TRIM0#,2#,4#
main46201-0K240-C3i202308-202407
BLACK/GRAY,TRIM4#
main46201-0K240-C3i202308-202407
BLACK/GRAY,TRIM0#,22
main46201-0K240-C3i202310-202409
BLACK/GRAY,TRIM22,4#
main46201-0K240-C3i202402-202410
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK/GRAY,TRIM2#
main46201-0K240-C3i202402-202410
DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION),BLACK/GRAY,TRIM2#
main46201-0K240-C4i202308-202409
BLACK/GR RED,TRIM24
main46201-0K250-C0i202404
BLACK,TRIM2#
main46201-0K260-C0i202311-202410
BLACK,TRIM2#
46304EQUALIZER SUB-ASSY, PARKING BRAKE
main46304-0K050i202308-202410
main46304-0K090i202402-202412
46334PROTECTOR, INTERMEDIATE LEVER
main46334-0K010i202309-202409
main46334-KK010i202308-202412
46410CABLE ASSY, PARKING BRAKE, NO.1
main46410-0K090i202309-202409
main46410-0K100i202308-202408
main46410-0K110i202310-202412
46420CABLE ASSY, PARKING BRAKE, NO.2
main46420-0K190i202308-202412
main46420-0K190i202309-202409
MADE IN THAILAND
main46420-0K350i202309-202409
MADE IN INDONESIA
46430CABLE ASSY, PARKING BRAKE, NO.3
main46430-0K190i202309-202409
MADE IN THAILAND
main46430-0K190i202308-202412
main46430-0K260i202309-202409
MADE IN INDONESIA
46439INSULATOR, PARKING BRAKE CABLE HEAT
main46439-0K090i202308-202412
46439AINSULATOR, PARKING BRAKE CABLE HEAT, NO.2
main46439-0K070i202311-202410
PERU SPEC
main46439-0K070i202308-202412
main46439-0K070i202311-202410
CENTRAL AND SOUTH AMERICA SPEC
main46439-0K070i202311-202410
COSTA RICA SPEC
46451BRACKET, CABLE SUPPORT
main46451-0K050i202308-202402
sub46451-0K051
main46451-0K051i202402-202412
8401
90105T0117
main90105-T0117
90105T0120
main90105-T0120
90119T0018
main90119-T0018
90119T0126
main90119-T0126
90119T0166
main90119-T0166
90119T0342
main90119-T0342
90119T0422
main90119-T0422
90119T0438
main90119-T0438
90178T0004
main90178-T0004
90178T0019
main90178-T0019
90182T0013
main90182-T0013
9018506006
main90185-06006
90240T0001
main90240-T0001
9046814033
main90468-14033
90468T0011
main90468-T0011
9167380618
main91673-80618
9415180800
main94151-80800

27 parts on this diagram · 2 diagrams in section
