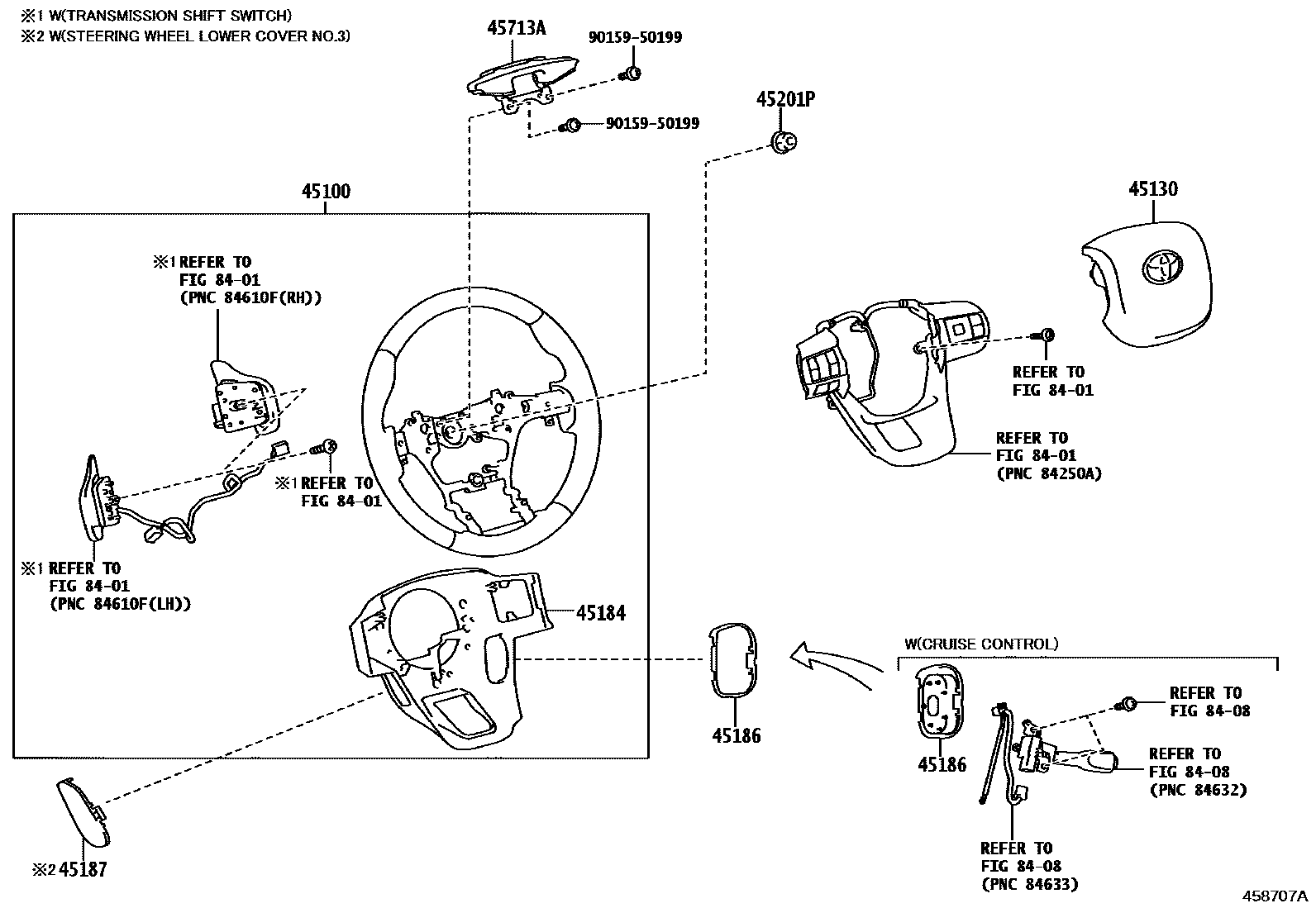

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM4#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#,4#
main45100-0K821-C5iGUN155..THP..S..GCC;GUN15#..THP..(H,S)..(ARL,GEN);GGN155,GUN165,TGN156..LHD..THP..(H,S)202308-202409
3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#
3-SPOKE,WOOD&LEATHER,BLACK,TRIM4#
3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#
3-SPOKE,URETHANE,BLACK,TRIM4#
3-SPOKE,URETHANE,BLACK,TRIM2#,4#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#
main45100-0KC80-C4iGUN15#..IDNP..H..GEN;GUN155..IDNP..S..GCC;GGN155,GUN165,TGN156,166..IDNP..(H,S)..(GCC,GEN)202309-202408
3-SPOKE,WOOD&LEATHER,BLACK,TRIM4#
main45100-0KC80-C4iGUN15#..IDNP..H..GEN;GUN155..IDNP..S..GCC;GGN155,GUN165,TGN156,166..IDNP..(H,S)..(GCC,GEN)202309-202408
3-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#
3-SPOKE,LEATHER,BLACK/GRAY,TRIM2#,4#
3-SPOKE,WOOD&LEATHER,BLACK/GRAY,TRIM2#,MARK=45100-0KE51
3-SPOKE,WOOD&LEATHER,BLACK/GRAY,TRIM2#,4#
3-SPOKE,WOOD&LEATHER,BLACK/GRAY,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,WOOD&LEATHER,STEERING WHEEL-LEATHER & WOOD LIKE,BLACK/GRAY,TRIM2#
3-SPOKE,WOOD&LEATHER,BLACK/GRAY,TRIM2#
3-SPOKE,WOOD&LEATHER,MLM BASIC PACKAGE&STEERING WHEEL-LEATHER & WOOD LIKE,BLACK/GRAY,TRIM2#
3-SPOKE,WOOD&LEATHER,BLACK/GRAY,TRIM2#
3-SPOKE,WOOD&LEATHER,STEERING WHEEL-LEATHER & WOOD LIKE,BLACK/GRAY,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM2#
3-SPOKE,WOOD&LEATHER,BLACK/GRAY,TRIM2#,MARK=45100-0KF31
45130BUTTON ASSY, HORN
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
main45184-0K120-C0iGUN155..IDNP..SA;GUN156,16#,TGN156,166..IDNP..6FC..(H,S)..(IDN,PH,VN)202309-202408
BLACK,TRIM2#
main45184-0K120-C0iGUN155..IDNP..SA;GUN156,16#,TGN156,166..IDNP..6FC..(H,S)..(IDN,PH,VN)202309-202408
BLACK,TRIM2#,4#
main45184-0K120-C0iGUN155..IDNP..SA;GUN156,16#,TGN156,166..IDNP..6FC..(H,S)..(IDN,PH,VN)202309-202408
BLACK,TRIM4#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#,4#
GR SPORT & ACCESSORY,BLACK,TRIM2#
BLACK,TRIM2#,PNC45100=45100-0KE51
MLM PACKAGE & ACCESSORY,BLACK,TRIM0#
GR SPORT,BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
STEERING WHEEL-LEATHER & WOOD LIKE,BLACK,TRIM2#
BLACK,TRIM2#
MLM BASIC PACKAGE&STEERING WHEEL-LEATHER & WOOD LIKE,BLACK,TRIM2#
STEERING WHEEL-LEATHER & WOOD LIKE,BLACK,TRIM2#,PNC45100=45100-0KF21
BLACK,TRIM2#
MLM BASIC PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#,PNC45100=45100-0KF31
45186COVER, STEERING WHEEL, LOWER NO.2
main45186-0K070-C0iGUN165..IDNP..S..(PH,VN);GUN15#,166,TGN156,166..IDNP..6FC..(IDN,PH,SA,VN)202309-202408
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#,4#
CRUISE CONTROL-WITH,BLACK,TRIM2#,4#
CRUISE CONTROL-WITH,BLACK,TRIM4#
BLACK,TRIM2#,4#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#,4#
MLM PACKAGE&CRUISE CONTROL-WITHOUT,BLACK,TRIM0#,3#
BLACK,TRIM2#
BLACK,TRIM4#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
CRUISE CONTROL-WITH,BLACK,TRIM2#
MLM BASIC PACKAGE&CRUISE CONTROL-WITH,BLACK,TRIM2#
main45186-0K120-C0iGUN155..THP..S..GCC;GUN15#..THP..(ARL,GEN);GGN155,GUN165,TGN156..LHD..THP..(H,S)202308-202407
BLACK,TRIM4#
main45186-0K120-C0iGUN155..THP..S..GCC;GUN15#..THP..(ARL,GEN);GGN155,GUN165,TGN156..LHD..THP..(H,S)202308-202408
BLACK,TRIM2#,4#
main45186-0K120-C0iGUN155..THP..S..GCC;GUN15#..THP..(ARL,GEN);GGN155,GUN165,TGN156..LHD..THP..(H,S)202308-202407
CRUISE CONTROL-WITH,BLACK,TRIM4#
BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM2#
CRUISE CONTROL-WITH,BLACK,TRIM2#
MLM BASIC PACKAGE&CRUISE CONTROL-WITH,BLACK,TRIM2#
MLM BASIC PACKAGE&CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
CRUISE CONTROL-WITHOUT,BLACK,TRIM2#
45187COVER, STEERING WHEEL, LOWER NO.3
main45187-0K040-C0iGUN155,TGN156..IDNP..S..GCC;GUN15#,TGN156..IDNP..(5F,6FC)..(ARL,GEN);GGN155,GUN165,TGN166..IDNP..(H,S)..(GCC,GEN)202309-202408
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
main45187-0K050-C0iGUN155..THP..S..GCC;GUN15#..THP..(ARL,GEN);GGN155,GUN165,TGN156..LHD..THP..(H,S)202308-202407
BLACK,TRIM4#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
MLM PACKAGE&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
MLM PACKAGE & ACCESSORY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
8401
8408
9015950199
10 parts on this diagram · 1 diagram in section
