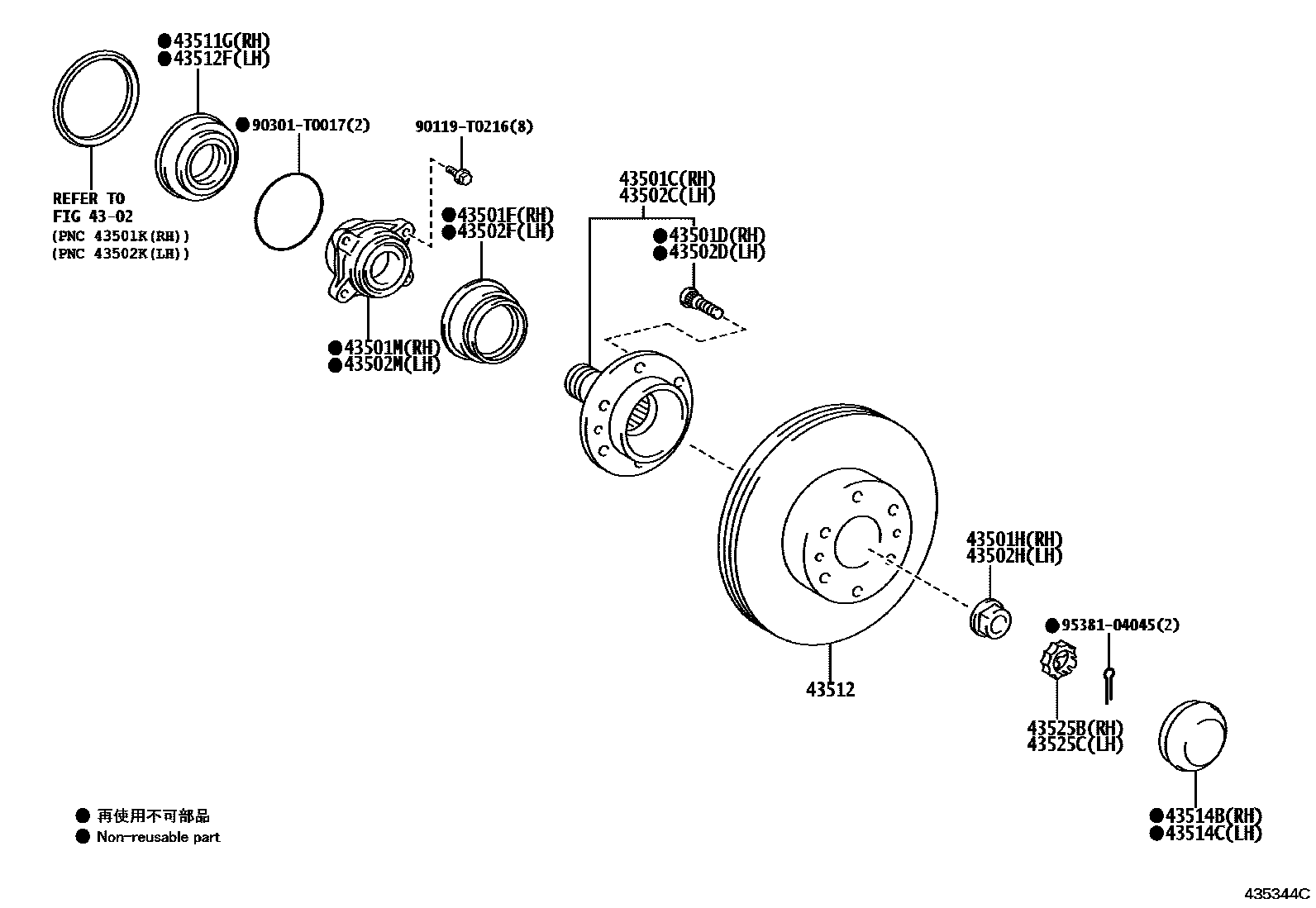

FRONT AXLE HUB

0001 1 0002 1

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-KK010iGGN155,GUN15#,TGN156..THP202308-202503

main43502-KK020iGUN16#,TGN166..INDP,VNP202308-202503

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02081iGGN155,GUN15#,16#,TGN156,166..THP202308-202503

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-T0001iGUN15#..KEN202308-202412

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-T0113iGGN155,GUN15#,TGN156..AGTP,SAP202308-202412

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90366-F0002iGUN15#,16#,TGN156..SAP202402-202412

main90366-T0061iGUN156,16#,TGN166..INDP,VNP202308-202410

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-KK010iGGN155,GUN15#,TGN156..THP202308-202503

main43502-KK020iGUN16#,TGN166..IDNP202308-202503

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02081iGGN155,GUN15#,16#,TGN156,166..THP202308-202503

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-T0001iGGN155,GUN15#,16#,TGN156,166..AGTP,SAP202308-202412

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-T0113iGGN155,GUN15#,TGN156..AGTP,SAP202308-202412

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90366-F0002iGUN15#,16#,TGN156..SAP202402-202412

main90366-T0061iGGN155,GUN156,TGN156,166..EPT,PKN202308-202410

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90316-T0002iGUN15#..KEN202308-202412

43512DISC, FRONT

main43512-0K210iGGN155,GUN156,TGN156,166..EPT,PKN202308-202409

main43512-0K220iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main43512-0K250iGUN15#,16#,TGN156..SAP202402-202412

main43512-0K260iGUN156,166,TGN166..IND202310-202312

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90316-T0002iGGN155,GUN15#,TGN156..THP202308-202412

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-0K010iGGN155,GUN15#,TGN156..CAMP,IDNP,MAP202308-202412

main43514-KK020iGGN155..EPT202412

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-0K010iGGN155,GUN15#,TGN156..THP202308-202412

main43514-KK020iGGN155..EPT202412

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-71010iGGN155,GUN15#,TGN156..THP202308-202412

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-71010iGGN155,GUN15#,TGN156..THP202308-202412

90119T0216

main90119-T0216

90301T0017

main90301-T0017

9538104045

main95381-04045

21 parts on this diagram · 2 diagrams in section
