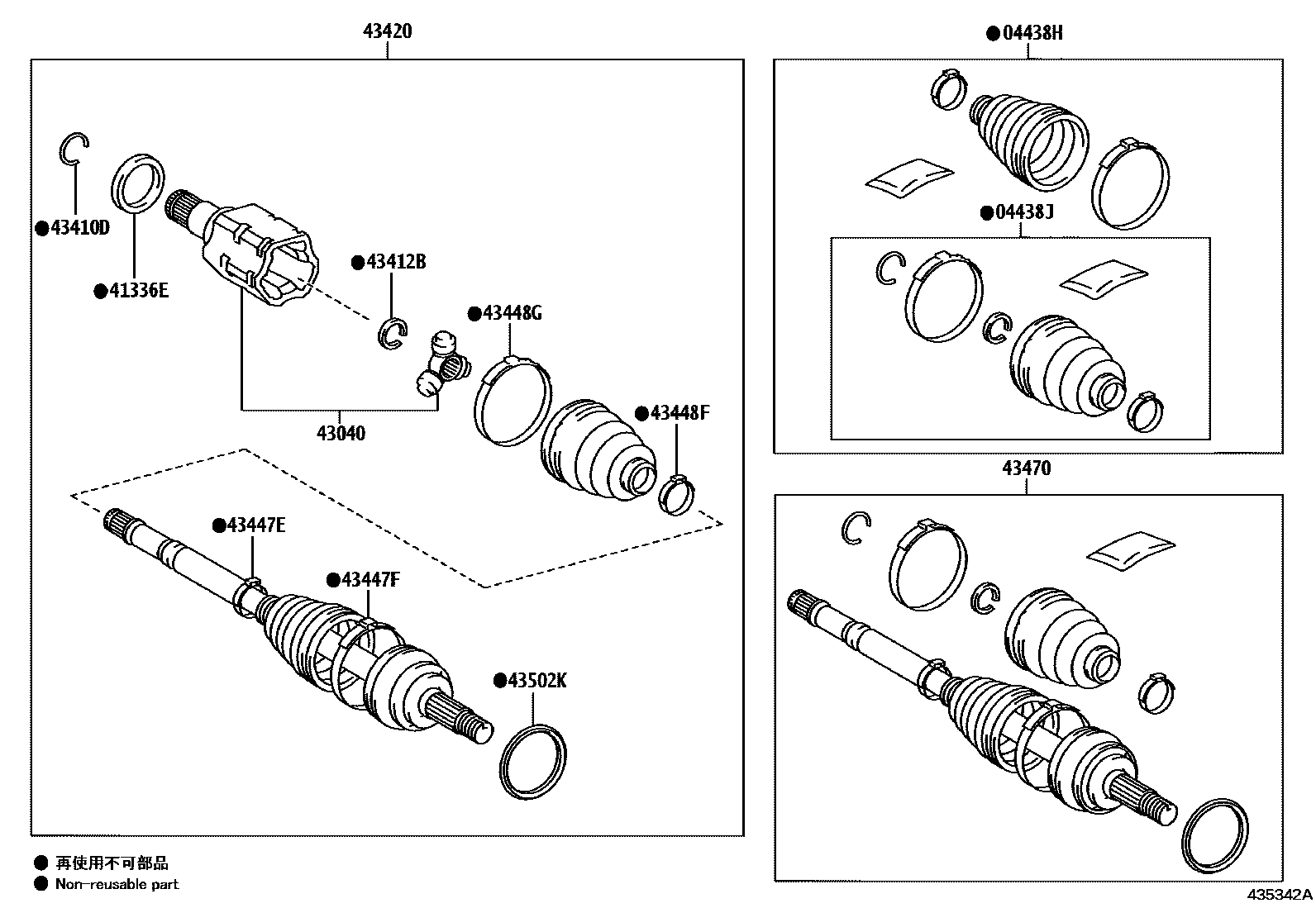

FRONT DRIVE SHAFT

0001 1LH 0002 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-0D581iGUN15#,TGN156..MA202309-202408

main04427-0K050iGGN155,GUN156,TGN156..AGTP202311-202410

main04427-0K063iGGN155,GUN15#,TGN156..IDNP,INDP,THP,VNP202308-202404

sub04427-0K090

main04427-0K072iGUN15#,TGN156..KENP,SAP202402-202410

main04427-0K090iGUN156..INDP,VNP202404-202409

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-0D420iGUN15#,TGN156..MA202309-202408

main04437-0K050iGGN155,GUN156,TGN156..AGTP202311-202410

main04437-0K061iGGN155,GUN156,TGN156..EPT,PKN202308-202409

main04437-0K071iGUN15#,TGN156..KENP,SAP202402-202410

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-0K051iGGN155,GUN156,TGN156..AGTP202311-202410

main41336-0K071iGUN15#,TGN156..SAP202402-202412

main41336-0K080iGGN155,GUN15#,TGN156..CAMP,IDNP,MAP202308-202409

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-0K050iGGN155,GUN156,TGN156..AGTP202311-202410

main43040-0K060iGGN155,GUN156,TGN156..EPT,PKN202308-202409

main43040-0K070iGUN15#,TGN156..SAP202402-202412

main43040-0K080iGUN15#,TGN156..MA202309-202408

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-0K060iGGN155,GUN156,TGN156..AGTP202311-202410

main43430-0K070iGGN155,GUN15#,TGN156..CAMP,IDNP202308-202409

main43430-0K080iGUN15#,TGN156..SAP202402-202412

main43430-0K130iGUN15#,TGN156..MA202309-202408

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main43425-0K040iGGN155,GUN15#,TGN156..CAMP,IDNP,MAP202308-202409

main43425-0K080iGGN155,GUN156,TGN156..AGTP202311-202410

main43425-0K110iGUN15#,TGN156..SAP202402-202412

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-0K130iGGN155,GUN156,TGN156..AGTP202311-202410

main43425-0K140iGGN155,GUN156,TGN156..EPT,PKN202308-202409

main43425-0K150iGUN15#..KEN202402-202412

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-0K060iGGN155,GUN156,TGN156..AGTP202311-202410

main43430-0K070iGGN155,GUN15#,TGN156..THP202308-202409

main43430-0K080iGUN15#,TGN156..SAP202402-202412

main43430-0K130iGUN15#,TGN156..MA202309-202408

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K070iGGN155,GUN15#,TGN156..THP202308-202409

main42345-0K090iGGN155,GUN156,TGN156..AGTP202311-202410

main42345-0K150iGUN15#..KEN202402-202412

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K100iGGN155,GUN15#,TGN156..THP202308-202409

main42345-0K120iGGN155,GUN156,TGN156..AGTP202311-202410

main42345-0K160iGUN15#,TGN156..SAP202402-202412

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K040iGGN155,GUN15#,TGN156..THP202308-202409

main42345-0K060iGGN155,GUN156,TGN156..AGTP202311-202410

main42345-0K140iGUN15#..KEN202402-202412

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K010iGGN155,GUN156,TGN156..EPT,PKN202308-202409

main42345-0K030iGGN155,GUN156,TGN156..AGTP202311-202410

main42345-0K130iGUN15#..KEN202402-202412

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-09Y50iGGN155,GUN156,TGN156..AGTP202311-202410

main43460-09Y63iGGN155,GUN156,TGN156..EPT,PKN202308-202409

main43460-09Y70iGUN15#,TGN156..KENP,SAP202402-202410

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-T0001iGGN155,GUN15#,TGN156..THP202308-202412

14 parts on this diagram · 2 diagrams in section
