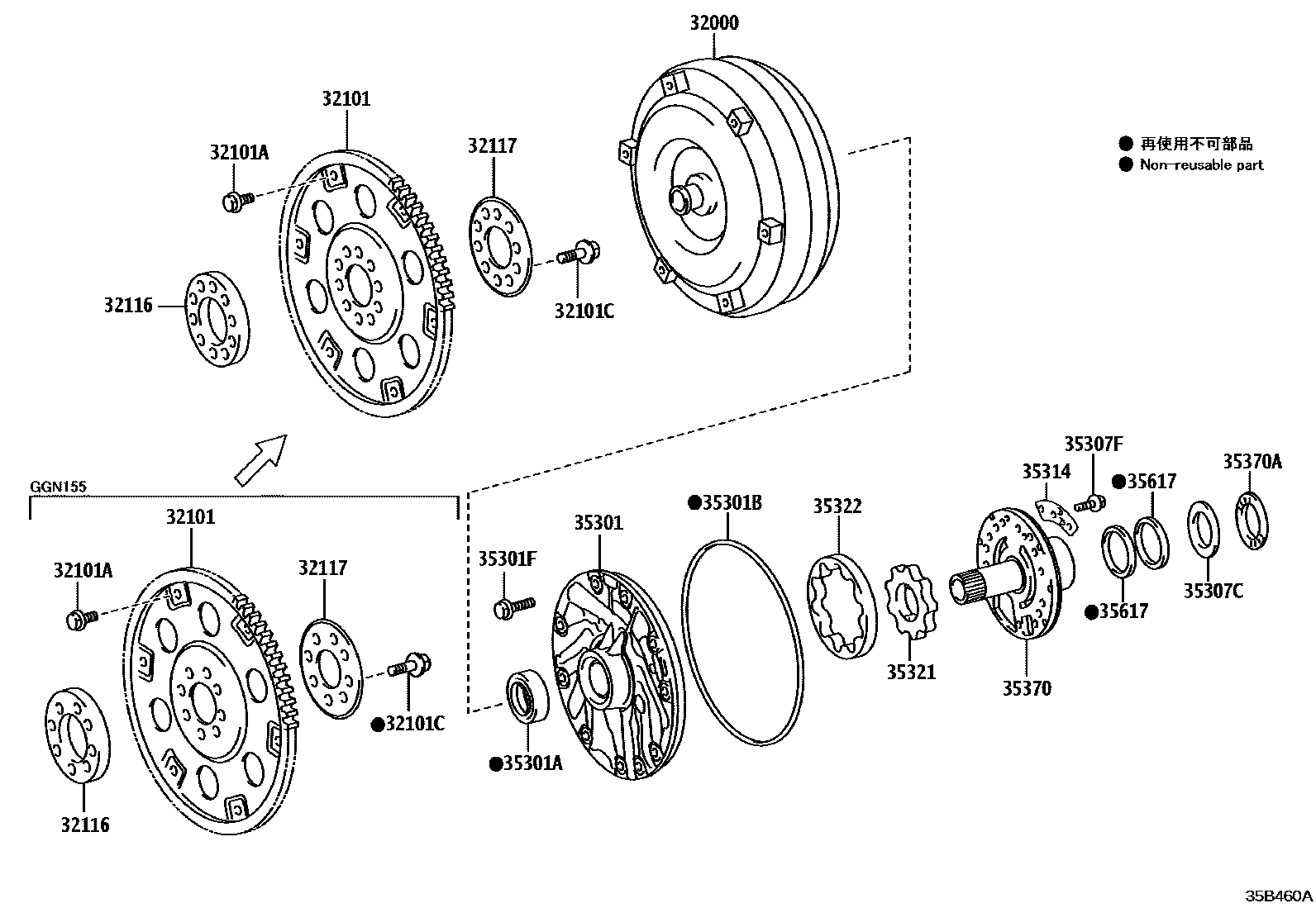

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AC60E,AC60F 0002 1AC60E,AC60F

32000CONVERTER ASSY, TORQUE

main32000-0K020iGUN155,165..(IDNP,MAP)..6FC202308-202409

(L)

main32000-0K030iTGN156,166..PKN202308-202409

(L)

main32000-0K040iGGN155..THP202308-202408

(L)

main32000-0K060iGUN156..PKN202308-202409

(L)

main32000-71040iGUN155,165..(AGTP,KENP,SAP)..6FC¥90,200202308-202410

main32000-71040iGUN165..TH¥90,200202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT

main32000-71040iGUN155,165..(IDNP,MAP)..6FC¥90,200202308-202409

(J)

main32000-71050iTGN156,166..(AGTP,SAP)..6FC¥81,300202309-202410

main32000-71050iTGN166..VNP¥81,300202308-202409

(J)

main32000-71060iGGN155..THP202308-202408

(J)

main32000-71060iGGN155..LA202309-202410

main32000-71100iGUN156,166..THP¥90,200202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT

main32000-71100iGUN156..THP..(ARL,GCC,GEN)¥90,200202308-202409

(J)

main32000-71100iGUN156..THP..(ARL,GCC,GEN)¥90,200202308-202407

TOYOTA STOP & START SYSTEM-WITH

main32000-71100iGUN156,166..(AGTP,SAP)..6FC¥90,200202308-202412

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTGN156,166..THP¥12,900202308-202410

main32101-60060iGGN155..THP¥14,400202308-202410

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iGUN15#..(IDNP,PKNP)..6FC..(PKN,SA)¥80202308-202412

*10-1.5PX11-8,(J),SILVER WHITE

main90105-10546iGUN15#,16#..(AGTP,SAP)..6FC¥100202308-202412

*10-1.5PX11-8,BLACK

main90105-T0237iGUN15#..(IDNP,PKNP)..6FC..(PKN,SA)202308-202412

*10-1.5PX11-8,(L),SILVER WHITE

main90119-09026iGGN155,TGN156,166..THP¥80202308-202410

*9-1.25PX12.8-9,BLACK

main90119-09027iGGN155,TGN156,166..(AGTP,SAP)..6FC¥80202308-202410

*9-1.25PX12.8-8.8,SILVER WHITE

main90119-09028iGGN155..THP202311-202410

*9-1.25PX12.4-7.3,BLACK

main90119-09029iGGN155..THP202402-202410

*9-1.25PX12.4-8.8,SILVER WHITE

main90119-09029iTGN166..6FC..IND202311-202409

*9-1.25PX12.4-8.8,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTGN156,166..(IDNP,MAP)..6FC¥570202308-202410

*10-1.25PX30-17.5

main90105-10543iGGN155..LA¥100202308-202410

*10-1.25PX22-15

main90105-13015iGUN15#,16#..THP¥190202308-202412

*13-1.5PX43.5-23.5,(J)

main90105-13015iGUN156,166..6FC..IND¥190202310-202409

*13-1.5PX43.5-23.5

main90105-T0203iGUN156..THP..ARL202308-202412

*13-1.5PX43.5-23.5,(L)

main90105-T0203iGUN156..THP..ARL202308-202407

*13-1.5PX43.5-23.5

32116SPACER, DRIVE PLATE, FRONT

main32116-26010iTGN156,166..(IDNP,MAP)..6FC¥1,250202308-202410

main32116-60050iGGN155..EPT¥2,170202308-202410

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTGN156,166..EPT,PKN¥880202308-202410

main32117-60050iGUN156..THP..ARL;GUN155,165..THP..(H,S)¥950202308-202408

GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)

main32117-60050iGUN156..THP..ARL;GUN155,165..THP..(H,S)¥950202308-202407

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main32117-60050iGUN156,165..VNP..6FC¥950202308-202412

main32117-60060iGGN155..THP¥940202308-202410

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-0K010iGUN156,165,TGN166..VNP..6FC202308-202409

(L),TYPE B:REF.35-01

main35301-71010iGGN155,GUN156,TGN156,166..EPT,PKN¥18,200202308-202412

TYPE A:REFER 35-01

main35301-71010iGGN155,GUN15#,16#,TGN156,166..THP¥18,200202308-202409

(J),TYPE B:REF.35-01

main35301-71010iGGN155,GUN15#,16#,TGN156,166..THP¥18,200202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38101iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..6FC¥400202308-202409

TYPE B:REFER 35-01

main90311-38101iGGN155,GUN15#,16#,TGN156,166..THP¥400202308-202412

TYPE A:REFER 35-01

main90311-38101iGGN155,GUN15#,16#,TGN156,166..THP¥400202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main90311-38101iGUN155..IDNP..6FC¥400202309-202412

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGGN155,GUN15#,16#,TGN156,166..THP¥280202308-202409

TYPE B:REFER 35-01

main35697-60010iGGN155,GUN15#,16#,TGN156,166..THP¥280202308-202412

TYPE A:REFER 35-01

main35697-60010iGGN155,GUN15#,16#,TGN156,166..THP¥280202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGGN155,GUN15#,16#,TGN156,166..IDNP..6FC¥140202308-202409

*8-1.25PX35-35,TYPE B:REFER 35-01

main90105-08091iGGN155,GUN15#,16#,TGN156,166..THP¥140202308-202412

*8-1.25PX35-35,TYPE A:REFER 35-01

main90105-08091iGGN155,GUN15#,16#,TGN156,166..THP¥140202308-202407

*8-1.25PX35-35,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-71070iGUN156,165..THP..(ARL,GCC,GEN)¥700202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main35789-71070iGUN156,165..TH¥700202308-202409

TYPE B:REFER 35-01

main35789-71070iGUN156,165..TH¥700202308-202412

TYPE A:REFER 35-01

35307FBOLT (FOR STATOR SHAFT)

main90148-60079iGGN155,GUN156,TGN156,166..EPT,PKN¥60202308-202412

TYPE A:REFER 35-01

main90148-60079iGGN155,GUN15#,16#,TGN156,166..THP¥60202308-202409

(J),TYPE B:REF.35-01

main90148-60079iGGN155,GUN15#,16#,TGN156,166..THP¥60202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main90148-T0024iGUN156,TGN156,166..PKN202308-202409

(L),TYPE B:REF.35-01

35314PLATE, FRONT OIL PUMP

main35314-0K020iGGN155,GUN15#,16#,TGN156,166..THP202308-202409

(L),TYPE B:REF.35-01

main35314-71020iGUN156,165..TH¥200202308-202412

TYPE A:REFER 35-01

main35314-71020iGUN156,165..TH¥200202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main35314-71020iGGN155,GUN15#,16#,TGN156,166..THP¥200202308-202409

(J),TYPE B:REF.35-01

35321GEAR, FRONT OIL PUMP DRIVE

main35321-0K010iGUN156,165,TGN166..VNP..6FC202308-202409

(L),TYPE B:REF.35-01

main35321-71010iGGN155,GUN156,TGN156,166..EPT,PKN¥3,030202308-202409

T=9.977-9.983,(J),TYPE B:REF.35-01

main35321-71010iGGN155,GUN15#,16#,TGN156,166..THP¥3,030202308-202412

T=9.977-9.983,TYPE A:REFER 35-01

main35321-71010iGGN155,GUN15#,16#,TGN156,166..THP¥3,030202308-202407

T=9.977-9.983,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-0K010iGGN155,GUN15#,16#,TGN156,166..THP202308-202409

T=9.977-9.983,(L),TYPE B:REF.35-01

main35322-71010iGUN156,165..TH¥3,030202308-202412

T=9.977-9.983,TYPE A:REFER 35-01

main35322-71010iGUN156,165..TH¥3,030202308-202407

T=9.977-9.983,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

main35322-71010iGGN155,GUN15#,16#,TGN156,166..THP¥3,030202308-202409

T=9.977-9.983,(J),TYPE B:REF.35-01

35370SHAFT ASSY, STATOR

main35370-0K010iGUN156,165,TGN166..VNP..6FC202308-202409

(L),TYPE B:REF.35-01

main35370-71010iGGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..6FC¥14,900202308-202412

TYPE A:REFER 35-01

main35370-71010iGGN155,GUN15#,16#,TGN156,166..THP¥14,900202308-202409

(J),TYPE B:REF.35-01

main35370-71010iGGN155,GUN15#,16#,TGN156,166..THP¥14,900202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-71002iGGN155,GUN15#,16#,TGN156,166..THP¥1,200202308-202409

TYPE B:REFER 35-01

main90374-71002iGGN155,GUN15#,16#,TGN156,166..THP¥1,200202308-202412

TYPE A:REFER 35-01

main90374-71002iGGN155,GUN15#,16#,TGN156,166..THP¥1,200202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030iGGN155,GUN15#,16#,TGN156,166..THP¥280202308-202409

TYPE B:REFER 35-01

main35617-50030iGGN155,GUN15#,16#,TGN156,166..THP¥280202308-202412

TYPE A:REFER 35-01

main35617-50030iGGN155,GUN15#,16#,TGN156,166..THP¥280202308-202407

TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01

18 parts on this diagram · 2 diagrams in section
