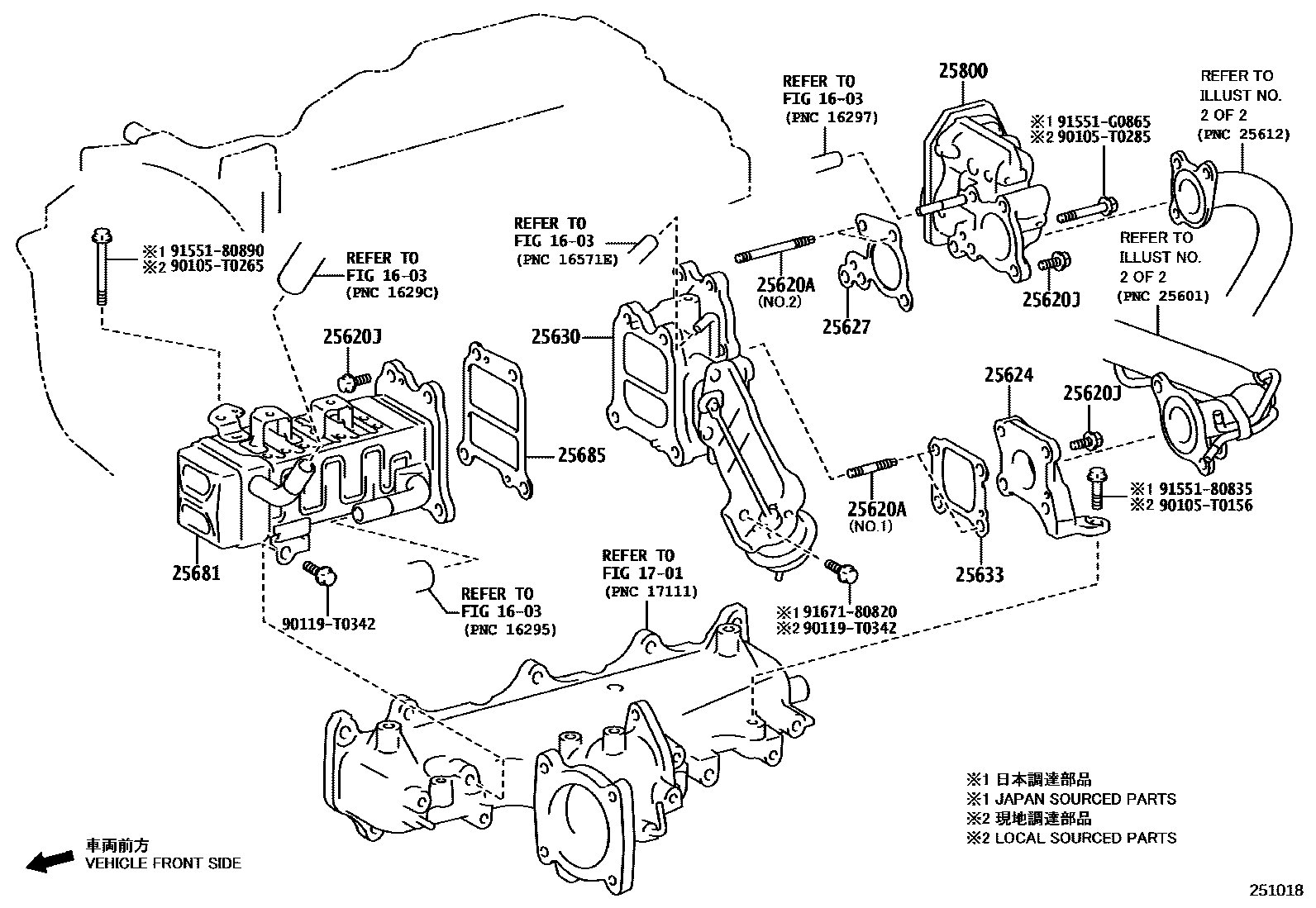

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
25620ABOLT, STUD(FOR EGR VALVE)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),NO.1
NO.1
NO.1,*657
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),NO.1,*657
NO.2,*657
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),NO.2
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),NO.2
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),NO.2
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),NO.2
NO.2
UAE SPEC,NO.2
main90126-T0018i1GDFTV,2GDFTV..GUN155,16#..IDNP,MAP;1GDFTV..GUN156..(CAMP,IDNP,MAP)..6FC¥190202308-202412
NO.2,*652
25620JBOLT(FOR EGR VALVE)
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
SUB-SAHARAN AFRICA SPEC(EURO 2),THA SOURCED PARTS
EXPORT FROM SA&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
25624ADAPTER, EGR VALVE
THA SOURCED PARTS
JAPAN SOURCED PARTS
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
25627GASKET, EGR VALVE
THA SOURCED PARTS
IND SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
25630VALVE ASSY, EGR, NO.2
main25630-0E031i1GDFTV..GUN156..CAMP;2GDFTV..GUN155,165..LHD..IDNP..GEN;1GDFTV,2GDFTV..GUN15#,16#..(IDNP,MAP)..(ARL,GCC,IDN,MA,PH,VN)¥31,900202308-202412
IDN SOURCED PARTS
main25630-0E031i1GDFTV,2GDFTV..GUN155,16#..THP;1GDFTV..GUN156..THP..(ARL,GCC,TH)¥31,900202308-202410
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
25633GASKET, EGR VALVE
main25633-0E010i1GDFTV..GUN156..CAMP;2GDFTV..GUN155,165..LHD..IDNP..GEN;1GDFTV,2GDFTV..GUN15#,16#..(IDNP,MAP)..(ARL,GCC,IDN,MA,PH,VN)202308-202412
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
IND SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
25681COOLER, EGR, NO.1
main25681-0E010i1GDFTV,2GDFTV..GUN155,16#..THP;1GDFTV..GUN156..THP..(ARL,GCC,TH)¥33,500202308-202412
THA SOURCED PARTS
main25681-0E010i1GDFTV,2GDFTV..GUN155,16#..THP;1GDFTV..GUN156..THP..(ARL,GCC,TH)¥33,500202308-202410
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
THA SOURCED PARTS
25685GASKET, EGR COOLER, NO.1
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
IND SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
25800VALVE ASSY, ELECTRIC EGR CONTROL
VNM SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
90105T0156
main90105-T0156
90105T0265
main90105-T0265
90105T0285
main90105-T0285
90119T0342
main90119-T0342
9155180835
9155180890
91551G0865
9167180820
19 parts on this diagram · 5 diagrams in section
