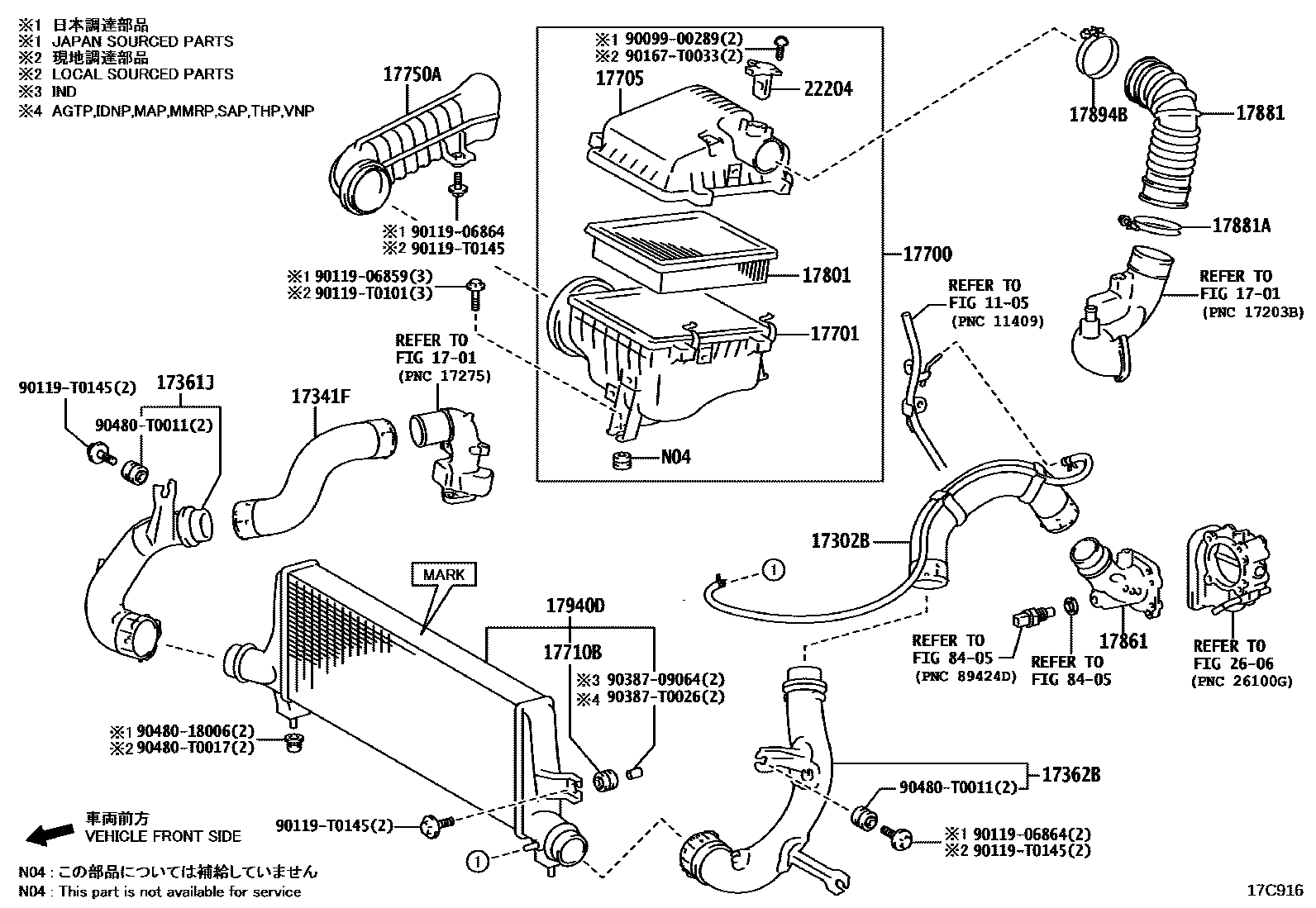

AIR CLEANER
1105
1701
17302BHOSE SUB-ASSY, AIR
17341FHOSE, AIR, NO.1
17361JTUBE, AIR, NO.1
17362BTUBE, AIR, NO.2
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17750AINLET ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6C
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
#,THA SOURCED PARTS
sub17861-08020
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),#,THA SOURCED PARTS
sub17861-08020
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,IND SOURCED PARTS
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),INDSOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
17881HOSE, AIR CLEANER, NO.1
THA SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
IDN SOURCED PARTS
ZAF SOURCED PARTS
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17940DINTERCOOLER ASSY
22204METER SUB-ASSY, INTAKE AIR FLOW
2606
8405
9009900289
main90099-00289
9011906859
main90119-06859
9011906864
main90119-06864
90119T0101
main90119-T0101
90119T0145
main90119-T0145
90167T0033
main90167-T0033
9038709064
main90387-09064
90387T0026
main90387-T0026
9048018006
main90480-18006
90480T0011
main90480-T0011
90480T0017
main90480-T0017
31 parts on this diagram · 3 diagrams in section
