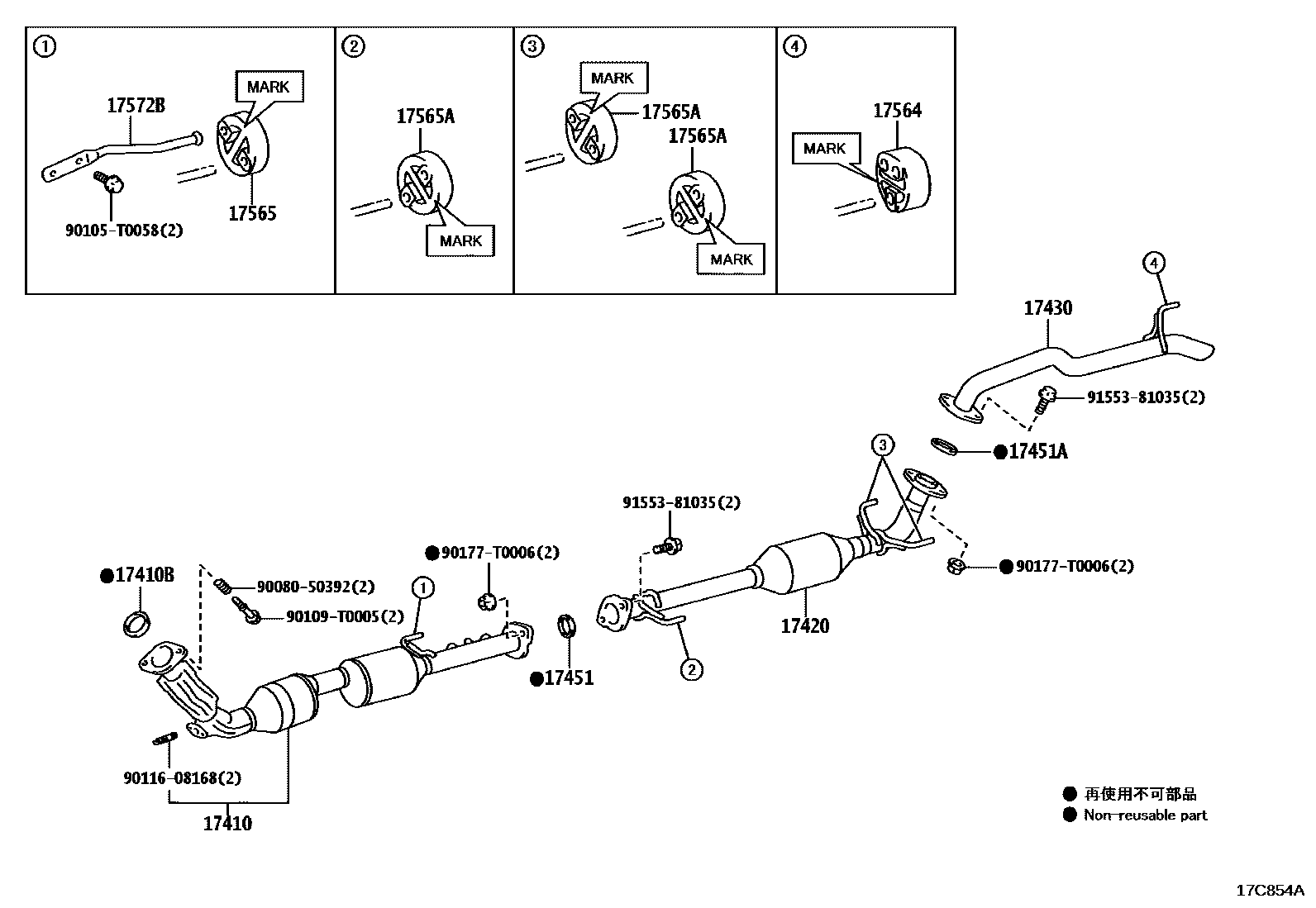

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
NIGERIA SPEC
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ONBOARD DIAGNOSIS)
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
JORDAN SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
SINGAPOLE SPEC&EXHAUST EMISSION CONTROL-EURO 6C
SINGAPOLE SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
EXPORT FROM SA&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
17410BGASKET, EXHAUST PIPE
CENTRAL AND SOUTH AMERICA SPEC
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
main17451-0L050i1GDFTV,2GDFTV,2TRFE..GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..(ARL,GCC,GEN,IDN,MA,PH,VN)202308-202412
MADE IN THAILAND
COSTA RICA SPEC
PERU SPEC
CHILE SPEC,MADE IN THAILAND
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MADE IN INDIA
CHILE SPEC,MADE IN INDIA
MADE IN INDIA
17420PIPE ASSY, EXHAUST, CENTER
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
OCEANIA(EURO 5 REGULATION)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
17430PIPE ASSY, EXHAUST, TAIL
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
17451GASKET, EXHAUST PIPE
CHILE SPEC
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
17451AGASKET, EXHAUST PIPE, NO.2
CHILE SPEC
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
main90917-T6002i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..(CAMP,IDNP,MAP)..(ARL,GCC,GEN,IDN,MA,PH,VN)202308-202412
CENTRAL AND SOUTH AMERICA SPEC
COSTA RICA SPEC
PERU SPEC
17564SUPPORT,EXHAUST PIPE, NO.4
main17565-0L100i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..IDNP..(ARL,GCC,GEN,IDN,PH,VN)202309-202410
MARK:17565-0L100
main17565-0L110i1G#,2GDFTV,2TRFE..GGN155,GUN15#,16#,TGN156,166..IDNP..(ARL,GCC,GEN,IDN,PH,VN)202309-202410
MARK:17565-0L110
MARK:17565-0L120
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK:17565-0L070
MARK:17565-0L070
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK:17565-0L070
MARK:17565-0L080
MARK:17565-0L090
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK:17565-0L090
EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L090
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),MARK:17565-0L090
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main17565-0P240i1GDFTV..GUN156..IDNP..GEN;2GDFTV..GUN155,165..RHD..GEN;2TRFE..TGN156,166..IDNP..(GCC,GEN,IDN,VN)202309-202410
NO MARK
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-WITHOUT,NO MARK
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),NO MARK
17565ASUPPORT, EXHAUST PIPE, NO.4
MARK:17565-0L070
MARK:17565-0L080
MARK:17565-0L090
main17565-0P240i1G#,2GDFTV,2TRFE..GGN155,GUN15#,165,TGN156,166..(AGTP,IDNP)..(BZAGT,LA,SA)202309-202410
NO MARK
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-WITHOUT
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035
16 parts on this diagram · 4 diagrams in section
