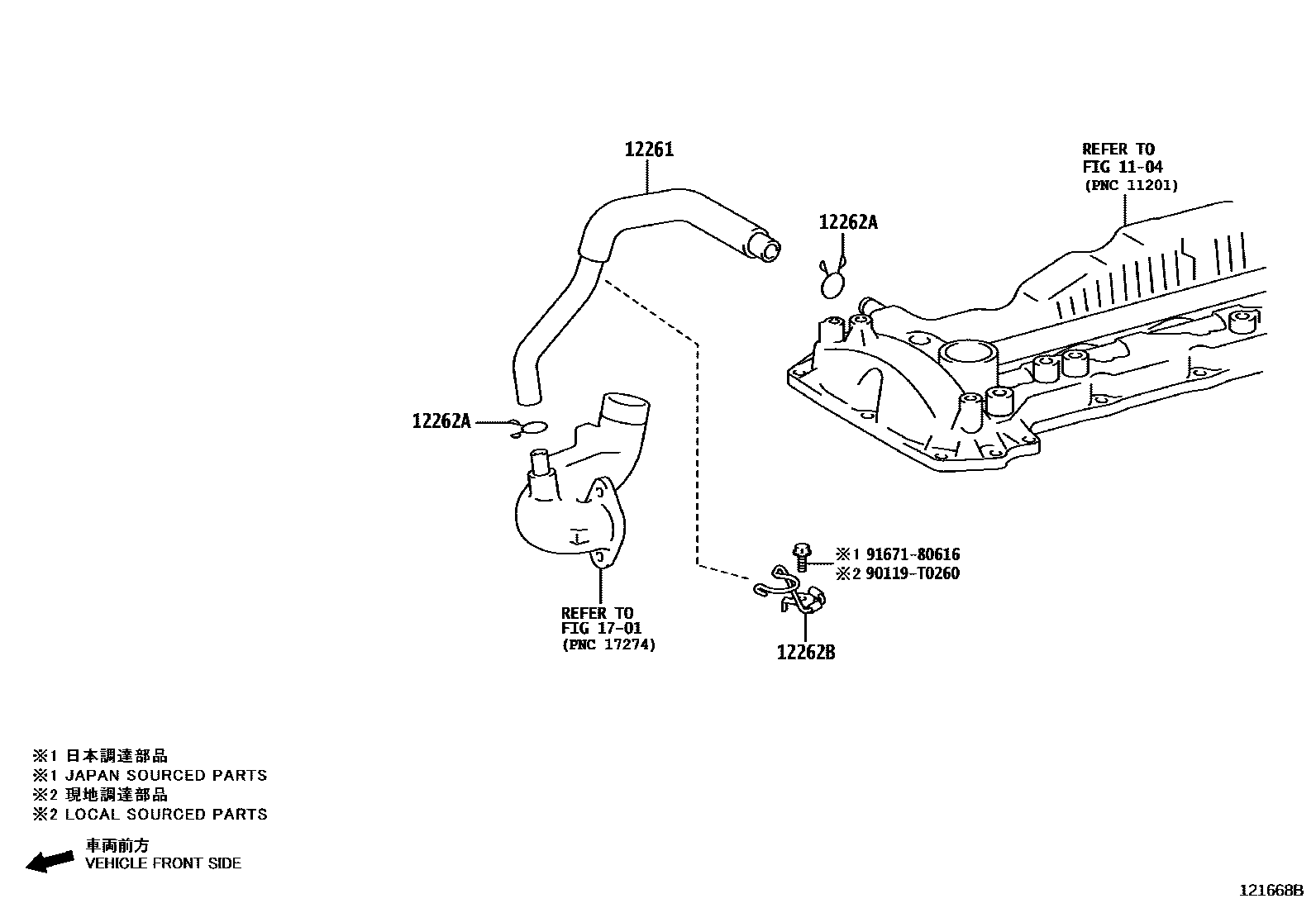

VENTILATION HOSE
1104
12261HOSE, VENTILATION
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
(L),NO.1
NO.1
(L),NO.2
(J),NO.1
(J),NO.2
NO.2
12262BCLAMP(FOR VENTILATION HOSE)
1701
90119T0260
main90119-T0260
9167180616
8 parts on this diagram · 3 diagrams in section
