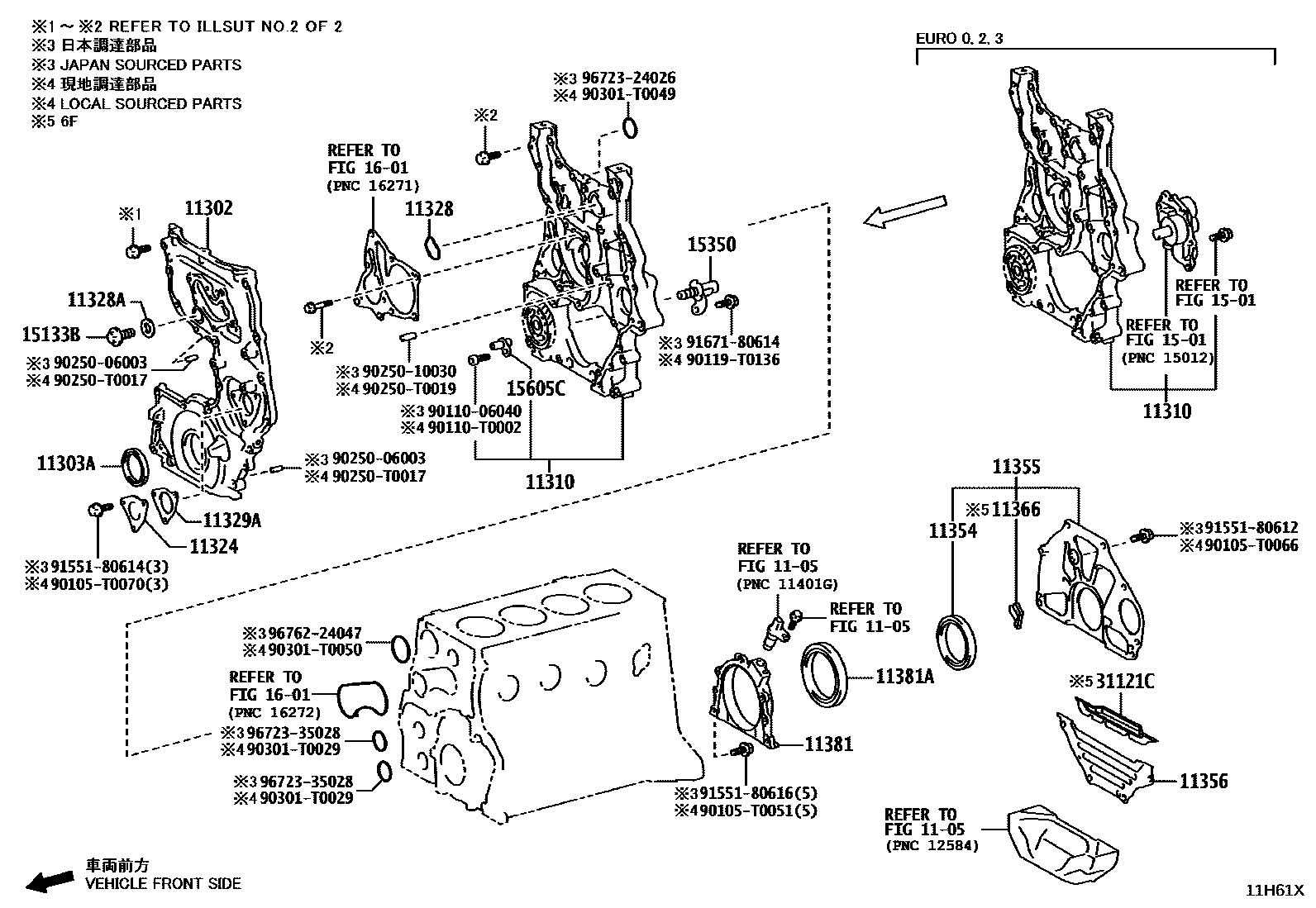

TIMING GEAR COVER & REAR END PLATE
1105
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
THA SOURCED PARTS
IND SOURCED PARTS
IND SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
11303ASEAL, OIL(FOR CRANKSHAFT FRONT)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
(L)
IDN SOURCED PARTS
THA SOURCED PARTS
11310COVER ASSY, TIMING CHAIN
THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
THA SOURCED PARTS
11324PLATE, TIMING CHAIN COVER
THA SOURCED PARTS
IND SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
11328GASKET, TIMING GEAR OR CHAIN COVER
THA SOURCED PARTS
IND SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
11328AGASKET, TIMING BELT COVER, NO.1
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
THA SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
11354SEAL, FLYWHEEL HOUSING DUST
(L)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
11355PLATE, REAR END
(L)
THA SOURCED PARTS
IND SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
(J)
11356PLATE, REAR END, NO.2
THA SOURCED PARTS
ARG SOURCED PARTS
ARG SOURCED PARTS
ARG SOURCED PARTS
11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST
11381RETAINER, ENGINE REAR OIL SEAL
IDN SOURCED PARTS
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
UAE SPEC,JAPAN SOURCED PARTS
JAPAN SOURCED PARTS
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
11381ASEAL, ENGINE REAR OIL
TOYOTA STOP & START SYSTEM-WITHOUT&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS),(J)
GCC SPEC EURO4 2018MY&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(J)
UAE SPEC,(J)
GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
(L)
IDN SOURCED PARTS
THA SOURCED PARTS
1501
15133BPLUG, OIL PUMP RELIEF VALVE
15350VALVE ASSY, OIL PRESSURE SWITCHING
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main15350-11010i1GDFTV..GUN156..CAMP;2GDFTV..GUN155,165..LHD..IDNP..GEN;1GDFTV,2GDFTV..GUN15#,16#..(IDNP,MAP)..(ARL,GCC,IDN,MA,PH,VN)202308-202412
15605CVALVE SUB-ASSY, OIL CHECK
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
main15605-30040i1GDFTV..GUN156..CAMP;2GDFTV..GUN155,165..LHD..IDNP..GEN;1GDFTV,2GDFTV..GUN15#,16#..(IDNP,MAP)..(ARL,GCC,IDN,MA,PH,VN)202308-202412
1601
31121CCOVER, CLUTCH HOUSING ADAPTER PLATE
90105T0051
main90105-T0051
90105T0066
main90105-T0066
90105T0070
main90105-T0070
9011006040
main90110-06040
90110T0002
main90110-T0002
90119T0136
main90119-T0136
9025006003
main90250-06003
9025010030
main90250-10030
90250T0017
main90250-T0017
90250T0019
main90250-T0019
90301T0029
main90301-T0029
90301T0049
main90301-T0049
90301T0050
main90301-T0050
9155180612
main91551-80612
9155180614
main91551-80614
9155180616
main91551-80616
9167180614
main91671-80614
9672324026
main96723-24026
9672335028
main96723-35028
9676224047
main96762-24047
40 parts on this diagram · 5 diagrams in section
