STANDARD TOOL

09110JACK ASSY

main09111-0K131iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main09111-0K162iGUN15#,TGN156..CAMP,MAP202308-202412

main09111-0K190iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K160iGUN15#,TGN156..CAMP,MAP202308-202409

main09114-0K180iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main09114-0K200iGUN15#,16#,TGN156..SAP202402-202412

main09114-0K320iGUN156,165,TGN166..VNP202401-202409

main09114-0K340iGUN156,TGN156,166..PKN202412

main09114-0K360iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K230iGUN15#,TGN156..CAMP,MAP202308-202409

main09115-0K240iGUN15#,16#,TGN156..SAP202402-202412

main09115-0K250iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main09115-0K290iGUN156,165,TGN166..VNP202401-202409

main09115-0K310iGUN156,TGN156,166..PKN202412

main09115-0K340iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

09120BAG, TOOL

main09120-0K120iGUN156,TGN156,166..PKN202412

main09120-0K200iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main09120-0K220iGUN156,166,TGN166..IND202310-202409

main09120-0K240iGGN155,TGN166..EPT202308-202408

main09120-0K290iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

main09120-0K310iGUN156,165,TGN166..VNP202401-202409

main09120-0K330iGUN15#,16#,TGN156..KEN,SA202402-202405

main09120-0K331iGUN15#,16#,TGN156..SAP202406-202412

09130PLIERS

main09130-0K020iGUN156,165,TGN166..VNP202401-202409

main90080-99020iGGN155,GUN156,165,TGN156,166..LA202311-202410

main90089-99010iGGN155,GUN15#,16#,TGN156,166..CAMP,IDNP,MAP202308-202408

09135DRIVER, SCREW

main09135-0K020iGUN156,165,TGN166..VNP202401-202409

main09135-0K060iGUN156,166,TGN166..IND202310-202409

main09135-0K070iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main90089-99009iGUN15#,16#,TGN156..SAP202308-202412

09141SPANNER

main09141-0K030iGGN155,GUN15#,16#,TGN156,166..THP202308-202412

8 X 10

main09141-0K040iGUN15#..KEN202308-202412

12 X 14

main09141-0K060iGUN156,165,TGN166..VNP202401-202409

8 X 10

main09141-0K070iGUN156,165,TGN166..VNP202401-202409

12 X 14

main09141-0K110iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

12 X 14

main09141-0K120iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

8 X 10

main09141-0K130iGUN156,166,TGN166..IND202310-202409

8 X 10

main90080-99015iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

8 X 10

main90080-99016iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

12 X 14

main90089-99006iGUN156,TGN156,166..PKN202412

8 X 10

main90089-99007iGUN156,TGN156,166..PKN202412

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0B050iGUN15#..KEN202402-202412

main09150-0K010iGUN15#,TGN156..CAMP,MAP202308-202408

main09150-0K030iGGN155,GUN156,165,TGN156,166..AGTP202311-202410

main09150-0K070iGUN156,TGN156,166..PKN202412

main09150-0K090iGUN156,165,TGN166..VNP202401-202409

main09150-0K100iGUN156,166,TGN166..IND202310-202409

main09150-0K110iGGN155,GUN15#,16#,TGN156,166..IDNP202309-202408

81604REFLECTOR SET, TRIANGLE

main81604-0D020iGUN156,166,TGN166..IND202310-202409

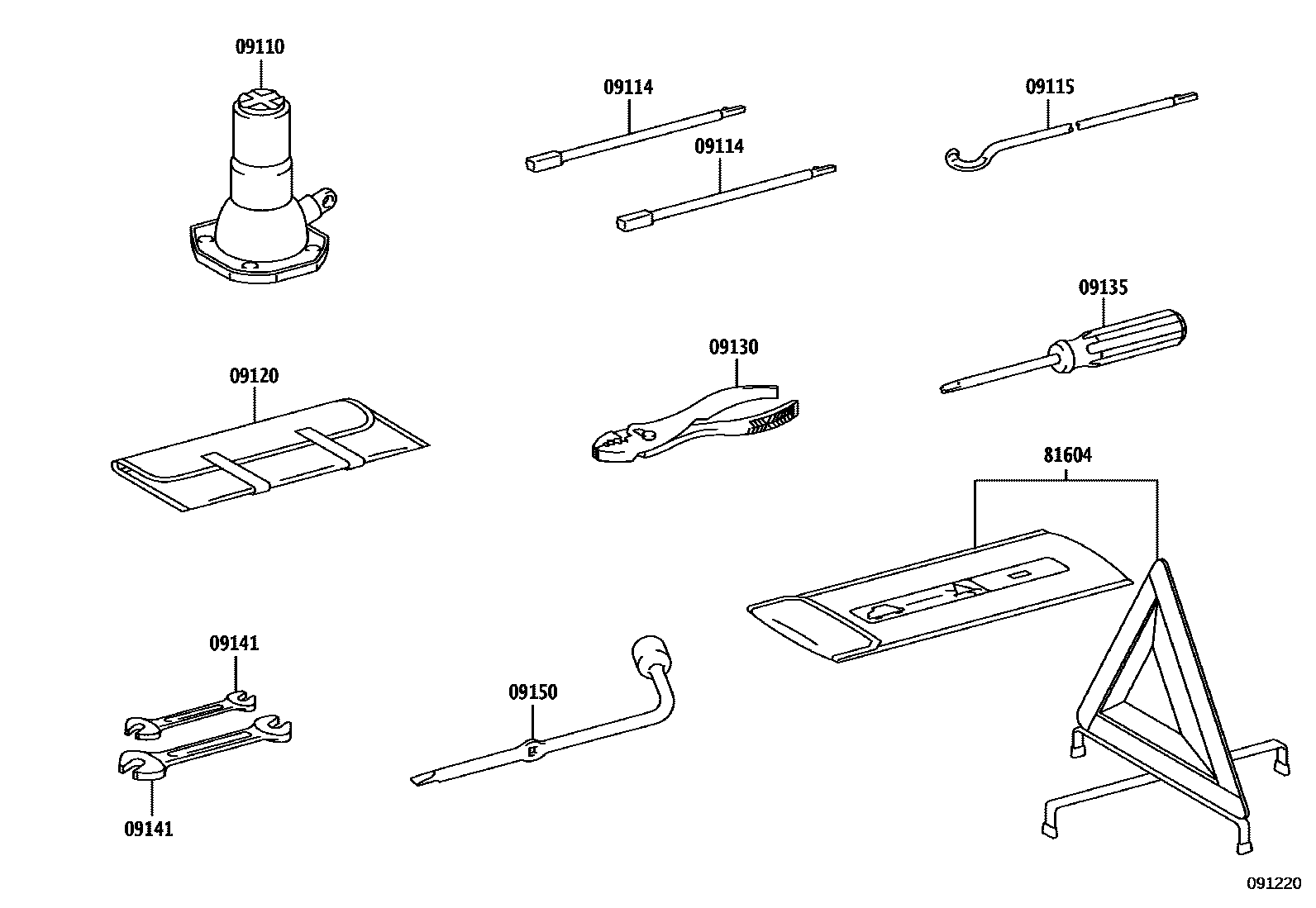

9 parts on this diagram · 1 diagram in section
