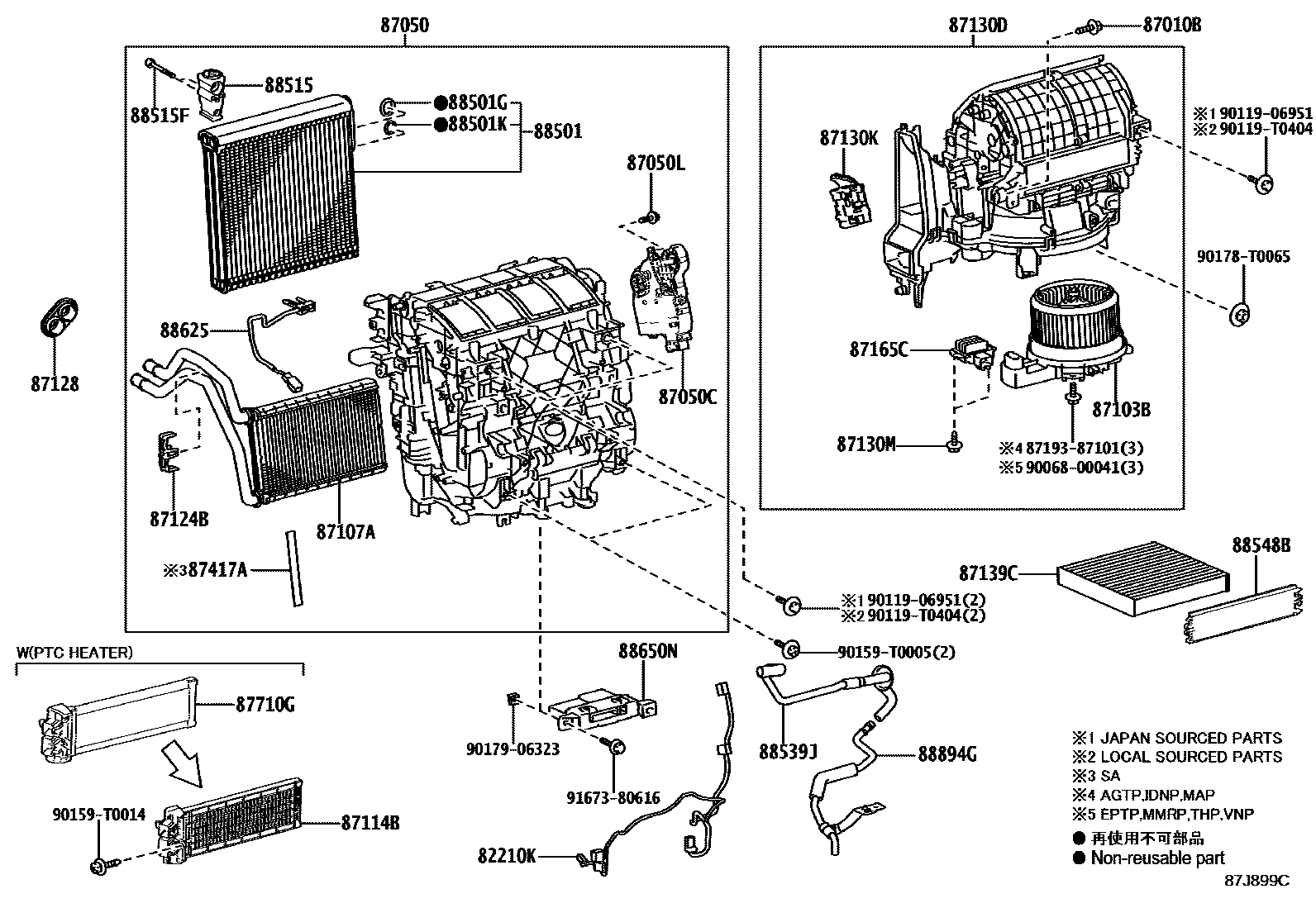

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1MANUAL COOLER 0004 1AUTO AIR CONDITIONER 0005 1MANUAL AIR CONDITIONER 0006 1MANUAL COOLER 0007 1REAR AUTO COOLER 0008 1REAR MANUAL COOLER

82210KHARNESS ASSY, AIR CONDITIONER

main82212-0K050iGUN156..THP..(L,S)202108-202207

FRONT AIR CONDITIONER-AUTO

main82212-0K060iGUN165..IDNP..S..(PH,VN);GGN155,GUN15#,166,TGN156,166..LHD..IDNP..(H,S)202108-202208

FRONT AIR CONDITIONER-AUTO

87010BSCREW(FOR AIR CONDITIONER UNIT)

main88718-0A020×2iGUN165..VNP..L202205-202209

main90068-00042×2iGUN156..IDNP..ARL202108-202208

main90094-90426×2iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main90099-00968×2iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..(GCC,GEN,IDN,MA,PH,VN)202108-202208

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0KD10iGUN165..VNP..L202205-202209

main87050-0KD30iGUN155,165,TGN156,166..THP..L202108-202207

main87050-0KE30iGUN165..L..PH202108-202208

main87050-0KE40iGUN165..IDNP..L..VN;GUN155,165,TGN156,166..LHD..(L,S)..GEN202108-202208

main87050-0KE50iGUN155,165,TGN156,166..IDNP..L..GCC202108-202208

main87050-0KE90iGUN156,16#,TGN156,166..AGTP..(L,S)202111-202210

main87050-0KG20iGUN155,165..L..SA202109-202301

main87050-0KJ00iGUN155..MA202110-202208

main87050-0KK90iGUN15#,16#,TGN166..IDN202108-202208

main87050-0KP30iGUN156,165,TGN166..VNP..6FC202108-202210

main87050-0KP40supersedes 87050-0KD30iGGN155..EPT202108-202304

main87050-0KP90supersedes 87050-0KD00iGUN156..THP..(L,S)202108-202207

FRONT AIR CONDITIONER-AUTO

main87050-0KQ20iGUN165,TGN156..LHD..GEN202108-202208

FRONT AIR CONDITIONER-AUTO

main87050-0KQ30iGGN155,GUN15#,TGN156..IDNP..(H,S)..GCC202108-202208

FRONT AIR CONDITIONER-AUTO

main87050-0KQ50iGUN166..6FC..IND202110-202209

TOYOTA STOP & START SYSTEM-WITHOUT

main87050-0KQ60iTGN168;GUN156,165,TGN156,166..AGTP..H202111-202210

FRONT AIR CONDITIONER-AUTO

main87050-0KQ80supersedes 87050-0KF30iLAN155202109-202301

FRONT AIR CONDITIONER-AUTO

main87050-0KQ90iGUN156,166..RHD..SA202109-202301

main87050-0KR00iGUN156,TGN156..MA202110-202208

main87050-0KR10iGUN156,TGN156,166..PKN202202

main87050-0KR20iGGN155..LA202111-202210

main87050-0KR30iGUN156,166..6FC..IND202110-202209

main87050-0KP70supersedes 87050-0KP80iGUN15#,16#..TH202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main87050-0KQ40supersedes 87050-0KJ90iGUN165..RHD..GEN202108-202208

FRONT AIR CONDITIONER-AUTO

main87050-0KS30iGUN155..S..IDN;GUN156,166..IDN202108-202208

TOYOTA STOP & START SYSTEM-WITH

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-F4060iTGN156..THP..L;GUN156..THP..(L,S)202108-202207

FRONT AIR CONDITIONER-AUTO

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main90068-00042supersedes 90068-00042iGGN155,GUN15#,165,TGN156,166..THP..(ARL,GCC,GEN)202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main90094-90426iGUN156..S..BZAGT;GUN16#,TGN156,166..AGTP..6FC..(L,S)202111-202210

FRONT AIR CONDITIONER-AUTO

main90099-00968iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..(GCC,GEN,IDN,MA,PH,VN)202108-202208

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0K381iGUN15#,16#..RHD..THP202108-202207

main87103-0K391iGGN155,GUN156,165,TGN166..EPTP,VNP202108-202304

main87103-0K421iGUN165..L..PH202108-202208

main87103-0K431iGUN15#,16#,TGN156,166..RHD..(GEN,IDN)202108-202208

main87103-0K441iGUN165..S..PH;GUN165..LHD..IDNP..(GCC,GEN,VN);GGN155,GUN15#,166,TGN156,166..LHD..IDNP202108-202208

main87103-0K451iGUN156,166,TGN166..IND202110-202209

main87103-0K461iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main87103-0K491iGUN15#,16#..RHD..SA202109-202301

main87103-0K501iGUN15#,LAN155,TGN156..LHD..SA202109-202301

main87103-0K531iGUN155..MA202110-202208

main87103-0K541iGUN156,TGN156..MA202110-202208

main87103-0K551iGUN156,TGN156,166..PKN202202

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0K110iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

main87107-0K140iGUN156,166,TGN166..IND202110-202209

main87107-0K150iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main87107-0K170iGUN15#,16#,LAN155,TGN156..SA202109-202301

main87107-0K180iGUN156,TGN156..MA202110-202208

main87107-0K190iGUN156,TGN156,166..PKN202202

main87107-0K210iGUN15#,16#,TGN166..IDN202108-202208

87114BCOVER, HEATER

main87114-0K040iGGN155,GUN156,165,TGN156,166..EPTP,PKNP,VNP202108-202304

main87114-0K050iGUN15#,16#,LAN155,TGN156..SA202109-202301

main87114-0K060iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main87114-0K070iGUN156..H..LA;GUN156..AGTP..L;GGN155,GUN16#,TGN156,16#..AGTP202111-202210

main87114-0K080iGUN156,166,TGN166..IND202110-202209

main87114-0K090iGUN15#,TGN156..MA202110-202208

87124BCLAMP, HEATER

main87124-06140iGUN156,165,TGN156,166..PKNP,VNP202108

main87124-0K220iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main87124-0K230iGUN15#,16#,LAN155,TGN156..SA202109-202301

87128GROMMET, HEATER

main87128-0K140iGUN165..L..PH202108-202208

main87128-0K150iGUN165..S..PH;GUN165..IDNP..(GCC,GEN,IDN,VN);GGN155,GUN15#,166,TGN156,166..IDNP202108-202208

main87128-0K160iGUN156,166,TGN166..IND202110-202209

main87128-0K180iGUN156,165,TGN156,166..PKNP,VNP202108

main87128-0K190iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main87128-0K200iGUN15#,16#,LAN155,TGN156..SA202109-202301

main87128-0K210iGUN155..MA202110-202208

main87128-0K250iGUN156,TGN156..MA202110-202208

87130DBLOWER ASSY

main87130-0K591iGUN155,165,TGN156,166..THP..L202108-202207

main87130-0K601supersedes 87130-0K771iLAN155202109-202301

FRONT AIR CONDITIONER-AUTO

main87130-0K621supersedes 87130-0K571iGUN155,16#..TH;GUN156..RHD..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO

main87130-0K631iGGN155,GUN156,165,TGN166..(EPTP,VNP)..(H,S)202108-202304

main87130-0K651iGUN165..L..PH202108-202208

main87130-0K661iGUN165..IDNP..L..VN;GUN155,TGN156,166..IDNP..L;GUN165..LHD..IDNP..(GCC,GEN)202108-202208

main87130-0K681iGUN165..IDNP..S..(PH,VN);GGN155,GUN15#,166,TGN156,166..LHD..IDNP..(H,S)202108-202208

FRONT AIR CONDITIONER-AUTO

main87130-0K691supersedes 87130-0KA11iGUN16#..IDN;GUN15#,TGN156,166..RHD..(GEN,IDN)202108-202208

FRONT AIR CONDITIONER-AUTO

main87130-0K701iGUN156,166,TGN166..IND202110-202209

main87130-0K721iGUN156,16#,TGN156,166..AGTP..(L,S)202111-202210

main87130-0K731iGUN156..S..BZAGT;GUN16#,TGN156,166..AGTP..6FC..(L,S)202111-202210

FRONT AIR CONDITIONER-AUTO

main87130-0K801iGUN155,165..L..SA202109-202301

main87130-0K811iGUN156,166..RHD..SA202109-202301

main87130-0K841iGUN155..MA202110-202208

main87130-0K851iGUN156,TGN156..MA202110-202208

main87130-0K871iGUN156,TGN156,166..PKN202202

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-0K220iGUN156..THP..(L,S);GUN155,165,TGN156,166..THP..L202108-202207

main87106-0K241iTGN156..THP..L202108-202207

FRONT AIR CONDITIONER-AUTO

main87106-0K251iGUN155,16#..TH;GUN156..RHD..THP..H202108-202207

FRONT AIR CONDITIONER-AUTO

87130MSCREW(FOR BLOWER)

main88718-0A020×5iGUN165..VNP..L202205-202209

main90068-00042×5iGGN155,GUN156,165,TGN166..(EPTP,VNP)..6FC202108-202304

main90094-90426×5iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main90099-00968×7iGUN166..6FC..IND202110-202209

TOYOTA STOP & START SYSTEM-WITHOUT

87139CFILTER, CLEAN AIR

main87139-0K030iGUN15#,16#,TGN166..IDN,PH202108-202208

POLLEN FILTER

main87139-0K040iGGN155,GUN15#,165,TGN156,166..IDNP..(ARL,GCC,GEN,VN)202108-202208

POLLEN FILTER

main87139-0K050iGUN156,166,TGN166..IND202110-202209

POLLEN FILTER,OE PART

main87139-0K060iGUN15#,16#..TH202108-202207

POLLEN FILTER

main87139-0K070iGGN155,GUN156,165,TGN156,166..EPTP,PKNP,VNP202108-202304

POLLEN FILTER,OE PART

main87139-0K080iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

POLLEN FILTER,OE PART

main87139-0K090iGUN15#,16#,LAN155,TGN156..SA202109-202301

POLLEN FILTER,OE PART

main87139-0K100iGUN15#,TGN156..MA202110-202208

POLLEN FILTER

main87139-58010iGGN155,GUN15#,16#,LAN155,TGN156,166..EPTP,PKNP,SAP,VNP202108-202304

DEODORANT FILTER

87165CCONTROL, BLOWER MOTOR

main87165-0K060iTGN156..THP..L;GUN156..THP..(L,S)202108-202207

FRONT AIR CONDITIONER-AUTO

87417APACKING, AIR DUCT

main87417-0K050iGUN15#,16#,LAN155,TGN156..SA202109-202301

87710GQUICK HEATER ASSY

main87710-0K120iGUN156..(H,S)..BZAGT202111-202210

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K320supersedes 88501-0K330iGUN156..THP..ARL202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main88501-0K390iGGN155,GUN15#,165,TGN156,166..LHD..THP202108-202207

main88501-0K410iGUN166..6FC..IND202110-202209

TOYOTA STOP & START SYSTEM-WITHOUT

main88501-0K420iGUN15#,LAN155,TGN156..LHD..SA202109-202301

main88501-0K430iGUN15#,16#..RHD..SA202109-202301

main88501-0K450iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202108-202208

main88501-0K460iGUN15#,16#,TGN156,166..RHD..(GEN,IDN)202108-202208

main88501-0K480iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main88501-0K510iGUN15#,TGN156..MA202110-202208

main88501-0K520iGUN156,TGN156,166..PKN202202

main88501-0K550iGUN156,166..6FC..IND202110-202209

main88501-0K620iGUN155..S..IDN;GUN156,166..IDN202108-202208

TOYOTA STOP & START SYSTEM-WITH

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90068-14044iGGN155,GUN156,165,TGN166..(EPTP,VNP)..6FC202108-202304

ID=10.2,OD=15.0

main90069-38042iLAN155202109-202301

ID=13.4,OD=18.27

main90099-14121iGUN165..H..LA;GUN165..(AGTP,VNP)..L;GGN155,GUN156,166,TGN156,16#..AGTP202108-202210

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90068-14043iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

ID=13.4,OD=18.2

main90069-38041iLAN155202109-202301

ID=10.8,OD=15.47,FRONT AIR CONDITIONER-AUTO

main90099-14120iGUN156,166,TGN166..IND202108-202209

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-0K580supersedes 88515-0K670iGUN156..THP..(ARL,GEN)202108-202207

TOYOTA STOP & START SYSTEM-WITHOUT

main88515-0K590iGGN155,GUN15#,165,TGN156,166..THP..GCC202108-202207

main88515-0K670iGUN156,166..6FC..IND202108-202209

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90068-04042×2iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main90068-04062×2iGGN155,GUN15#,16#,TGN156,166..THP202108-202207

main90099-04542×2iGGN155,GUN15#,16#,TGN156,166..(IDNP,MAP)..(GCC,GEN,IDN,MA,PH,VN)202108-202208

88539JHOSE, DRAIN COOLER

main88539-0K330iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202108-202208

main88539-0K340iGUN15#,16#,TGN156,166..RHD..IDNP202108-202208

main88539-0K360iGUN156,166,TGN166..IND202110-202209

main88539-0K380iGGN155,GUN15#,165,TGN156,166..LHD..THP202108-202207

main88539-0K390iGUN15#,16#..RHD..THP202108-202207

main88539-0K410iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main88539-0K420iGUN15#,LAN155,TGN156..LHD..SA202109-202301

main88539-0K430iGUN15#,16#..RHD..SA202109-202301

main88539-0K470iGUN15#,TGN156..MA202110-202208

main88539-0K490iGUN156,TGN156,166..PKN202202

88548BCASE, AIR FILTER

main88548-0K091iGGN155,GUN15#,16#,TGN156,166..IDNP202108-202208

main88548-0K101iGUN156,166,TGN166..IND202110-202209

main88548-0K111iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main88548-0K121iGUN15#,16#,LAN155,TGN156..SA202109-202301

main88548-0K131iGUN15#,TGN156..MA202110-202208

main88899-06330iGUN156,165,TGN156,166..PKNP,VNP202108

88625THERMISTOR, COOLER, NO.1

main88620-0K010supersedes 88620-0K020iGGN155,GUN15#,16#,TGN156,166..IDNP,MAP202108-202208

main88620-0K020iGUN156,166..6FC..IND202108-202209

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0K470iGUN155,165..L..(MA,PH)202108-202208

main88650-0K590iGUN156..THP..(L,S)202108-202207

FRONT AIR CONDITIONER-AUTO

main88650-0K770supersedes 88650-0K750iGGN155,GUN155,TGN156..THP..S202108-202207

SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)

main88650-0K780iGUN156..S..BZAGT;GUN16#,TGN156,166..AGTP..6FC..(L,S)202111-202210

FRONT AIR CONDITIONER-AUTO

main88650-0K830iGUN156..THP..(L,S);GUN155,165,TGN156,166..THP..L202108-202207

main88650-0K840iGUN156,16#,TGN156,166..AGTP..(L,S)202111-202210

main88650-0K790supersedes 88650-0K800iGUN165..GEN202108-202208

FRONT AIR CONDITIONER-AUTO&SEAT HEATER-WITHOUT & WITH(SEAT VENTILATION)

88894GCONNECTOR, DRAIN HOSE

main88894-0K010iGGN155,GUN156,165,TGN166..EPTP,VNP202108-202304

main88894-0K020iGUN156,TGN156,166..PKN202108

main88894-0K040iGGN155,GUN15#,16#,TGN156,166..LHD..IDNP202108-202208

main88894-0K050iGUN15#,16#,TGN156,166..RHD..IDNP202108-202208

main88894-0K070iGUN156,166,TGN166..IND202110-202209

main88894-0K090iGGN155,GUN156,16#,TGN156,16#..AGTP202111-202210

main88894-0K100iGUN15#,LAN155,TGN156..LHD..SA202109-202301

main88894-0K110iGUN15#,16#..RHD..SA202109-202301

main88894-0K130iGUN15#,TGN156..MA202110-202208

8719387101

main87193-87101

9006800041

main90068-00041

9011906951

main90119-06951

90119T0404

main90119-T0404

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90178T0065

main90178-T0065

9017906323

main90179-06323

9167380616

main91673-80616

36 parts on this diagram · 8 diagrams in section
