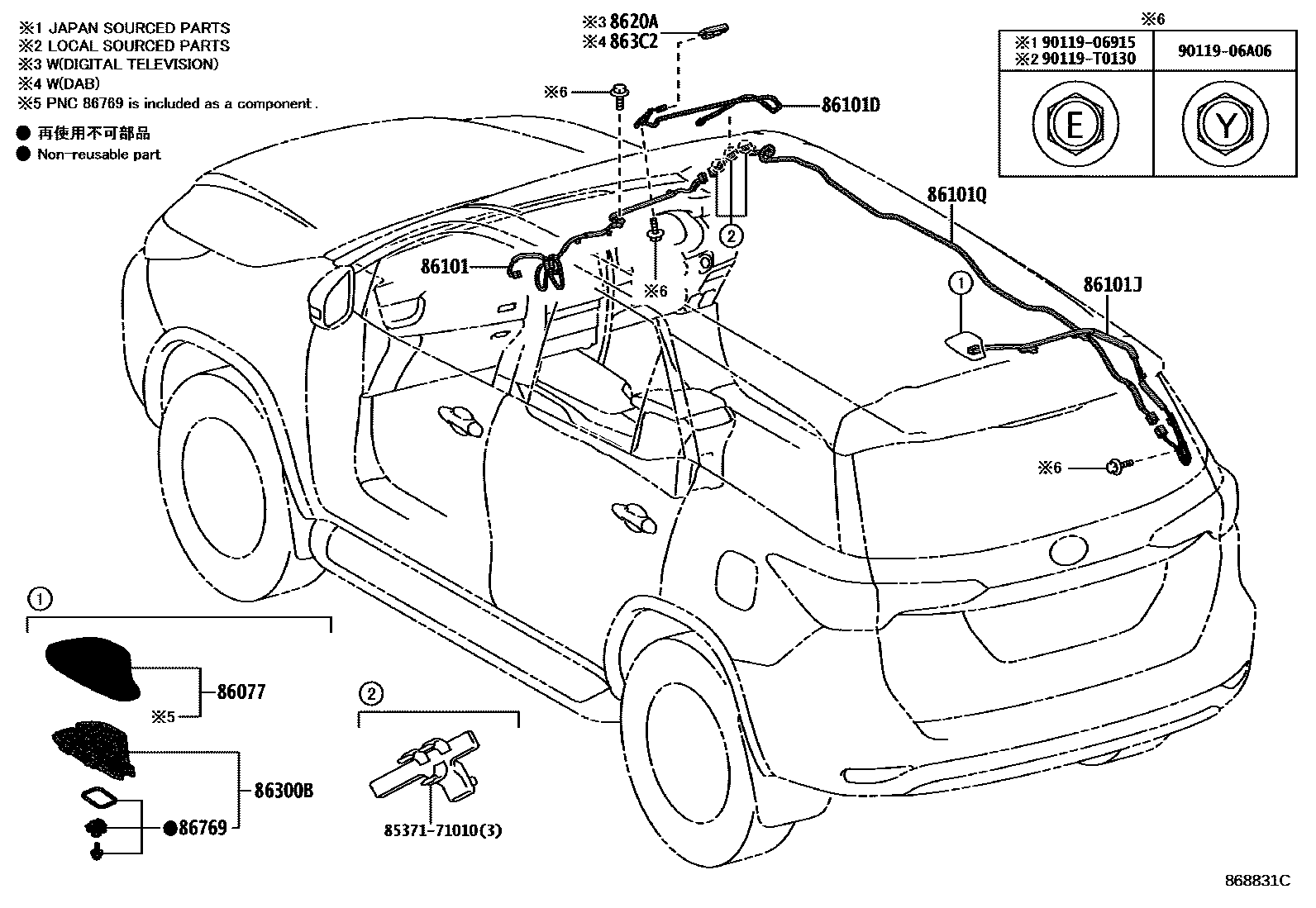

ANTENNA
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
main86077-0K010-A2iGUN155..L..SA;GUN155..IDNP,THP;GGN155,GUN156,16#,LAN155,TGN156,16#..AGTP,IDNP,INDP,SAP,THP,VNP202108-202301
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D4
SILVER ME.,1D6
MEDIUM SILVER ME.,1F8
GRAY ME.,1G3
ATTITUDE BLACK MC.,218 ,2UE ,2VM
ATTITUDE BLACK MC.,218 ,2QJ ,2SC
ATTITUDE BLACK MC.,218 ,2PS ,2QJ
main86077-0K010-C0iGUN166..LHD;GUN156..6FC..L..LA;GUN156..AGTP..6F..(H,L);GGN155,GUN165,TGN156,166..LA;GUN156..6FC..H..(BZAGT,LA,PH)202108-202211
ATTITUDE BLACK MC.,218 ,2QJ ,2QY
main86077-0K010-C0iGUN165..S..TH;GUN156..RHD..GEN;GUN156..LHD..(L,S)..(BZAGT,SA);GUN156,166..ARL,GCC,IDN,IND,VN;GGN155,GUN155,165,LAN155,TGN156,16#..BZAGT,GCC,GEN,IDN,IND,MA,PH,SA,VN202108-202301
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
EMOTIONAL RED 2,3U5
AVANT-GARDE BRONZE ME.,4V8
PHANTOM BROWN ME.,4W9
BRONZE M.M.,4T3
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
DK. BLUE MC.,8X8
86101CORD SUB-ASSY, ANTENNA
AUDIO-*DA(8INCH) & *BT
MLM PACKAGE & ACCESSORY
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(FOR EMERGING MARKET)
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-*DA(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main86101-0KJ71iGGN155..GEN;GUN165..IDNP..S..VN;GUN165,TGN156..IDNP..L;GGN155,GUN155,TGN166..LHD..IDNP..(L,S)202108-202208
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0KJ71iGGN155..GEN;GUN165..IDNP..S..VN;GUN165,TGN156..IDNP..L;GGN155,GUN155,TGN166..LHD..IDNP..(L,S)202108-202208
AUDIO-WITHOUT
main86101-0KJ81iGUN15#..LHD..IDNP..H;GUN165..LHD..S..(GEN,PH);TGN156..LHD..IDNP..(H,S);GGN155,GUN166..IDNP..H..(GCC,PH)202108-202208
AUDIO-*DA(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-WITHOUT
AUDIO-*DA(8INCH) & *BT & DAB
86101DCORD SUB-ASSY, ANTENNA, NO.3
AUDIO-*DA(FOR EMERGING MARKET) & DAB
UAE SPEC
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE&DATA COMMUNICATION MODULE-WITH(G-DCM)
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
8620AANTENNA SUB-ASSY, DIGITAL TELEVISION, NO.1
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
86300BANTENNA ASSY, AMPLIFIER, NO.1
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-*DA(FOR EMERGING MARKET) & DAB
UAE SPEC
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB
86769HOUSING, ROOF ANTENNA
8537171010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-71010
9011906915
main90119-06915
9011906A06
main90119-06A06
90119T0130
main90119-T0130
13 parts on this diagram · 1 diagram in section
