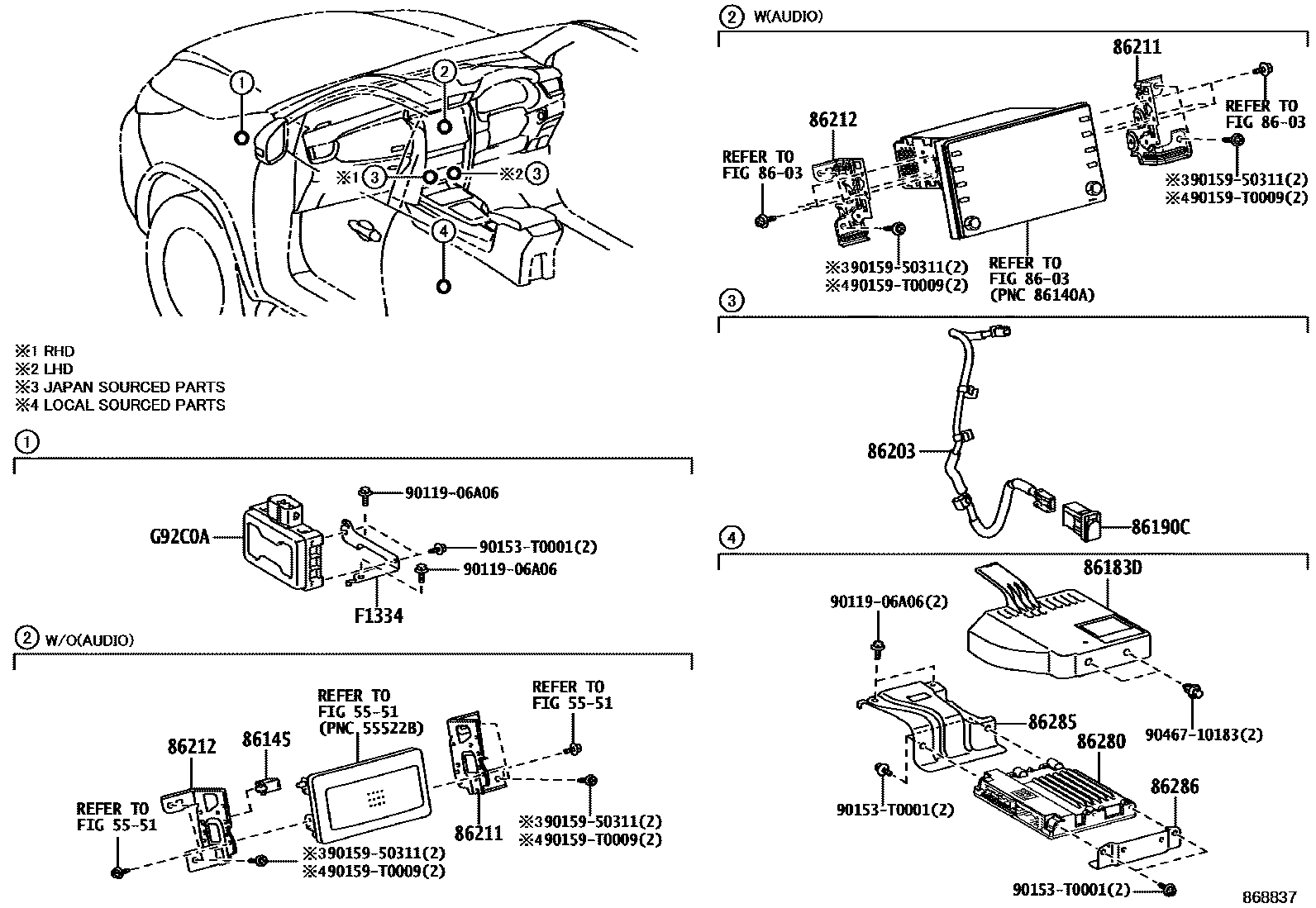

RADIO RECEIVER & AMPLIFIER & CONDENSER

5551

8603

86145CONNECTOR, ANTENNA MALE

main86145-52010iGUN15#,16#..H..TH202108-202207

MLM PACKAGE

main86145-52010iGUN156..TH202108-202207

GR SPORT & ACCESSORY

main86145-52010iGUN15#,166..IDN,MA;GGN155,GUN155..LHD..IDNP..(L,S);GUN165,TGN166..IDNP..(GCC,IDN,VN);TGN156..(IDNP,MAP)..(H,L)..(GCC,MA);GGN155,GUN165,TGN156,166..LHD..(H,L)..(GEN,202108-202301

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86145-52010iGUN15#,166..IDN,MA;GGN155,GUN155..LHD..IDNP..(L,S);GUN165,TGN166..IDNP..(GCC,IDN,VN);TGN156..(IDNP,MAP)..(H,L)..(GCC,MA);GGN155,GUN165,TGN156,166..LHD..(H,L)..(GEN,202108-202208

AUDIO-WITHOUT

main86145-52010iGUN15#,16#..H..TH202108-202207

MLM PACKAGE & ACCESSORY

main86145-52010iTGN166..EPT202108-202304

86183DCOVER, AUDIO AMPLIFIER

main86183-0K020iGUN156..THP..H..(ARL,GEN)202108-202301

SPEAKER-11SPEAKER & JBL

main86183-0K020iGUN156..THP..H..(ARL,GEN)202108-202207

MLM PACKAGE

main86183-0K020iGUN156..THP..H..(ARL,GEN)202108-202207

GR SPORT & ACCESSORY

main86183-0K020iGUN156..IND202108-202209

main86183-0K020iGUN165..H..LA202111-202203

SPEAKER-6SPEAKER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0K100iGUN165,TGN166..VNP..S202205-202209

AUDIO-AVN(8INCH) & *BT

main86190-0K100iGUN156..H..LA;GUN156,TGN156..BZAGT;TGN166..AGTP..6FC..(H,S);GGN155,GUN165,TGN168..AGTP202108-202304

main86190-0K100iGUN156,TGN166..L..LA202108-202210

AUDIO-*DA(8INCH) & *BT

main86190-0K100iGUN155,165..L..SA202108-202301

AUDIO-*DA(8INCH) & *BT & DAB

main86190-0K110iGUN165,TGN166..IDNP..S..VN202108-202208

AUDIO-*DA(8INCH) & *BT & DAB

main86190-0K110iGUN165..S..(GEN,PH);TGN156..IDNP..(H,S);GGN155,GUN166..IDNP..H..(GCC,PH);GUN155,TGN166..IDNP..H..(GCC,GEN);GUN156..IDNP..(ARL,GCC,GEN,PH,VN)202108-202208

AUDIO-*DA(8INCH) & *BT

main86190-0K110iGUN165..S..(GEN,PH);TGN156..IDNP..(H,S);GGN155,GUN166..IDNP..H..(GCC,PH);GUN155,TGN166..IDNP..H..(GCC,GEN);GUN156..IDNP..(ARL,GCC,GEN,PH,VN)202108-202208

AUDIO-AVN(8INCH) & *BT

86203WIRE, RADIO

main86203-71180iGGN155..THP..S202108-202210

AUDIO-*DA(8INCH) & *BT

main86203-71180iGGN155,GUN156..LHD..THP..H;GUN155,TGN156..THP..(H,S)..GCC202108-202208

AUDIO-*DA(8INCH) & *BT & DAB

main86203-71180iGUN165..H..VN;GGN155,GUN15#,LAN155,TGN156..LHD..(EPTP,SAP,VNP)202108-202304

main86203-71180iGUN15#..LHD..IDNP..H;GUN165..LHD..S..(GEN,PH);TGN156..LHD..IDNP..(H,S);GGN155,GUN166..IDNP..H..(GCC,PH)202108-202209

AUDIO-AVN(8INCH) & *BT

main86203-71190iGUN15#,16#..RHD..THP202108-202301

main86203-71190iGUN155,165..L..SA202109-202301

AUDIO-*DA(8INCH) & *BT & DAB

86211BRACKET, RADIO, NO.1

main86211-KK060iGUN156..TH202108-202207

MLM PACKAGE & ACCESSORY

main86211-KK060iGUN156..THP..GEN202108-202207

MLM PACKAGE

main86211-KK060iGUN156,TGN156,166..PKN202108

main86211-KK060iGUN156..THP..GEN202108-202207

GR SPORT & ACCESSORY

main86211-KK060iGUN156,TGN156..IDNP..H..GEN202108-202208

AUDIO-WITHOUT

main86211-KK080iGUN166,TGN156..LA;GUN156,TGN166..(L,S)..LA202108-202301

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86211-KK080iGUN156..RHD..GEN202108-202208

AUDIO-WITHOUT

main86211-KK080iGUN155,TGN156..THP..L;GGN155,GUN165,TGN166..THP..(L,S)..GCC202108-202304

main86211-KK090iTGN156,166..IDNP..L..GCC;GGN155,GUN155..IDNP..S..GCC202108-202210

AUDIO-*DA(FOR EMERGING MARKET)

main86211-KK090iGGN155..THP..H;GUN156,166..THP;GUN155,165,TGN156..THP..(H,S)202108-202208

AUDIO-*DA(8INCH) & *BT & DAB

main86211-KK090iGGN155..THP..H;GUN156,166..THP;GUN155,165,TGN156..THP..(H,S)202108-202210

AUDIO-*DA(8INCH) & *BT

main86211-KK090iGGN155..THP..H;GUN156,166..THP;GUN155,165,TGN156..THP..(H,S)202108-202208

AUDIO-*DA(FOR EMERGING MARKET) & DAB

main86211-KK090iGUN165..S..(GEN,PH);TGN156..IDNP..(H,S);GGN155,GUN166..IDNP..H..(GCC,PH);GUN155,TGN166..IDNP..H..(GCC,GEN);GUN156..IDNP..(ARL,GCC,GEN,PH,VN)202108-202209

AUDIO-AVN(8INCH) & *BT

main86211-KK090iGUN165..6F..SA;GUN165..6FC..(H,L)..(SA,VN);GGN155,GUN15#,166,LAN155,TGN156..EPTP,SAP,VNP202108-202304

86212BRACKET, RADIO, NO.2

main86212-KK060iGUN156..THP..GEN202108-202207

MLM PACKAGE & ACCESSORY

main86212-KK060iGUN15#,16#..H..TH202108-202207

GR SPORT & ACCESSORY

main86212-KK060iGUN156..TH202108-202207

MLM PACKAGE

main86212-KK060iGUN15#,16#,TGN156,166..IDN,MA202108-202208

AUDIO-WITHOUT

main86212-KK060iGUN156,TGN156,166..PKN202108

main86212-KK080iTGN156..IDNP..H;GUN156..IDNP..GEN202108-202208

AUDIO-WITHOUT

main86212-KK080iGUN156..RHD..GEN202108-202301

AUDIO-WITHOUT & WITH(AUDIO LESS COVER)

main86212-KK080iGUN155,TGN156..THP..L;GGN155,GUN165,TGN166..THP..(L,S)..GCC202108-202304

main86212-KK090iGUN155,TGN156,166..THP..L202108-202208

AUDIO-*DA(8INCH) & *BT & DAB

main86212-KK090iGUN155,TGN156,166..THP..L202108-202210

AUDIO-*DA(8INCH) & *BT

main86212-KK090iGUN155,TGN156,166..THP..L202108-202210

AUDIO-*DA(FOR EMERGING MARKET)

main86212-KK090iGUN155,TGN156,166..THP..L202108-202208

AUDIO-*DA(FOR EMERGING MARKET) & DAB

main86212-KK090iGUN165..S..(GEN,PH);TGN156..IDNP..(H,S);GGN155,GUN166..IDNP..H..(GCC,PH);GUN155,TGN166..IDNP..H..(GCC,GEN);GUN156..IDNP..(ARL,GCC,GEN,PH,VN)202108-202209

AUDIO-AVN(8INCH) & *BT

main86212-KK090iGUN165..6F..SA;GUN165..6FC..(H,L)..(SA,VN);GGN155,GUN15#,166,LAN155,TGN156..EPTP,SAP,VNP202108-202304

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0K060iGUN156,166..TH202108-202208

SPEAKER-11SPEAKER & JBL

main86280-0K060iGUN156,166..TH202108-202207

GR SPORT & ACCESSORY

main86280-0K060iGUN165..H..LA202111-202203

SPEAKER-6SPEAKER,P/N LABEL=862800K060

main86280-0K060iGUN156..TH202108-202207

MLM PACKAGE

main86280-0K060iGUN156..IND202108-202209

main86280-0K060iGUN165..H..LA202111-202210

P/N LABEL=862800K060

main86280-0K060iGUN165..H..LA202111-202210

SPEAKER-11SPEAKER & JBL,P/N LABEL=862800K060

main86280-0K090iGUN165..H..LA202111-202210

SPEAKER-11SPEAKER & JBL,P/N LABEL=862800K090

main86280-0K090iGGN155,GUN156,TGN166..AGTP..H202111-202210

P/N LABEL=862800K090

main86280-0K100iGUN156,166..RHD..6FC..SA202109-202301

SPEAKER-11SPEAKER & JBL

main86280-0K110iGUN165..H..VN202208-202209

SPEAKER-11SPEAKER & JBL

86285BRACKET, AMPLIFIER, NO.1

main86285-KK010iGUN156,166..TH202108-202207

GR SPORT & ACCESSORY

main86285-KK010iGUN165..H..LA202111-202203

SPEAKER-6SPEAKER

main86285-KK010iGUN156,166..TH202108-202207

MLM PACKAGE

main86285-KK010iGUN156,166..TH202108-202301

SPEAKER-11SPEAKER & JBL

main86285-KK010iGUN156..IND202108-202209

86286BRACKET, AMPLIFIER, NO.2

main86286-KK010iGUN165..H..LA202111-202203

SPEAKER-6SPEAKER

main86286-KK010iGUN156,166..TH202108-202207

MLM PACKAGE

main86286-KK010iGUN156,166..TH202108-202207

GR SPORT & ACCESSORY

main86286-KK010iGUN156,166..TH202108-202301

SPEAKER-11SPEAKER & JBL

main86286-KK010iGUN156..IND202108-202209

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF1334KK010iGUN156,166..TH202108-202207

MLM PACKAGE

mainF1334KK010iGUN156,166..TH202108-202207

GR SPORT & ACCESSORY

mainF1334KK010iGUN156..6FC..IND202110-202209

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

mainG92C030020iGUN156,166..TH202108-202207

MLM PACKAGE

mainG92C030020iGUN156,166..TH202108-202207

GR SPORT & ACCESSORY

mainG92C030020iGUN156..6FC..IND202110-202209

9011906A06

main90119-06A06

90153T0001

main90153-T0001

9015950311

main90159-50311

90159T0009

main90159-T0009

9046710183

main90467-10183

18 parts on this diagram · 1 diagram in section
