SWITCH & RELAY & COMPUTER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),DENSO
OCEANIA GENERAL (EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARDDIAGNOSIS),DENSO
OCEANIA GENERAL (EURO 4 REGULATION),DENSO
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),DENSO
OCEANIA(EURO 5),DENSO
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),DENSO
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),DENSO
DENSO
ASEAN GENERAL SPEC,DENSO
CENTRAL AND SOUTH AMERICA SPEC,DENSO
DENSO
YAZAKI
ASEAN GENERAL SPEC,YAZAKI
CENTRAL AND SOUTH AMERICA SPEC,YAZAKI
YAZAKI
89465SENSOR, OXYGEN
89465ASENSOR, OXYGEN NO.2
89467BSENSOR, AIR FUEL RATIO
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-TIER1.5
OCEANIA(EURO 5)
89615SENSOR, KNOCK CONTROL
8271571180BRACKET,WIRING HARNESS CLAMP
main82715-71180
8271571210BRACKET,WIRING HARNESS CLAMP
main82715-71210
90119T0134
main90119-T0134
9155180830
main91551-80830

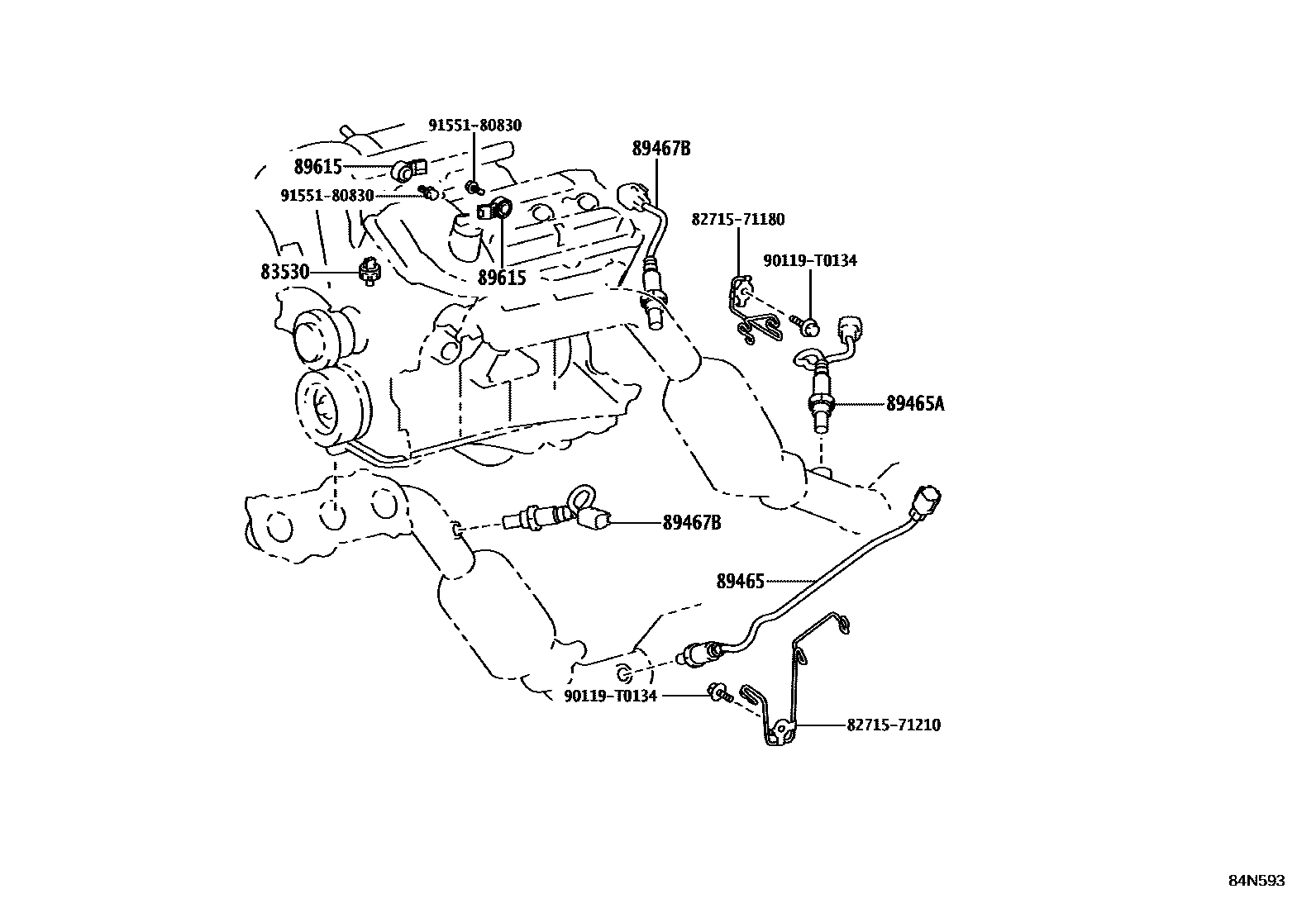

9 parts on this diagram · 20 diagrams in section
