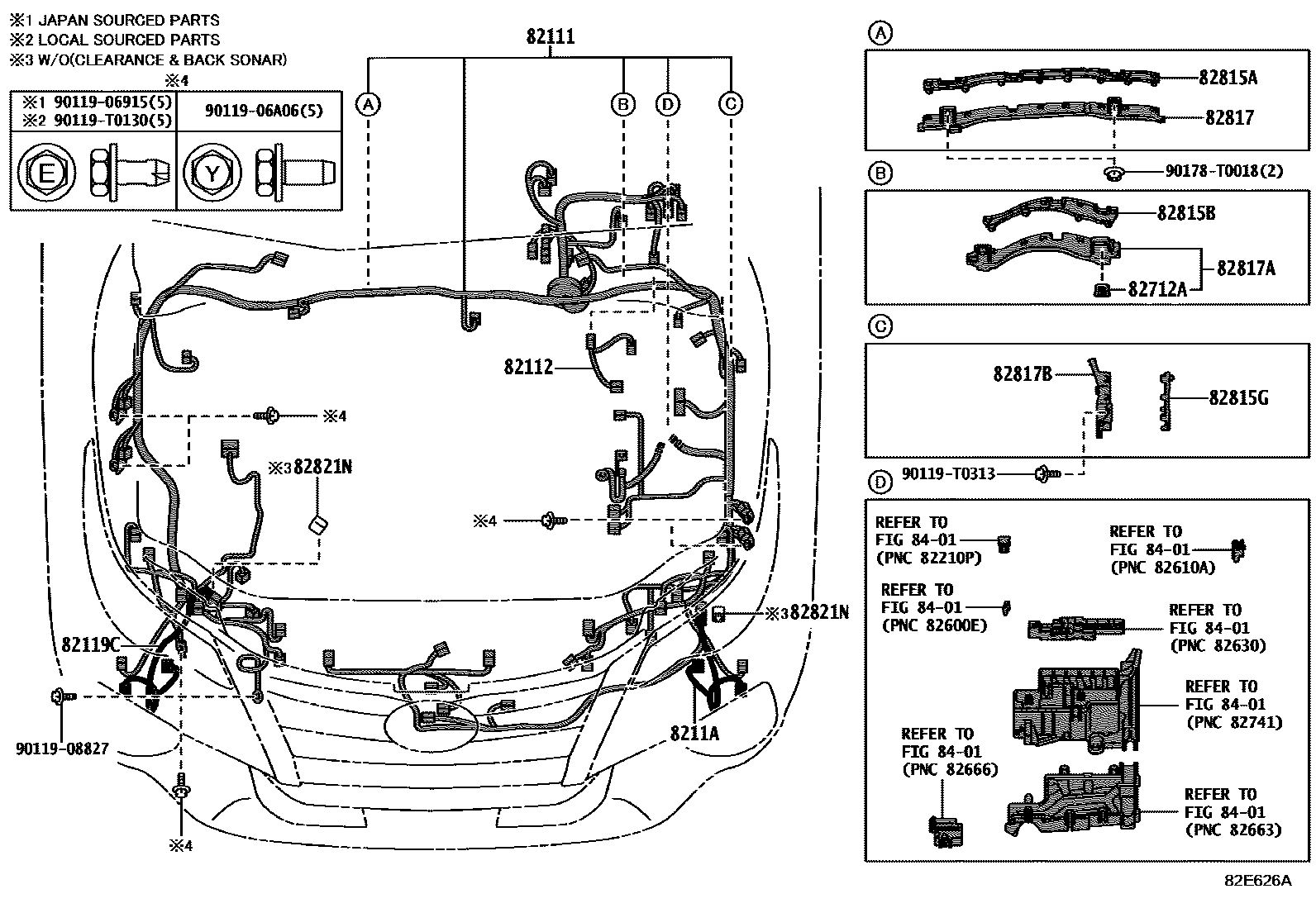

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
HEADLAMP-LED & WITH(*DRL)&BACK MONITOR-WITH(*PVM)
FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)&BACK MONITOR-WITH(*PVM)
NIGERIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)&HEADLAMP-LED & WITH(*DRL)&BACK MONITOR-WITH(*PVM)
FRONT BUMPER-PAINTED(MLM)
HEADLAMP- LED & WITH(SEQUENTIAL TURN)&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&BACK MONITOR-WITH(*PVM)
FRONT BUMPER-PAINTED(MLM)
BACK MONITOR-WITH(*PVM)
FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
EXHAUST EMISSION CONTROL-EURO6C&BACK MONITOR-WITH(*PVM)
EXHAUST EMISSION CONTROL-EURO6C&BACK MONITOR-WITH(*PVM)
HEADLAMP- LED & WITH(SEQUENTIAL TURN)&BACK MONITOR-WITH(*PVM)
FRONT BUMPER-PAINTED(GR SPORT)
BACK MONITOR-WITH(*PVM)
TOYOTA STOP & START SYSTEM-WITHOUT
HEADLAMP- LED & WITH(SEQUENTIAL TURN)
HEADLAMP- LED & WITH(SEQUENTIAL TURN)&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
HEADLAMP-LED & WITH(*DRL)&BACK MONITOR-WITH(*PVM)
FRONT BUMPER-PAINTED(MLM)
FRONT BUMPER-PAINTED(MLM)
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
BACK MONITOR-WITH(*PVM)
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
FRONT BUMPER-PAINTED(MLM)
FRONT BUMPER-PAINTED(GR SPORT)&BACK MONITOR-WITH(*PVM)
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
TOYOTA STOP & START SYSTEM-WITH
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
FRONT BUMPER-PAINTED(MLM)
TOYOTA STOP & START SYSTEM-WITH
HEADLAMP-LED & WITH(*DRL)
HEADLAMP-LED & WITH(*DRL)
EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
HEADLAMP- LED & WITH(SEQUENTIAL TURN)
FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)
GR SPORT & ACCESSORY&TOYOTA STOP & START SYSTEM-WITHOUT&FRONT BUMPER-PAINTED(GR SPORT)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&AUDIO-ACCESSORY DISPLAY AUDIO(9INCH)
FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(ACCESSORY BACK MONITOR & *PVM)
FRONT BUMPER-PAINTED(MLM)
TOYOTA STOP & START SYSTEM-WITHOUT&FRONT BUMPER-PAINTED(MLM)
TOYOTA STOP & START SYSTEM-WITHOUT
82112WIRE, ENGINE ROOM, NO.2
82119CWIRE, ENGINE ROOM, NO.5
CLEARANCE & BACK SONAR-WITH
main82119-KK201iTGN156..IDNP..(H,L);GUN155,16#,TGN166..IDNP;GUN156..IDNP..(ARL,GEN,IDN,PH,VN)202108-202208
CLEARANCE & BACK SONAR-WITH
MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
main82119-KK181iGUN165..S..PH;GUN155,166..IDNP..(H,S);GUN165,TGN166..IDNP..(GEN,IDN,VN);GUN156,TGN156..IDNP..H..(GEN,IDN,PH,VN)202108-202208
FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
FRONT FOG LAMP-WITH(LED)
MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
8211AWIRE, ENGINE ROOM, NO.6
CLEARANCE & BACK SONAR-WITH
main8211A-KK200iTGN156..IDNP..(H,L);GUN155,16#,TGN166..IDNP;GUN156..IDNP..(ARL,GEN,IDN,PH,VN)202108-202208
CLEARANCE & BACK SONAR-WITH
MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
FRONT BUMPER-PAINTED(MLM)&FRONT FOG LAMP-WITH(LED)
main8211A-KK180iGUN165..S..PH;GUN155,166..IDNP..(H,S);GUN165,TGN166..IDNP..(GEN,IDN,VN);GUN156,TGN156..IDNP..H..(GEN,IDN,PH,VN)202108-202208
FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
FRONT FOG LAMP-WITH(LED)
MLM PACKAGE&FRONT FOG LAMP-WITH(LED)
82712ASUPPORT, WIRING HARNESS
82815ACOVER, WIRING HARNESS PROTECTOR
82815BCOVER, WIRING HARNESS PROTECTOR
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82821NCOVER, CONNECTOR
CLEARANCE & BACK SONAR-WITHOUT
8401
9011906915
main90119-06915
9011906A06
main90119-06A06
9011908827
main90119-08827
90119T0130
main90119-T0130
90119T0313
main90119-T0313
90178T0018
main90178-T0018
19 parts on this diagram · 16 diagrams in section
